NEO-F9P-15B Multi-band L1,L5 RTK GNSS U.FL antenna connector LIS3MDL magnetometer, for your UDR systems, UAV systems, Robots, RC, FPV or other projects.

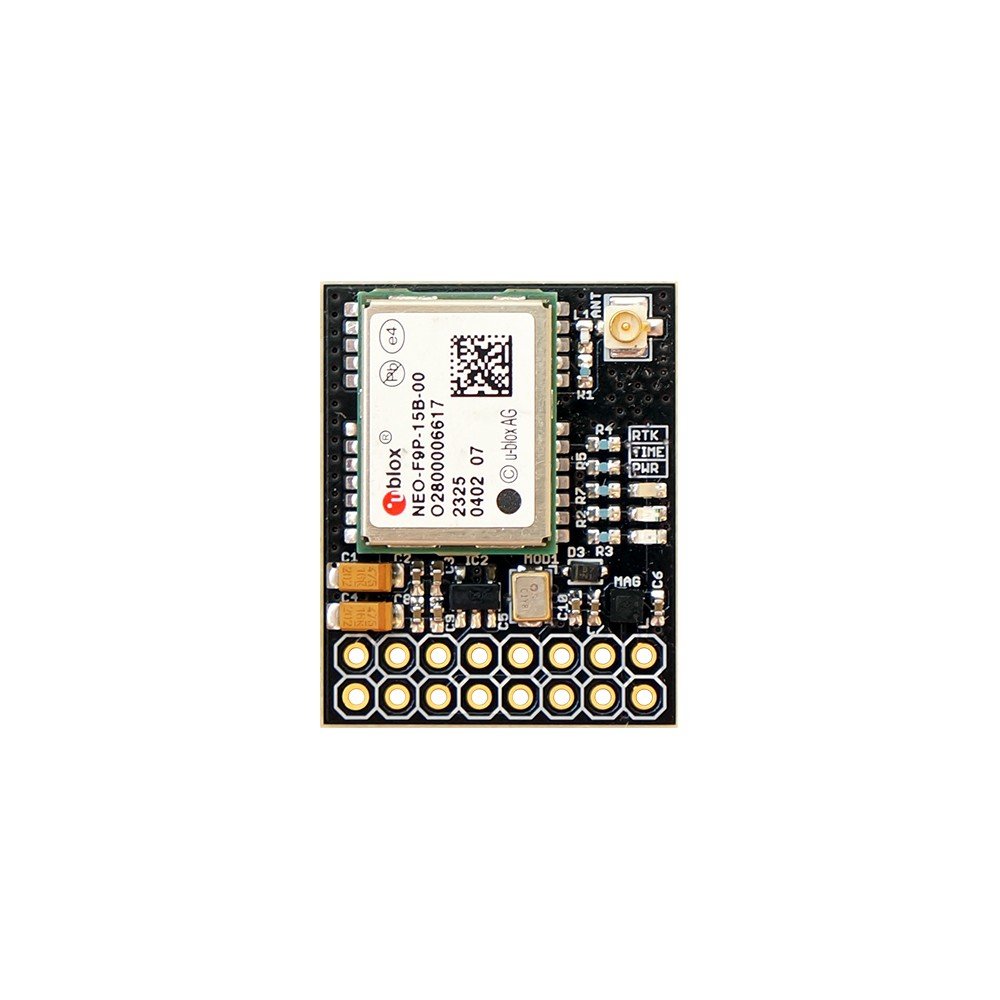

NEO-F9P High Precision GNSS breakout PCB with UF.L antenna connectors. Multi-band receiver delivers centimeter-level accuracy in seconds. The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.
Available in stock (>100 pcs)
Couldn't load pickup availability
Product Features
Product Features
NEO-F9P breakout pcb features:
- 184-channel u-blox F9 engine GPS L1C/A L5, GLO L1OF, GAL E1B/C E5a, BDS B1I B2a, QZSS L1C/A L1S L5, SBAS L1C/A NavIC L5
- On-board low noise 3.3V voltage regulator

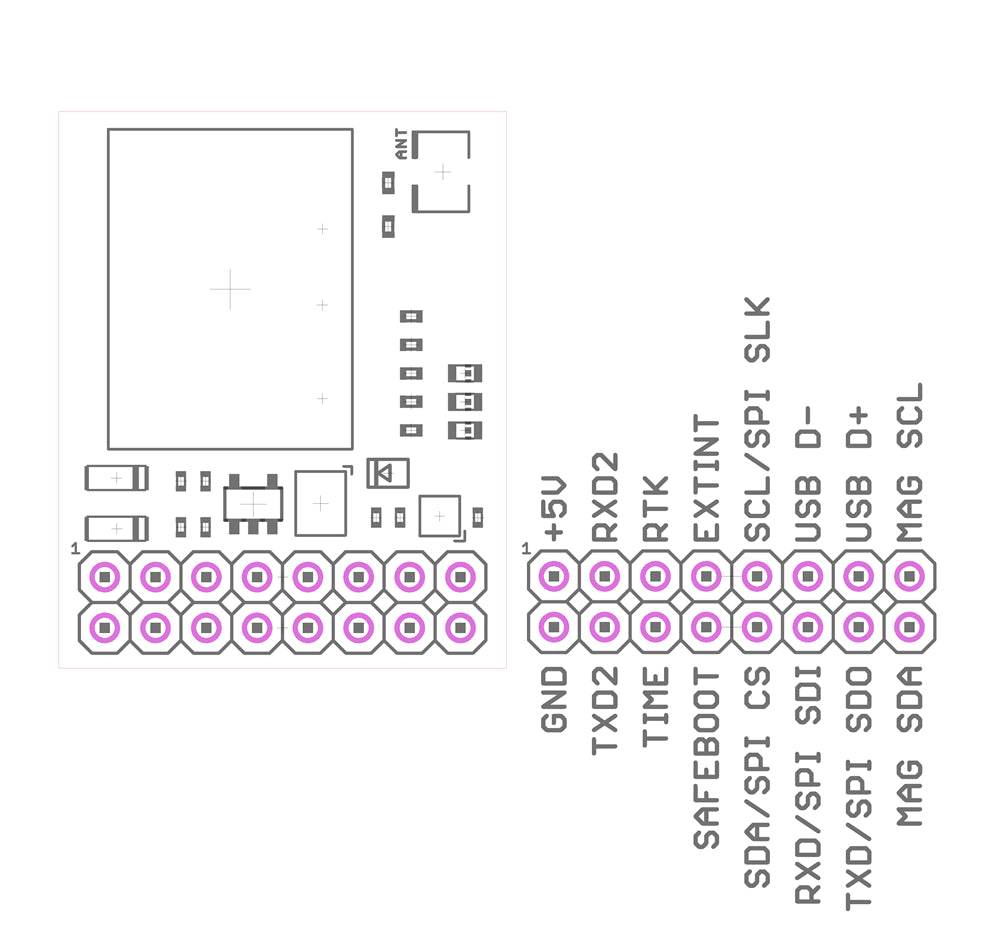

- 16 holes for easy connections to board with pitch 2.54mm
- USB, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface I2C compass interface
- Time pulse LED, Power LED, RTK LED
- U.FL antenna connector
- Support active antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 28x23 mm
- Weight: 2,9 gr.
- Fully assembled and ready to use
- Pin to pin compatible with ELT0092 and ELT0128 boards
- Build in LIS3MDL magnetometr
Board can be used for a Base or Rover operation mode!
