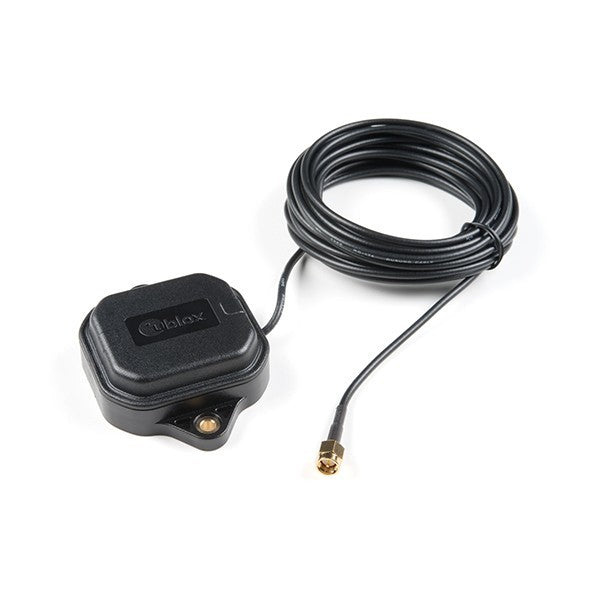

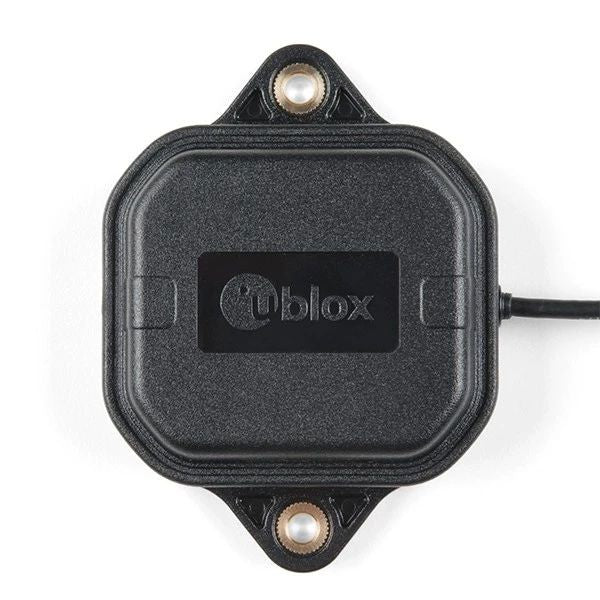

ANN-MB Multi-Band, High Precision GNSS antenna
The ANN-MB multi-band (L1, L2/E5b) active GNSS antennas are designed to reduce time to market for the next generation of high precision GNSS applications, which require highly accurate location abilities. The compact design, excellent price-performance ratio, and versatile mounting and connector choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB antenna is a perfect match to the latest u-blox F9 platform including the ZED-F9P module, thus providing customers with the valuable antenna solution they need to minimize design-in efforts. IP rating IP67
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1/L2
- GLONASS G1/G2/G3
- GALILEO E1/E5b
- BDS B1I/B2I/B1C/B2b
- SBAS L1
- QZSS L1/L2
Highlights:
- Multi-band (L1, L2/E5b) active GNSS antennas with excellent price-performance ratio 28 dB
- Supports GPS, GLONASS, Galileo, and BeiDou
- Fast and easy antenna solution for high precision applications
- Versatile mounting and connector options
- IP rating IP67
Amplifier characteristics:
- Gain without cable 28 ± 3.0 dB
- LNA Noise figure Max 3.2 dB
- Axial Ratio: 2.0dB max. @Zenith
- Output VWSR Max.: 2.0
- DC Voltage: 3 - 5 V
- DC Current typ.: 15 mA
Mechanical Data:
- Weight: 173 g (without cable)
- Size: 82 x 60 x 22.5 mm
- Cable lenght: 5 meters
- Connectors: SMA
- Housing color: Black
- Mounting: magnetic base, screw mount 2 x M4 distance 68 mm
