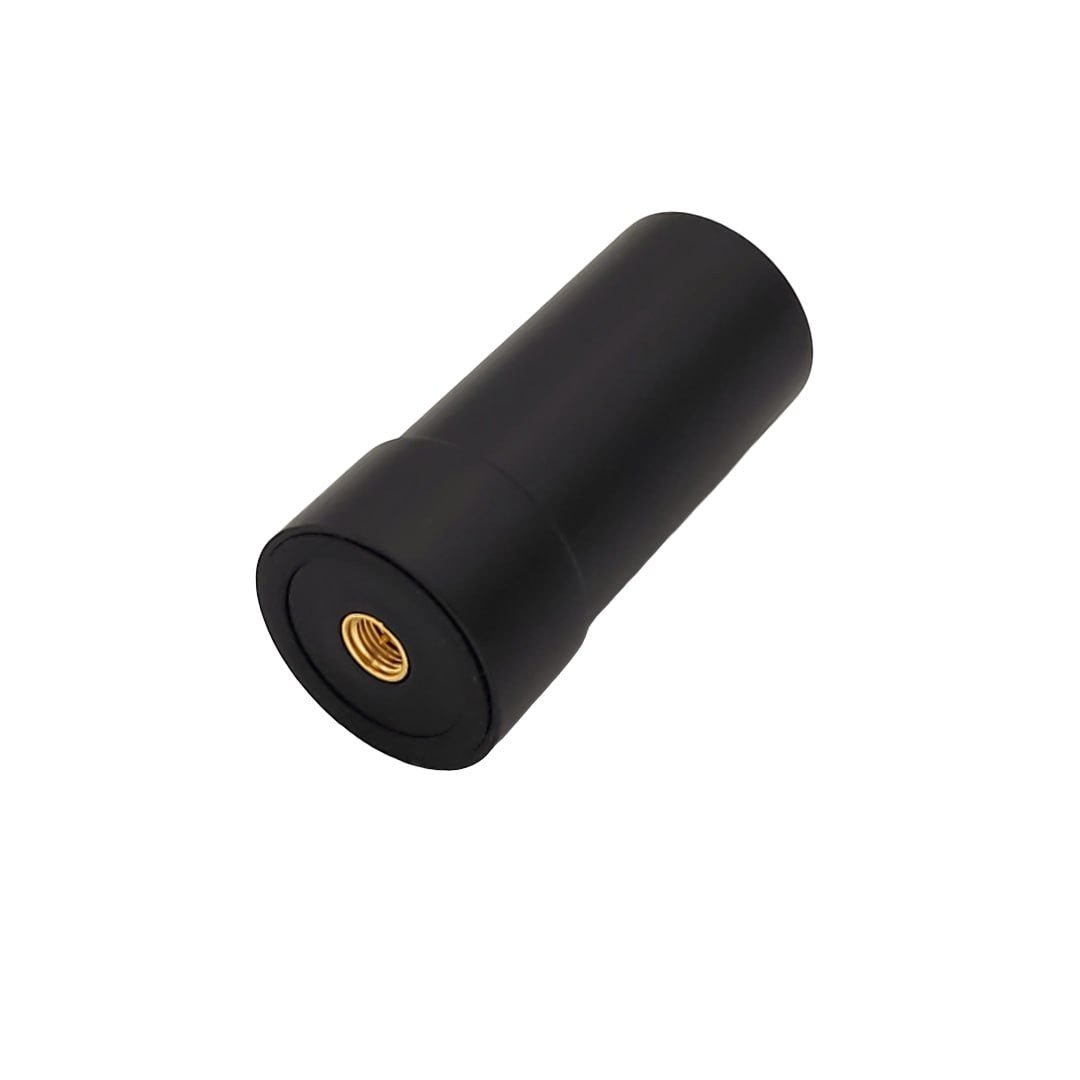

L1/L2/L5 High Performance Multiband RTK GNSS Active Quad Helix Antenna
Tax excluded
Active Quad Helix Antenna (black) description:
This is an active multi-frequency, high-accuracy, GNSS antenna for the GPS L1/L2/L5, Glonass G1/G2/G3, Beidou B1I/B2I/B1C/B2a/B2b, Galileo E1/E5a/E5b, SBAS L1/L5, QZSS L1/L2/L5, IRNSS I5 bands. The antenna is designed for applications requiring greater accuracy than L1-only antennas can provide. The antenna is built on helical structure technology providing exceptional pattern control, polarization purity and high-efficiency in a compact form factor. It features an integrated SMA connector and rugged IP67 automotive grade components. This antenna is ideal for applications requiring minimal integration effort or for retrofitting existing products. The antenna is equipped with an O-ring.
Available in stock (>1000 pcs)
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Passive Antenna Performance:
|
Frequency: |
1166-1280 MHz (L2, L5, B2a, B2b, B3, G2, G3, E5a, E5B) |
1550-1610 MHz (L1, E1, B1I, B1C, G1) |
|
Peak Efficiency |
46% |
49% |
|
Polarization |
RHCP |
RHCP |
|
Realized Gain |
1,1dB |
0,5dB |
|
Axial Ratio |
Max 1.2 dB at the Zenith |
Max 0.9 dB at the Zenith |
|
VSWR |
Max 2:1 |
Max 2:1 |
|
Beamwidth |
135˚ |
125˚ |
|
Horizontal Coverage |
360˚ |
360˚ |
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2/G3
- GALILEO E1/E5a/E5b
- BDS B1I/B2I/B1C/B2a/B2b/B3
- SBAS L1/L5
- QZSS L1/L2/L5
- IRNSS I5
Phase Center Variation:
- In azimuth plane: Max 10mm
- As low as 40 degree elevation: Max 10mm
- Between samples: Max 5mm
- Over frequency band: Max 10mm
RF Specifications:
- 30 dBic @ 1227 MHz (typical)
- 28 dBic @ 1575 MHz (typical)
- 28 dBic @ 1602 MHz (typical)
- LNA Gain: 37 dB
- Noise Figure: 1.5 dB max
- Axial Ratio: >≤ 3 dB
- Voltage: 3.3 to 16 V
- Current: 29 mA max
- Out of Band Rejection: 40 dBc
- Group Delay Variation: Less than 5ns over GNSS bands
- EMI Immunity Out of Band: 30 V/m
- ESD Circuit Protection: 15 kv human body model air discharge
Active Quad Helix Antenna features:
- Quadrifilar helix antenna
- Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
- Rugged IP67 rating with SMA mount
- Small form factor
- Ground plane independent
- GIS, RTK and other high accuracy GNSS applications
- Low power consumption
- Low phase center variation over azimuth and elevation and among different samples
- Ultra-lightweight about: 18 gr.
- Dimension: 59.7 x Ø27.5mm
- Mounting: SMA mount
- Automotive grade electronics
Accessories
NEO-M9N GNSS Smart Antenna module with RFI protection. USB C and SMA Helix antenna. Black.
SKU: ELT0155

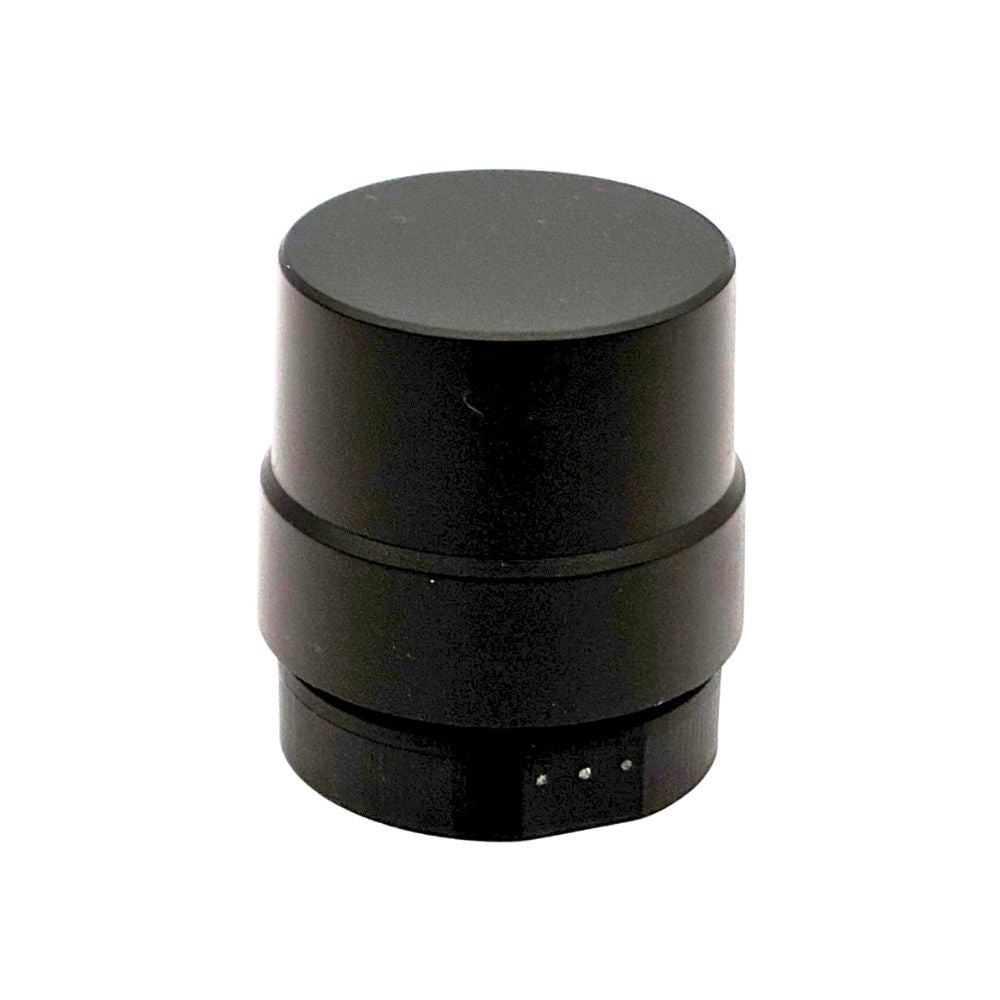

ZED-F9P RTK GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna. Black plastic case.
