NEO-M9N Module Specifications

92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L1OF BeiDou B1I (1561.098 MHz) only, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Nav. update rate Up to 50 Hz (4 concurrent GNSS)
Position accuracy 1.5 m CEP (with SBAS) or 2.0 m CEP (without SBAS)
UDR position error 10% of distance traveled without GNSS (duration < 60 s)
ADR position error 2% of distance traveled without GNSS
Acquisition
Cold starts: 24 s
Aided cold starts: 2 s
Reacquisition: 2 s
Sensitivity Tracking & Nav: –160 dBm
Reacquisition –159 dBm
Cold starts (aided): –148 dBm
Hot starts: –158 dBm
Geofencing Up to 4 circular areas Software message or GPIO for waking up the host CPU
RF interference and jamming detection and reporting
Active GNSS in-band filtering
Active GNSS in-band filtering Spoofing detection and reporting (consistency checks based on GNSS and sensors)
Device integrity Secure boot of firmware Receiver configuration lock by command
Secure interface Signed UBX messages (SHA-256) JTAG debug interface port locked
Assistance GNSS AssistNow Online
Active and passive Supported antennas

Downloads

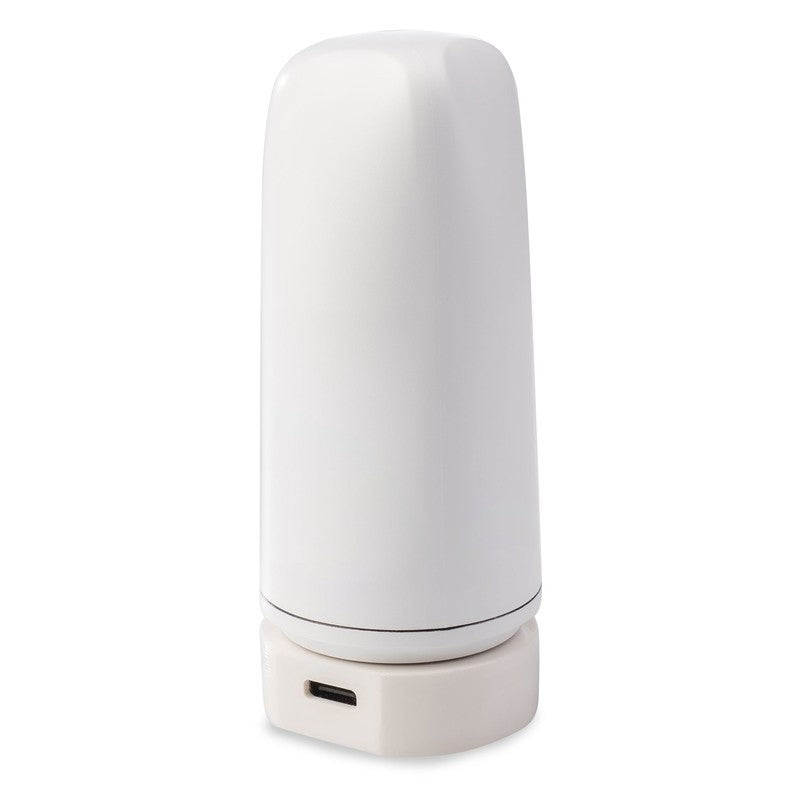

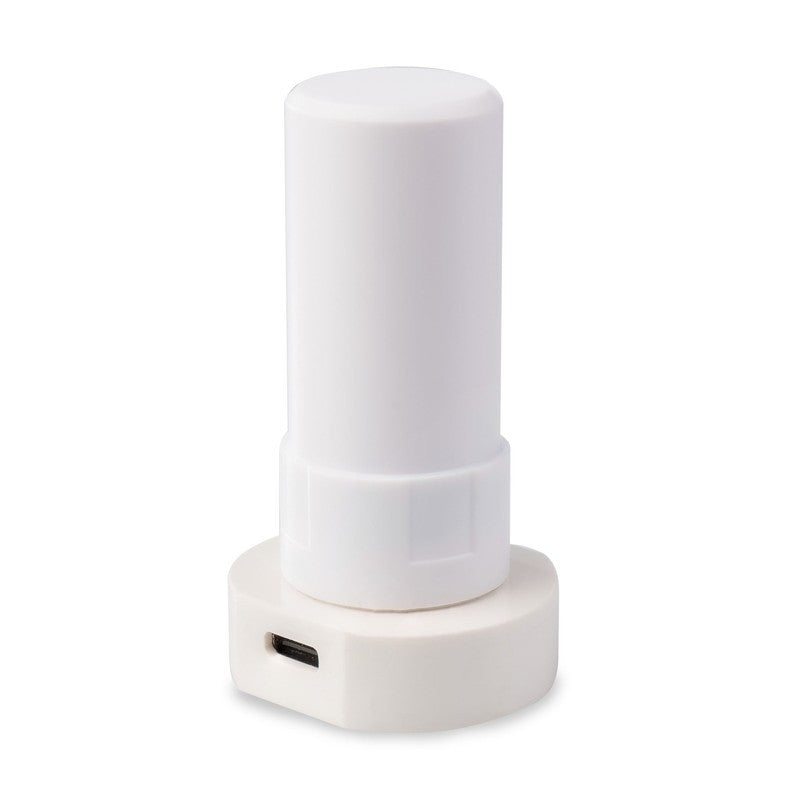

NEO-M9N GNSS Smart Antenna module and RFI protection. USB C and SMA Helix antenna. White.

SKU: ELT0155W

Brand: U-blox

€79,99

Tax excluded

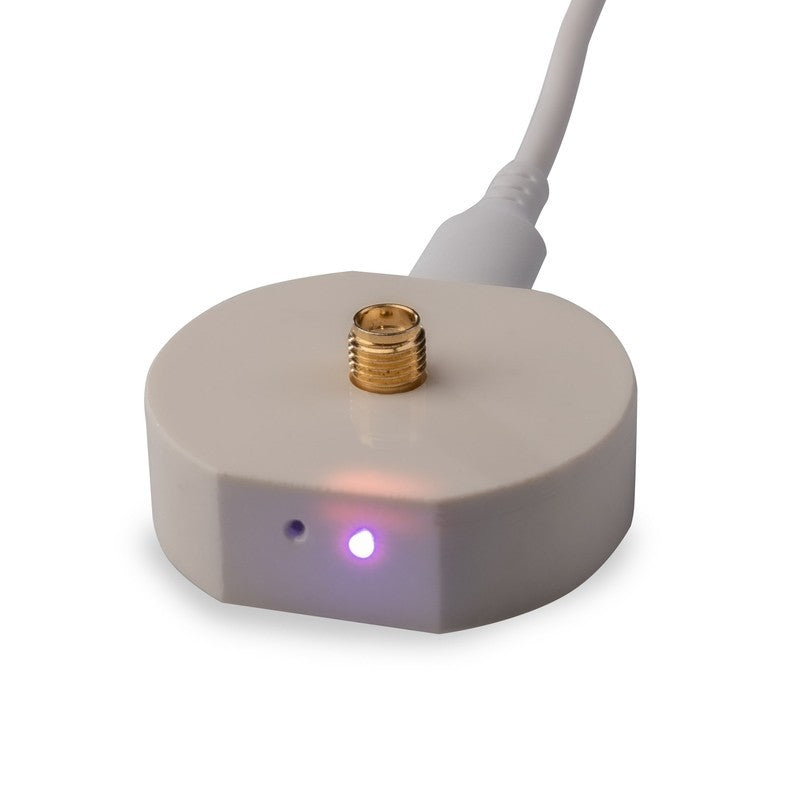

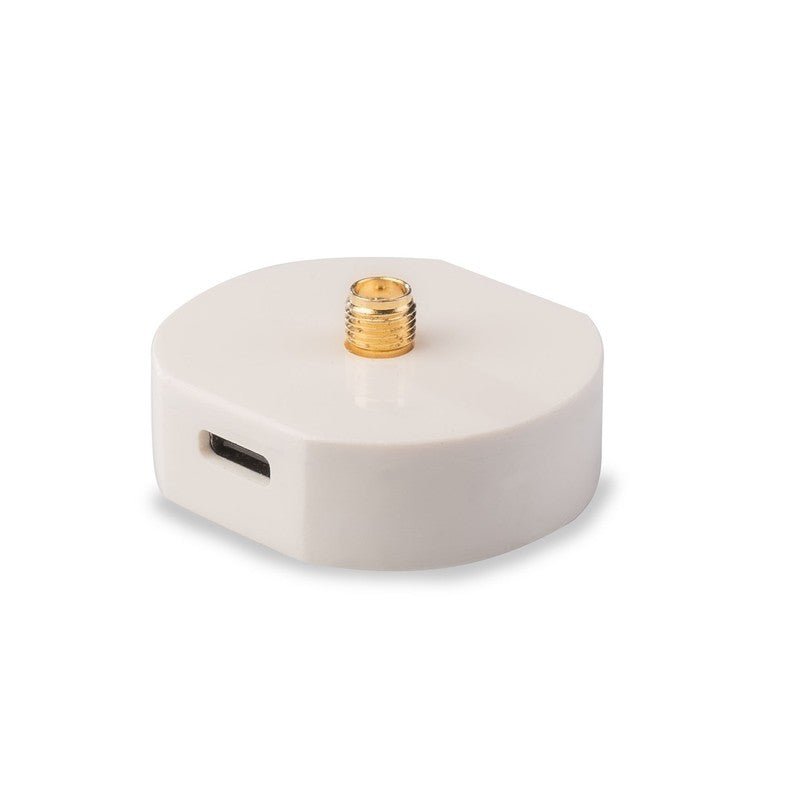

NEO-M9N four GNSS Smart Antenna module with USB C and SMA antenna connectors in IP54 black plastic case for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light. Designed to use together with recommended Helix antenna.

The NEO-M9N Smart Antenna module makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Smart Antenna module is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled, tested and sealed module for the NEO-M9N with SMA antenna connectors. It offer IP54 environment protection with recommended Helix antenna installed.

Please log in to download the datasheet.

Available in stock (>10 pcs)

Helix antenna: No antenna

No antenna 59x27 Helix 83x40 Helix
