ZED-F9T 5G Network Synchronization InCase PIN timing module SMA USB
ZED-F9T 5G Network Synchronization InCase PIN timing module SMA USB
Tax excluded

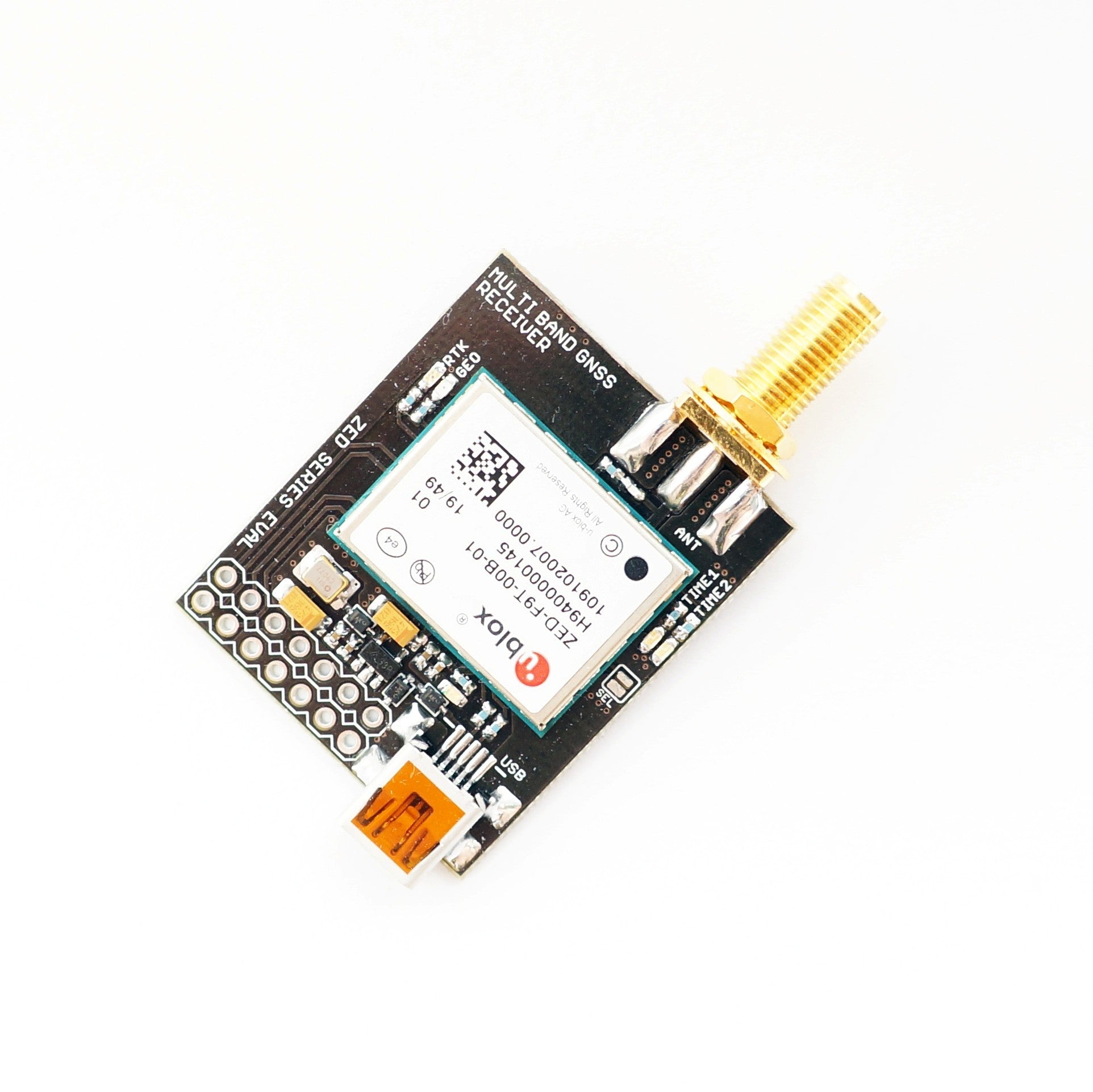

ZED-F9T high accuracy timing EVAL module USB, I2C, UART, SPI with SMA antenna connectors. Designed for 5G Network Synchronization. Two time pulse out.
NEW pin to pin compatible version with USB type C connector available ELT0413
The ZED-F9T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. ZED-F9T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the ZED-F9T will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service. To further improve accuracy locally, the ZED-F9T features differential timing modes that exchange correction data with other neighboring GNSS timing receivers via a communication network. Multi-band access to all four satellite constellations strengthens the receiver’s capability for delivering more reliable performance. ZED-F9T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation.
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| ZED-F9T high accuracy timing EVAL module USB, I2C, UART, SPI with SMA antenna connectors. Designed for 5G Network Synchronization. Two time pulse out. NEW pin to pin compatible version with USB type C connector available ELT0413 The ZED-F9T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. ZED-F9T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the ZED-F9T will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications. The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service. To further improve accuracy locally, the ZED-F9T features differential timing modes that exchange correction data with other neighboring GNSS timing receivers via a communication network. Multi-band access to all four satellite constellations strengthens the receiver’s capability for delivering more reliable performance. ZED-F9T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation. | Regular price
€189,99
Sale price
€189,99
Regular price
| ELTEHS |
Choose your option
ZED-F9T 5G Network Synchronization InCase PIN timing module SMA USB
ZED-F9T 5G Network Synchronization InCase PIN timing module SMA USB
Tax excluded
Available in stock (>10 pcs)
ZED-F9T high accuracy timing EVAL module USB, I2C, UART, SPI with SMA antenna connectors. Designed for 5G Network Synchronization. Two time pulse out.
NEW pin to pin compatible version with USB type C connector available ELT0413
The ZED-F9T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. ZED-F9T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the ZED-F9T will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications.
The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service. To further improve accuracy locally, the ZED-F9T features differential timing modes that exchange correction data with other neighboring GNSS timing receivers via a communication network. Multi-band access to all four satellite constellations strengthens the receiver’s capability for delivering more reliable performance. ZED-F9T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation.
