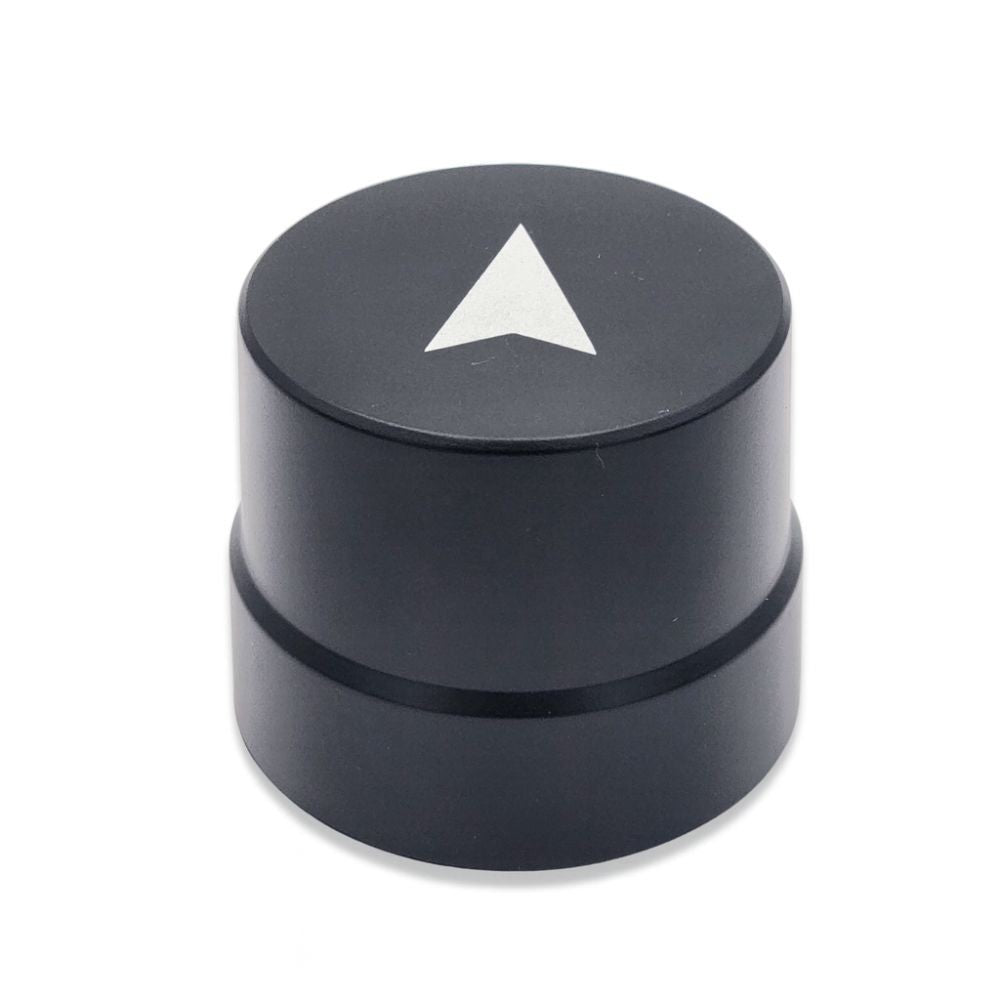

UM980 ultraLight GNSS Smart Antenna for precision and RTK positioning
UM980 ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful Unicore UM980 module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
With its advanced multi-band RF front-end, the UM980 ultraLight Smart Antenna is capable of simultaneously tracking all four major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and built-in interference suppression, the UM980 ultraLight provides reliable, high-precision positioning where traditional receivers struggle.
Lightweight, powerful, and dependable — the UM980 ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand top-tier performance without compromise.
Device Features:
- Based on NebulasIV GNSS SoC with integrated RF, base band, and high precision algorithm
- Supports robust high-precision positioning via RTK, PPP, and Galileo HAS correction services.
- All-system multi-frequency RTK engine and advanced RTK technology
- Independent tracking of different frequencies and 60dB narrow band anti-jamming technology
- Low Noise Amplifier (LNA) integrated in antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:

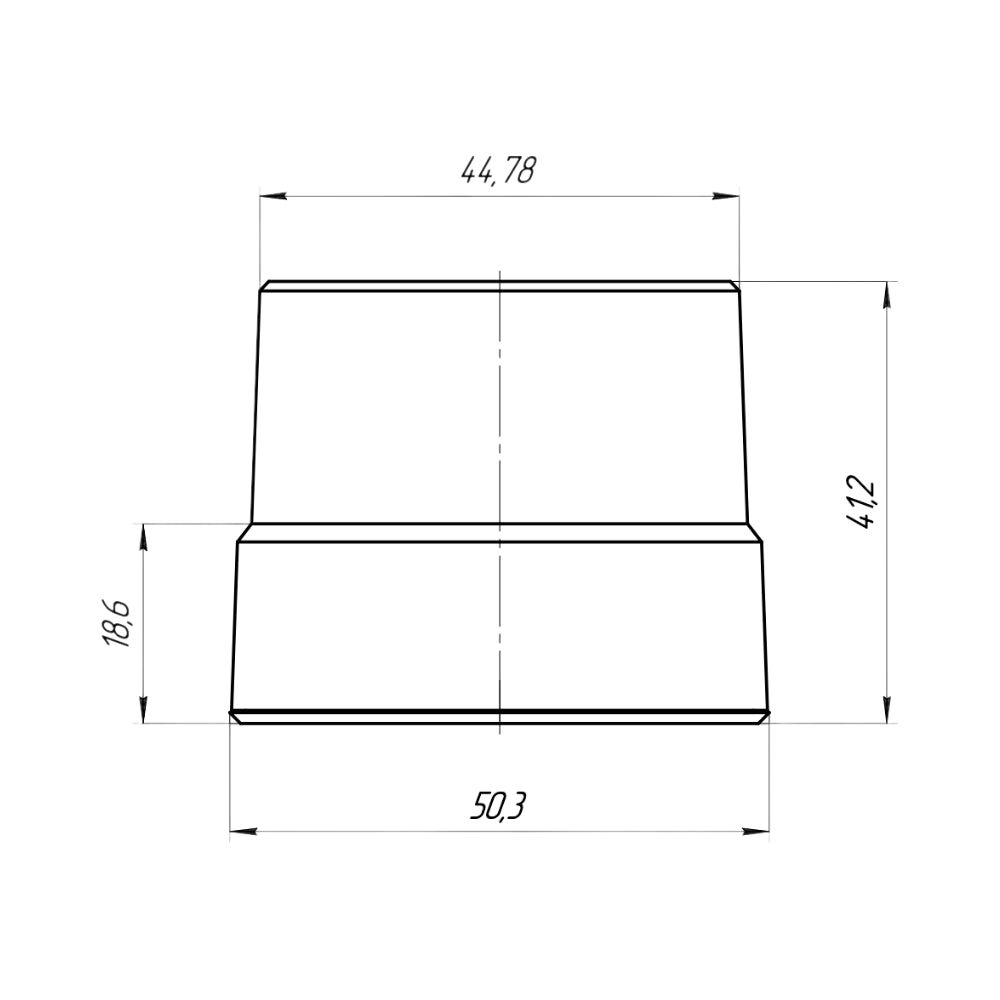

- Dimension: Ø50x41 mm
- Weight: 34 gr.
- IP Rating: IP55
- Operating Temperature: -10 °C ~ +60 °C

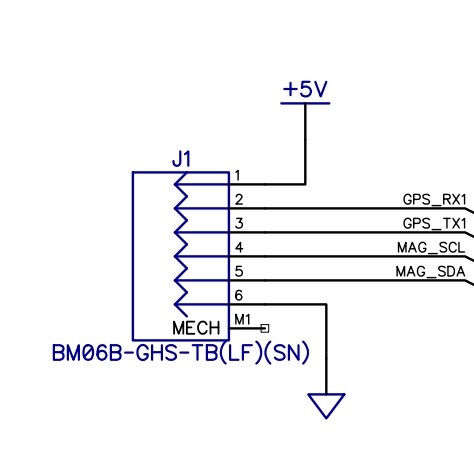

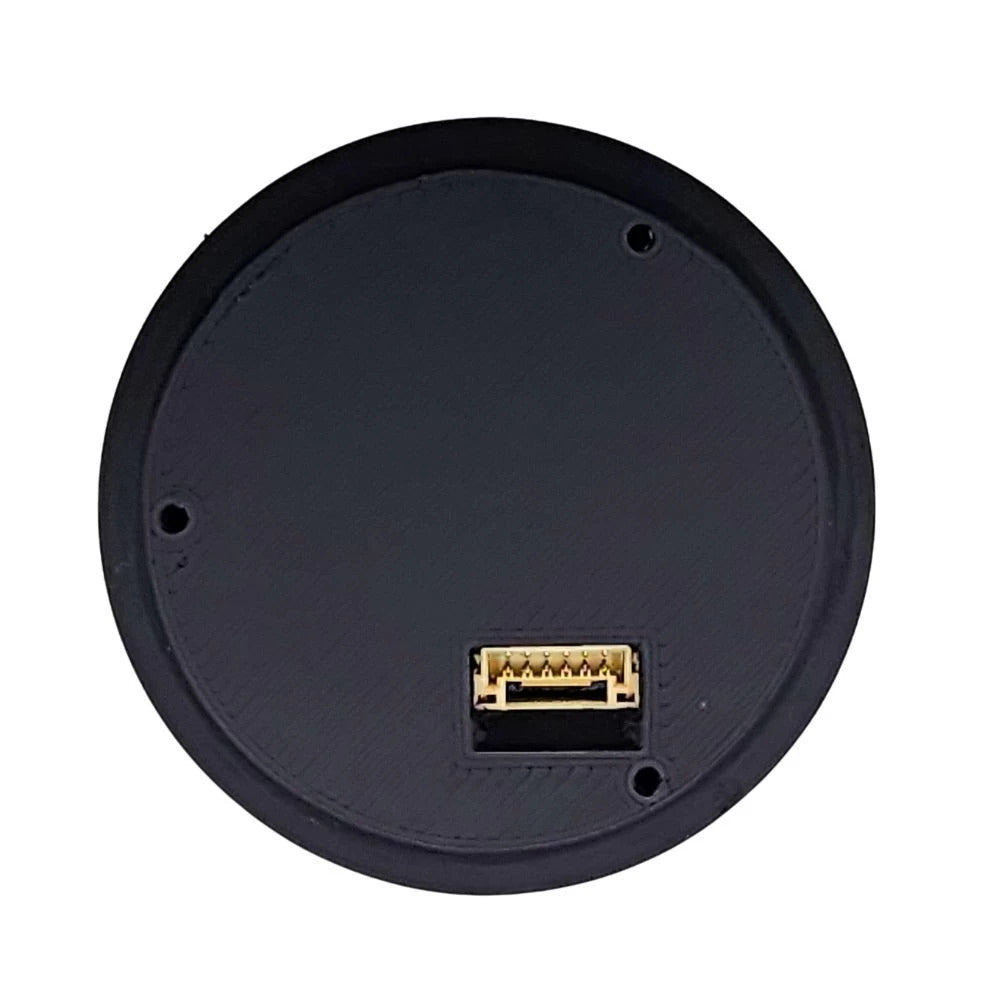

- Connector type: JST SH 6 pin, JST GH 6 pin

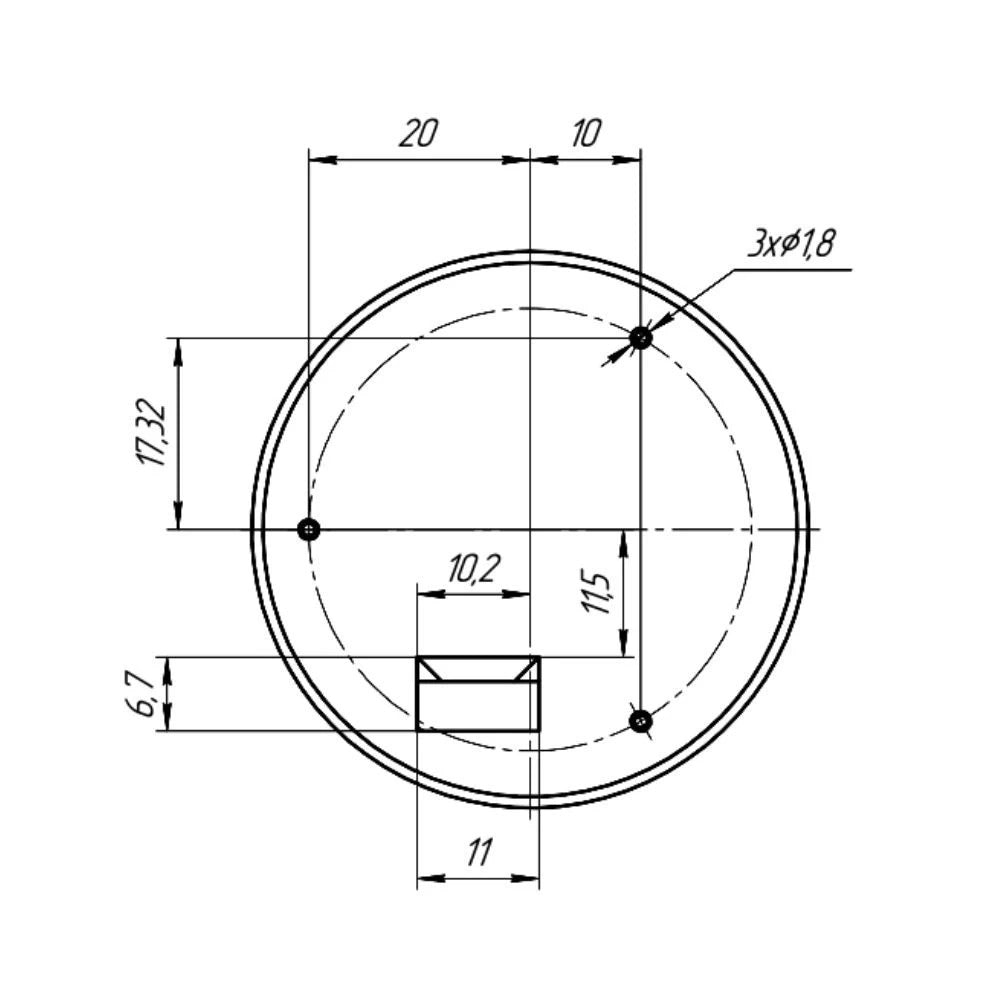

- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use

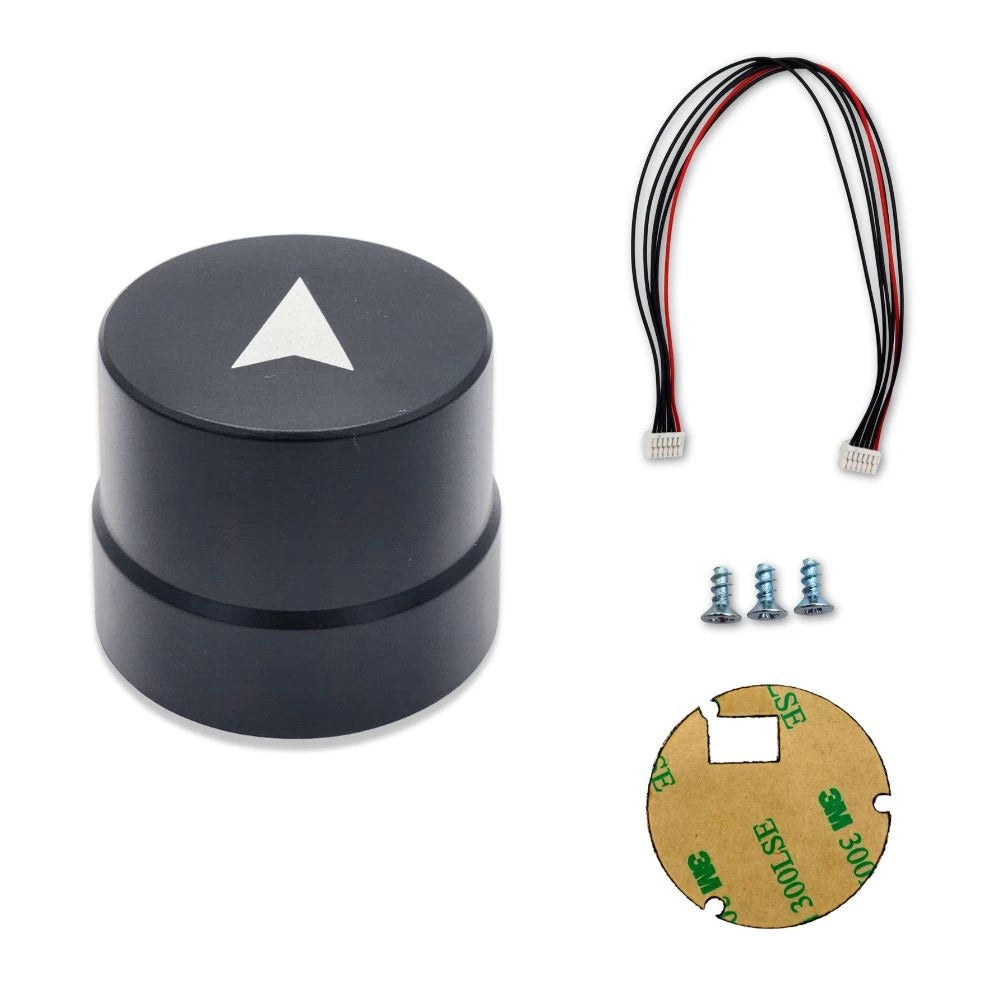

Kit included:
- Smart antenna – 1 piece
- Cable JST GH 1.25 6 pin to 6 pin 200mm – 1 piece
- Cable JST SH 1.0 6 pin to 6 pin 100 mm – 1 piece
- Waterproof 3M double-sided tape – 1 piece
- Screws 2.5x6 – 3 pieces
Performance Specifications:
- Channels: 1408 channels, based on NebulasIV
Frequency
- GPS L1C/A/L1C/L2P(Y)/L2C/L5
- BDS B1I/B2I/B3I/B1C/B2a/B2b
- GLONASS G1/G2/G3
- Galileo E1/E5a/E5b/E6
- QZSS L1C/A/L1C/L2C/L5/L6
- NavIC L5
- SBAS L1C/A/L1/L5
- IRNSS I5
- L-band
Single point positioning (RMS):
- Horizontal: 1.5 m
- Time Accuracy(RMS) - 20 ns
- Vertical: 2.5 m
- Velocity Accuracy (RMS) - 0.03 m/s
DGPS (RMS):
- Horizontal: 0.4 m
- Cold start < 12 s
- Vertcal: 0.8 m
- Initialization Time < 5 s (typical)
RTK (RMS):
- Horizontal: 0.8 cm + 1 ppm
- Initialization Reliability > 99.9%
- Vertical: 1.5cm + 1 ppm
- Data Update Rate 50 Hz* Positioning
