NEO-M8N Triple Band receiver EMI and RFI protection LIS3MDL PRO version
NEO-M8N Triple Band receiver EMI and RFI protection LIS3MDL PRO version
Tax excluded

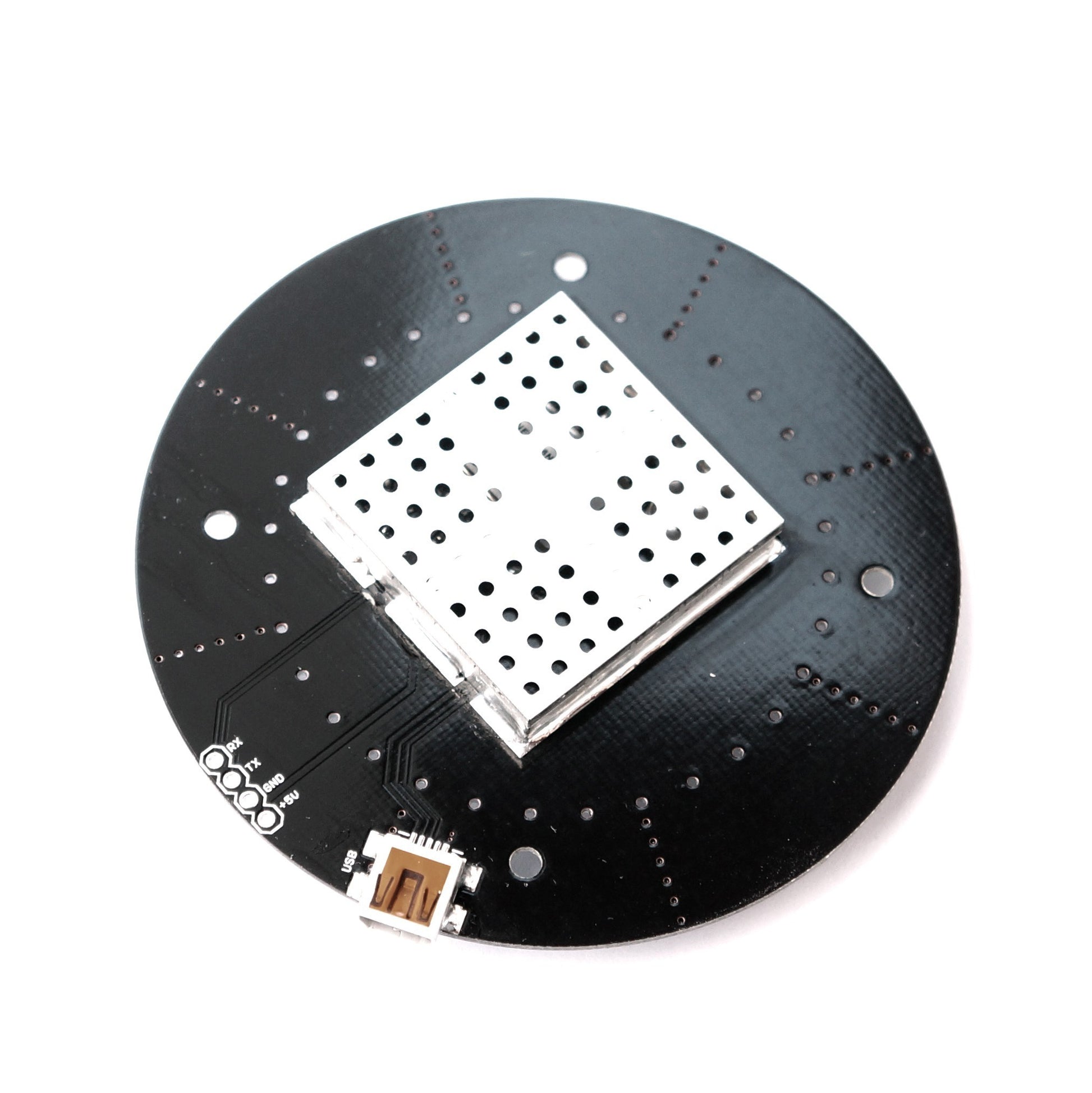

NEO-M8N GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS PRO version receiver with double SAW and LNA systems for high signal noise ratio build-in EMI and RFI protection + LIS3MDL Magnetometer. Ready for unwanted signal interference or multipath blocking. PRO Version
This board designed for large scale drone or groud robots. Board have Double LNA with very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots.
This boards ready for unwanted signal interference or multipath blocking. The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with Compass.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- Double LNA systems with very low noise figure
- Double Pass filter for noise rejection
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB and UART (Tx, Rx)

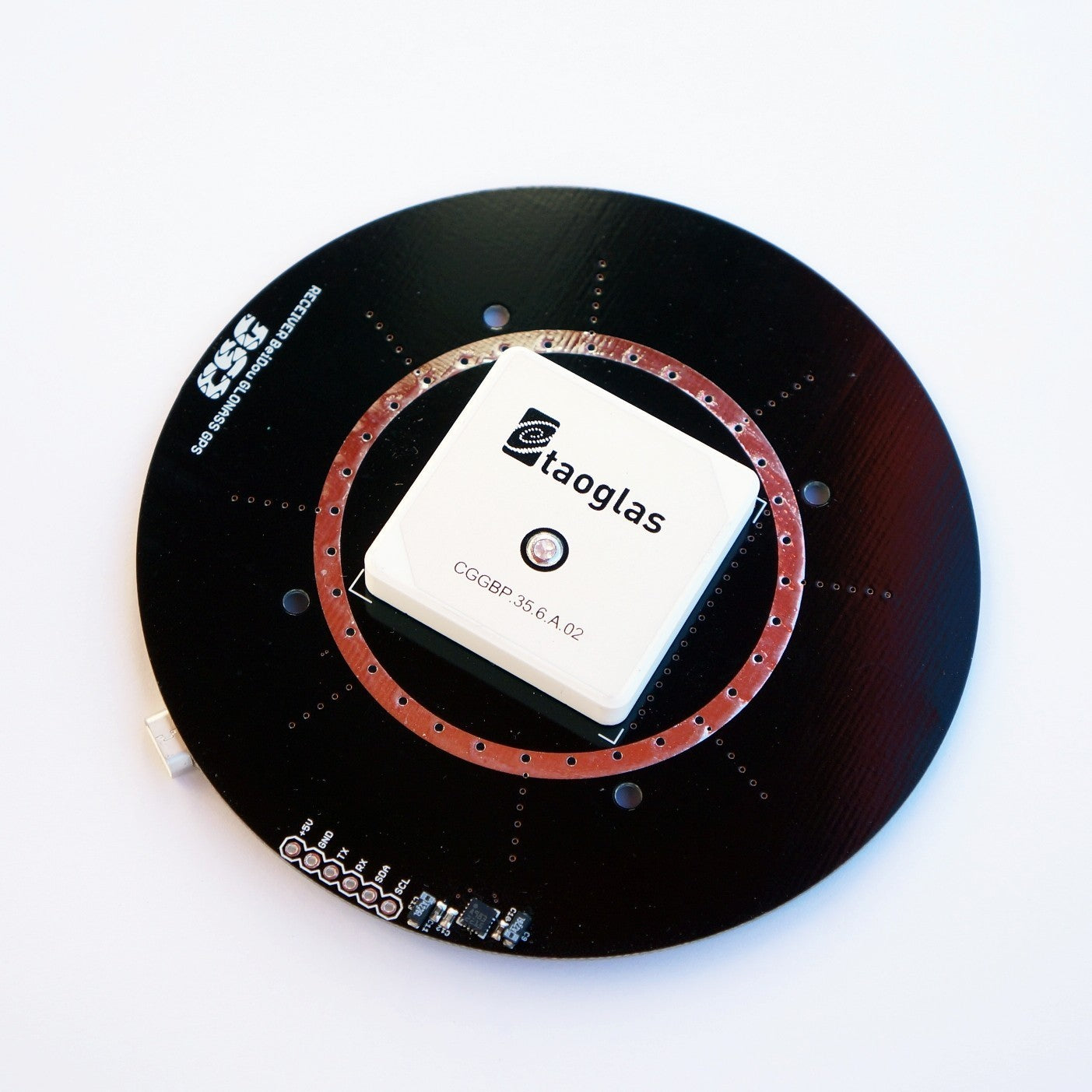

- Triple band GPS, GLONASS, BeiDou antenna

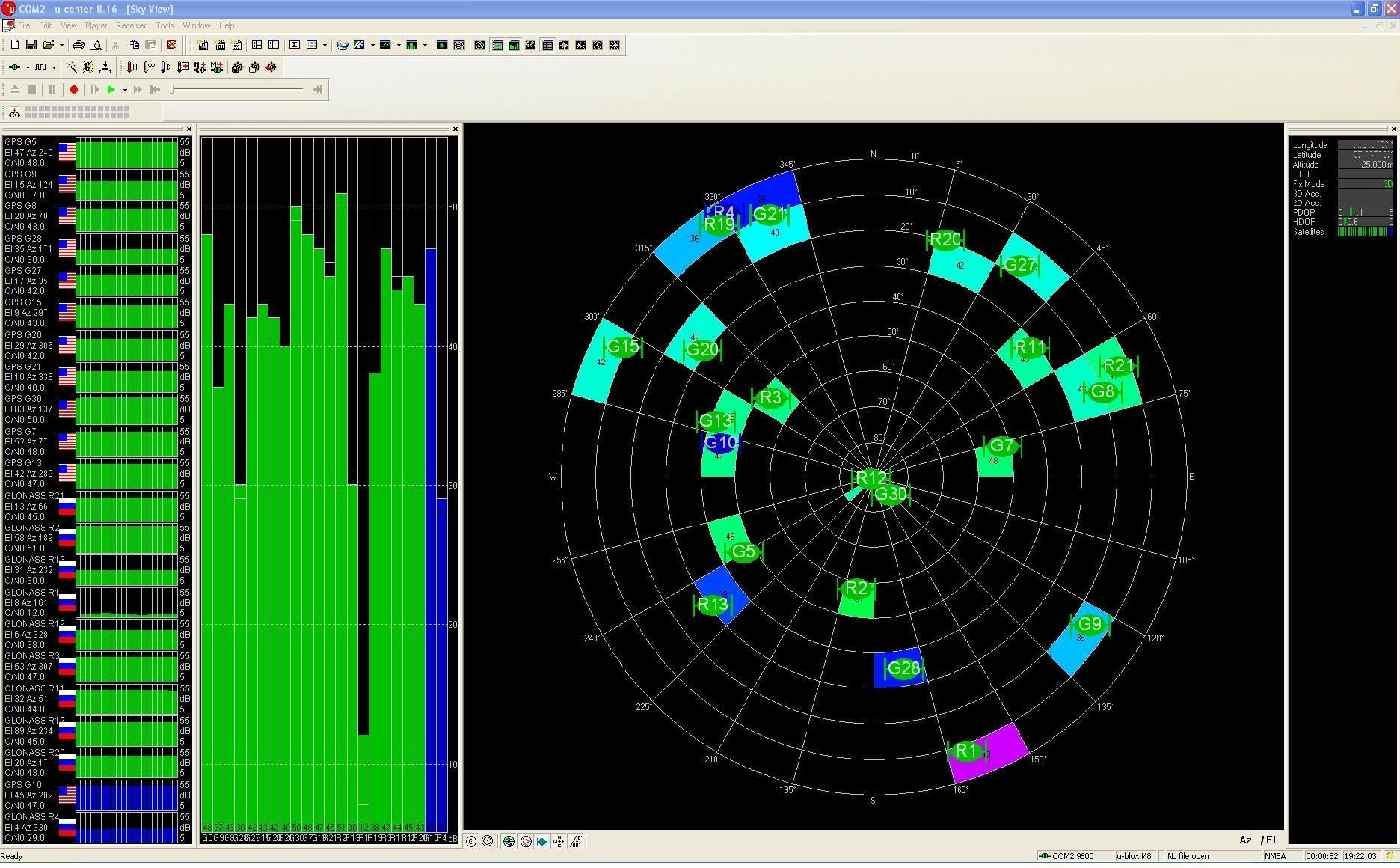

- u-blox u-center center GPS Evaluation Software
- LIS3MDL I2C magnetometer
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions: Round 100 mm; hole distance 45x45mm
- Weight: 51 gr.
- EMI and RFI protection
- Ready for unwanted signal interference or multipath blocking
- Fully assembled and ready to use
NEO-M8N Module Specifications
NEO-M8N Module Specifications
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| NEO-M8N GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS PRO version receiver with double SAW and LNA systems for high signal noise ratio build-in EMI and RFI protection + LIS3MDL Magnetometer. Ready for unwanted signal interference or multipath blocking. PRO Version This board designed for large scale drone or groud robots. Board have Double LNA with very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking. The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with Compass.
| Regular price
€99,90
Sale price
€99,90
Regular price
| ELTEHS |
Choose your option
NEO-M8N Triple Band receiver EMI and RFI protection LIS3MDL PRO version
NEO-M8N Triple Band receiver EMI and RFI protection LIS3MDL PRO version
Tax excluded
Available in stock (>10 pcs)
NEO-M8N GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS PRO version receiver with double SAW and LNA systems for high signal noise ratio build-in EMI and RFI protection + LIS3MDL Magnetometer. Ready for unwanted signal interference or multipath blocking. PRO Version
This board designed for large scale drone or groud robots. Board have Double LNA with very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots.
This boards ready for unwanted signal interference or multipath blocking. The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with Compass.
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- Double LNA systems with very low noise figure
- Double Pass filter for noise rejection
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB and UART (Tx, Rx)
- Triple band GPS, GLONASS, BeiDou antenna
- u-blox u-center center GPS Evaluation Software
- LIS3MDL I2C magnetometer
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions: Round 100 mm; hole distance 45x45mm
- Weight: 51 gr.
- EMI and RFI protection
- Ready for unwanted signal interference or multipath blocking
- Fully assembled and ready to use
