NEO-M8N RS232 INDUSTRIAL GPS GNSS receiver with SMA and USB C
NEO-M8N RS232 INDUSTRIAL GPS GNSS receiver with SMA and USB C
Tax excluded
NEO-M8N RS232 INDUSTRIAL GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver EVAL USB C, I2C, UART, SPI, RS232 module with SMA antenna connector and USB type C.
NEO-M8N RS232 INDUSTRIAL Reference Board with USB C and SMA antenna connector for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.

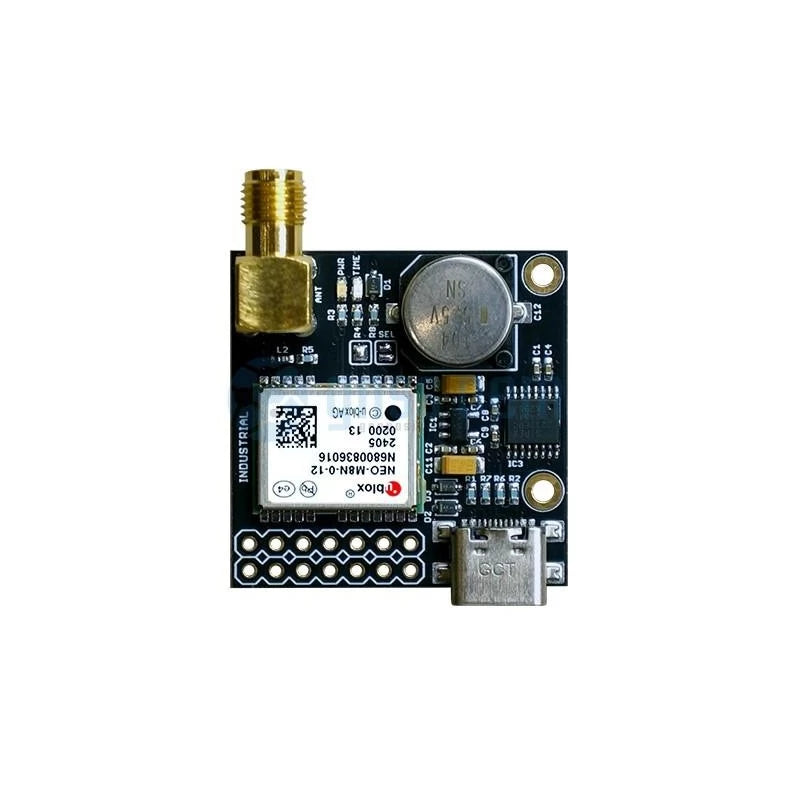

The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with SMA antenna connectors.
This product comes with 1 years worldwide warranty.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox u-blox M8 GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA,SCL), RS232, UART (Tx, Rx), SAFEBoot pin, EXTINT pin, TIMEPULSE pin
- SMA antenna connector
- USB type C connector
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitors for HOT module start

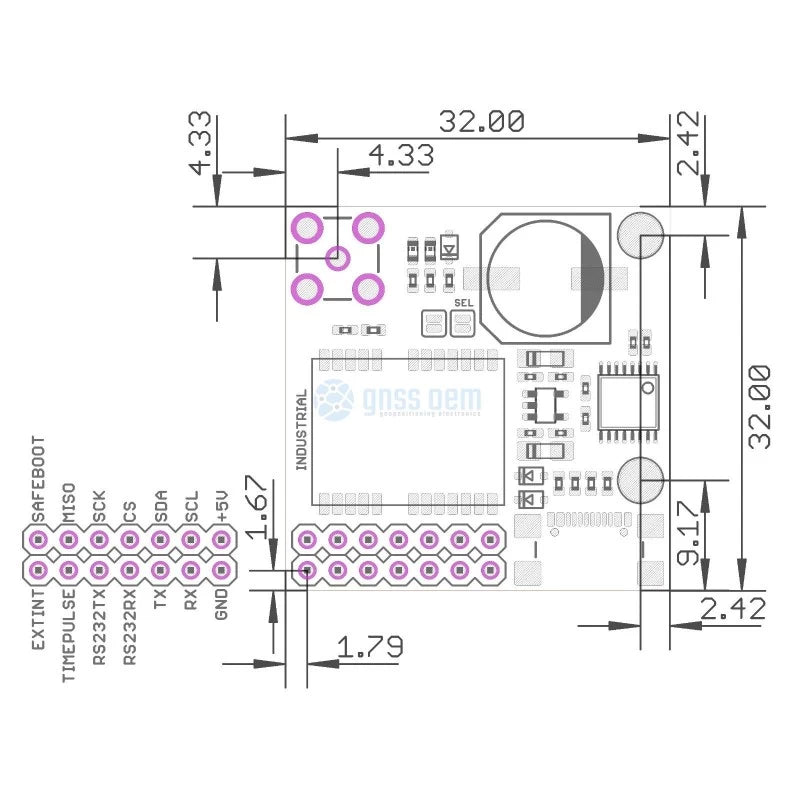

- Dimensions: 32x32 mm
- Weight: 3.1 gr.
- Working temperature: -40 °C ~ +85 °C
- Storage temperature: -55 °C ~ +95°C
- Humidity: 95% No condensation
- Vibration: MIL-STD-810F
- Shock: MIL-STD-810F
- Fully assembled and ready to use
