NEO-F9P-15B Multi-band L1,L5 RTK GNSS USB C Dongle with IP67 protection
NEO-F9P-15B Multi-band L1,L5 RTK GNSS USB C Dongle with IP67 protection
Tax excluded

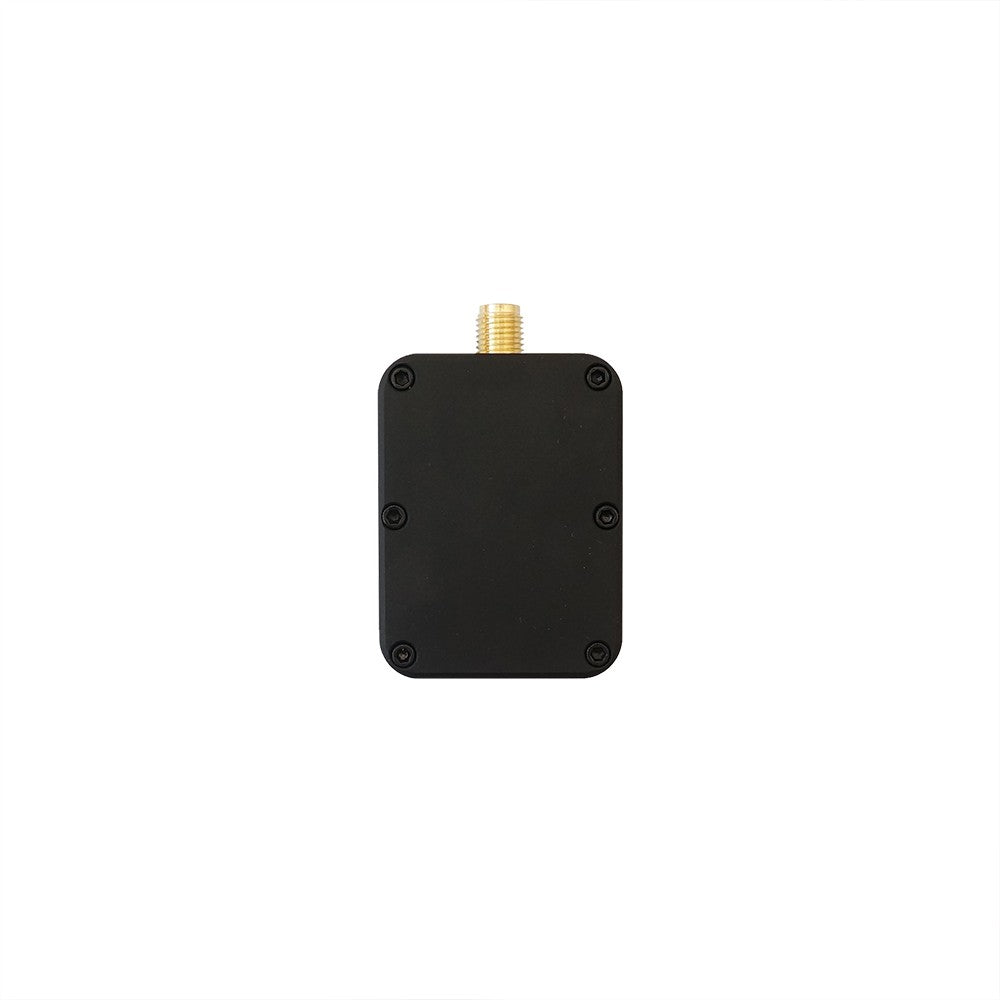

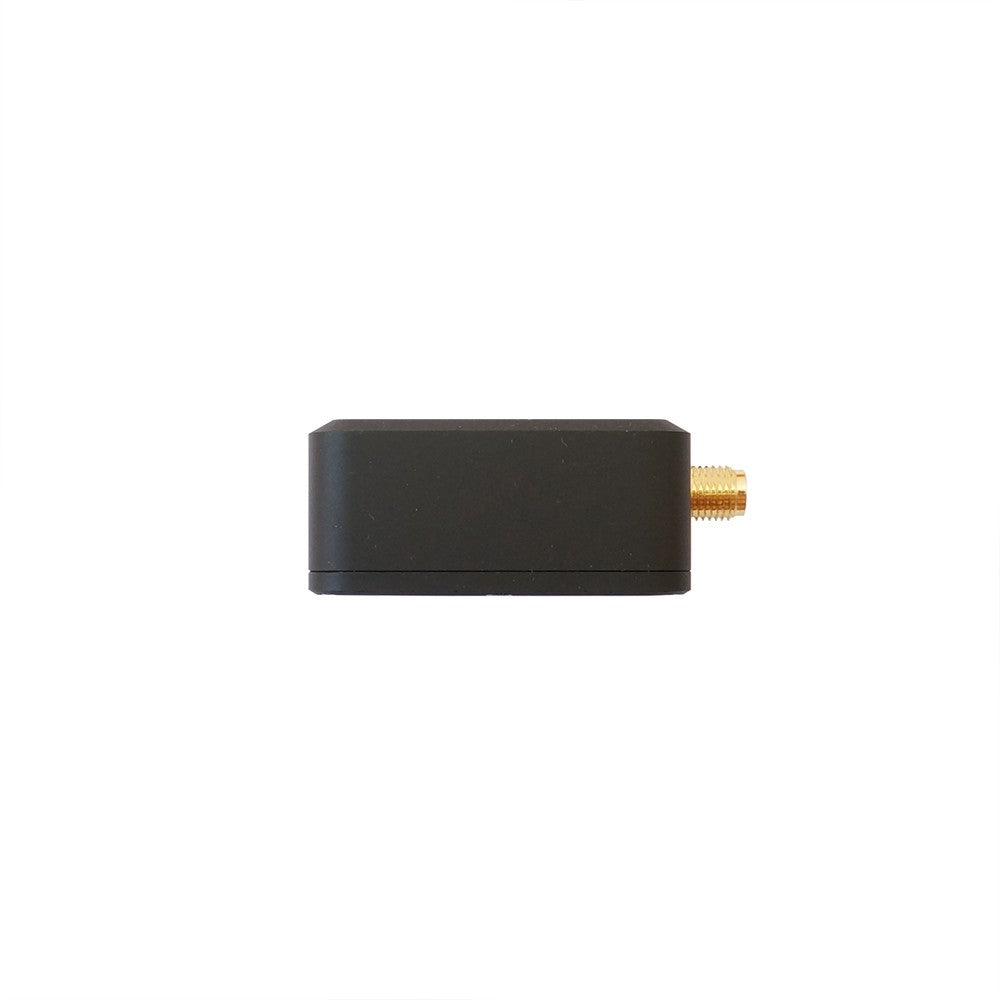

NEO-F9P USB-C dongle receiver with SMA antenna connectors, for your UDR systems, UAV systems, Robots, RC, FPV or other projects. 7075 Aluminium case with IP67 protection.
NEO-F9P High Precision GNSS USB C dongle with SMA antenna connectors IP67 aluminium case. Multi-band receiver delivers centimeter-level accuracy in seconds.
The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. NEO-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
- 184-channel u-blox F9 engine GPS L1C/A L5, GLO L1OF, GAL E1B/C E5a, BDS B1I B2a, QZSS L1C/A L1S L5, SBAS L1C/A NavIC L5
- On-board low noise 3.3V voltage regulator
- USB C interface
- SMA antenna connectors
- Power LED
- Time pulse LED
- RTK status LED
- Support active antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions without connectors: 40x30x18 mm
- Weight: 43 gr.
- Fully assembled and ready to use
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| NEO-F9P USB-C dongle receiver with SMA antenna connectors, for your UDR systems, UAV systems, Robots, RC, FPV or other projects. 7075 Aluminium case with IP67 protection. NEO-F9P High Precision GNSS USB C dongle with SMA antenna connectors IP67 aluminium case. Multi-band receiver delivers centimeter-level accuracy in seconds. The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module. The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. NEO-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies. NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.
| Regular price
€279,99
Sale price
€279,99
Regular price
| GNSS Store |
Choose your option
NEO-F9P-15B Multi-band L1,L5 RTK GNSS USB C Dongle with IP67 protection
NEO-F9P-15B Multi-band L1,L5 RTK GNSS USB C Dongle with IP67 protection
Tax excluded
Available in stock (>10 pcs)
NEO-F9P USB-C dongle receiver with SMA antenna connectors, for your UDR systems, UAV systems, Robots, RC, FPV or other projects. 7075 Aluminium case with IP67 protection.
NEO-F9P High Precision GNSS USB C dongle with SMA antenna connectors IP67 aluminium case. Multi-band receiver delivers centimeter-level accuracy in seconds.
The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. NEO-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.
- 184-channel u-blox F9 engine GPS L1C/A L5, GLO L1OF, GAL E1B/C E5a, BDS B1I B2a, QZSS L1C/A L1S L5, SBAS L1C/A NavIC L5
- On-board low noise 3.3V voltage regulator
- USB C interface
- SMA antenna connectors
- Power LED
- Time pulse LED
- RTK status LED
- Support active antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions without connectors: 40x30x18 mm
- Weight: 43 gr.
- Fully assembled and ready to use
