mosaic-G5 P3H UltraLight Dual Smart Antenna for heading and RTK positioning
mosaic-G5 P3H ultraLight Dual Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful mosaic-G5 P3H module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
With its advanced multi-band RF front-end, the mosaic-G5 P3H ultraLight Dual Smart Antenna is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and Septentrio’s AIM+ advanced anti-jamming and anti-spoofing technology, the mosaic-G5 P3H provides reliable, high-precision positioning where traditional receivers struggle.
With its dual-antenna input, the mosaic-G5 P3H can deliver compass-free yaw information to the controller (commonly referred to as GPS Heading or Moving Baseline Yaw). By using GPS as the yaw reference instead of a traditional compass, it eliminates errors caused by magnetic interference from vehicle motors, electrical systems, or external sources such as metallic structures and power lines. This ensures accurate yaw data for the controller and improves navigation reliability and performance, even in challenging environments.
Lightweight, powerful, and dependable — the mosaic-G5 P3H ultraLight GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor.
Device Features:
- Based on mosaic-G5 P3H GNSS module with integrated multi-band RF front-end and high-precision positioning engine
- Supports on-chip RTK positioning across all major constellations and multiple frequencies
- Advanced all-system multi-frequency RTK engine for robust centimeter-level accuracy
- Low Noise Amplifier (LNA) integrated with the compact helical antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:

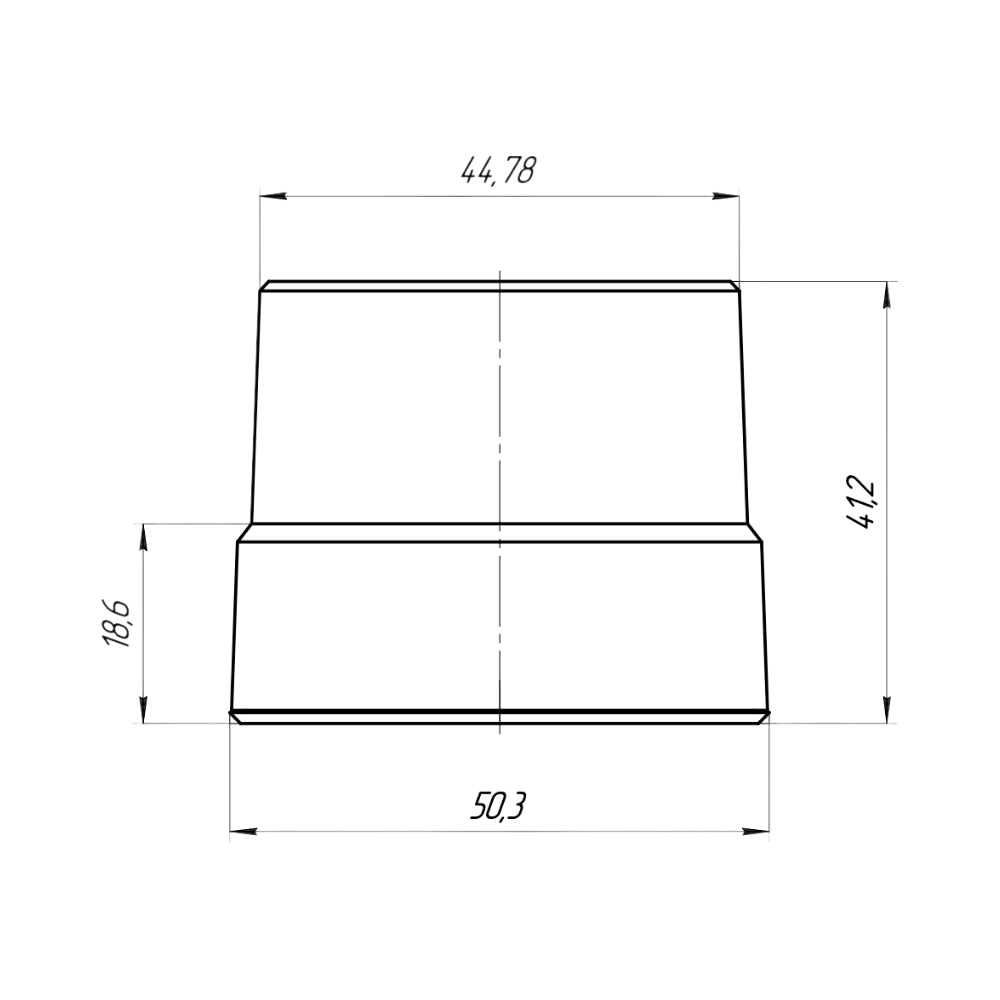

- Antenna dimensions: Ø50x41 mm
- Weight: 34 gr.
- Water and Dust Resistance: IP55
- Operating Temperature: -10 °C ~ +60 °C

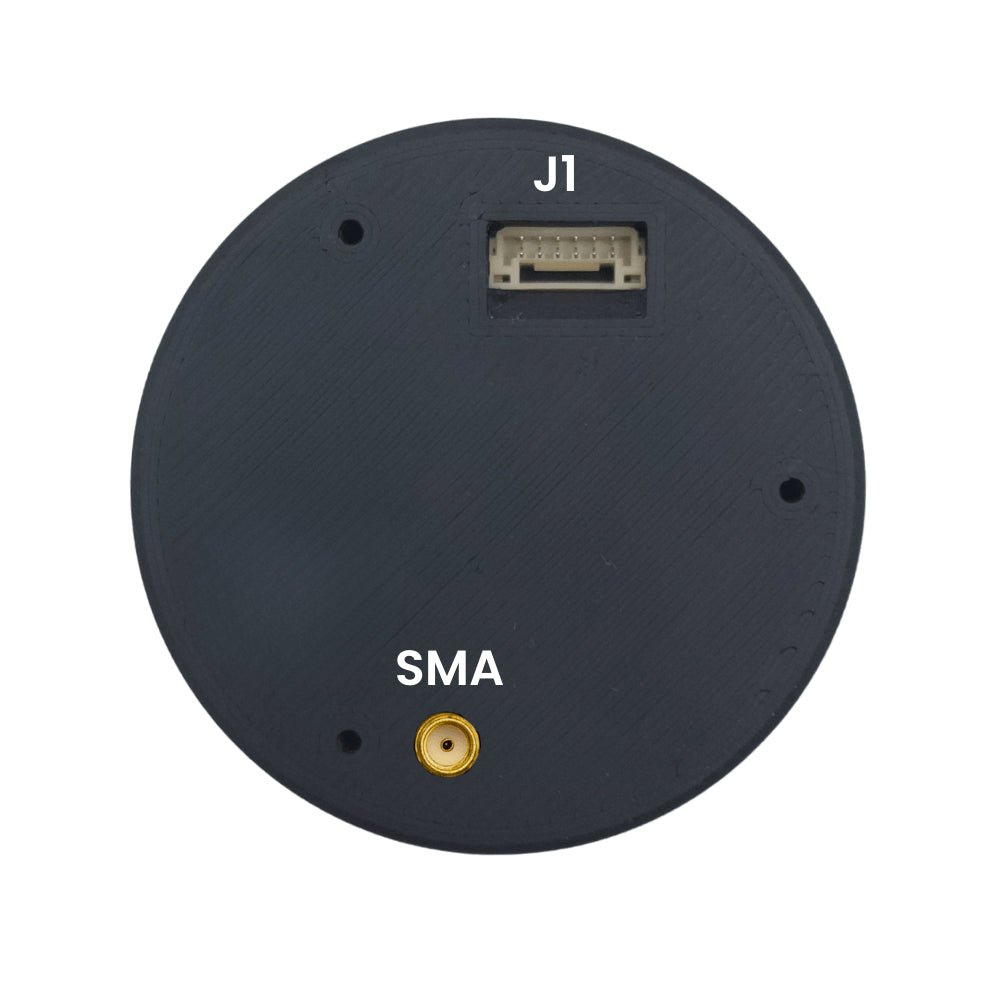

- Connector type: JST GH 6 pin, SMA

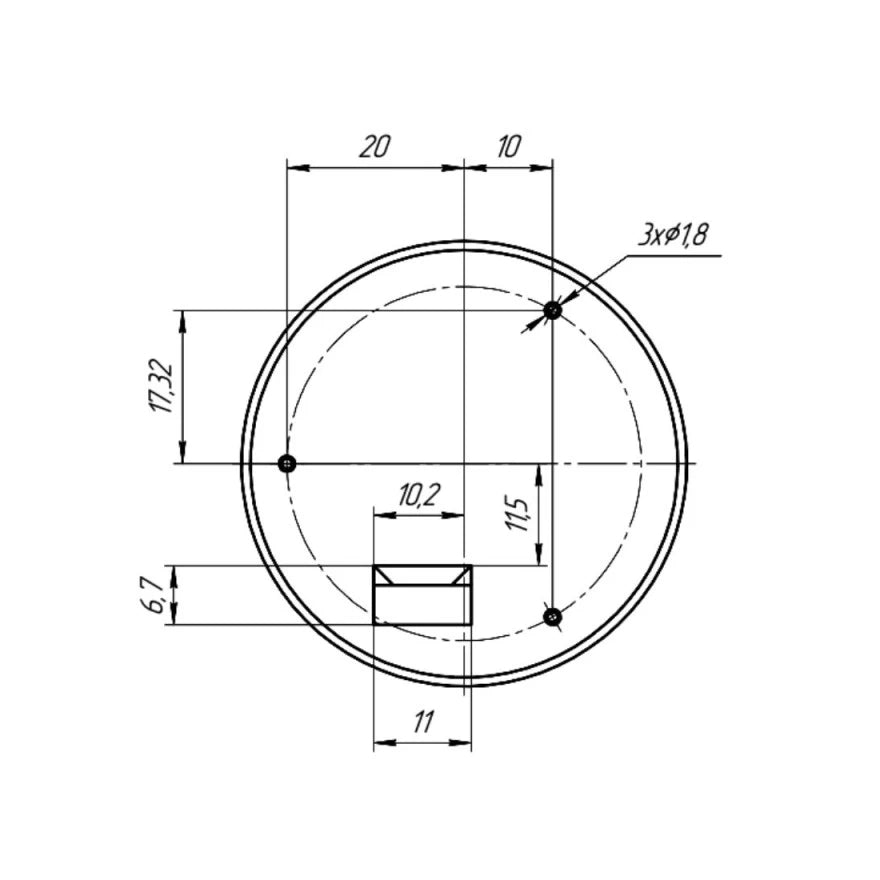

- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use
Kit included:
- Smart antenna – 1 piece
- Helix antenna ELT0242 - 1 piece
- Cable 1000 mm SMA M to SMA F - 1 piece
- Cable 200 mm JST GH male 6 pin to 6 pin compatible with Pixhawk – 1 piece
- Waterproof 3M double-sided tape – 2 pieces
- Screws 2.5x6 – 6 pieces
