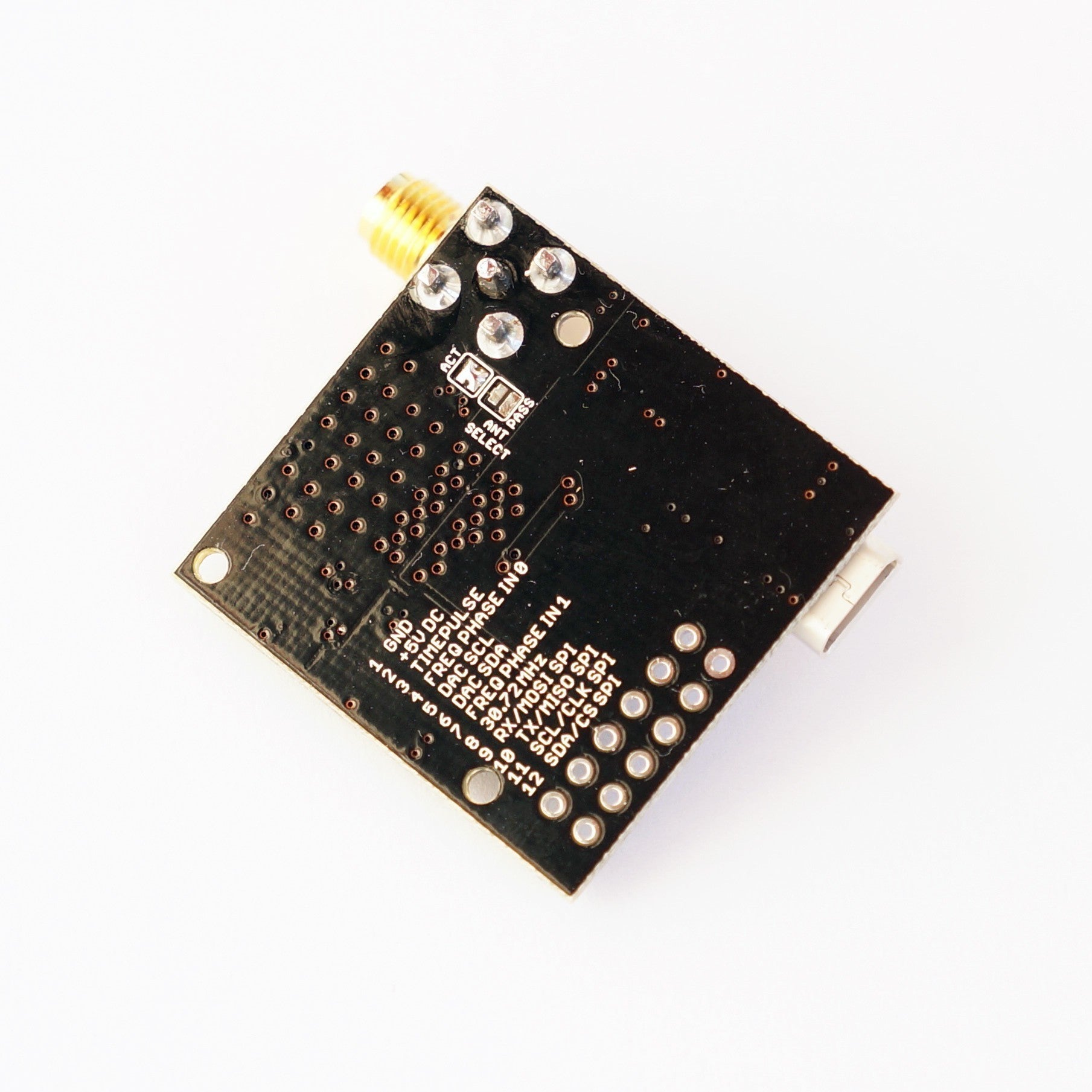

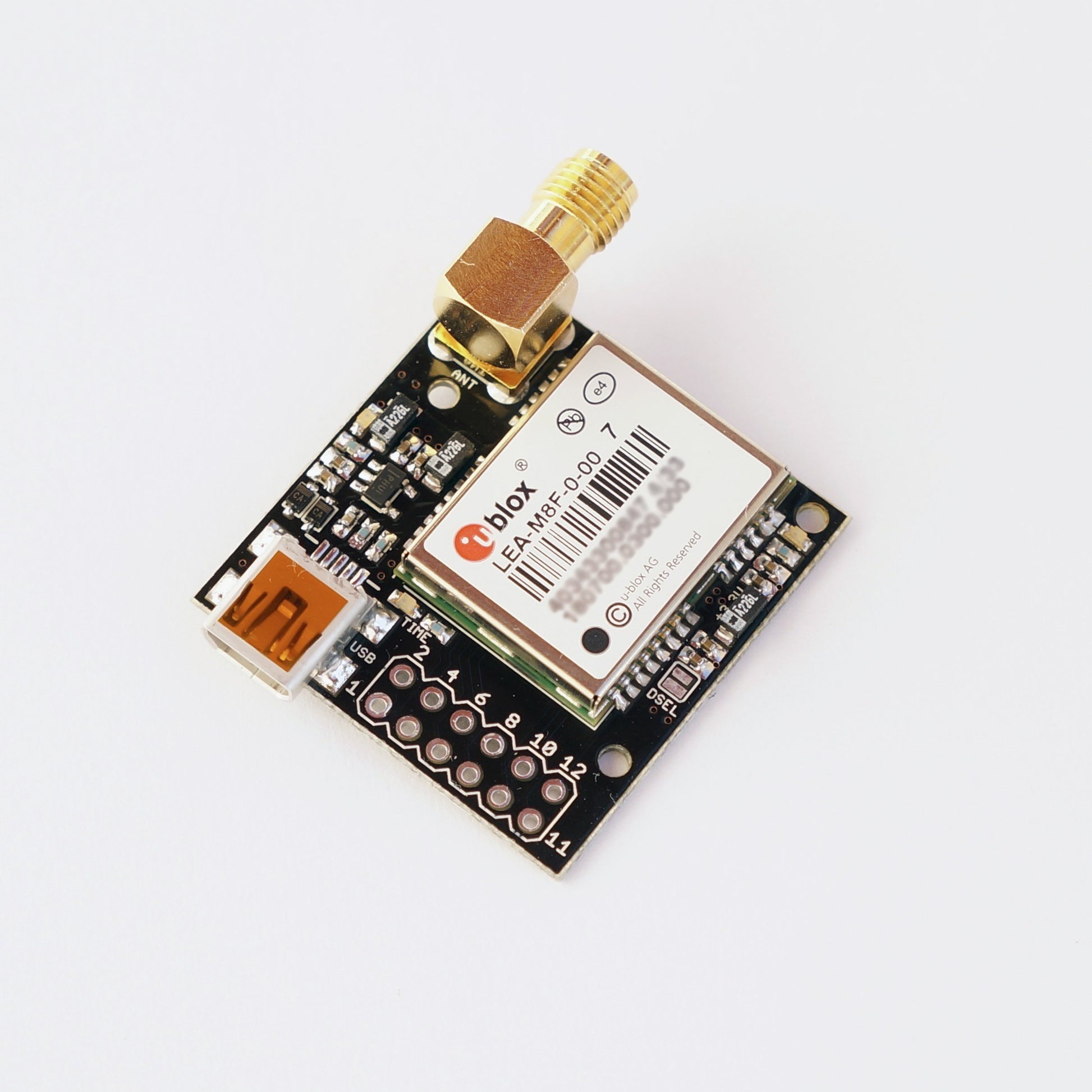

LEA-M8F time & frequency reference GNSS EVAL module
LEA-M8F time & frequency reference GNSS EVAL module
Tax excluded
LEA-M8F GPS, Glonass, Beidou receiver with time & frequency reference. Ready to use EVAL module
The LEA-M8F module is a fully self-contained phase and frequency reference based on GNSS, but can also be used as part of a complete timing sub-system including macro-sniff Synchronous Ethernet and packet timing. The LEA-M8F module includes a low-noise 30.72 MHz VCTCXO meeting the master reference requirements for LTE Small Cells and provides 100 ppb autonomous hold-over. The LEA-M8F module can also measure and control an external TCXO or OCXO for TD-LTE, LTE Advanced and other applications requiring extended hold-over. External sources of synchronization are supported through time-pulse and frequency inputs and a message interface. This allows measurements from macro-sniff, Sync-E or packet timing to be combined with measurements from GNSS. They feature a high dynamic range radio with both analog and digital interference mitigation supporting their inclusion as an integral part of a local area base station design.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
- Power Supply & Data Link via USB
- USB 1.1 Device/USB V2.0 compatible
- SMA antenna connectors
- Active and Passive Antenna support
- u-center Evaluation Software
- Easy to use
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- 1 USB port, 1 TTL UART port, 1 SPI port
- Time pulse output LED and pin for time synhronization
- SDA SCL Pin for external DAC>
- 38.72MHz oscillator out
- Two Freq Phase in for external oscillator control
- PCB Size 33x31 mm
- Fully assembled and ready to use
LEA-M8F Module Specifications
LEA-M8F Module Specifications
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| LEA-M8F GPS, Glonass, Beidou receiver with time & frequency reference. Ready to use EVAL module The LEA-M8F module is a fully self-contained phase and frequency reference based on GNSS, but can also be used as part of a complete timing sub-system including macro-sniff Synchronous Ethernet and packet timing. The LEA-M8F module includes a low-noise 30.72 MHz VCTCXO meeting the master reference requirements for LTE Small Cells and provides 100 ppb autonomous hold-over. The LEA-M8F module can also measure and control an external TCXO or OCXO for TD-LTE, LTE Advanced and other applications requiring extended hold-over. External sources of synchronization are supported through time-pulse and frequency inputs and a message interface. This allows measurements from macro-sniff, Sync-E or packet timing to be combined with measurements from GNSS. They feature a high dynamic range radio with both analog and digital interference mitigation supporting their inclusion as an integral part of a local area base station design.
| Regular price
€129,99
Sale price
€129,99
Regular price
| ELTEHS |
Choose your option
LEA-M8F time & frequency reference GNSS EVAL module
LEA-M8F time & frequency reference GNSS EVAL module
Tax excluded
Available in stock (>10 pcs)
LEA-M8F GPS, Glonass, Beidou receiver with time & frequency reference. Ready to use EVAL module
The LEA-M8F module is a fully self-contained phase and frequency reference based on GNSS, but can also be used as part of a complete timing sub-system including macro-sniff Synchronous Ethernet and packet timing. The LEA-M8F module includes a low-noise 30.72 MHz VCTCXO meeting the master reference requirements for LTE Small Cells and provides 100 ppb autonomous hold-over. The LEA-M8F module can also measure and control an external TCXO or OCXO for TD-LTE, LTE Advanced and other applications requiring extended hold-over. External sources of synchronization are supported through time-pulse and frequency inputs and a message interface. This allows measurements from macro-sniff, Sync-E or packet timing to be combined with measurements from GNSS. They feature a high dynamic range radio with both analog and digital interference mitigation supporting their inclusion as an integral part of a local area base station design.
- Power Supply & Data Link via USB
- USB 1.1 Device/USB V2.0 compatible
- SMA antenna connectors
- Active and Passive Antenna support
- u-center Evaluation Software
- Easy to use
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- 1 USB port, 1 TTL UART port, 1 SPI port
- Time pulse output LED and pin for time synhronization
- SDA SCL Pin for external DAC>
- 38.72MHz oscillator out
- Two Freq Phase in for external oscillator control
- PCB Size 33x31 mm
- Fully assembled and ready to use
