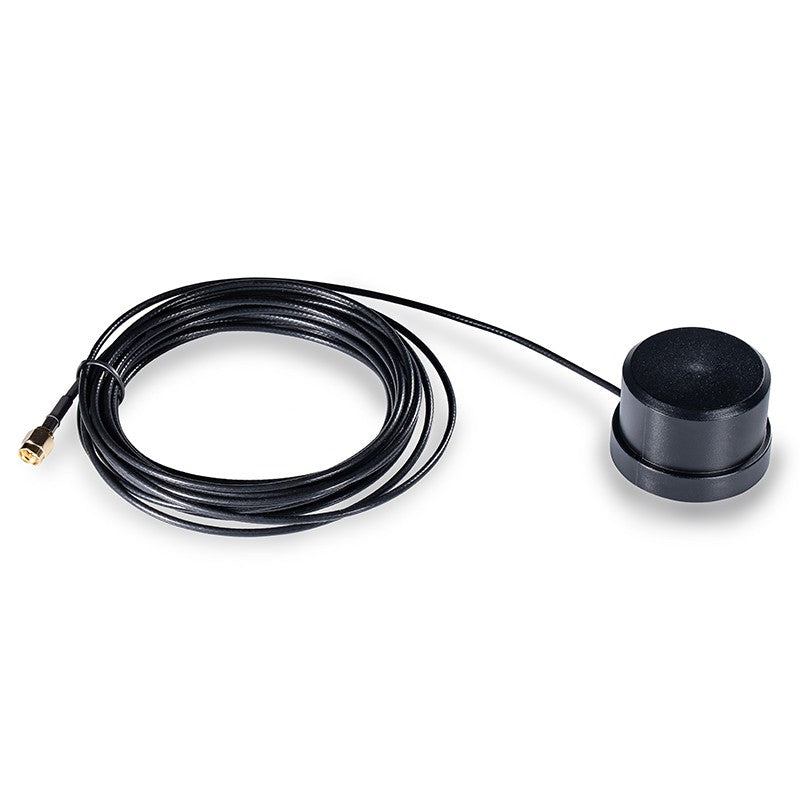

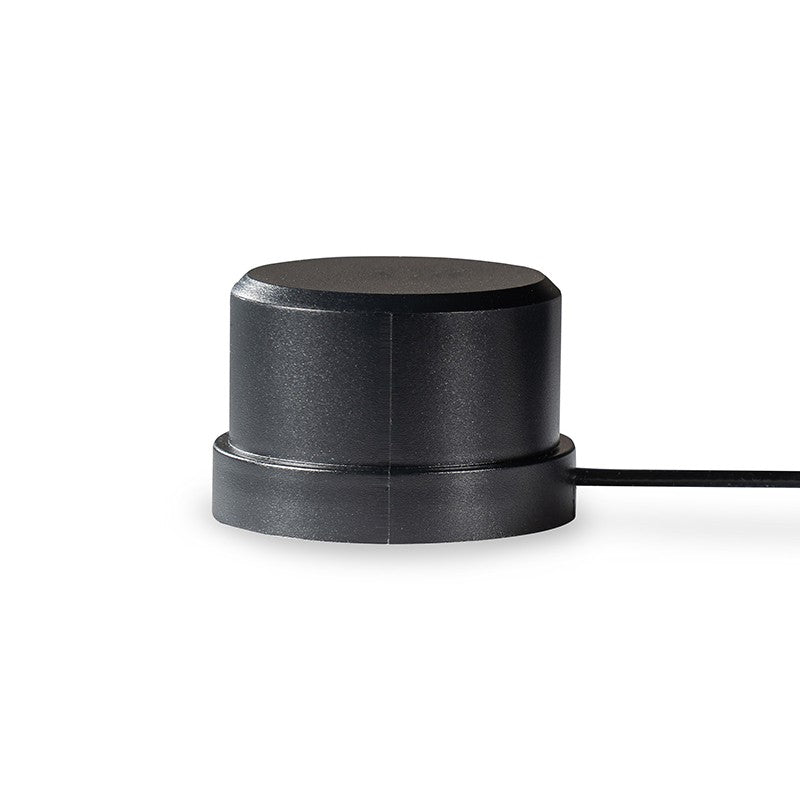

L1/L2b RTK antenna 35dB D48xH33
L1/L2b RTK antenna 35dB D48xH33
Tax excluded
L1/L2b 35dB RTK antenna description:
This antenna is ideal for RTK geodetic systems and precision positioning systems. The antenna provides excellent reception of a signal with circular polarization and high-quality suppression of multipath and out-of-band signals. Equipped with a finely tuned full frequency four star helix antenna. The signals from the helical antenna are combined in a hybrid combiner, amplified in a wideband low noise amplifier, then split into bands for narrow filtering in each band, and further amplified before being recombined at the output. The antenna offers excellent axial ratio and densely clustered phase center change. IP67 rated in weatherproof, industrial grade screw-mount housing, available with 5m cable.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1/L2
- GLONASS G1/G2/G3
- GALILEO E1/E5b
- BDS B1I/B2I/B1C/B2b
- SBAS L1
- QZSS L1/L2
35dB RTK antenna features:
- Low Noise Amplifier (LNA)
- Axial Ratio: ≤ 3 dB typ.
- Tight Phase Center Variation (PCV)
- High Gain: 35dB typ.
- Low current: 45mA typ.
- Invariant performance from: +3.3 to 12VDC
- RoHS & Reach Compliant
Typical Applications Include:
- Autonomous Driving
- Precision Positioning for Robotics
- Precision Agriculture
- Inventory Management & Container tracking
- Telematics & Asset Tracking
- Timing Accuracy Synchronization
Mechanical data:
- Weight (without cable): 25 gr.
- Dimensions: D48 x H33 mm
- Cable length: 1 meter
- SMA antenna connector
- Housing color: black

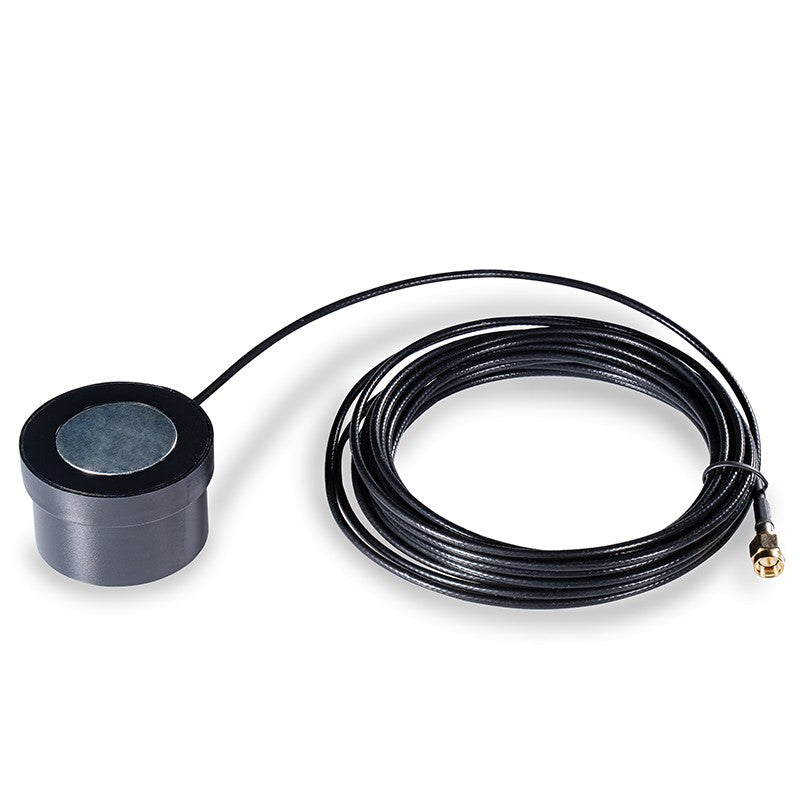

- Mounting: magnet
This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.
