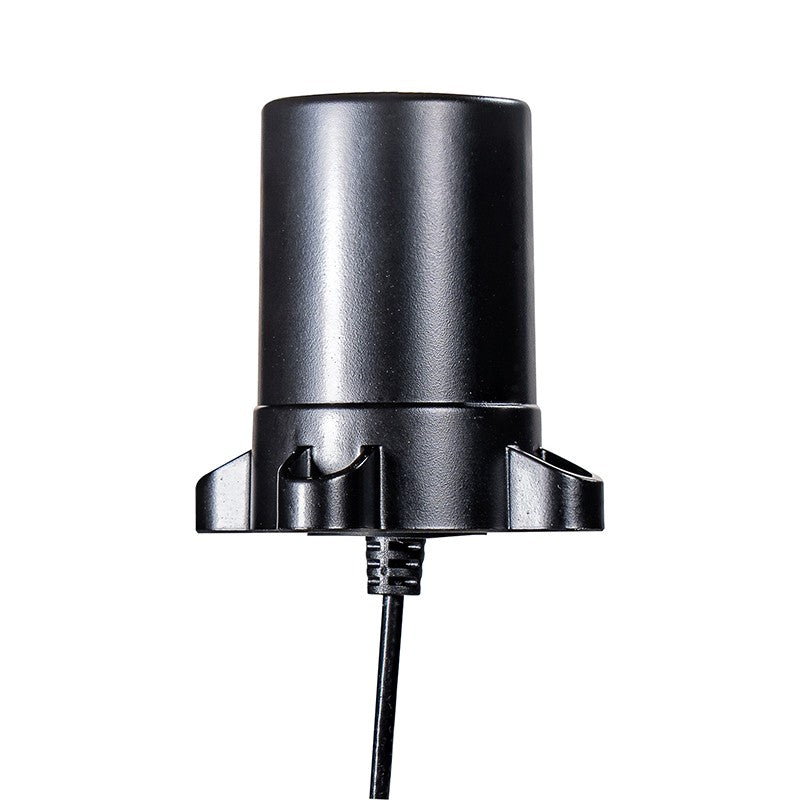

L1/L2b Panel Mounted High Performance Multi band RTK GNSS Active Quad Helix Antenna
L1/L2b Panel Mounted High Performance Multi band RTK GNSS Active Quad Helix Antenna
Tax excluded
L1/L2b High Performance Multi band RTK GNSS Active Quad Helix Antenna description:

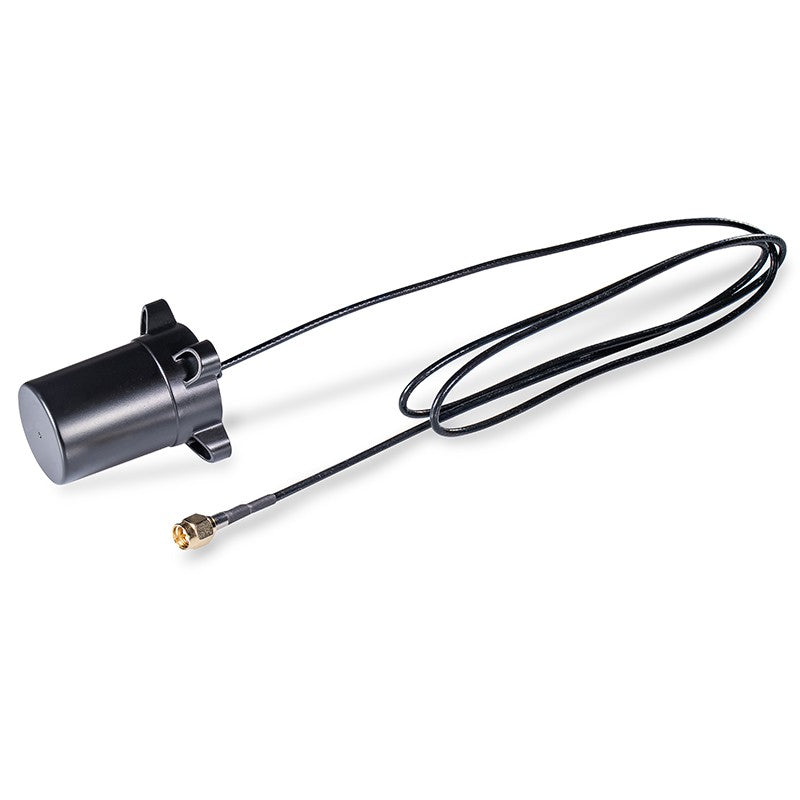

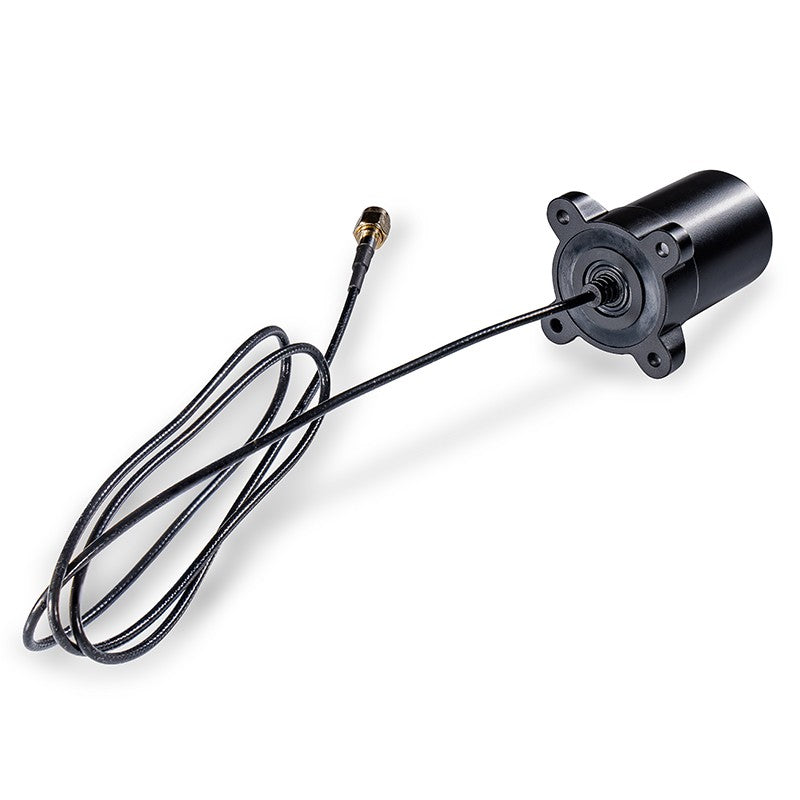

This is an panel mounted active multi-frequency, high-accuracy, GNSS antenna for the GPS L1/L2, GLONASS G1/G2/G3, GALILEO E1/E5b, BDS B1I/B2I/B1C/B2b, SBAS L1, QZSS L1/L2 bands. The antenna is designed for applications requiring greater accuracy than L1-only antennas can provide. The antenna is built on helical structure technology providing exceptional pattern control, polarization purity and high-efficiency in a compact form factor. It features an integrated cable with end SMA connector and rugged IP67 automotive grade components. This antenna is ideal for applications requiring minimal integration effort or for retrofitting existing products. The antenna is equipped with an cable with SMA connectors.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
|
Frequency: |
1192-1231 MHz (L2, B2, G2, G3, E5B) |
1559-1606 MHz (L1, E1, B1, B1-2, G1) |
|
Peak Efficiency |
46% |
49% |
|
Polarization |
RHCP |
RHCP |
|
Realized Gain |
1,1dB |
0,5dB |
|
Axial Ratio |
Max 1.2 dB at the Zenith |
Max 0.9 dB at the Zenith |
|
VSWR |
Max 2:1 |
Max 2:1 |
|
Beamwidth |
135˚ |
125˚ |
|
Horizontal Coverage |
360˚ |
360˚ |
Signal Received:
- GPS L1/L2
- GLONASS G1/G2/G3
- GALILEO E1/E5b
- BDS B1I/B2I/B1C/B2b
- SBAS L1
- QZSS L1/L2
Phase Center Variation
- In azimuth plane: max 10mm
- As low as 40 degree elevation: max 10mm
- Between samples: max 5mm
- Over frequency band: max 10mm
RF Specifications
- 30 dBic @ 1227 MHz (typical)
- 28 dBic @ 1575 MHz (typical)
- 28 dBic @ 1602 MHz (typical)
- LNA Gain: 32 dB
- Noise Figure: 1.5 dB typical, 2 dB max
- Voltage: 3.0 to 18 V
- Current: 45 mA max
- Out of Band Rejection: 40 dBc
- Group Delay Variation: Less than 5ns over GNSS bands
- EMI Immunity Out of Band: 30 V/m
- ESD Circuit Protection: 15 kv human body model air discharge
Mechanical Data:
- Dimensions: Ø38.0x49.1 mm
- Weight (without cable): 22 gr.
- Connector: SMA
- Cable length: 0.6 m
- Mounting: screw
Active Quad Helix Antenna Features:
- Quadrifilar helix antenna
- Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
- Rugged IP67 rating with SMA end cable
- Small form factor
- Ground plane independent
- GIS, RTK and other high accuracy GNSS applications
- Low power consumption
- Low phase center variation over azimuth and elevation and among different samples
- Automotive grade electronics
