L1/L2/L5 Angled High Performance Multi band RTK GNSS Active Quad Helix Antenna description:

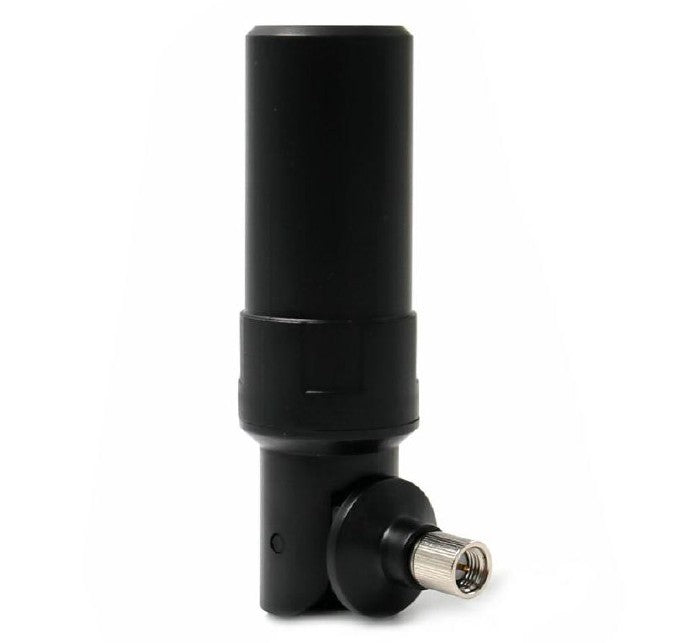

This is an angled active multi-frequency, high-accuracy, GNSS antenna for the GPS L1/L2/L5, GLONASS G1/G2/G3, GALILEO E1/E5a/E5b, BDS B1I/B2I/B1C/B2a/B2b, SBAS L1/L5, QZSS L1/L2/L5, IRNSS I5 bands. The antenna is designed for applications requiring greater accuracy than L1-only antennas can provide. The antenna is built on helical structure technology providing exceptional pattern control, polarization purity and high-efficiency in a compact form factor.
It features an integrated SMA connector and rugged IP67 automotive grade components. This antenna is ideal for applications requiring minimal integration effort or for retrofitting existing products. The antenna is equipped with an angled SMA connectors.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
Passive Antenna Performance
|
Frequency: |
1192-1231 MHz (L2, B2, G2, G3, E5B) |
1559-1606 MHz (L1, E1, B1, B1-2, G1) |
|
Peak Efficiency |
46% |
49% |
|
Polarization |
RHCP |
RHCP |
|
Realized Gain |
1,1dB |
0,5dB |
|
Axial Ratio |
Max 1.2 dB at the Zenith |
Max 0.9 dB at the Zenith |
|
VSWR |
Max 2:1 |
Max 2:1 |
|
Beamwidth |
135˚ |
125˚ |
|
Horizontal Coverage |
360˚ |
360˚ |
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2/G3
- GALILEO E1/E5a/E5b
- BDS B1I/B2I/B1C/B2a/B2b
- SBAS L1/L5
- QZSS L1/L2/L5
- IRNSS I5
Phase Center Variation
- In azimuth plane: ± 2 mm
- As low as 40 degree elevation: ± 2 mm
- Between samples: ± 1 mm
- Over frequency band: ± 2 mm
RF Specifications
- 30 dBic @ 1227 MHz (typical)
- 28 dBic @ 1575 MHz (typical)
- 28 dBic @ 1602 MHz (typical)
- LNA Gain: 33 dB
- Noise Figure: 1.5 dB typical, 2 dB max
- Axial Ratio ≤3 dB
- Voltage: 3.0 to 18 V
- Current: 45 mA max
- Out of Band Rejection: 40 dBc
- Group Delay Variation: Less than 5ns over GNSS bands
- EMI Immunity Out of Band: 30 V/m
- ESD Circuit Protection: 15 kv human body model air discharge
Active Quad Helix Antenna Features:
- Quadrifilar helix antenna
- Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
- Rugged IP67 rating with SMA mount
- Small form factor
- Ground plane independent
- GIS, RTK and other high accuracy GNSS applications
- Low power consumption
- Low phase center variation over azimuth and elevation and among different samples
- Ultra-lightweight about 28 gr.
- Dimension 108x28mm
- Automotive grade electronics
