L1 IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module
L1 IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module
Regular price
€69,99
Sale price
€69,99
Regular price
Tax excluded

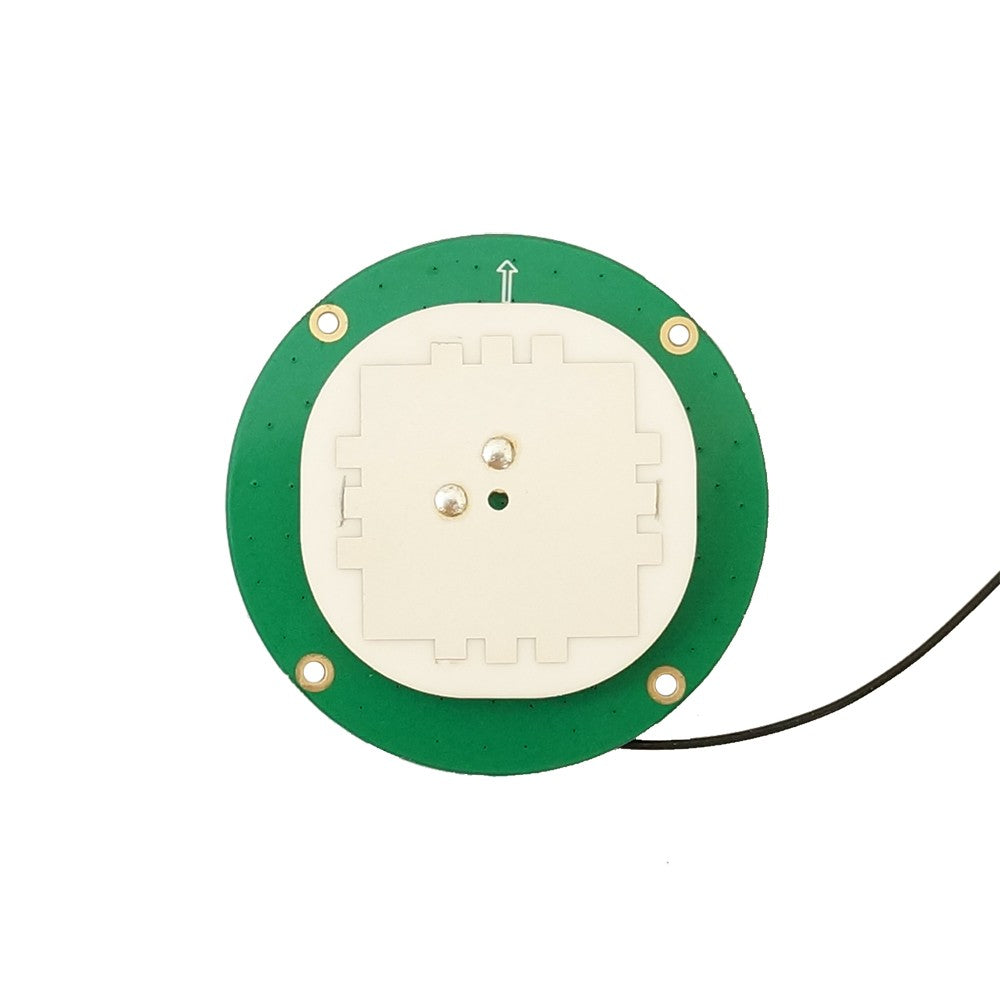

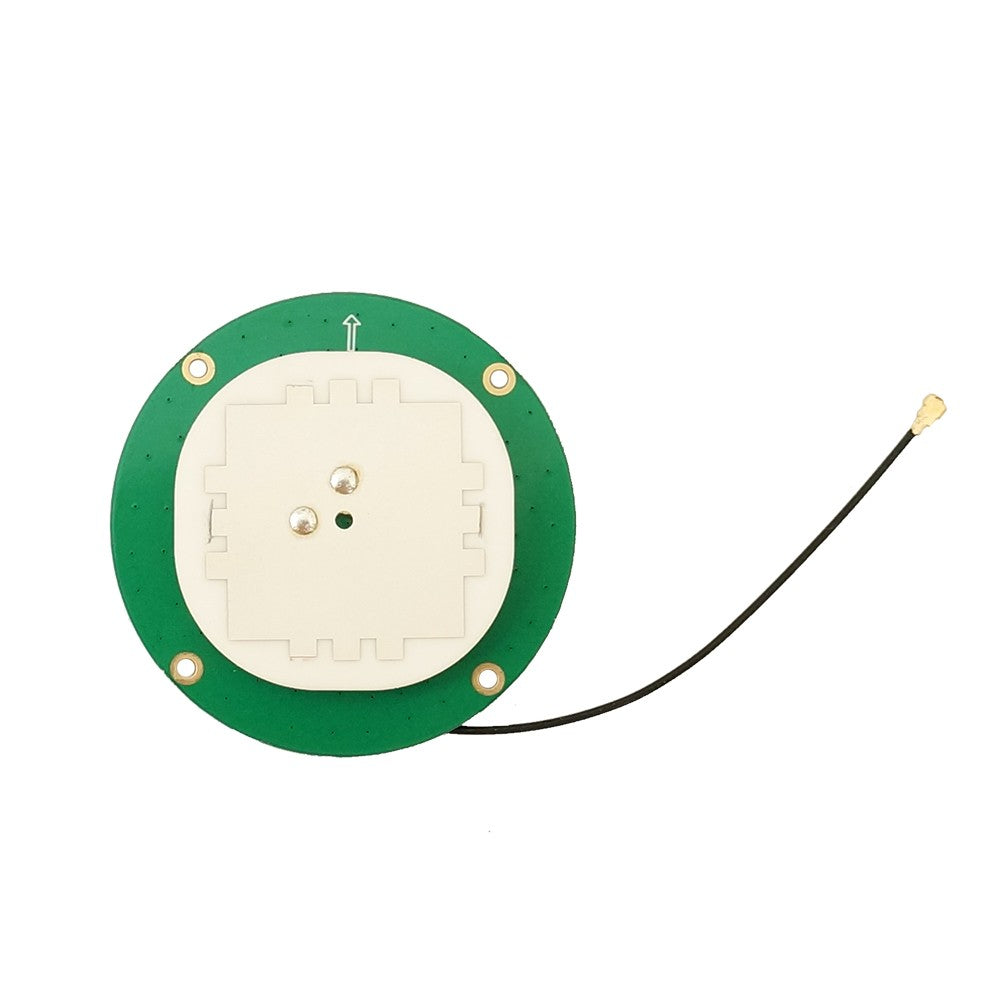

IPEX (U.FL) 45mm Two Stage 28dB Multi GNSS Band dual pin Active Patch Antenna Module
The 45mm active patch antenna module has been designed specifically for embedded (inside device) integration with GPS/Glonass receiver modules. The antenna combines a 45x45mm advanced low profile ceramic patch antenna with a two stage LNA and a front-end SAW filter with ultra thin coaxial cable. This antenna designed for high jamming immunity.
Please log in to download the datasheet.
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1
- GLONASS G1
- GALILEO E1
- BDS B1I/B1C
- SBAS L1
- QZSS L1
Patch antenna characteristics:
- Gain - 2dBi
- VSWR- <1.5
- Impendance - 50 Ohm
- Polarizacion - RHCP
- Axis Ratio - <3dB
- Horizontal angle - 60deg
LNA Specifications:
- LNA Gain - 28dB
- Noise Figure - <2dB
- Output Impendance - 50 Ohm
- Supply Voltage - 3.3-12V
- Supply current - <20mA
- Wide Input Voltage 2.8V to 5.5V
- Low Power Consumption
- High jamming immunity.
- RoHS & Reach compliant
Mechanical Data:
- Dimensions: Ø56 x 7.7 mm (Ground Plane)
- Weight: 34 gr.
- Connector: IPEX (U.FL)
- Cable length: 50mm Ø1.13 cable
- Mounting: screw mount
