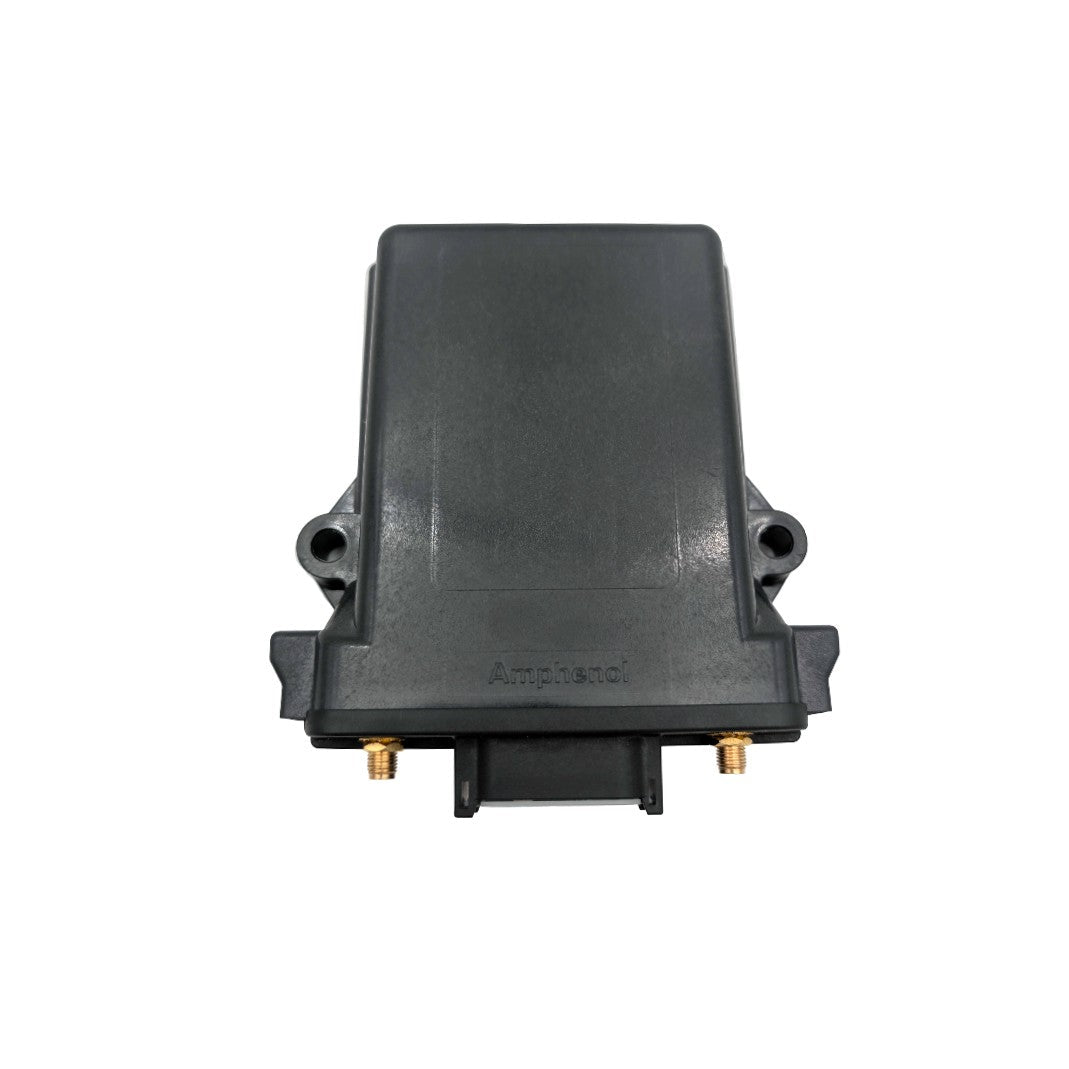

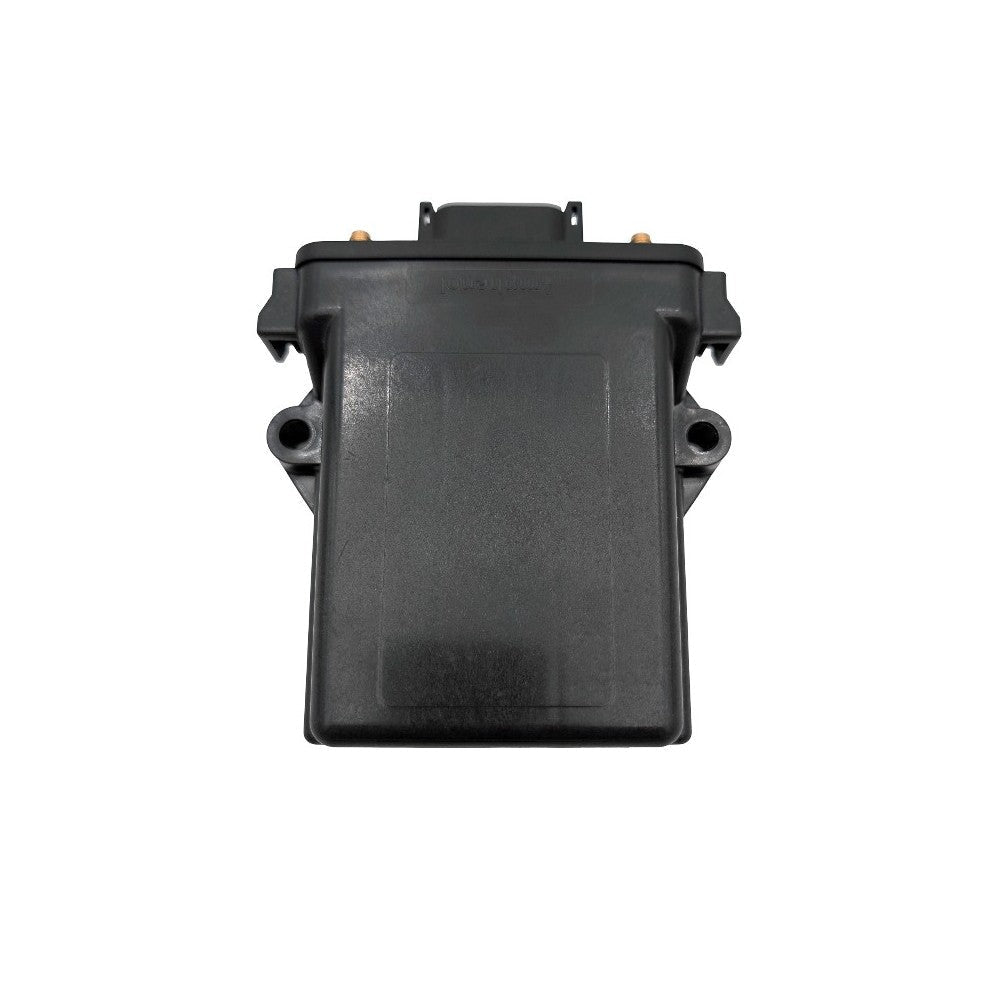

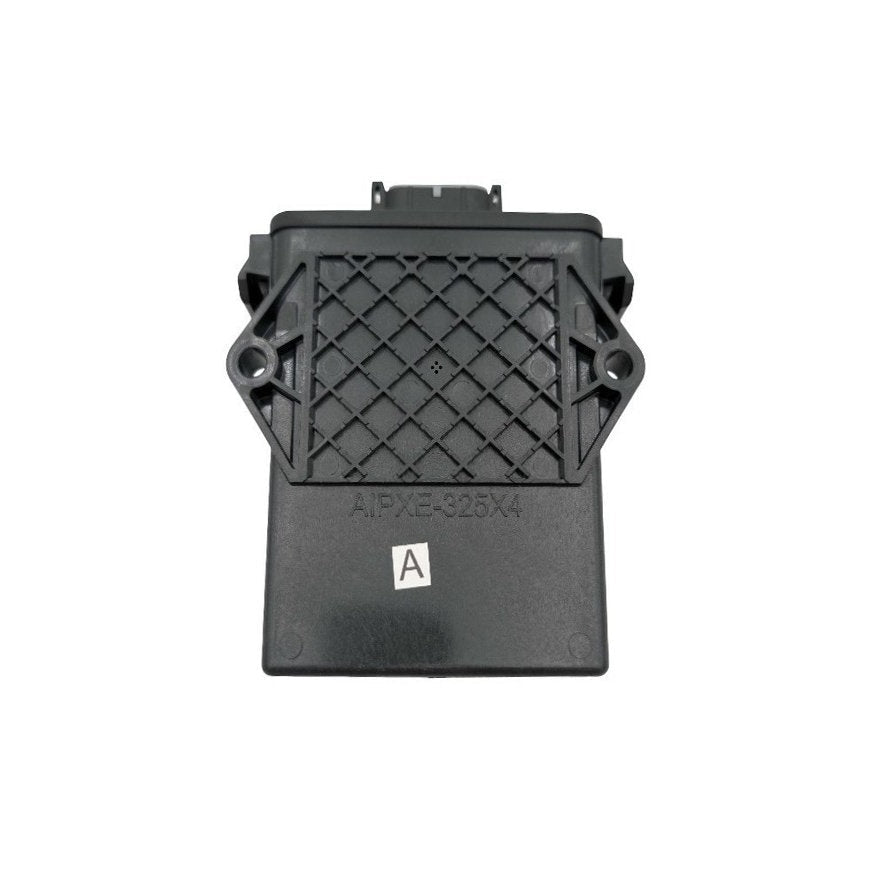

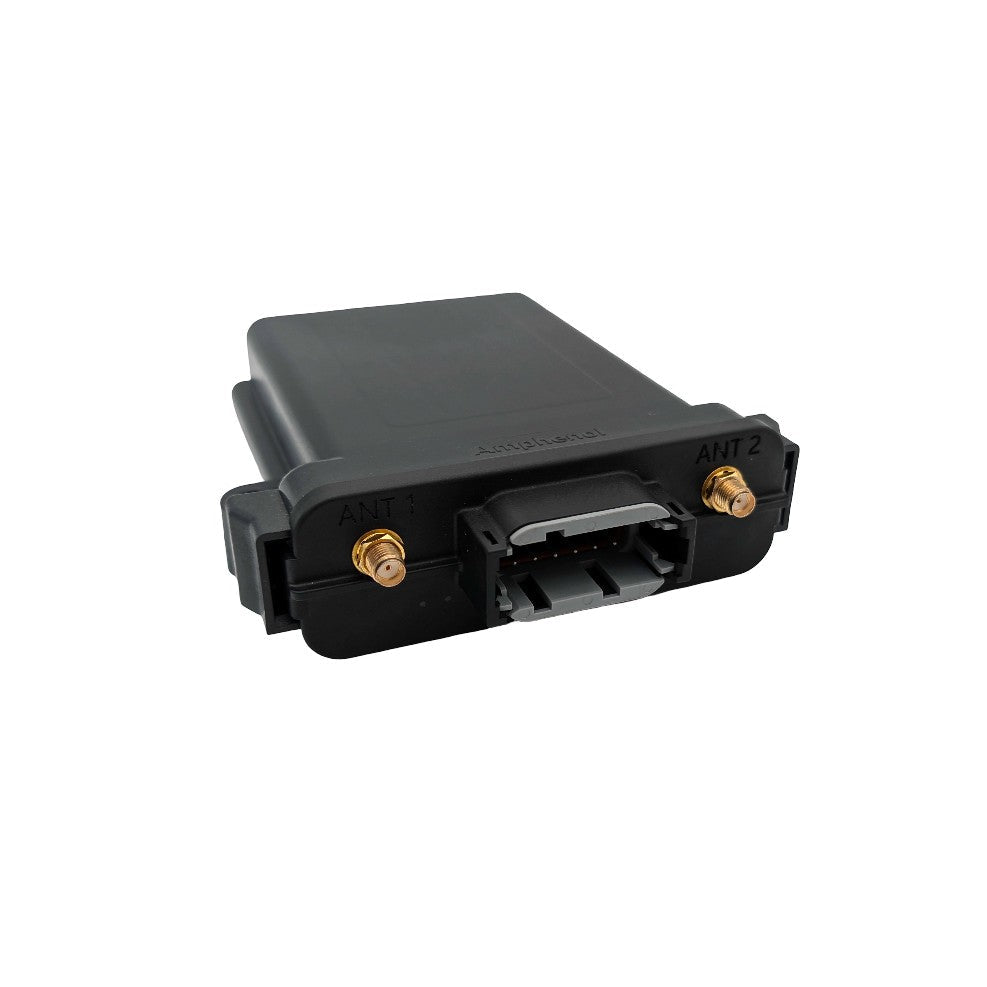

mosaic-T INDUSTRIAL timing receiver with Ethernet and PoE
mosaic-T INDUSTRIAL timing receiver with Ethernet and PoE
Tax excluded
Industrial IP67 all-constellation multi-frequency top-performance high-precision timing GNSS receiver based on the mosaic-T engine with Ethernet and PoE.
Built for permanent outdoor duty. IP69K-rated housing has exactly one opening: a sealed 12-pin industrial connector carrying power, Ethernet, RS-232 and USB through a single mating cable — nothing to gland, nothing to seal on site, nothing to corrode. RS-232 rather than bare UART lets the receiver talk directly to industrial controllers, marine electronics and existing vehicle systems over long cable runs, with no level converter in a junction box. In the field it runs on PoE or on a wide 9–36 V input that takes 12 V and 24 V vehicle, machinery and marine supplies directly; on the bench, 5 V over the same connector's USB line powers and configures it with no external supply at all. Operating from −10 °C to +60 °C and rated for high-pressure washdown, it mounts straight onto a mast, a roof, an implement frame or a wheelhouse — at a price normally reserved for enclosure-less boards and indoor-grade units.
No stock — available for order (this product is still in development, estimated availability: 31.03.2027).
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B Consultation1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
The receiver is designed to provide the highest security and availability for critical infrastructure and other applications where resilient timing is essential. Based on the mosaic-T timing engine, it provides dedicated inputs for clock and frequency synchronization.
With optional AtomiChron services, mosaic-T is providing 4 constellations NMA for superior anti-spoofing and precise timing reaching sub nanosecond precision.
AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms.
In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.
Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
- Outside Industrial PI67 device

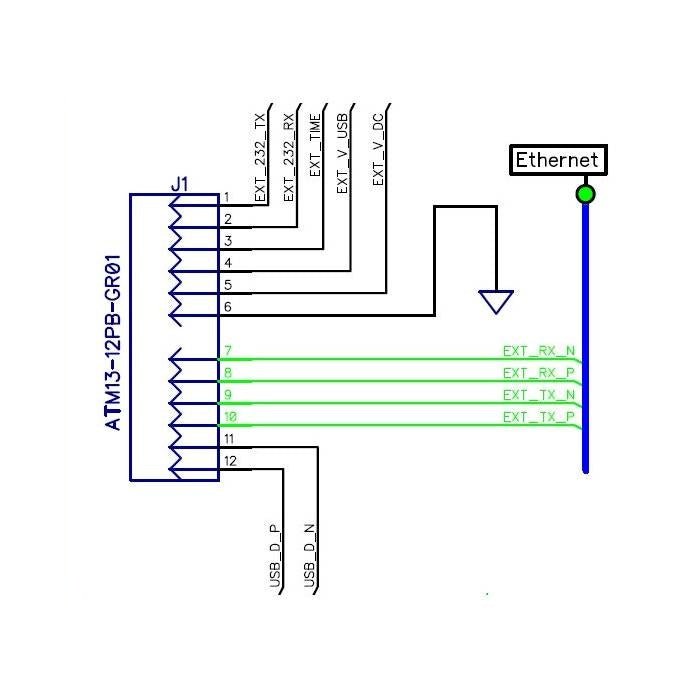

- Industrial 12 pin connector.
- 1 meter engineering or utility cable. Custom modifications are available.
- Powered by PoE, 9-36V, USB or 5V
- Passive PoE is IEEE 802.3af-2003 compatible
- Ethernet with Power over Ethernet support

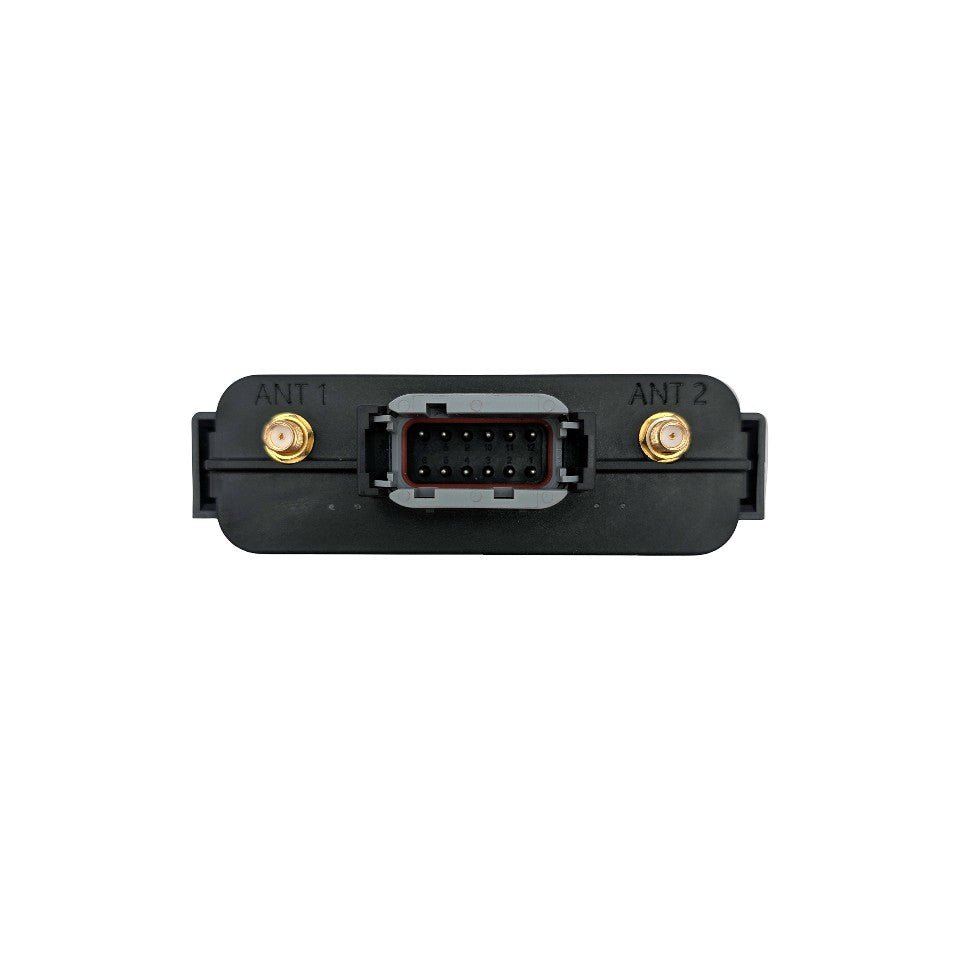

- Antenna inputs with SMA connectors
- PPS output on SMA connector
- USB
- RS-232
- 32GB SD card inside for data logging.
- PPS output
- RJ-45, DB-9, USB-C on engineering cable
- Purple Power LED, Green Ethernet LINK, Red PVT LED (GPLED), Orange RTK LED (GPLED2). GPLED/GPLED2 functions are configured in the receiver
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features

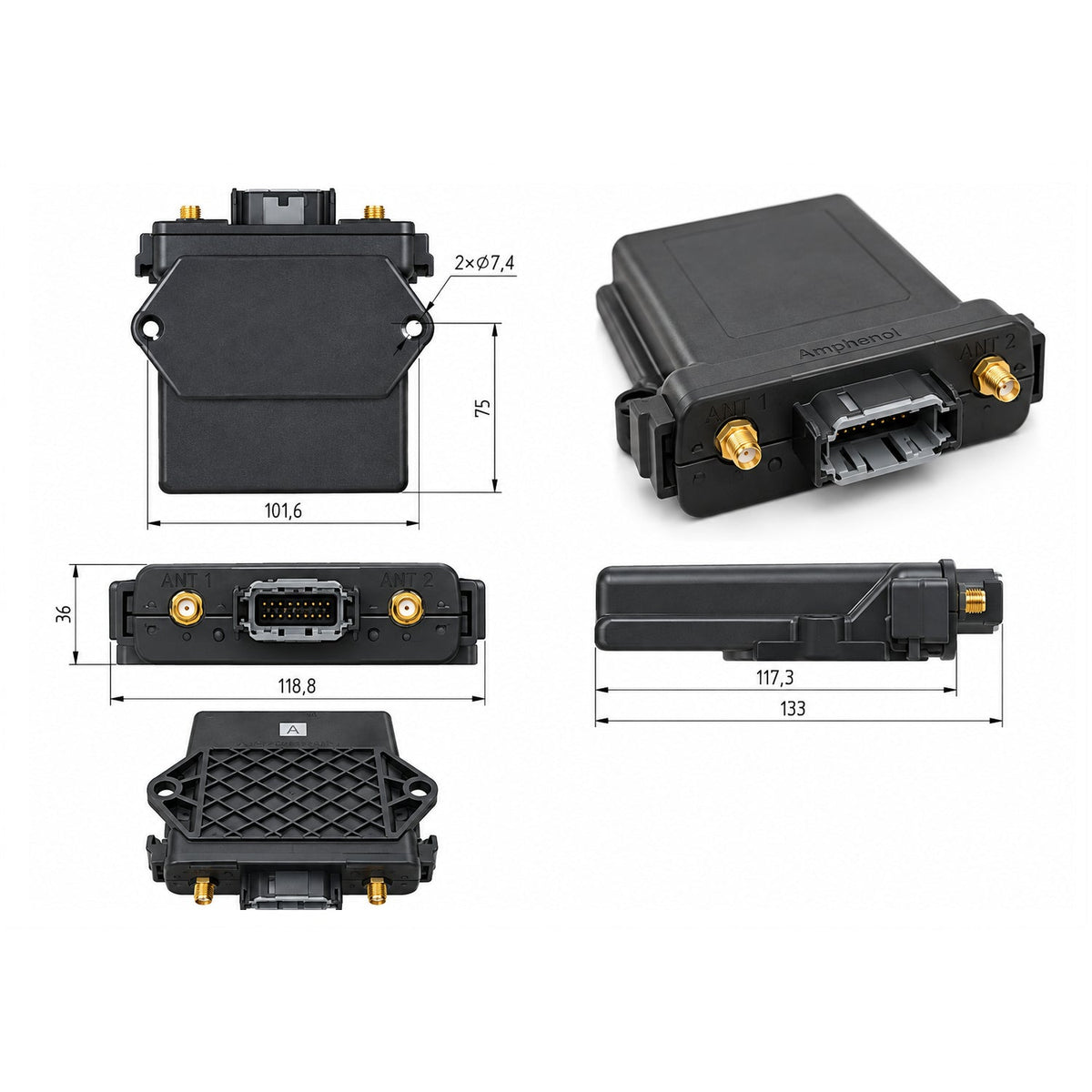

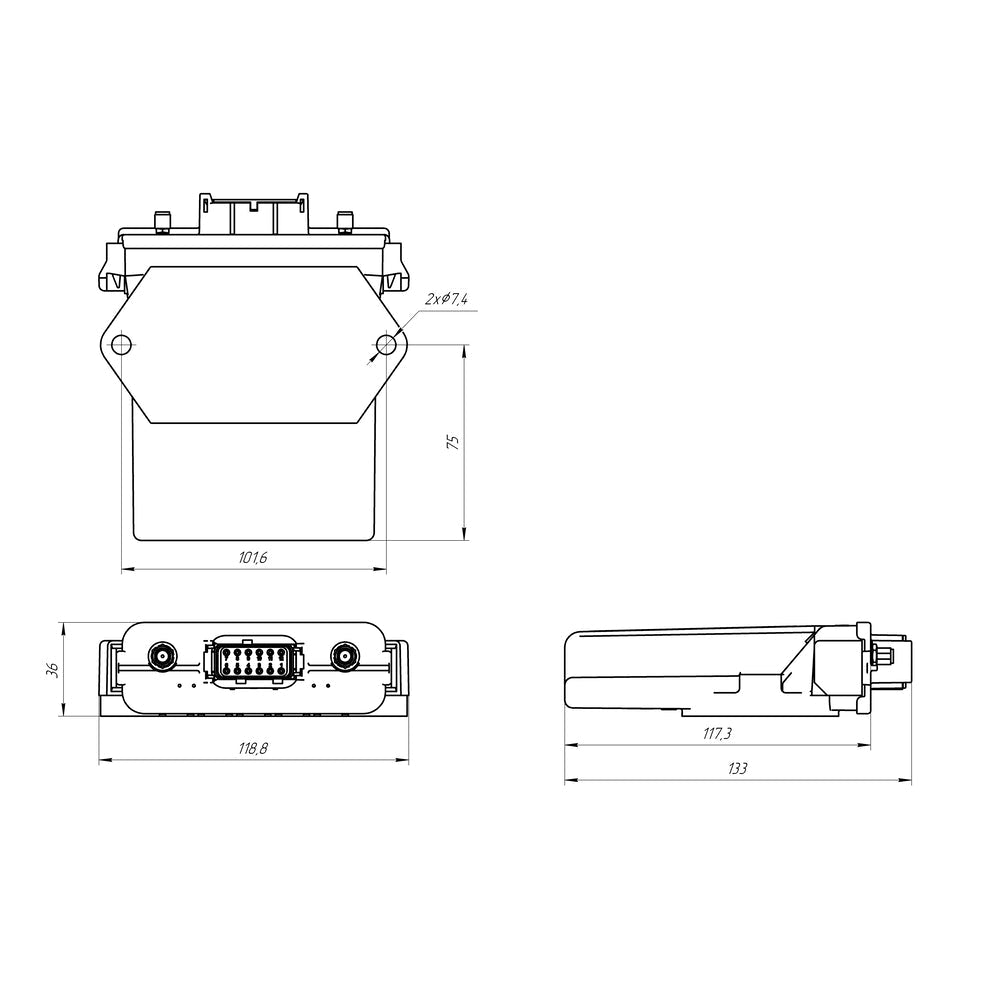

- Dimensions: 133.0 × 118.8 × 36.0 mm
- Weight: 250 g
- Work temperature: -40 °C ~ +60 °C
- Mounting method: screw mounting
- Fully assembled, tested and ready to use
WARNING: RX and CTS inputs shall not be driven while input supply not present.
Kit content:
- mosaic-H INDUSTRIAL dual-channel receiver
- Mating connector for self-made cable
