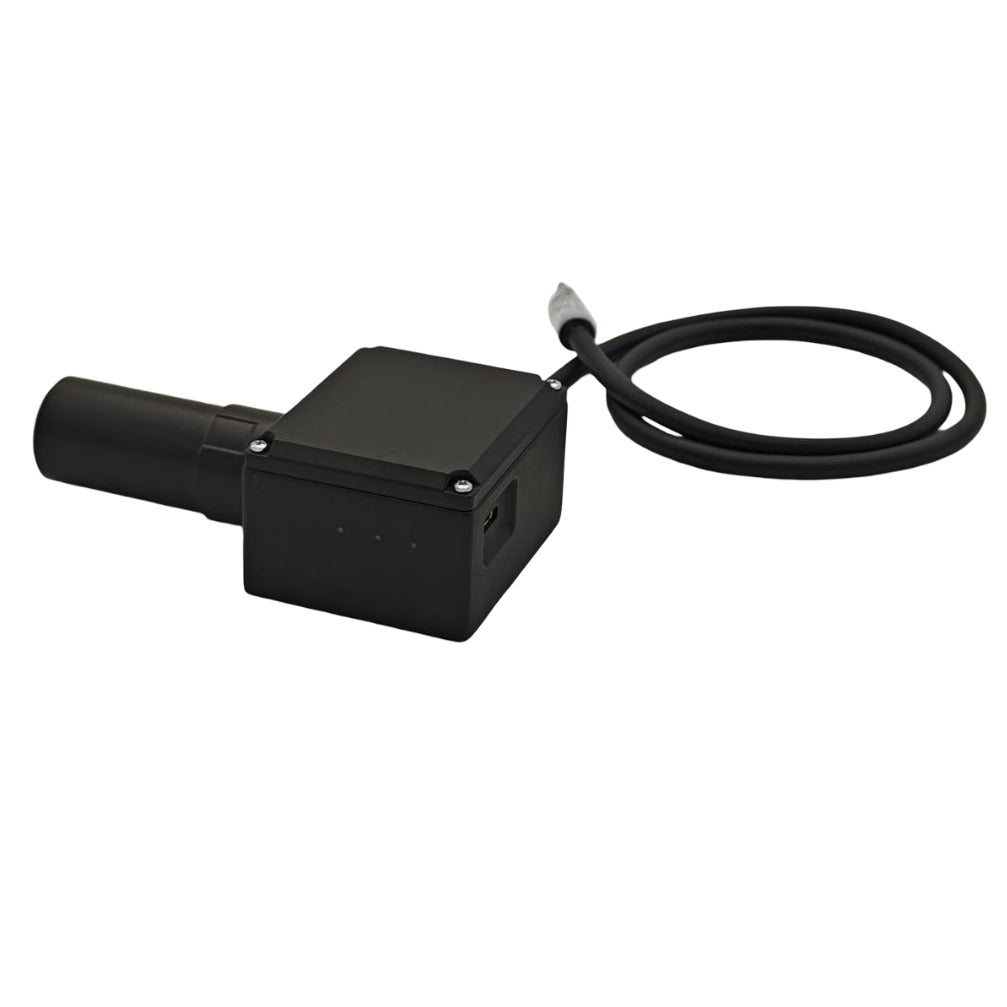

mosaic-X5 RTK GNSS Smart Antenna for Smartphone with Power Bank Connectivity
mosaic-X5 RTK GNSS Smart Antenna for Smartphone with Power Bank Connectivity
Tax excluded
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
Key Features of the mosaic-X5 RTK GNSS Smart Antenna with Power Bank Connectivity
- Plastic enclosure with an integrated 60/90/180 cm USB-C cable for smartphone connection
- USB-C port for simultaneous charging of the connected smartphone via Power Delivery 3.0 protocol
- SMA connector for external antenna input
- Integrated low-noise 3.3 V voltage regulator
- Purple Power LED, green Time pulse LED, orange RTK LED (GPLED2)
- Evaluation software: RxTools for PC
- Mounting with double-sided tape (included)
- Dimensions: 62×55×35 mm
- Weight: 105 g
- IP Rating: IP55
- Fully assembled, tested, sealed, and ready for use
mosaic-X5 GNSS RTK Smart Antenna for Smartphone with Power Bank Connectivity
mosaic-X5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms. In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.
Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
Relying on its excellent receiver performance, the device is well suited for hand-held surveying in amateur mapping and is also suitable for use in construction.
Product features:
- Plastic enclosure with an integrated 60/90/180 cm USB-C cable for smartphone connection
- USB-C port for simultaneous charging of the connected smartphone via Power Delivery 3.0 protocol
- SMA connector for external antenna input
- Integrated low-noise 3.3 V voltage regulator
- Purple Power LED, green Time pulse LED, orange RTK LED (GPLED2)
- Evaluation software: RxTools for PC
- Mounting with double-sided tape (included)
- Dimensions: 62×55×35 mm
- Weight: 105 g
- Fully assembled, tested, sealed, and ready for use
mosaic-X5 Module Specifications
mosaic-X5 Module Specifications
Accessories
L1/L2/L5 High Performance Multiband RTK GNSS Active Quad Helix Antenna
SKU: ELT0014Choose your option
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| Key Features of the mosaic-X5 RTK GNSS Smart Antenna with Power Bank Connectivity
mosaic-X5 GNSS RTK Smart Antenna for Smartphone with Power Bank Connectivitymosaic-X5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals. AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms. In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation. Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution. Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver. Relying on its excellent receiver performance, the device is well suited for hand-held surveying in amateur mapping and is also suitable for use in construction. Product features:
| Regular price
From €549,99
Sale price
From €549,99
Regular price
| ELTEHS |
Choose your option
mosaic-X5 RTK GNSS Smart Antenna for Smartphone with Power Bank Connectivity
mosaic-X5 RTK GNSS Smart Antenna for Smartphone with Power Bank Connectivity
Tax excluded
Available in stock (>10 pcs)
Key Features of the mosaic-X5 RTK GNSS Smart Antenna with Power Bank Connectivity
- Plastic enclosure with an integrated 60/90/180 cm USB-C cable for smartphone connection
- USB-C port for simultaneous charging of the connected smartphone via Power Delivery 3.0 protocol
- SMA connector for external antenna input
- Integrated low-noise 3.3 V voltage regulator
- Purple Power LED, green Time pulse LED, orange RTK LED (GPLED2)
- Evaluation software: RxTools for PC
- Mounting with double-sided tape (included)
- Dimensions: 62×55×35 mm
- Weight: 105 g
- IP Rating: IP55
- Fully assembled, tested, sealed, and ready for use
mosaic-X5 GNSS RTK Smart Antenna for Smartphone with Power Bank Connectivity
mosaic-X5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms. In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.
Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
Relying on its excellent receiver performance, the device is well suited for hand-held surveying in amateur mapping and is also suitable for use in construction.
Product features:
- Plastic enclosure with an integrated 60/90/180 cm USB-C cable for smartphone connection
- USB-C port for simultaneous charging of the connected smartphone via Power Delivery 3.0 protocol
- SMA connector for external antenna input
- Integrated low-noise 3.3 V voltage regulator
- Purple Power LED, green Time pulse LED, orange RTK LED (GPLED2)
- Evaluation software: RxTools for PC
- Mounting with double-sided tape (included)
- Dimensions: 62×55×35 mm
- Weight: 105 g
- Fully assembled, tested, sealed, and ready for use
