ZED-X20P RTK InCase PIN GNSS receiver board with USB C and SMA
ZED-X20P RTK InCase PIN GNSS receiver board with USB C and SMA
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationRegular price
€313,99
Sale price
€313,99
Regular price
Tax excluded
Key Features
- High-precision ZED-X20P GNSS module
- Compact, lightweight design
- External antenna connector
- Concurrent reception
- Centimeter-level RTK accuracy
- Energy-efficient and robust
- Compatible with PX4 and ArduPilot

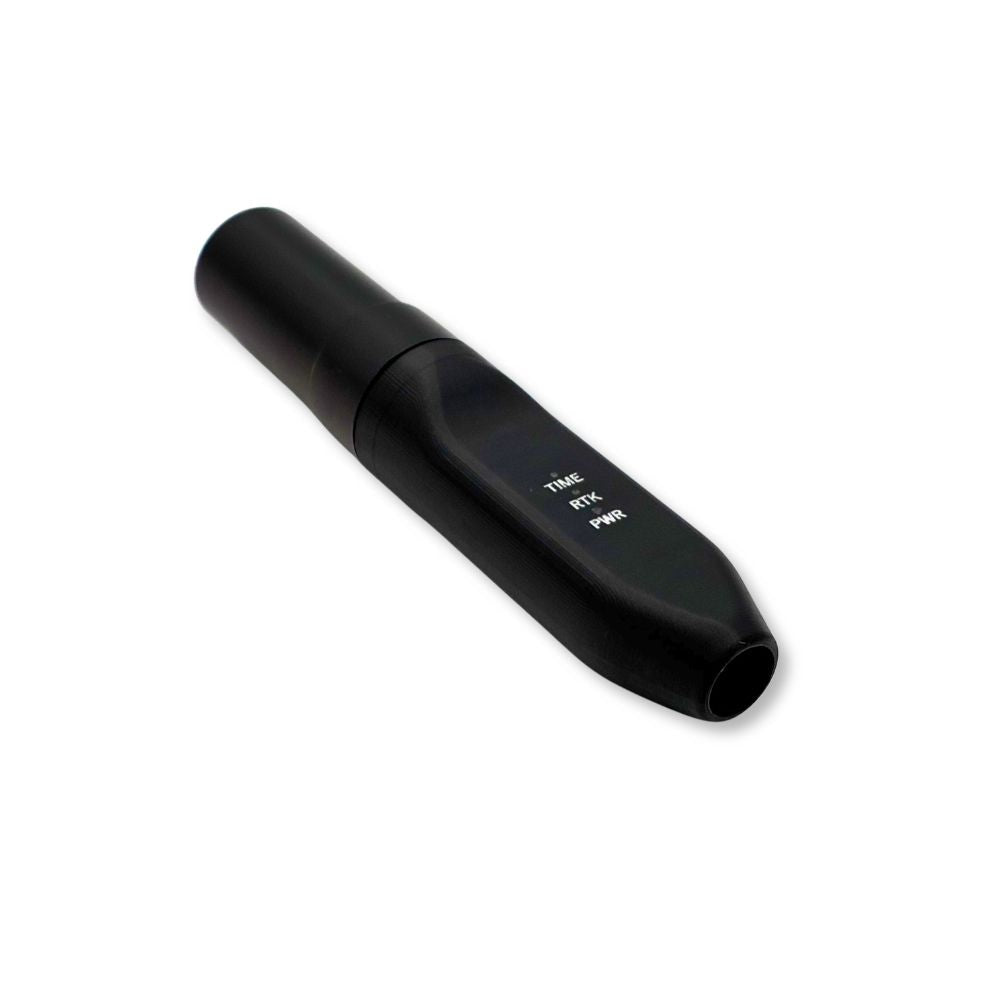

The ZED-X20P ultraLight is a compact, high-performance all-band RTK receiver based on the ZED-X20P GNSS module. Designed for UAVs, robotics, surveying instruments, and autonomous platforms, it delivers fast RTK convergence and centimeter-level positioning accuracy in a lightweight and power-efficient form factor.
Optimized for professional applications, the ZED-X20P ultraLight combines robust design with reliable performance, ensuring precise positioning even in challenging or obstructed environments.
WARNING:
When powering the device via an AC adapter, connect grounded antennas ONLY when the device is powered off.
Please log in to download the datasheet.
Available in stock (>10 pcs)
🛡️
Warranty
1 Year Limited Warranty
↩️
Returns
14-day hassle-free returns
⚙️
Support
Lifetime technical support
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related categories
Couldn't load pickup availability
Product Features
Product Features
General Specifications:
- USB C connector
- SMA antenna connector for GNSS antenna attachment
- Power supply: 5 VDC
- Power LED: violet; RTK LED: orange; Time pulse LED: green
- Compact, durable enclosure with mounting base - purpose-built for UAVs and robotics
- u-center2 ublox Evaluation Software
- Extensive visualization and evaluation features
- Fully assembled and ready to use
Physical Characteristics:
- Dimensions:
- Device: 89 × Ø27.5 mm
- Device with antenna: 148.7 × Ø27.5 mm

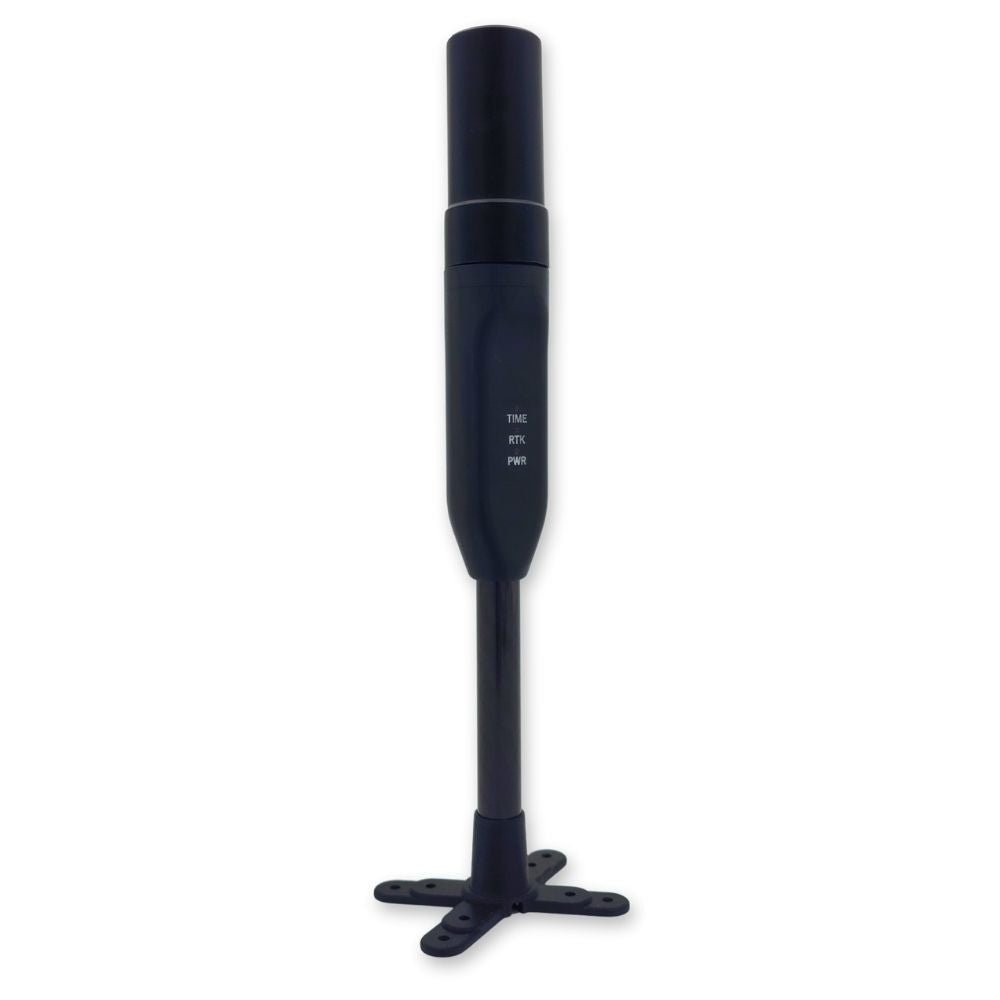

- Device on mounting base, with antenna: 235 × Ø27.5 mm - Weight:
- Device: 24.5 g
- Device with antenna: 41 g
- Device on mounting base, with antenna: 48.5 g - Water and Dust Resistance: IP55
- Operating Temperature: -10 °C ~ +60 °C
- Connector type: JST GH 6 pin, USB type C, SMA
- Mounting Options: Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, and ready for use

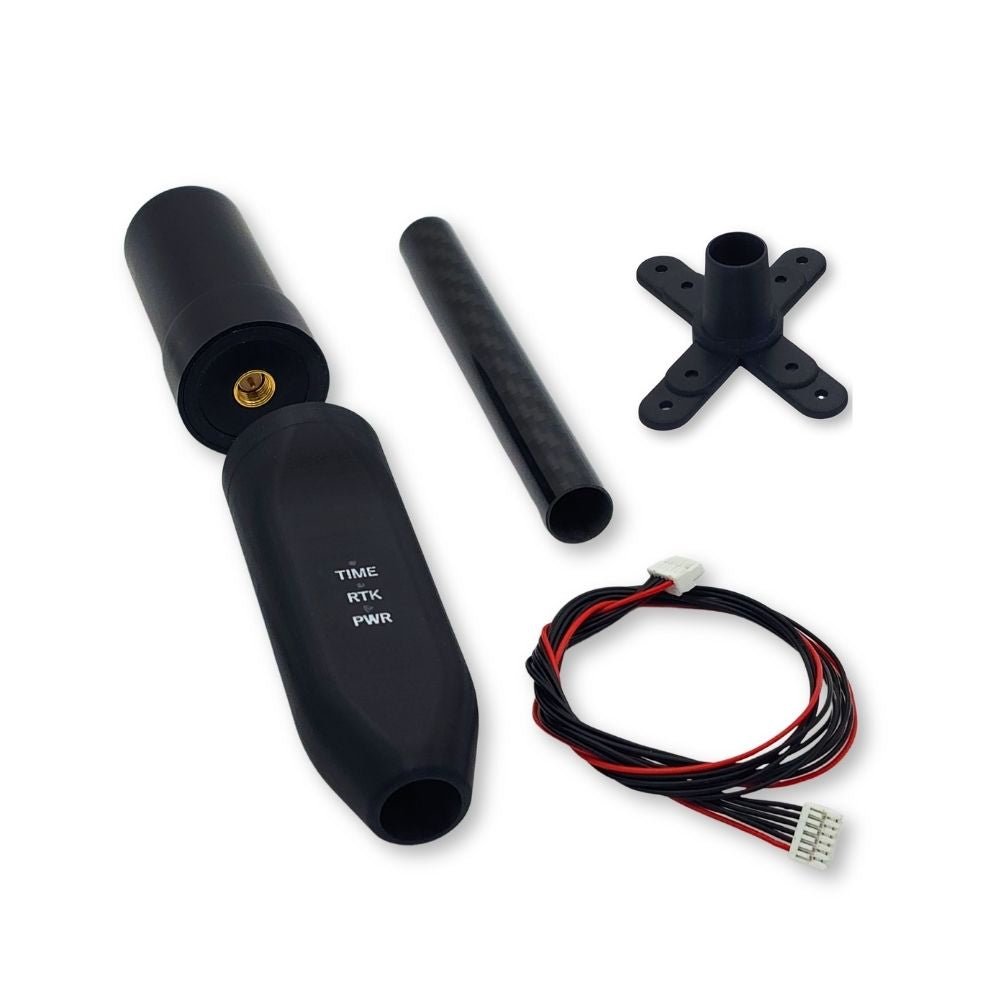

Kit includes:
- RTK receiver – 1 piece
- L1/L2/L5 Multiband RTK GNSS Active Quad Helix Antenna - 1 piece
- Cable 400mm JST GH male 6 pin to 6 pin compatible with Pixhawk – 1 piece
- Extender 100 mm - 1 piece
- 3D printed mounting - 1 piece
