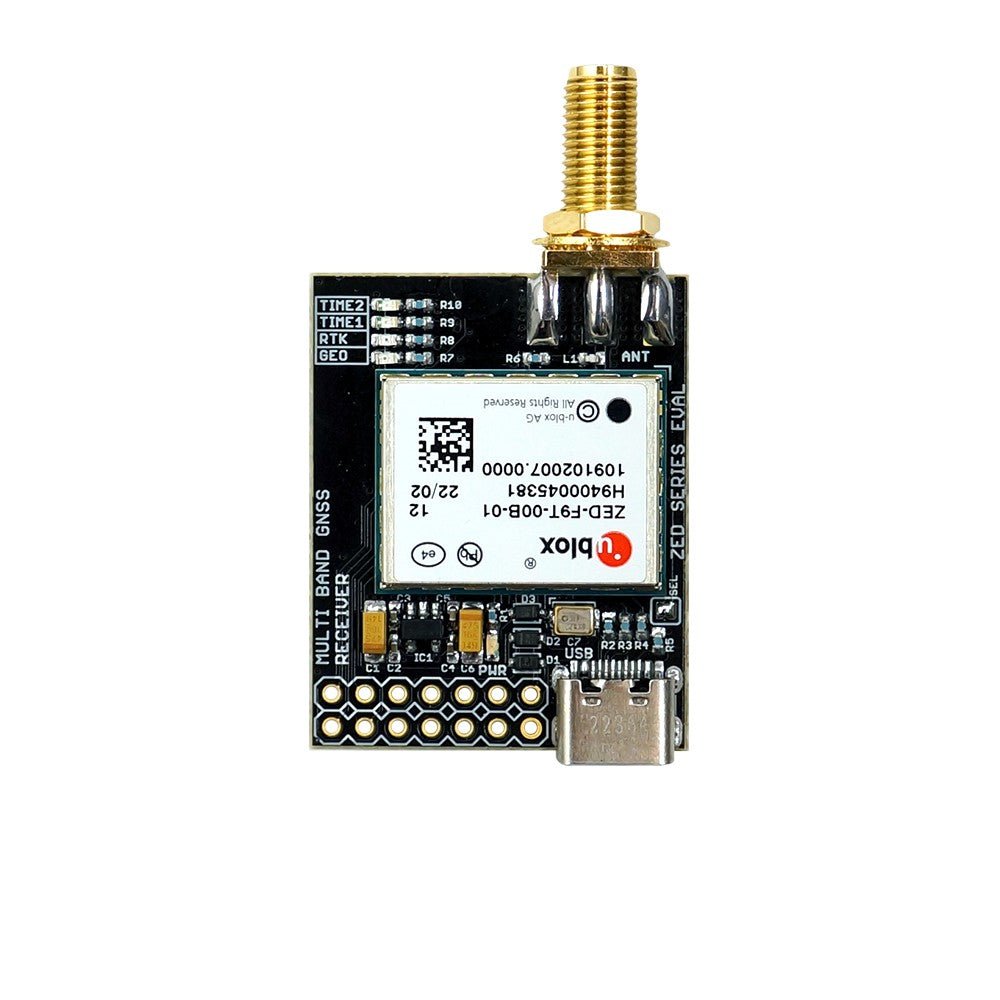

ZED-F9T-10B L1/L5/E5a 5G timing module with SMA and USB C
Tax excluded
ZED-F9T-10B L1/L5/E5a high accuracy timing EVAL module USB type C, I2C, UART, SPI with SMA antenna connectors. Designed for 5G Network Synchronization. Two time pulse out.
The ZED-F9T-10B L1/L5/E5a timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. ZED-F9T-10B L1/L5/E5a is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the ZED-F9T-10B L1/L5/E5a will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications.
Available in stock (>10 pcs)
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service. To further improve accuracy locally, the ZED-F9T-10B L1/L5/E5a features differential timing modes that exchange correction data with other neighboring GNSS timing receivers via a communication network. Multi-band access to all four satellite constellations strengthens the receiver’s capability for delivering more reliable performance. ZED-F9T-10B L1/L5/E5a includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation.
- On-board low noise 3.3V voltage regulator

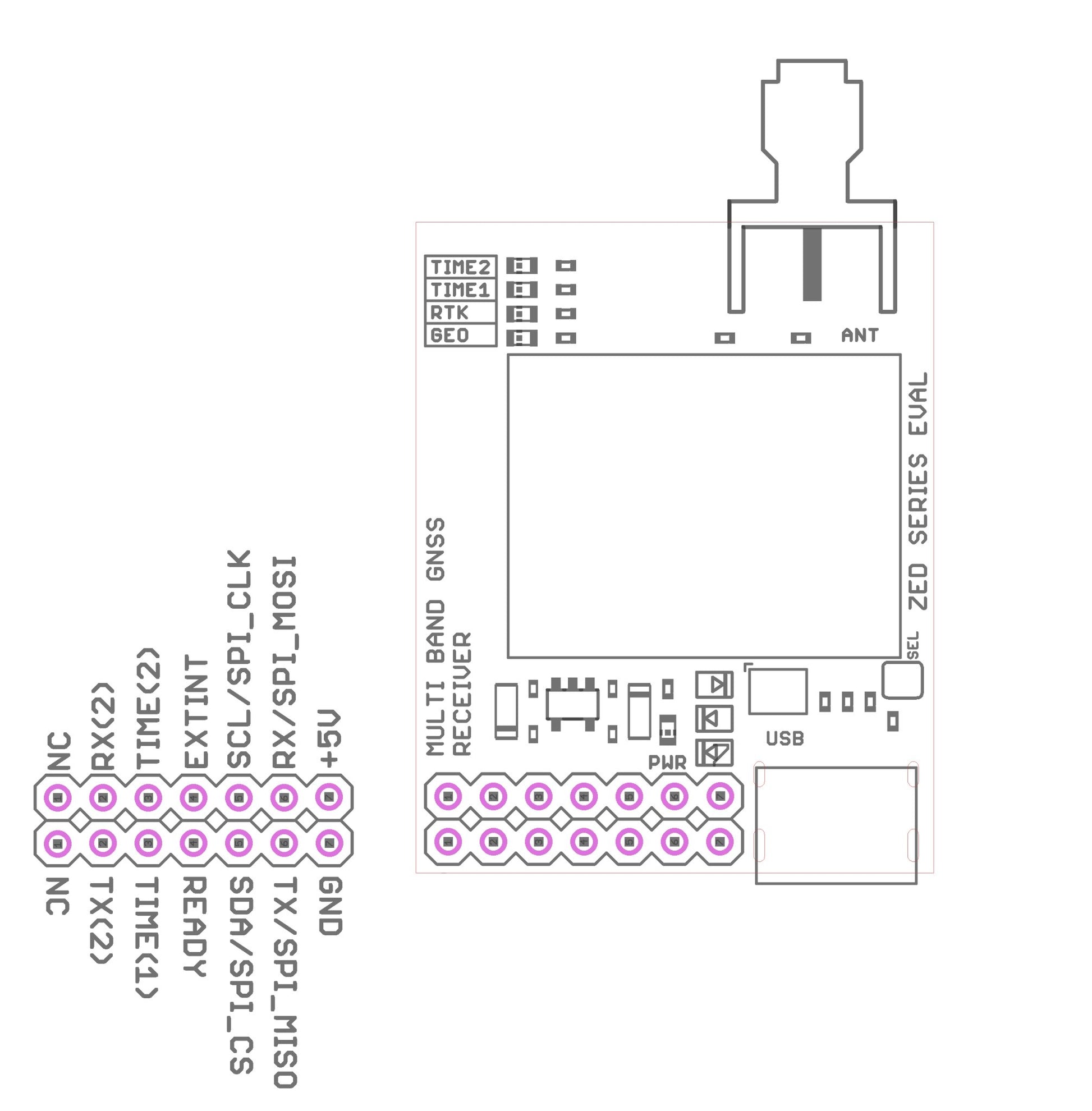

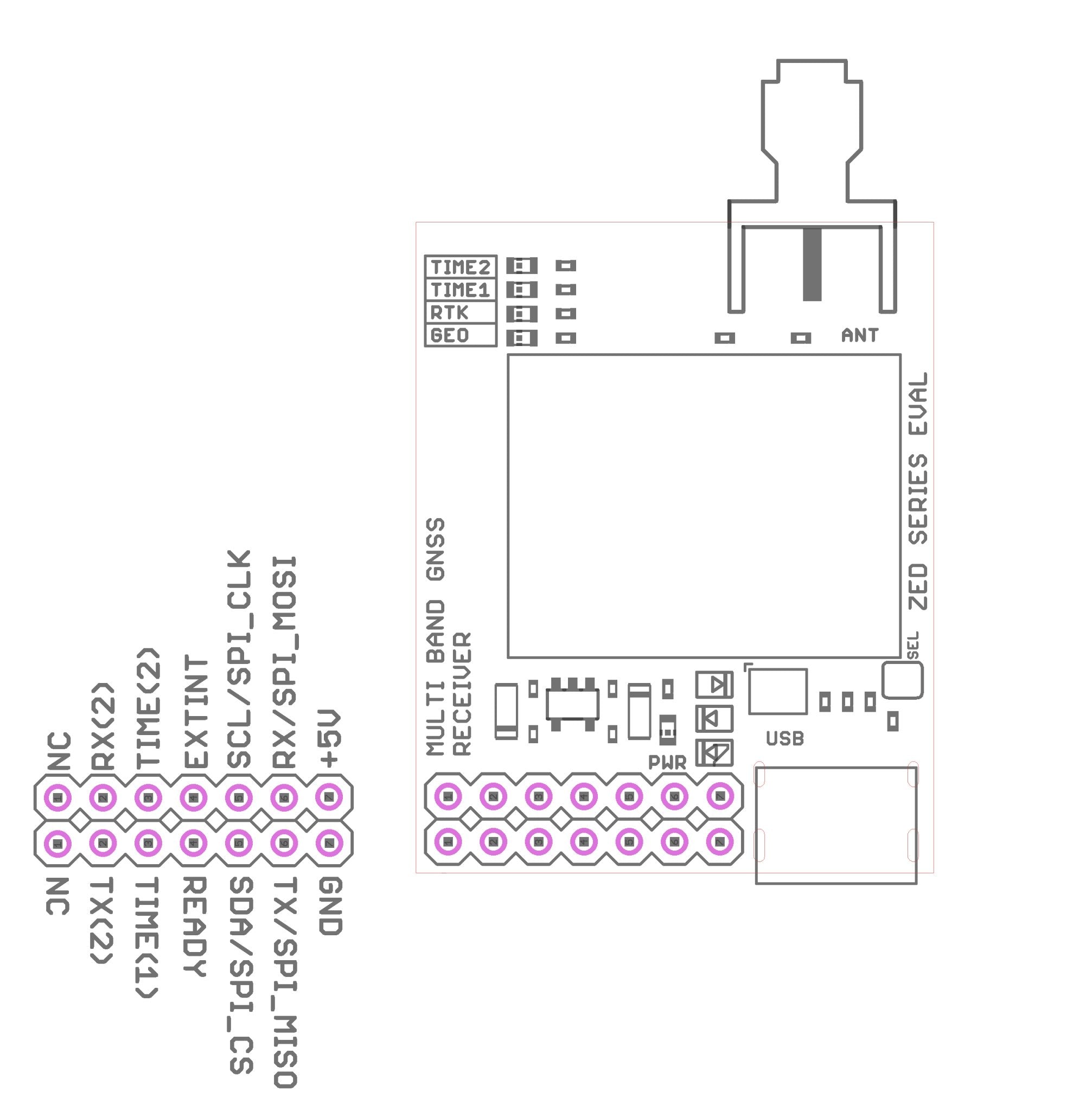

- USB type C, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface, Two time pulse out
- SMA antenna connectors
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Time pulses 1 and 2: Green LED, GEO: Orange LED, RTK: Red LED
- Backup supercapacitor

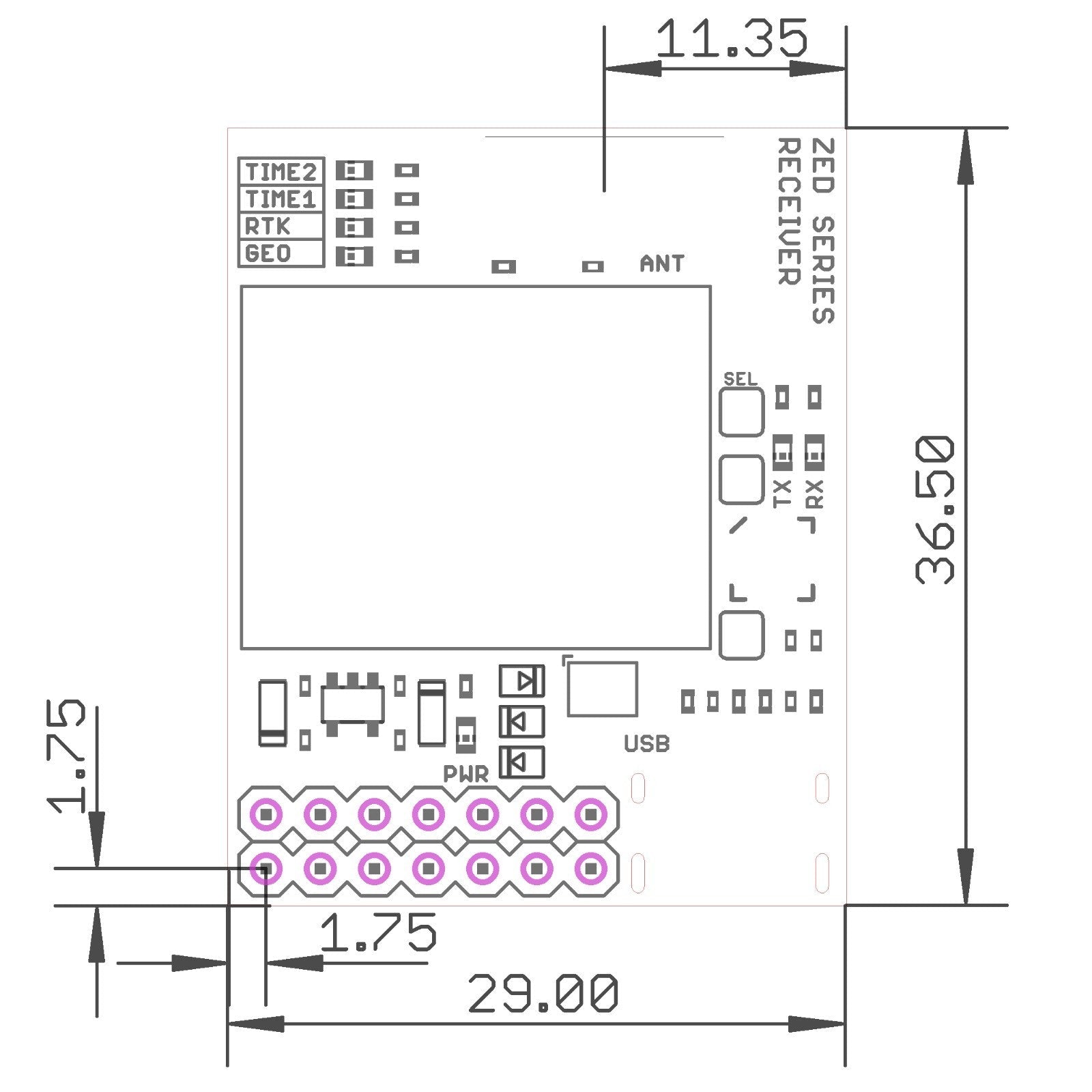

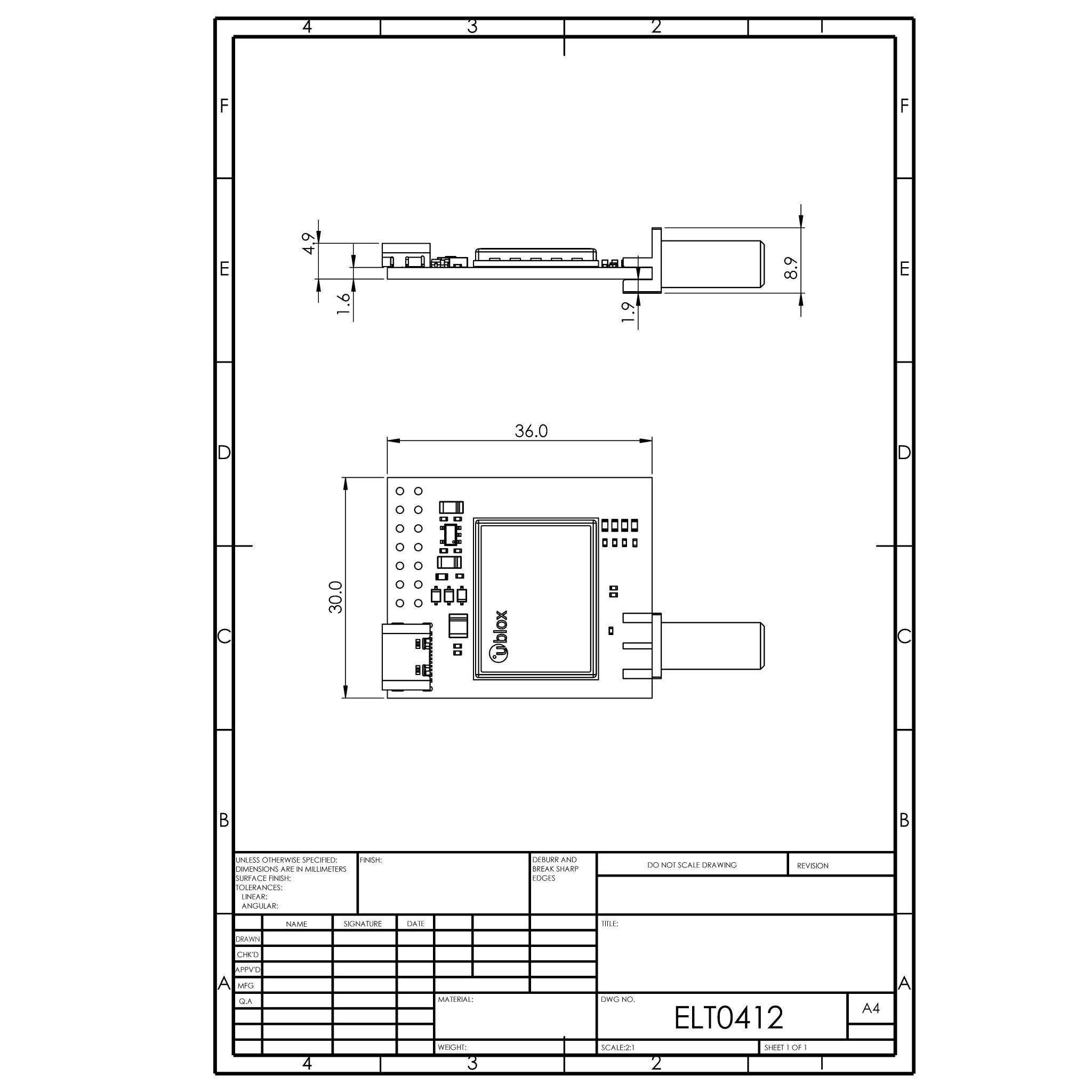

- Dimensions: 36x30 mm without SMA
- Weight: 7,9 gr.
- Fully assembled and ready to use
- 14 pin holes connector
- USB C connector
Accessories
L1/L5 ANN-MB1 multi-band high precision GNSS antenna
