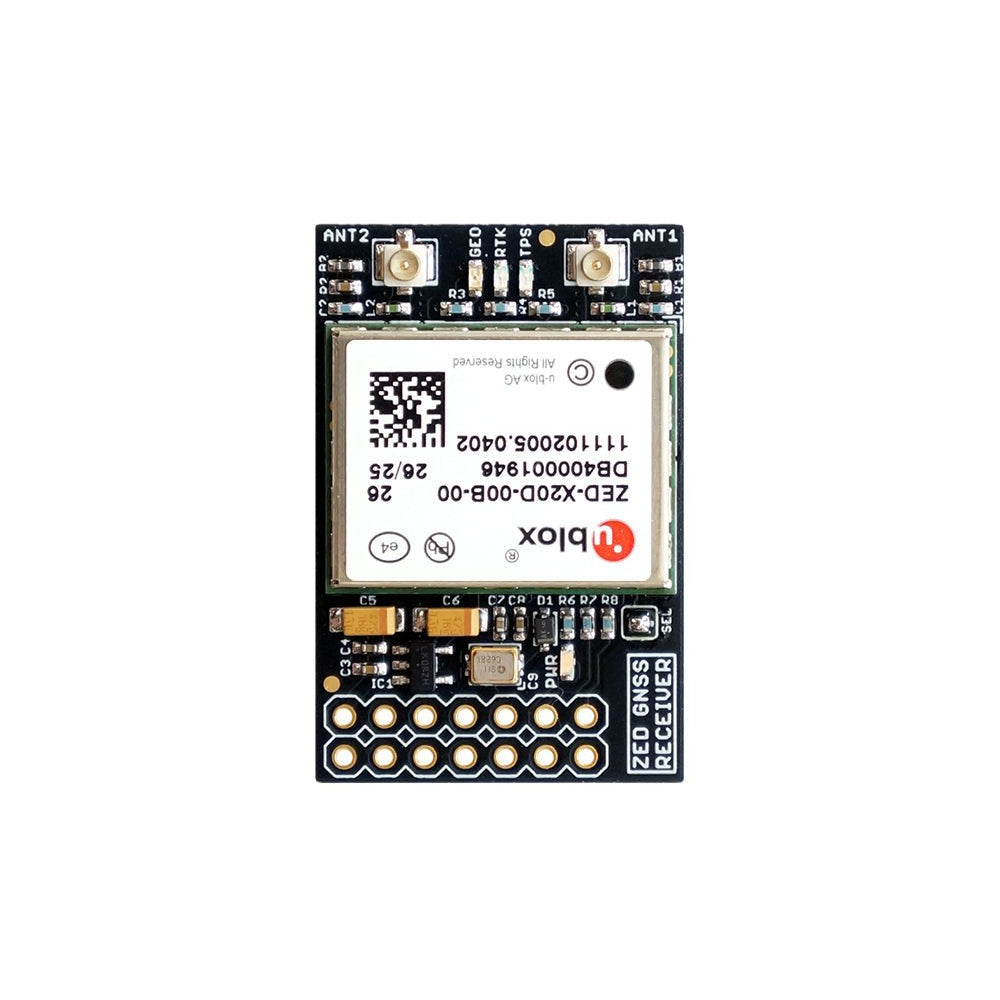

ZED-X20D all-band high precision GNSS module InCase PIN GNSS receiver board with IPEX (U.FL)
ZED-X20D all-band high precision GNSS module InCase PIN GNSS receiver board with IPEX (U.FL)
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
ZED-X20D all-band high-precision GNSS receiver board with dual-antenna GNSS heading capability for precise positioning and accurate orientation information. Supporting Base and Rover operation, the multi-band, multi-constellation receiver delivers centimeter-level RTK positioning accuracy in seconds and provides reliable GNSS-based heading using a dual-antenna baseline solution. Designed for easy integration into advanced navigation systems, autonomous robots, UAVs, and industrial applications requiring high-precision positioning and orientation.
Based on the u-blox X20 all-band high-precision technology, the ZED-X20D module is designed for dual-antenna applications requiring robust RTK positioning and precise heading information. It supports all major GNSS systems for maximum position availability, ensuring reliable positioning and heading performance even in challenging GNSS environments.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
The ZED-X20D integrates an all-band GNSS engine with innovative positioning algorithms using real-time kinematics (RTK), precise point positioning (PPP) and PPP-RTK technologies in a compact form factor. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements.
ZED-X20D protects system integrity with multi-layered measures, including Root of Trust, jamming and spoofing detection, and cryptographic authentication of navigation messages through Galileo OSNMA. It offers support for a range of correction services, striking the perfect balance between performance and data usage.
Thanks to the compact design, robust RF architecture, and integration-friendly heading solution, ZED-X20D is ideally suited for precision agriculture (including heavy machinery), unmanned autonomous vehicles (UAVs), and other industrial applications requiring robust positioning and accurate GNSSbased heading. Furthermore, customers benefit from a trusted western supply chain, minimizing risk and securing long-term availability.
With ZED-X20D, customers have a secure, reliable, and readyto-use all-band heading solution that minimizes design efforts and accelerates mass adoption.
- On-board low noise 3.3V voltage regulator
- I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface
- Two antenna inputs with IPEX (U.FL) connectors
- u-center2 ublox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED (PIN for each LED)
- Backup supercapacitor

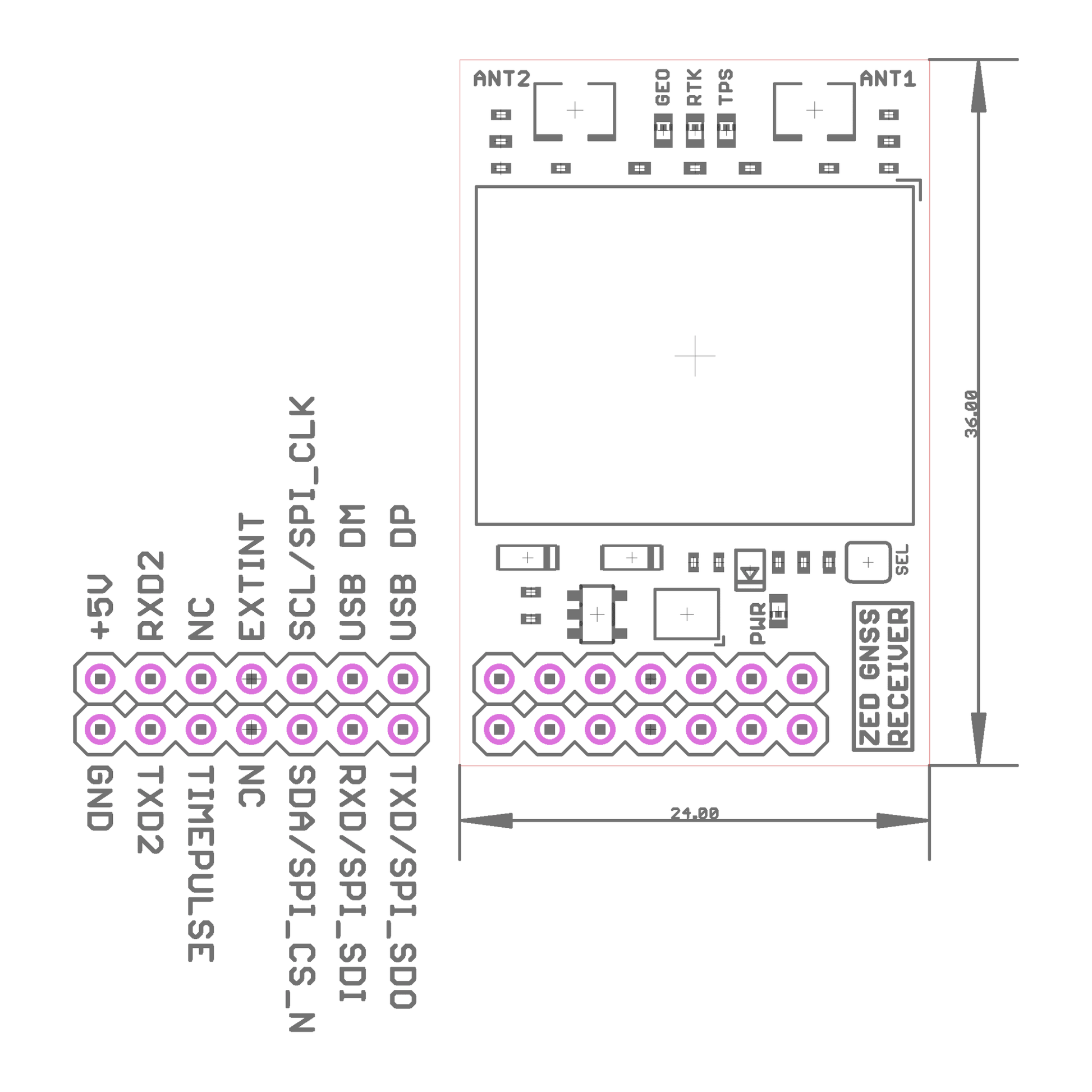

- Dimensions: 36x24 mm
- Weight: 4 gr.
- Fully assembled and ready to use
- 14 Holes with pitch 2.54mm
Board can be used for a Base or Rover operation mode!
ZED-X20D Module Specifications
ZED-X20D Module Specifications
Downloads
Downloads
NDAA statement
NDAA statement
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| ZED-X20D all-band high-precision GNSS receiver board with dual-antenna GNSS heading capability for precise positioning and accurate orientation information. Supporting Base and Rover operation, the multi-band, multi-constellation receiver delivers centimeter-level RTK positioning accuracy in seconds and provides reliable GNSS-based heading using a dual-antenna baseline solution. Designed for easy integration into advanced navigation systems, autonomous robots, UAVs, and industrial applications requiring high-precision positioning and orientation.Based on the u-blox X20 all-band high-precision technology, the ZED-X20D module is designed for dual-antenna applications requiring robust RTK positioning and precise heading information. It supports all major GNSS systems for maximum position availability, ensuring reliable positioning and heading performance even in challenging GNSS environments. The ZED-X20D integrates an all-band GNSS engine with innovative positioning algorithms using real-time kinematics (RTK), precise point positioning (PPP) and PPP-RTK technologies in a compact form factor. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements. ZED-X20D protects system integrity with multi-layered measures, including Root of Trust, jamming and spoofing detection, and cryptographic authentication of navigation messages through Galileo OSNMA. It offers support for a range of correction services, striking the perfect balance between performance and data usage. Thanks to the compact design, robust RF architecture, and integration-friendly heading solution, ZED-X20D is ideally suited for precision agriculture (including heavy machinery), unmanned autonomous vehicles (UAVs), and other industrial applications requiring robust positioning and accurate GNSSbased heading. Furthermore, customers benefit from a trusted western supply chain, minimizing risk and securing long-term availability. With ZED-X20D, customers have a secure, reliable, and readyto-use all-band heading solution that minimizes design efforts and accelerates mass adoption.
Board can be used for a Base or Rover operation mode! | Regular price
€249,99
Sale price
€249,99
Regular price
| ELTEHS |
Choose your option
ZED-X20D all-band high precision GNSS module InCase PIN GNSS receiver board with IPEX (U.FL)
ZED-X20D all-band high precision GNSS module InCase PIN GNSS receiver board with IPEX (U.FL)
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>10 pcs)
ZED-X20D all-band high-precision GNSS receiver board with dual-antenna GNSS heading capability for precise positioning and accurate orientation information. Supporting Base and Rover operation, the multi-band, multi-constellation receiver delivers centimeter-level RTK positioning accuracy in seconds and provides reliable GNSS-based heading using a dual-antenna baseline solution. Designed for easy integration into advanced navigation systems, autonomous robots, UAVs, and industrial applications requiring high-precision positioning and orientation.
Based on the u-blox X20 all-band high-precision technology, the ZED-X20D module is designed for dual-antenna applications requiring robust RTK positioning and precise heading information. It supports all major GNSS systems for maximum position availability, ensuring reliable positioning and heading performance even in challenging GNSS environments.
The ZED-X20D integrates an all-band GNSS engine with innovative positioning algorithms using real-time kinematics (RTK), precise point positioning (PPP) and PPP-RTK technologies in a compact form factor. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements.
ZED-X20D protects system integrity with multi-layered measures, including Root of Trust, jamming and spoofing detection, and cryptographic authentication of navigation messages through Galileo OSNMA. It offers support for a range of correction services, striking the perfect balance between performance and data usage.
Thanks to the compact design, robust RF architecture, and integration-friendly heading solution, ZED-X20D is ideally suited for precision agriculture (including heavy machinery), unmanned autonomous vehicles (UAVs), and other industrial applications requiring robust positioning and accurate GNSSbased heading. Furthermore, customers benefit from a trusted western supply chain, minimizing risk and securing long-term availability.
With ZED-X20D, customers have a secure, reliable, and readyto-use all-band heading solution that minimizes design efforts and accelerates mass adoption.
- On-board low noise 3.3V voltage regulator
- I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface
- Two antenna inputs with IPEX (U.FL) connectors
- u-center2 ublox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED (PIN for each LED)
- Backup supercapacitor
- Dimensions: 36x24 mm
- Weight: 4 gr.
- Fully assembled and ready to use
- 14 Holes with pitch 2.54mm
Board can be used for a Base or Rover operation mode!
