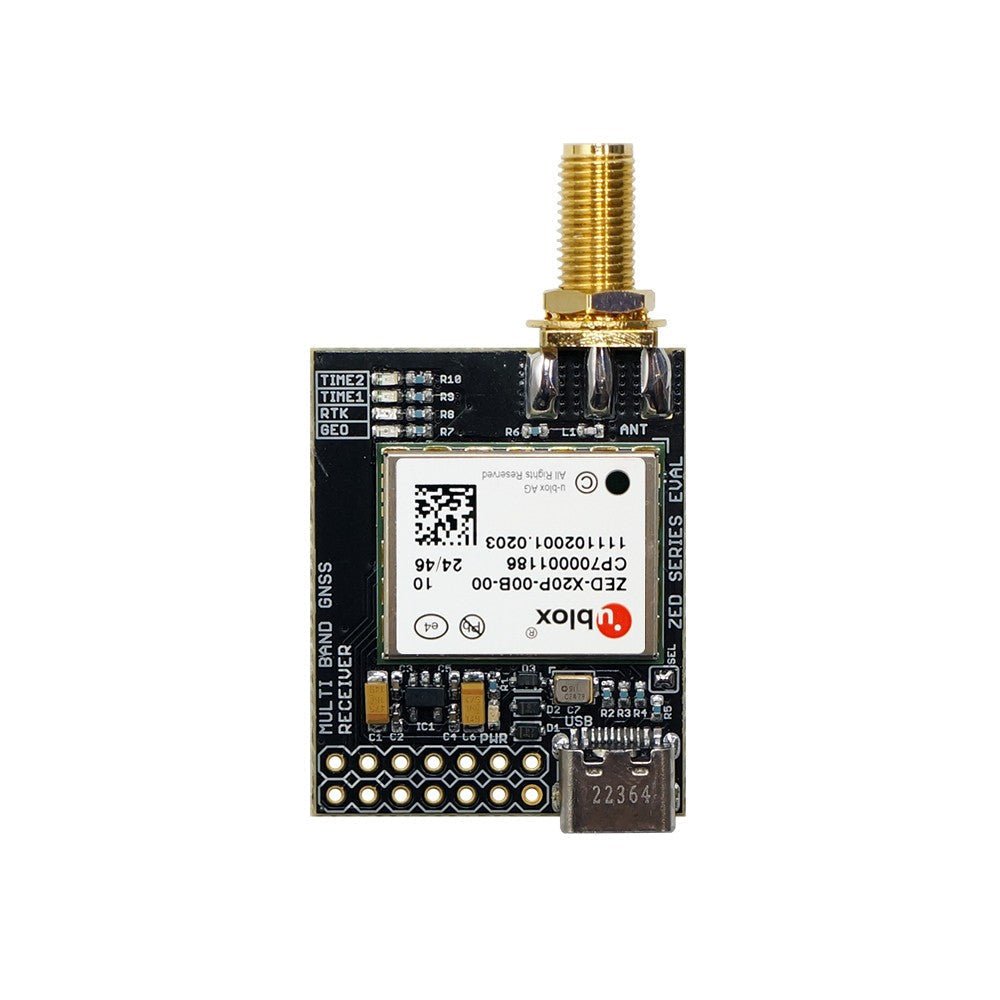

ZED-X20P all-band high precision GNSS module with SMA and USB C
ZED-X20P all-band high precision GNSS module with SMA and USB C
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
ZED-X20P All-Band all constellation GNSS receiver InCase PIN EVAL module I2C, UART, SPI with SMA antenna connectors. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots
The ZED-X20P module integrates all-band GNSS with signal modernization and innovative positioning algorithms using Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* (PPP) technologies in a compact, energyefficient form factor. As the most reliable position sensor from the most trusted name in GNSS, ZED-X20P ensures unparalleled reliability and performance.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
ZED-X20P concurrently processes signals from the GPS, Galileo, BeiDou, QZSS, and NavIC constellations accross all GNSS bands, including L-band. The highest level of integration on a single-chip receiver enables new system architectures and creates value for industrial navigation and robotics markets in products such as unmanned autonomous vehicles (UAVs), guidance systems, and auto-steering applications. With its very high update rate, the ZED-X20P module is ideal for control applications, ensuring smooth and reliable operation. For advanced users, its pristine raw data features minimal cycle slips and exceptionally low noise in carrier range and pseudo-range measurements. ZED-X20P protects system integrity with multi-layered defenses, including a Root of Trust, jamming and spoofing detection, cryptographic authentication of navigation messages through Galileo OSNMA, and more. High-value, application-specific features such as moving baseline are also available.
ZED-X20P offers support for a range of correction services natively, striking the perfect balance between performance and data usage. It supports standard RTCM corrections for Virtual Reference Stations (VRS) in a Network RTK setup or a local base station setup. SPARTN-format SSR correction service broadcasts are also supported for mass-market applications, and direct reception of PPP global services simplifies deployments.
- On-board low noise 3.3V voltage regulator

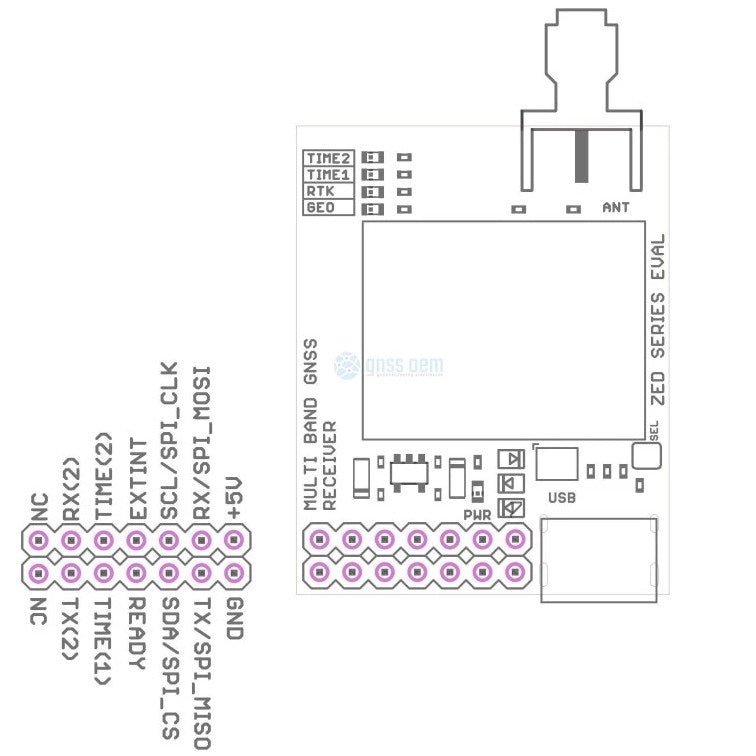

- USB C, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface
- SMA edge antenna connectors
- u-center2 ublox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor

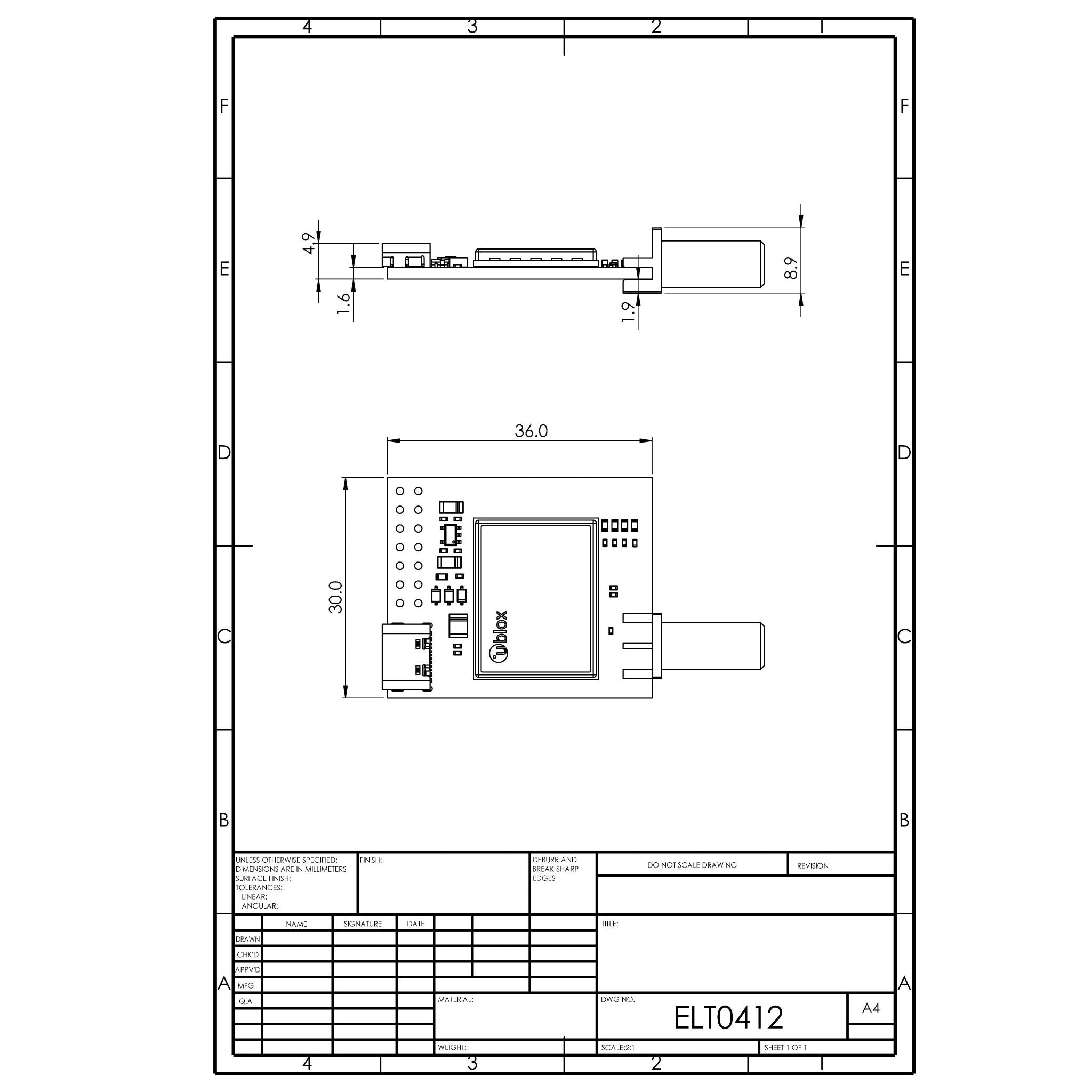

- Dimensions: 36x30 mm without SMA
- Weight: 7,9 gr.
- Fully assembled and ready to use

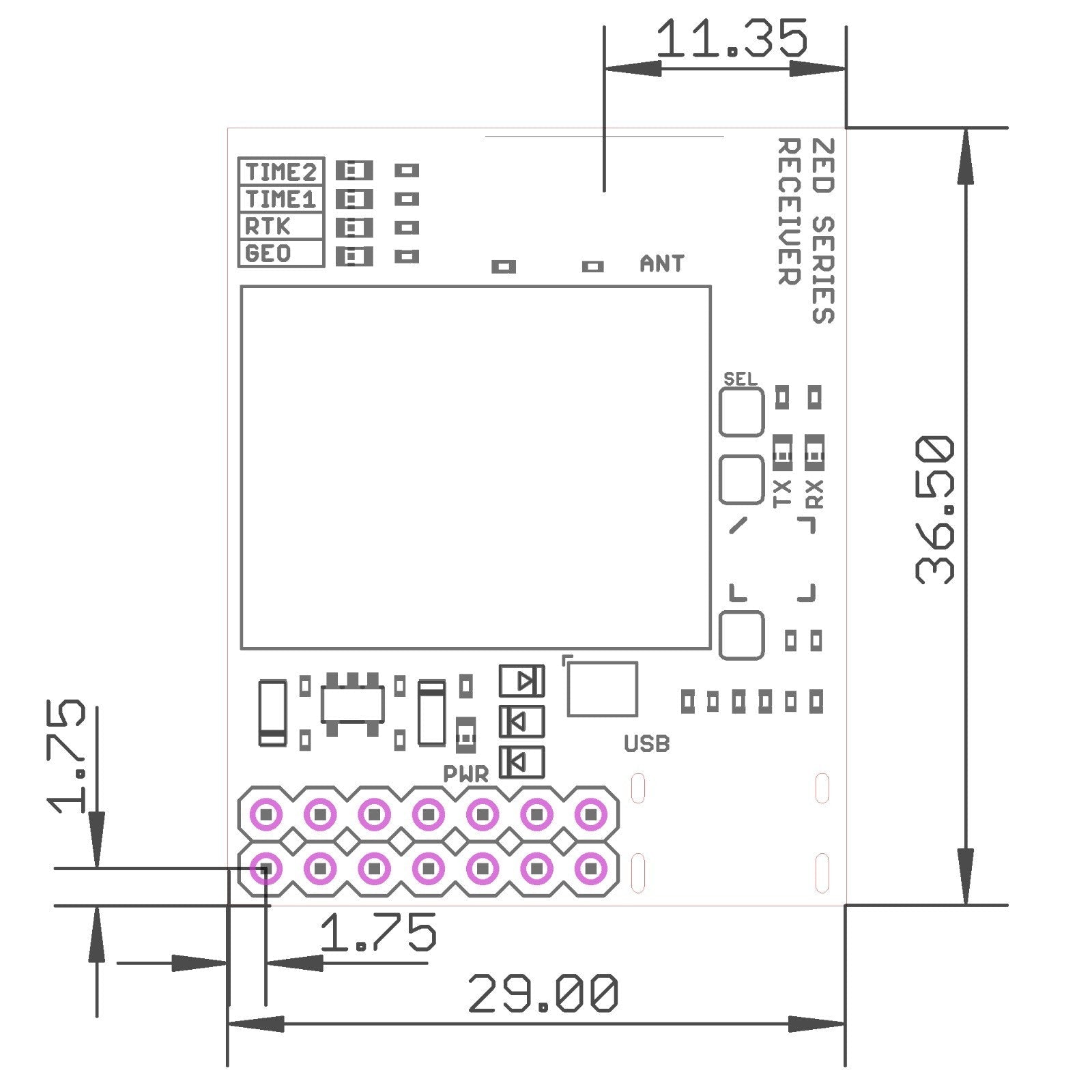

- 14 Holes with pitch 2.54mm
- USB type C connector
Board can be used for a Base or Rover operation mode!
