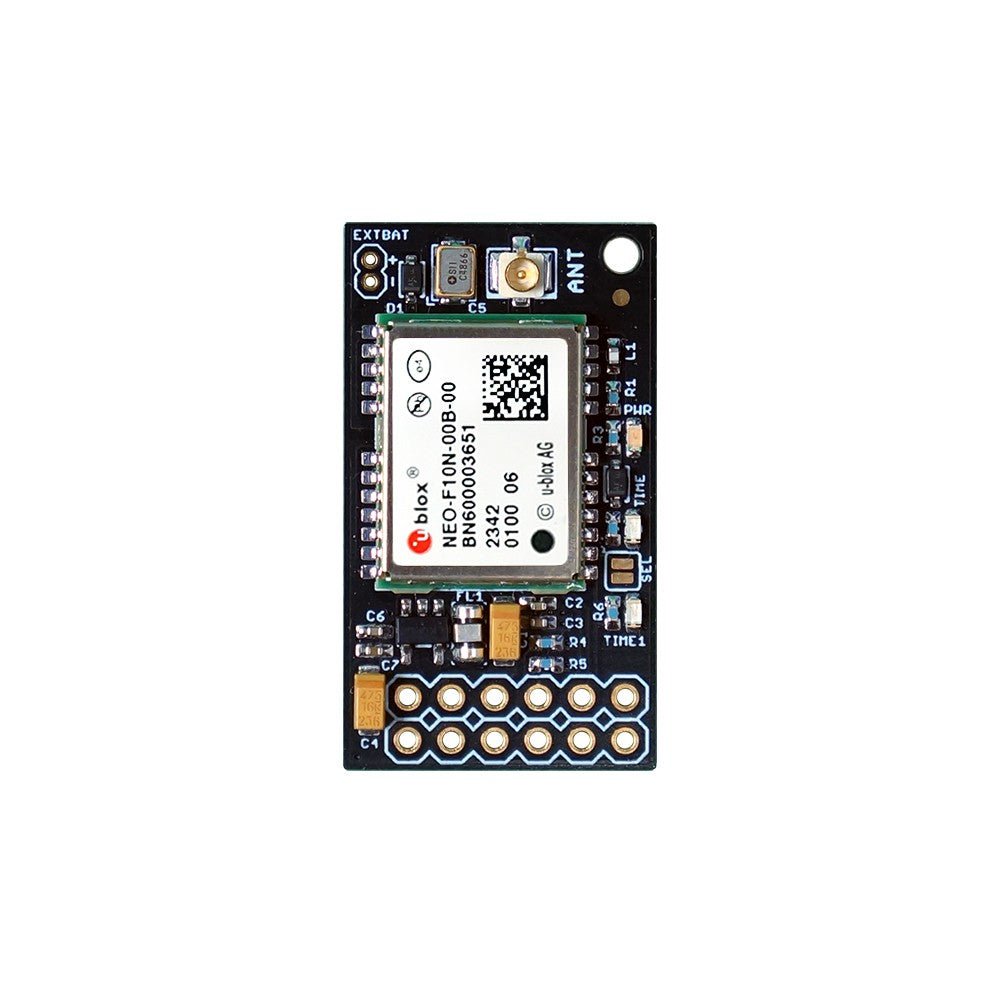

NEO-F10N InCase PIN series L1/L5 dual-band GNSS receiver board with UF.L antenna connector
NEO-F10N InCase PIN series L1/L5 dual-band GNSS receiver board with UF.L antenna connector
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
InCase PIN series NEO-F10N Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.
The NEO-F10N Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10N with SMA antenna connectors.
The NEO-F10N is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas. With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly. NEO-F10N offers a single antenna input. Two SAW filters in series with an LNA between them provide high robustness against RF interference from co-located cellular modems. The firmware is upgradeable and is highly configurable to support many different use cases.
Available in stock (>1000 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- u-blox F10 engine GPS L1C/A, L5 GALILEO E1B/C, E5a BDS B1C, B2a QZSS L1C/A, L1S, L1Sb, L5 NavIC L5 SBAS L1C/A: EGNOS, GAGAN, MSAS, and WAAS
- SuperSense Indoor -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- UART (Tx, Rx)
- Support active antenna
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Supercapacitor for HOT module star
- Wire Pad for external backup battery
- Dimensions 32x19 mm
- Weight: 2.5 gr.
- Fully assembled and ready to use

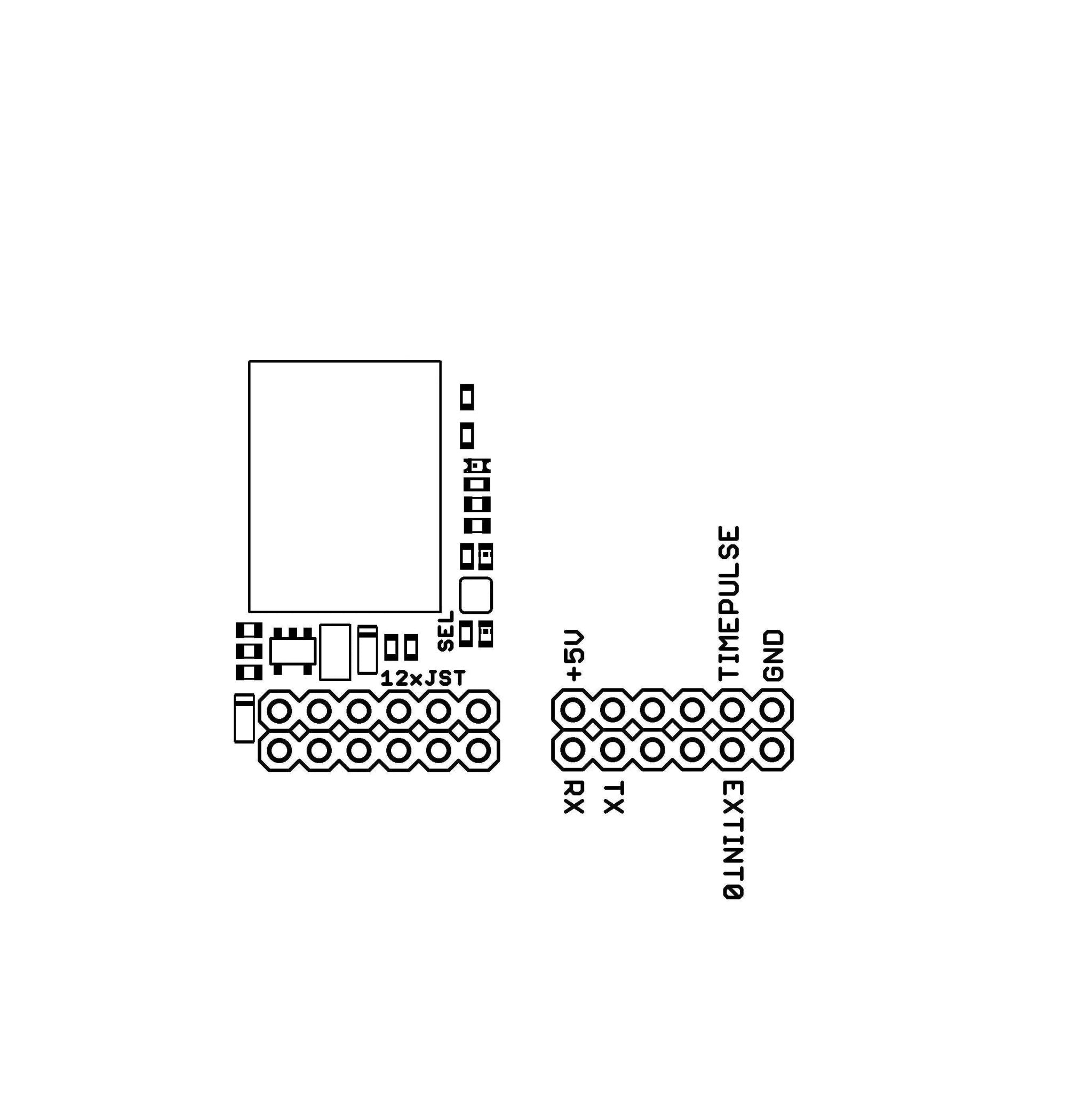

- 12 pin 6x2 row 2.54mm connector
- Output avail for use Time Pulse, Interrupt, all pins for UART interface
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| InCase PIN series NEO-F10N Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.The NEO-F10N Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10N with SMA antenna connectors. The NEO-F10N is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas. With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly. NEO-F10N offers a single antenna input. Two SAW filters in series with an LNA between them provide high robustness against RF interference from co-located cellular modems. The firmware is upgradeable and is highly configurable to support many different use cases.
| Regular price
€58,99
Sale price
€58,99
Regular price
| ELTEHS |
Choose your option
NEO-F10N InCase PIN series L1/L5 dual-band GNSS receiver board with UF.L antenna connector
NEO-F10N InCase PIN series L1/L5 dual-band GNSS receiver board with UF.L antenna connector
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>1000 pcs)
InCase PIN series NEO-F10N Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.
The NEO-F10N Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10N with SMA antenna connectors.
The NEO-F10N is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas. With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly. NEO-F10N offers a single antenna input. Two SAW filters in series with an LNA between them provide high robustness against RF interference from co-located cellular modems. The firmware is upgradeable and is highly configurable to support many different use cases.
- u-blox F10 engine GPS L1C/A, L5 GALILEO E1B/C, E5a BDS B1C, B2a QZSS L1C/A, L1S, L1Sb, L5 NavIC L5 SBAS L1C/A: EGNOS, GAGAN, MSAS, and WAAS
- SuperSense Indoor -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- UART (Tx, Rx)
- Support active antenna
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Supercapacitor for HOT module star
- Wire Pad for external backup battery
- Dimensions 32x19 mm
- Weight: 2.5 gr.
- Fully assembled and ready to use
- 12 pin 6x2 row 2.54mm connector
- Output avail for use Time Pulse, Interrupt, all pins for UART interface
