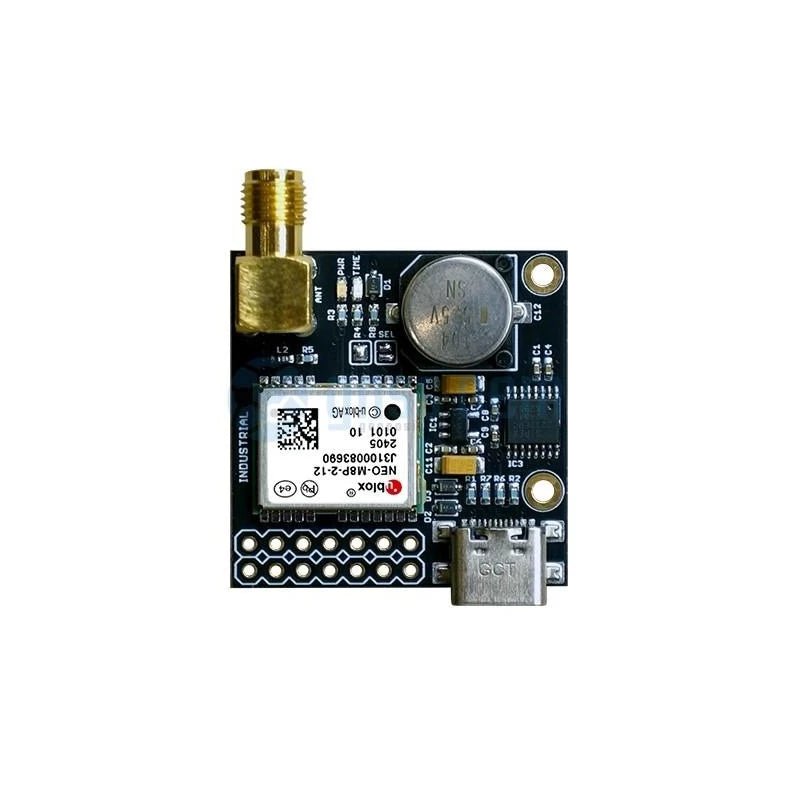

NEO-M8P RS232 INDUSTRIAL RTK USB C GNSS receiver with SMA

NEO-M8P-2 RS232 INDUSTRIAL High Precision GNSS receiver module USB C, I2C, UART, UART2, SPI with SMA antenna connectors. Base or Rover operation.

The NEO-M8P modules combine the high performance u-blox M8 positioning engine with u-blox’s Real Time Kinematic (RTK) technology. The NEO-M8P provides cm-level GNSS performance designed to meet the needs of unmanned vehicles and other machine control applications requiring accurate guidance. u-blox’s RTK technology introduces the concept of a “rover” (NEO-M8P-0) and a “base” (NEO-M8P-2) on the M8 platform for stunning cm-level accuracy in clear sky environments.

The base module sends corrections via the RTCM protocol to the rover module via a communication link enabling the rover to output its position relative to the base at cm level accuracies. The NEO-M8P is ideal for applications requiring vehicles to move faster and more accurately, operate more efficiently, and automatically return to base platforms. Such applications include UAV, unmanned vehicles (e.g. robotic lawn mowers), and Precision Agriculture guidance.

The NEO-M8P modules enable the system integrator to access u-blox complete end-to-end RTK solution including the stationary “survey-in” functionality that is designed to reduce the setup time and increase the flexibility of the application. NEO-M8P modules are compatible with a wide range of communication technologies (Cellular, WiFi, BlueTooth, UHF) enabling the user to select the communication link best suited to their application. With u‑blox’s RTK technology, integration and software development efforts can be reduced, ensuring a minimal cost of ownership.

NEO-M8P-2 highlights:

• Centimeter-level GNSS positioning for the mass market
• Integrated Real Time Kinematics (RTK) for fast time-to-market
• Small, light, and energy-efficient RTK module
• Complete and versatile solution due to base and rover variants
• World-leading GNSS positioning technology

NEO-M8P-2 breakout board features:

• On-board low noise 3.3V voltage regulator
• USB, I2C (SDA, SCL), SPI and UART, UART2 (Tx, Rx) interface
• SMA antenna connectors
• Support active antenna
• u-center ublox Evaluation Software
• Extensive visualization and evaluation features
• Time pulse LED, PWR LED
• Backup supercapacitors

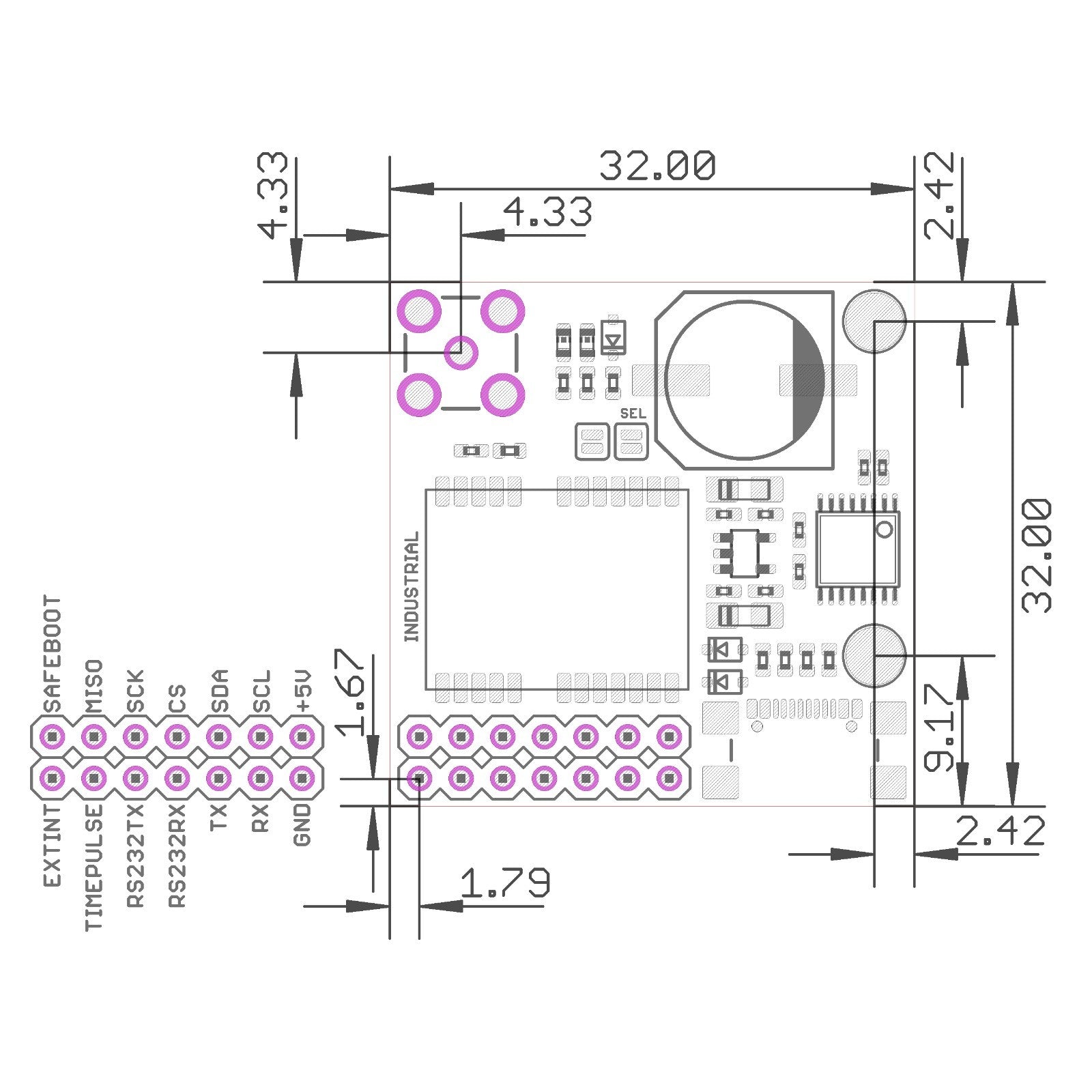

• Dimensions: 32x32 mm
• Weight: 3.1 gr.
• Working temperature: -40 °C ~ +85 °C
• Storage temperature: -55 °C ~ +95°C
• Humidity: 95% No condensation
• Vibration: MIL-STD-810F
• Shock: MIL-STD-810F

Fully assembled and ready to use

Board can be used for a Base or Rover operation mode!

NEO-M8P Features:

Receiver type:

• 72-channel u-blox M8 engine
• GPS L1 C/A,
• GLONASS L1OF,
• BeiDou B1I

Nav. update rate:

• RTK up to 8 Hz
• Carrier phase data up to 10 Hz

Position accuracy:

• Standalone 2.5 m CEP
• RTK 0.025 m + 1 ppm CEP

Convergence time:

• RTK 2 min
• Acquisition Cold starts 26 s
• Aided starts 2 s
• Reacquisition 1 s

Sensitivity:

• Tracking & Nav –160 dBm 4
• Cold starts –148 dBm
• Hot starts –156 dBm
• Reacquisition –158 dBm
• AssistNow GNSS Online
• OMA SUPL & 3GPP compliant
• TCXO Oscillator
• On-chip LNA with extra LNA for lowest noise figure
• Active CW detection and removal
• Extra onboard SAW band pass filter
• Active and passive antennas Supported
• Flash Memory
• Survey-in base For generating sub-meter base station station positions

Board can be used for a Base or Rover operation mode!

• NEO-M8P Product Summary
• NEO-M8P Data Sheet
• NEO-M8P Hardware Integration Manual
• 6 pin JST Cable
