NEO-F9P-15B RS232 INDUSTRIAL Multi-band RTK GNSS module with SMA

NEO-F9P-15B RS232 INDUSTRIAL with USB Type C Multi-band L1,L5 RTK GNSS SMA antenna connector RS232 interface, for your UDR systems, UAV systems, Robots, RC, FPV or other projects.

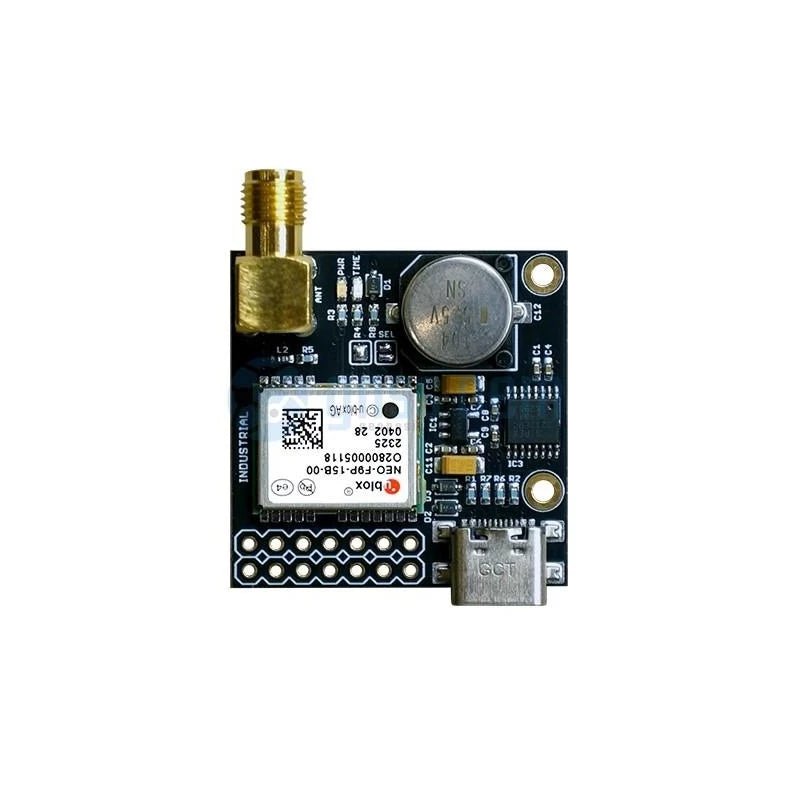

NEO-F9P High Precision GNSS breakout PCB with UF.L antenna connectors. Multi-band receiver delivers centimeter-level accuracy in seconds. The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.

The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.

NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.

NEO-F9P breakout pcb features:

• 184-channel u-blox F9 engine GPS L1C/A L5, GLO L1OF, GAL E1B/C E5a, BDS B1I B2a, QZSS L1C/A L1S L5, SBAS L1C/A NavIC L5
• On-board low noise 3.3V voltage regulator
• USB type C connector, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface, RS232 interface for UART 1, EXTINT pin, RTK STAT pin, SAFE boot pin.
• Time pulse LED, Power LED
• SMA antenna connector
• Support active antenna
• u-center ublox Evaluation Software
• Extensive visualization and evaluation features
• Backup supercapacitor

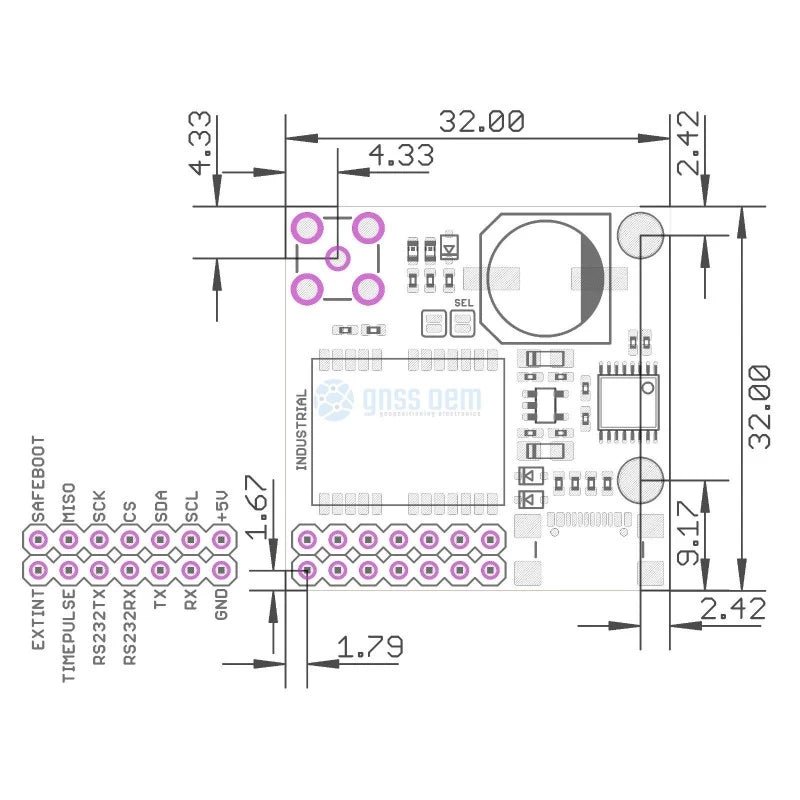

• Dimensions: 32x32 mm
• Weight: 3.1 gr.
• Working temperature: -40 °C ~ +85 °C
• Storage temperature: -55 °C ~ +95°C
• Humidity: 95% No condensation
• Vibration: MIL-STD-810F
• Shock: MIL-STD-810F
• Fully assembled and ready to use

Board can be used for a Base or Rover operation mode!

NEO-F9P Features:

Receiver type:

• 184-channel u-blox F9 engine
• GPS L1C/A L5, GLO L1OF
• GAL E1B/C E5b, BDS B1I B2I
• QZSS L1C/A L1S L5, SBAS L1C/A
• NavIC L5

Nav. update rate:

• RTK up to 20 Hz

Position accuracy:

• RTK 0.01 m + 1 ppm CEP
• SPARTN Horizontal pos. accuracy – 0.06m, vert -0.12m

Convergence time:

• RTK < 10 sec
• Acquisition Cold starts 27 s
• Aided starts 3 s
• Reacquisition 4 s

Sensitivity:

• Tracking & Nav –167
• Cold starts –148 dBm
• Hot starts –157 dBm
• Reacquisition –160 dBm
• AssistNow GNSS Online
• OMA SUPL & 3GPP compliant
• TCXO Oscillator
• Built-In RTC crystal
• Active CW detection and removal
• Onboard band pass filter
• Active and passive antennas Supported
• Flash Memory


• Antenna for RTK BASE station which perfectly suitable with this module
• Ultra Light Helix Antenna for drone


• NEO-F9P Product Summary
• NEO-F9P Data Sheet
• NEO-F9P Integration Manual
