NEO-M8N RS232 INDUSTRIAL GPS GNSS receiver with SMA and USB C
NEO-M8N RS232 INDUSTRIAL GPS GNSS receiver with SMA and USB C
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded

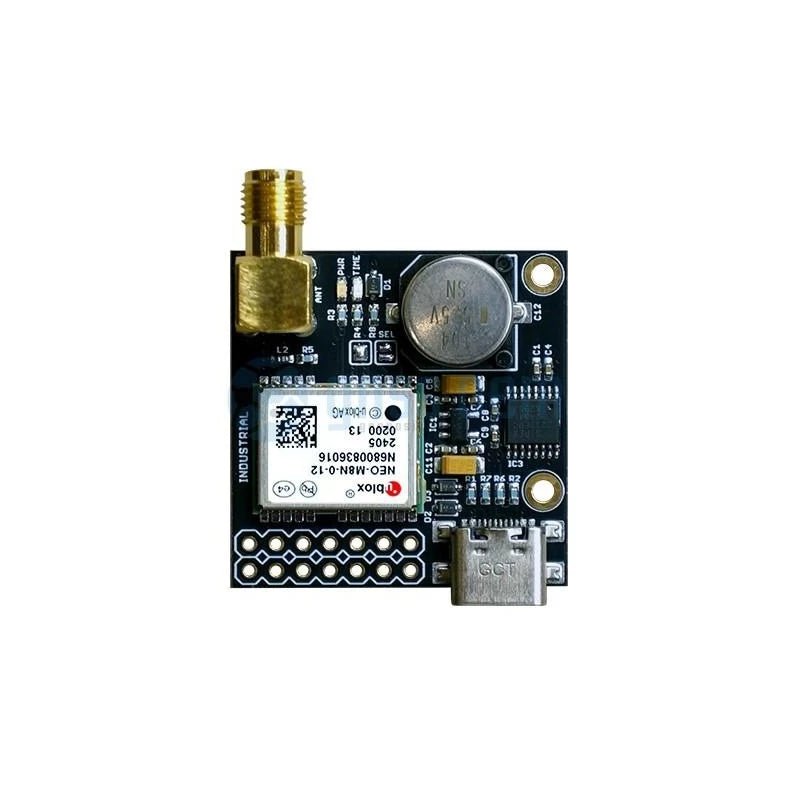

NEO-M8N RS232 INDUSTRIAL Reference Board with USB C and SMA antenna connector for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
NEO-M8N RS232 INDUSTRIAL GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver EVAL USB C, I2C, UART, SPI, RS232 module with SMA antenna connector and USB type C.
The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with SMA antenna connectors.
This product comes with 1 years worldwide warranty.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox u-blox M8 GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA,SCL), RS232, UART (Tx, Rx), SAFEBoot pin, EXTINT pin, TIMEPULSE pin
- SMA antenna connector
- USB type C connector
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitors for HOT module start

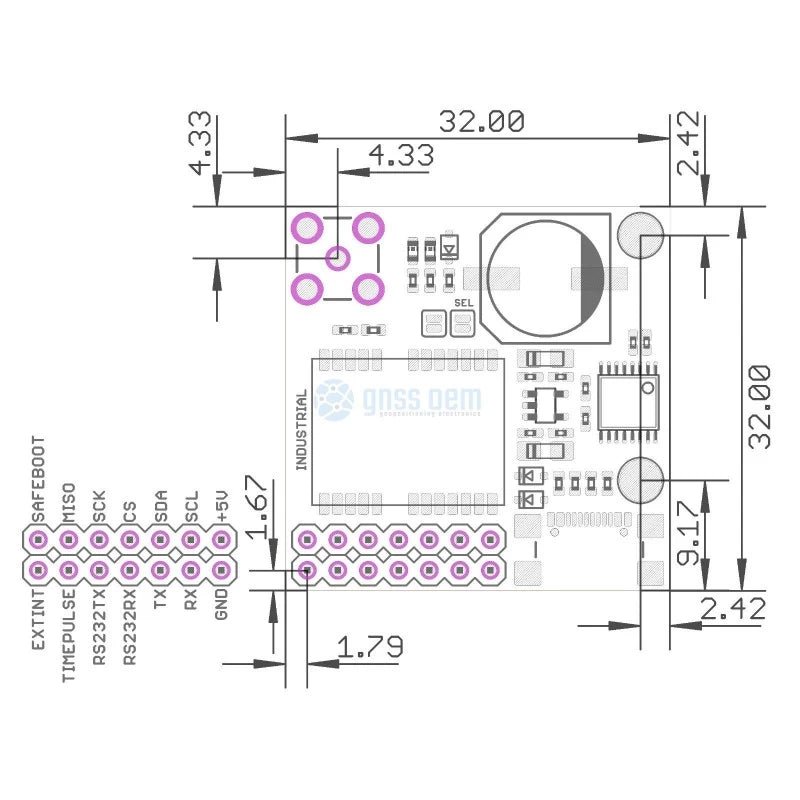

- Dimensions: 32x32 mm
- Weight: 3.1 gr.
- Working temperature: -40 °C ~ +85 °C
- Storage temperature: -55 °C ~ +95°C
- Humidity: 95% No condensation
- Vibration: MIL-STD-810F
- Shock: MIL-STD-810F
- Fully assembled and ready to use
