ZED-F9P INDUSTRIAL mPCIe socket RTK GNSS receiver with IPEX (U.FL) Base or Rover
ZED-F9P INDUSTRIAL mPCIe socket RTK GNSS receiver with IPEX (U.FL) Base or Rover
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded

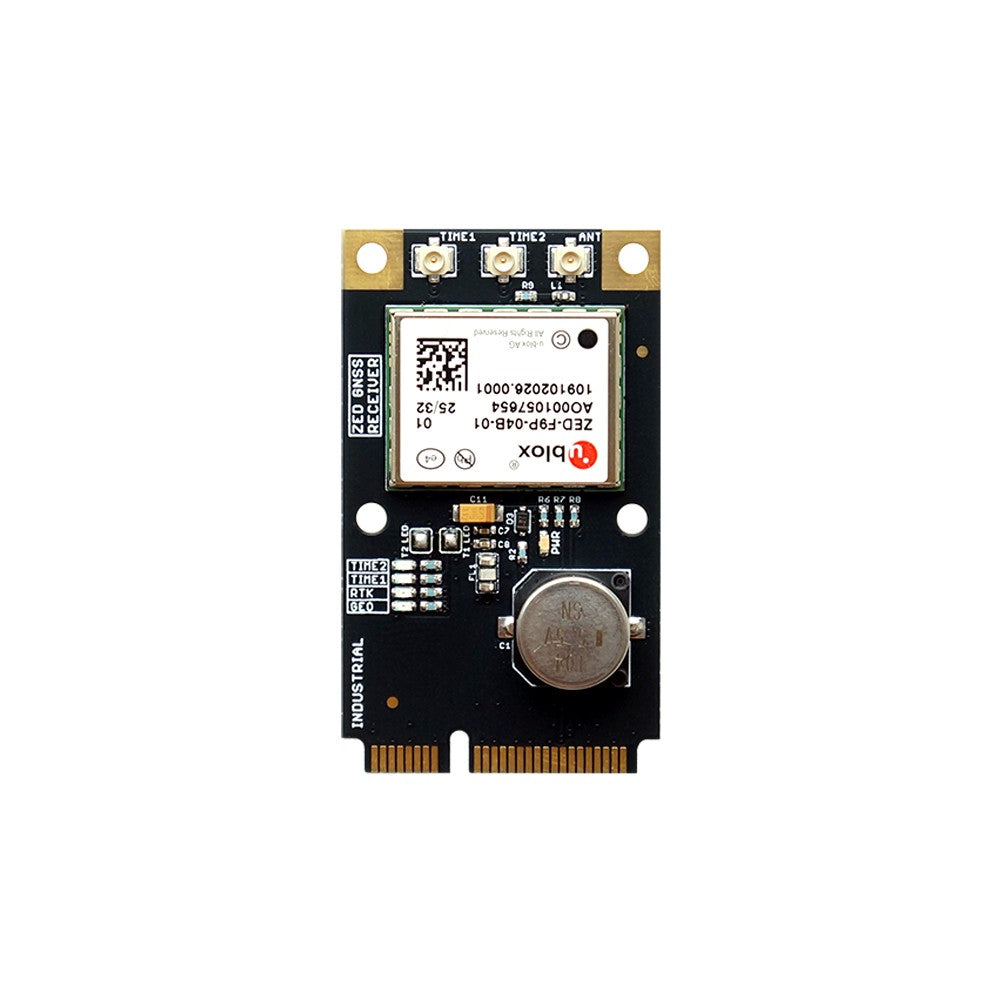

ZED-F9P INDUSTRIAL mPCIe socket High Precision RTK GNSS receiver with IPEX (U.FL) antenna connectors and IPEX (U.FL) time pulse out connector. L1/L2 or L1/L5 options. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots.
The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
Two module options offered - with L1/L2 bands (ZED-F9P) and with L1/L5 bands (ZED-F9P-15B). L1/L5 option will work better in urban canyon and similar complex environment. Read our blog article L2 or L5? (https://gnss.store/blog/post/l2-or-l5.html) for more details. Please note, using L5 band require special configuration (https://www.u-blox.com/sites/default/files/documents/GPS-L5-configuration_AppNote_UBX-21038688.pdf)
The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features

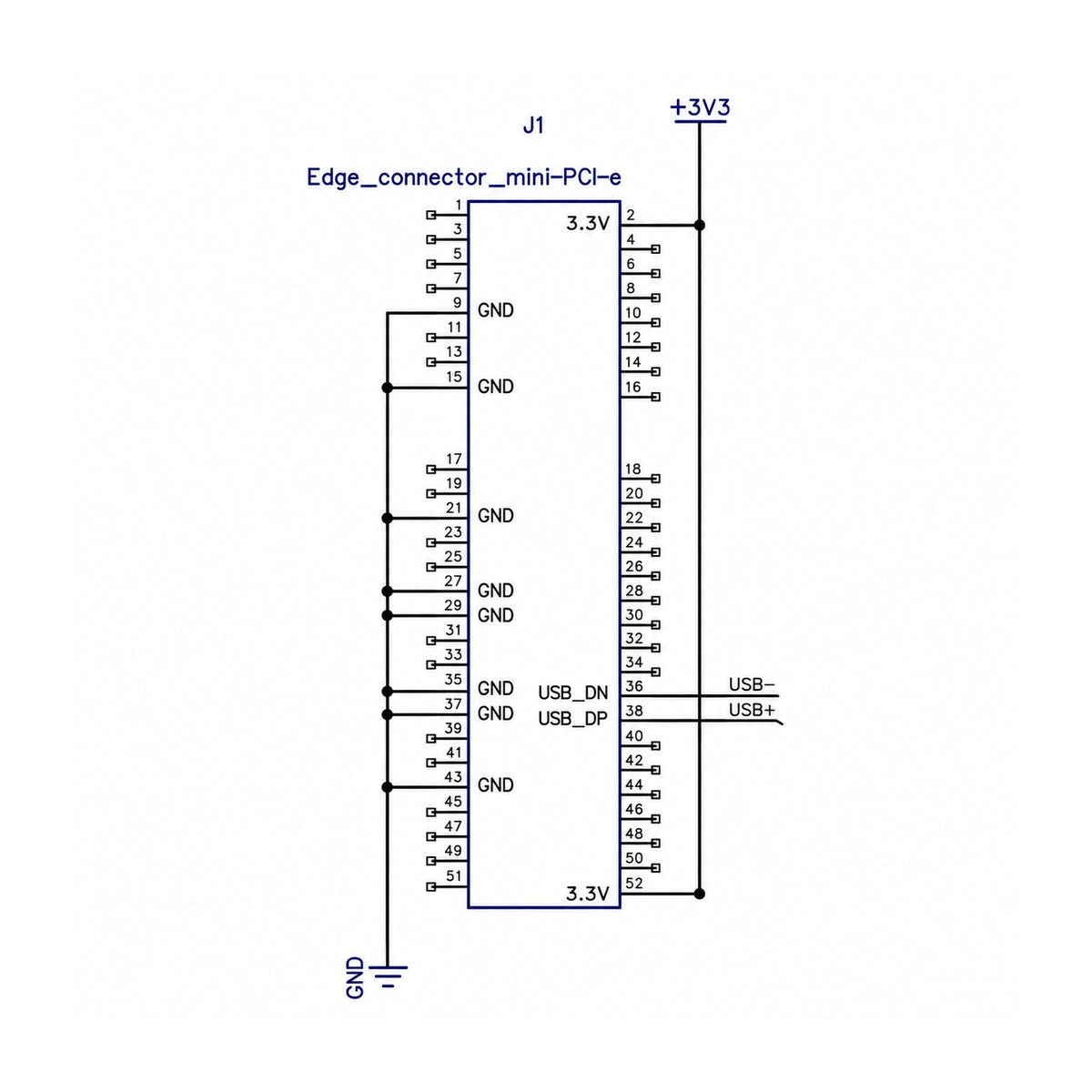

- Full size mini PCI express compatible
- IPEX (U.FL) edge antenna connectors
- IPEX (U.FL) edge time pulse connectors
- On-board Power filter
- u-center ublox (https://www.u-blox.com/en/product/u-center) Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor
- Weight: 5.5 gr.
- Working temperature: -40 °C ~ +85 °C
- Storage temperature: -55 °C ~ +95°C
- Humidity: 95% No condensation
- Vibration: MIL-STD-810F
- Shock: MIL-STD-810F
- Fully assembled and ready to use
- Board can be used for a Base or Rover operation mode!
WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243
Accessories
L1 L2b MultiPatch GNSS antenna
SKU: ELT0149
IP65 IPEX (U.FL) to SMA cable
SKU: ELT0179-30-3Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| ZED-F9P INDUSTRIAL mPCIe socket High Precision RTK GNSS receiver with IPEX (U.FL) antenna connectors and IPEX (U.FL) time pulse out connector. L1/L2 or L1/L5 options. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots. Two module options offered - with L1/L2 bands (ZED-F9P) and with L1/L5 bands (ZED-F9P-15B). L1/L5 option will work better in urban canyon and similar complex environment. Read our blog article L2 or L5? (https://gnss.store/blog/post/l2-or-l5.html) for more details. Please note, using L5 band require special configuration (https://www.u-blox.com/sites/default/files/documents/GPS-L5-configuration_AppNote_UBX-21038688.pdf) The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies. ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243 | Regular price
€199,99
Sale price
€199,99
Regular price
| ELTEHS |
Choose your option
ZED-F9P INDUSTRIAL mPCIe socket RTK GNSS receiver with IPEX (U.FL) Base or Rover
ZED-F9P INDUSTRIAL mPCIe socket RTK GNSS receiver with IPEX (U.FL) Base or Rover
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>100 pcs)
ZED-F9P INDUSTRIAL mPCIe socket High Precision RTK GNSS receiver with IPEX (U.FL) antenna connectors and IPEX (U.FL) time pulse out connector. L1/L2 or L1/L5 options. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots.
The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
Two module options offered - with L1/L2 bands (ZED-F9P) and with L1/L5 bands (ZED-F9P-15B). L1/L5 option will work better in urban canyon and similar complex environment. Read our blog article L2 or L5? (https://gnss.store/blog/post/l2-or-l5.html) for more details. Please note, using L5 band require special configuration (https://www.u-blox.com/sites/default/files/documents/GPS-L5-configuration_AppNote_UBX-21038688.pdf)
The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
- Full size mini PCI express compatible
- IPEX (U.FL) edge antenna connectors
- IPEX (U.FL) edge time pulse connectors
- On-board Power filter
- u-center ublox (https://www.u-blox.com/en/product/u-center) Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor
- Weight: 5.5 gr.
- Working temperature: -40 °C ~ +85 °C
- Storage temperature: -55 °C ~ +95°C
- Humidity: 95% No condensation
- Vibration: MIL-STD-810F
- Shock: MIL-STD-810F
- Fully assembled and ready to use
- Board can be used for a Base or Rover operation mode!
WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243
