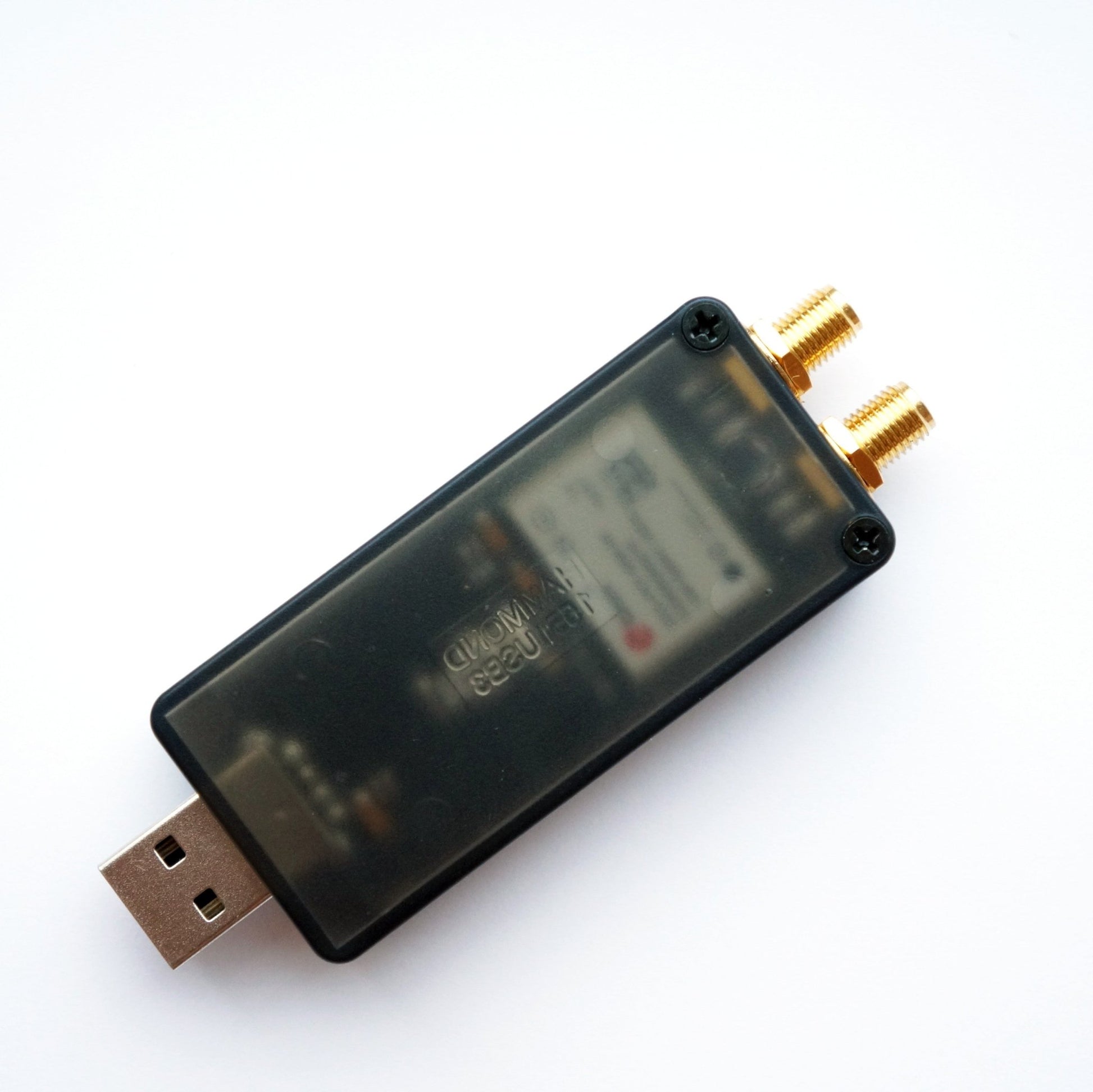

ZED-F9T-20B L1/L2/L5/E5a 5G USB Dongle with SMA time pulse out

ZED-F9T-20B L1/L2/L5/E5a USB high accuracy timing dongle. USB interface and SMA antenna and time pulse out connectors. Designed for 5G Network Synchronization.

The ZED-F9T-20B L1/L2/L5/E5a timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. ZED-F9T-20B L1/L2/L5/E5a is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the ZED-F9T-20B L1/L2/L5/E5a will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications.

The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service. To further improve accuracy locally, the ZED-F9T-20B L1/L2/L5/E5a features differential timing modes that exchange correction data with other neighboring GNSS timing receivers via a communication network. Multi-band access to all four satellite constellations strengthens the receiver’s capability for delivering more reliable performance. ZED-F9T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation.
