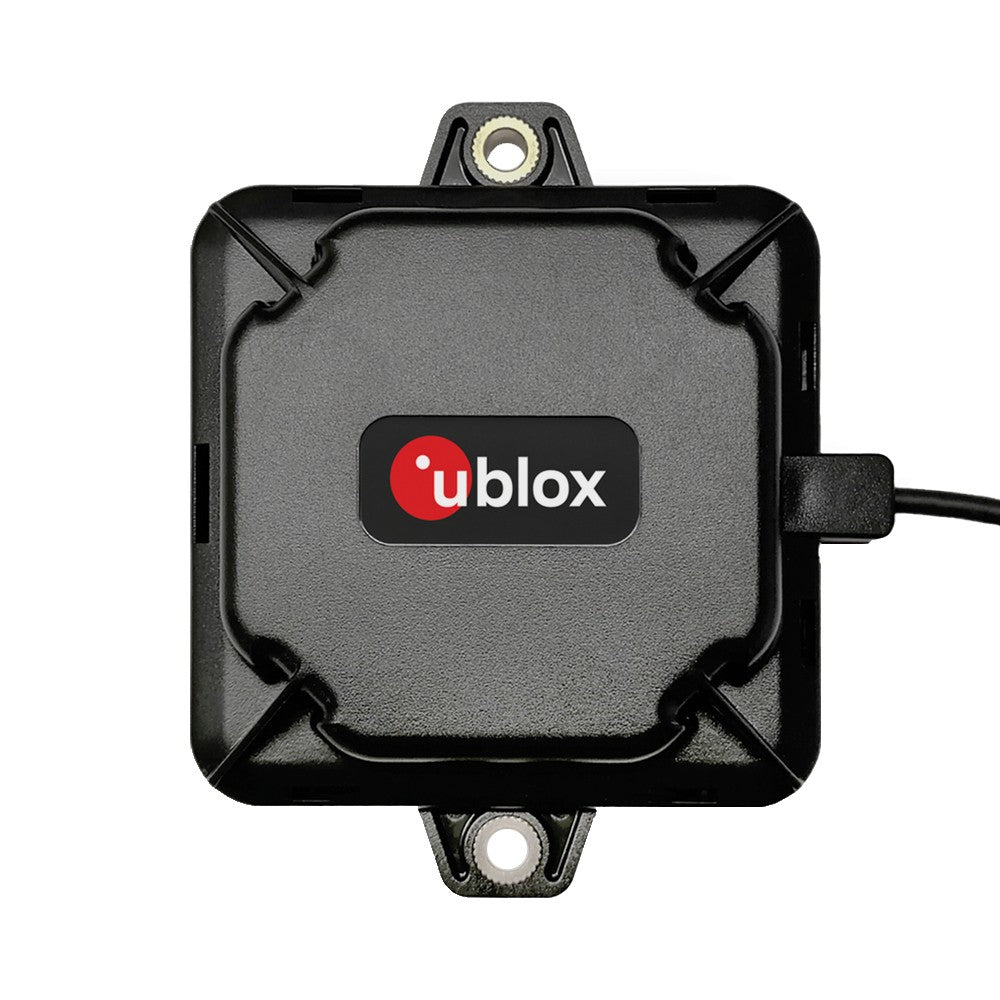

ANN-MB2 AllBand+ high precision GNSS antenna
The u-blox ANN-MB2 all-band+ (L1/L2/L5/E6/B3/L) active GNSS antenna is designed to reduce timeto-market for the modern wide-frequency, multi-constellation, high precision GNSS applications, which require centimeter-level accuracy and a reliable RTK positioning fix even in challenging environments. The robust design, excellent price-to-performance ratio, and flexible mounting options make the ANN-MB2 an ideal choice for mass market applications requiring an all-band high precision GNSS antenna. The ANN-MB2 is a perfect match to the u-blox F9 high precision products (e.g. ZED-F9K, ZED-F9P, LEA-F9T, and ZED-F9T) supporting L1, L2, and L5 bands, along with the L-band for RTK corrections. With ANN-MB2, customers have a reliable, ready-to-use all-band antenna that streamlines evaluation, minimizes design efforts, and speeds up mass adoption. ANN-MB2 includes a high-performance, multi-band, RHCP dual-feed stacked-patch antenna element, a built-in high gain LNA with wide-band SAW pre-filtering, and a 5-meter antenna cable with an SMA connector.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Highlights:
- Robust L1/L2/L5/E6/B3/L active external GNSS antenna
- High performance all-band antenna for the mass-market
- Supports all major GNSS systems for maximum position availability
- Versatile mounting options to meet diverse installation needs
- Enables fast time-to-market
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2/G3
- GALILEO E1/E5a/E5b/E6
- BDS B1I/B2I/B3I/B1C/B2a/B2b
- SBAS L1/L5
- QZSS L1/L2/L5/L6
- IRNSS I5
- L-band
Features:
- Nominal Impedance 50Ω
- Polarization RHCP
- Axial ratio (Zenith) typical: L1: 0.5-1.3 dB L2/L5/L6: 1.9-2.9 dB
- Peak Gain (Zenith) 4.2-5.0 dBic
- LNA Gain without cable typical 31.0 ±3 dB (at 5V)
- Noise Figure 2.5-3.0 dB
- Output/Input VSWR 2.0 typical
- Operation Voltage 3.0 – 5.0V
- Operation Current (at 5 V) Typ. 15.0 mA
Mechanical data:
- Weight 260g (typ. including cable)
- Size 108.5 x 92.9 x 24.7 mm
- Cable 5 m RG174 standard
- Connector SMA

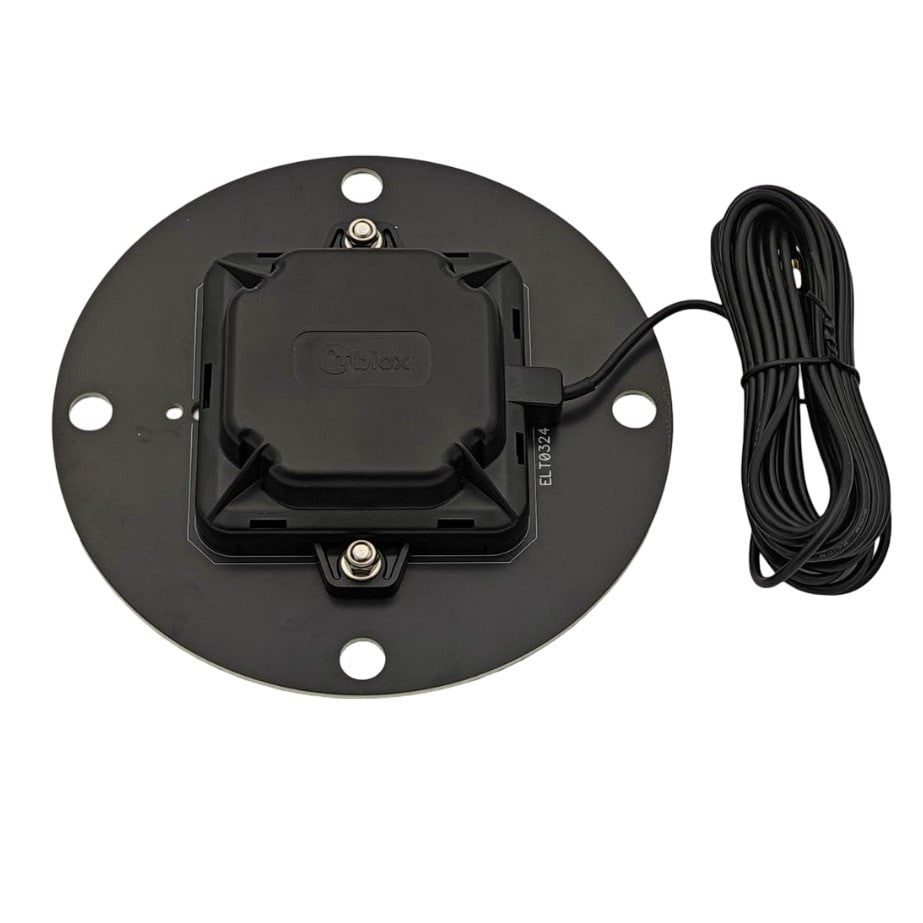

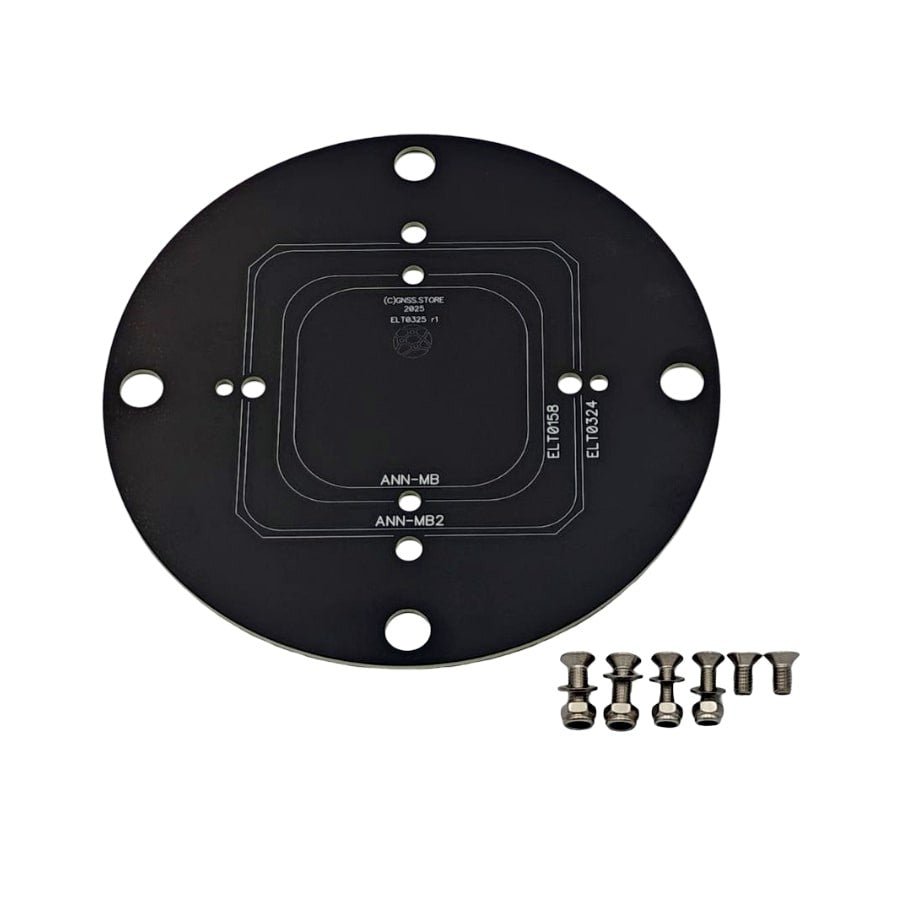

- Mounting: magnetic base, screw mount
- Housing color Black
Certifications and approvals:
Based on Radio Equipment Directive (RED) 2014/53/EU and the Restriction of the use of certain Hazardous Substances Directive (RoHS) 2011/65/EU and 2015/863/EU
Environmental data:
