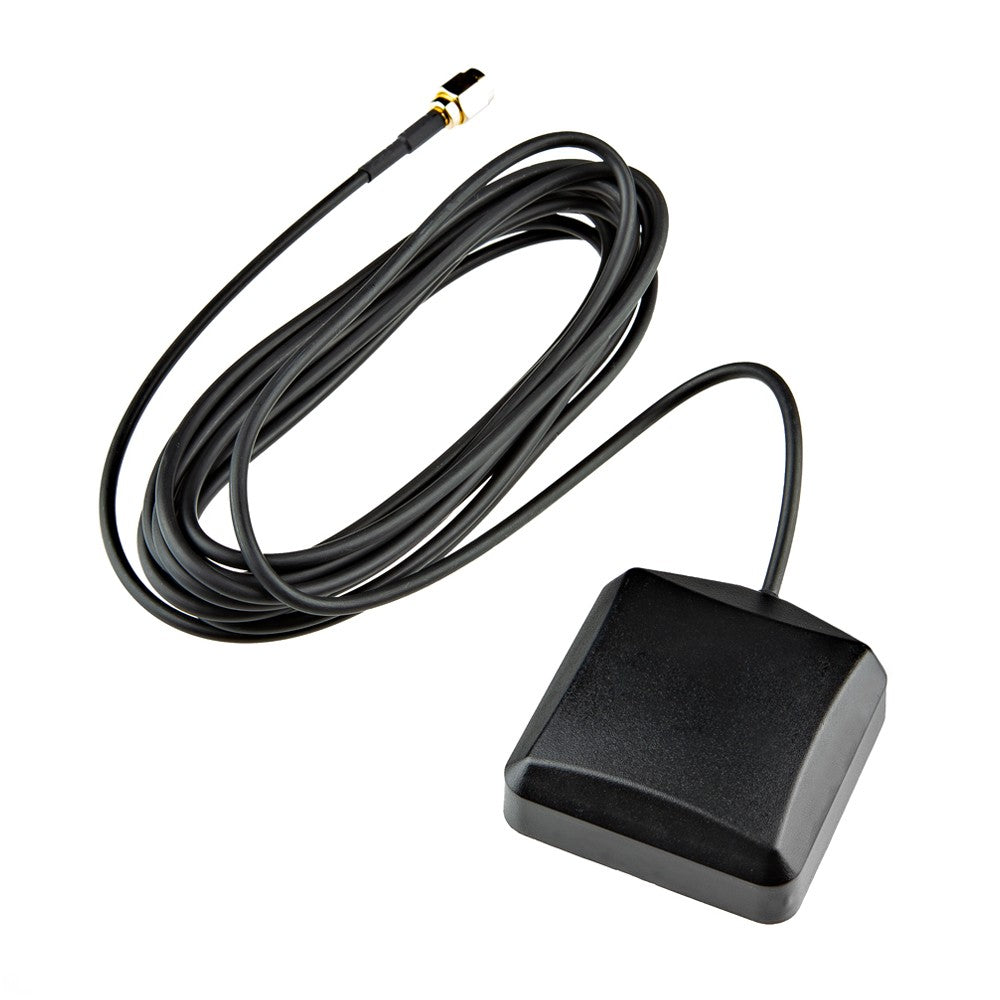

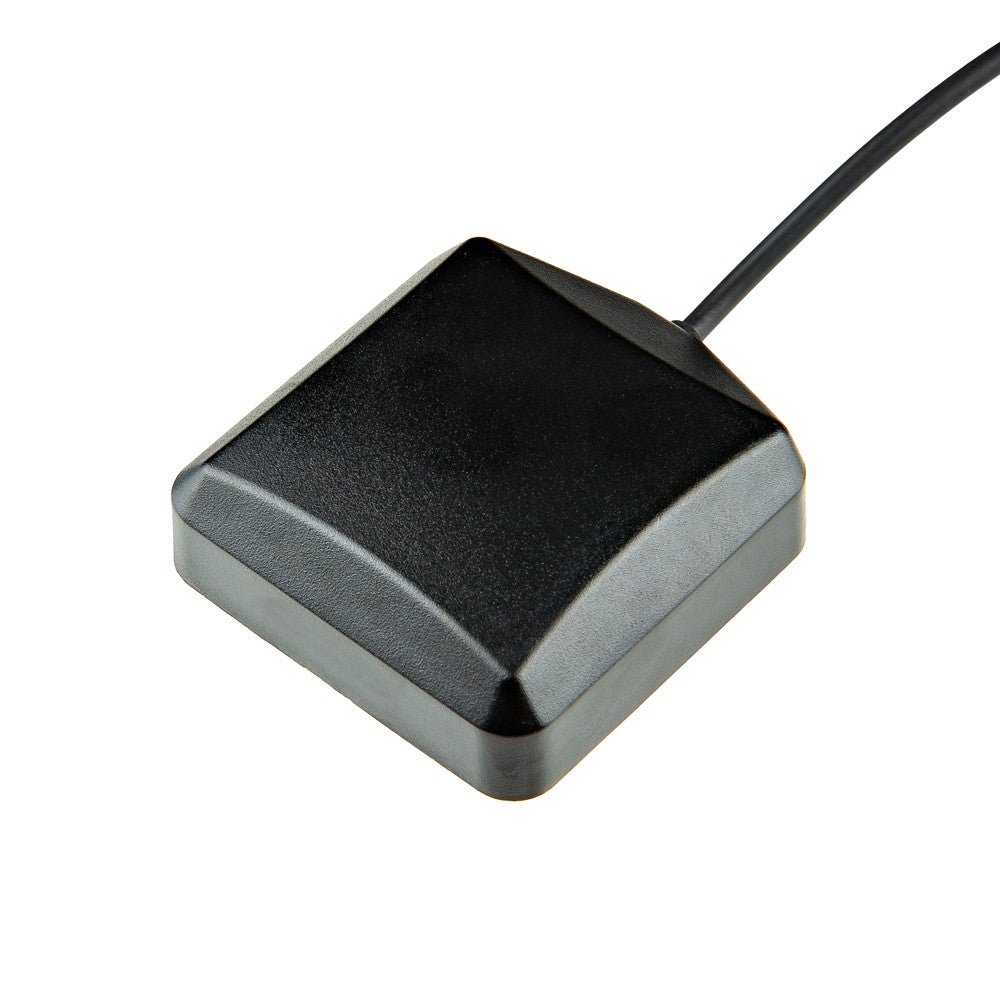

L1/L5 ANN-MB5 multi-band standard precision GNSS antenna
The u-blox ANN-MB5 multi-band (L1/L5/E5a/B2a/NavIC) active GNSS antenna is designed for the new generation of multi-frequency, multi-constellation standard precision GNSS technology, which can achieve the most accurate, reliable, and robust positioning even in challenging environments. ANN-MB5’s compact design, excellent price-to-performance ratio, and easy mounting features ensure a fast, easy, and reliable multi-band antenna solution for mass adoption. ANN-MB5 is a perfect match to the u-blox L1/L5 multi-band meter-level GNSS technology (e.g., F10 standard precision platform), providing customers with the ready-to-use, multi-frequency antenna they need to minimize the evaluation and design efforts, and speed up time-to-market.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Highlights:
- L1-L5 multi-band active GNSS antenna for mass-market applications
- Supports GPS, GLONASS, Galileo, and BeiDou for maximum position availability
- Enables fast time-to-market
- Versatile mounting options to meet diverse installation needs
Signal Received:
- GPS L1//L5
- GLONASS G1
- GALILEO E1/E5a
- BDS B1I/B1C/B2a
- SBAS L1/L5
- QZSS L1/L5
Amplifier characteristics:
- LNA Gain: 15 ± 3 dB
- Noise figure Max: 2.0 dB
- Axial Ratio: 3.2 dB max. @Zenith
- Max. Output VSWR: 2.0
- Polarization: RHCP
- Voltage range: 3 - 5 V
- Typ. current: 17 mA
Mechanical data:
- Weight 104 g (typ. including cable)
- Size 49.2 x 46.2 x 16 mm
- Cable 3 m RG174 standard
- Connector SMA
- Mounting Magnetic base
- Housing color Black
Certifications and approvals:
CE approval Based on Radio Equipment Directive (RED) 2014/53/EU and the Restriction of the use of certain Hazardous Substances Directive (RoHS) 2011/65/EU and 2015/863/EU
Environmental data:
- Operating temperature –40 °C to +85 °C
- Storage temperature –40° C to +85 °C
- Waterproof IP 67
