The All-Band RTK GNSS Rover Kit is a compact, versatile, and highly capable GNSS development kit built around a high-precision multi-band receiver delivering centimeter-level RTK accuracy. It is the successor to the original All-Band RTK GNSS Rover Kit, designed from the ground up on a new hardware and software platform that significantly expands the range of possible applications.

The device is equally at home in professional surveying and mapping workflows and in custom GNSS-based projects that require flexible connectivity, configurable data routing, and multiple logging formats — all in a single, pocketable unit.

Rugged, Field-Ready Hardware

The All-Band RTK GNSS Rover Kit is housed in a compact IP67-rated waterproof enclosure with an integrated helix antenna and a standard 1/4"-20 threaded mount, making it immediately compatible with photography tripods. A geodetic 5/8"-11 adapter is included for use with surveying tripods.

Two USB Type-C connectors are provided: one for data communication and one for power. Both can supply power to the device, and when a power bank is connected to the power port, the data port can simultaneously charge a connected smartphone. An optional VC-1 Powerbank Hand Grip accessory is available for extended field sessions without carrying a separate power bank.

An internal supercapacitor provides a brief energy reserve on power loss, allowing the firmware to safely close all open files — including GPX tracks — before shutting down, and enabling hot-swap of external power banks without interrupting operation.

Rich Wireless and Wired Connectivity

The All-Band RTK GNSS Rover Kit offers an unusually broad set of interfaces for a device of its size:

USB — exposes one or two USB-UART virtual serial ports (USB CDC-ACM, no driver installation required on modern operating systems) and provides USB Mass Storage access to internal storage in File Download mode

Bluetooth 4.2 Classic (BR/EDR, SPP profile) — wireless serial connection to mobile apps and other devices

Wi-Fi 802.11b/g/n (2.4 GHz) — both station (STA) and access point (AP) modes, used for NTRIP corrections [1], firmware upgrades, and CLI access

LoRa — a dedicated receiver for differential corrections at distances of up to kilometers in good line-of-sight conditions; compatible with Advanced GNSS RTK CORS Fanless Station base stations [1]

Seamless Integration with Mobile Applications

The All-Band RTK GNSS Rover Kit works out of the box as an RTK rover with popular Android field applications:

• SW Maps
• Lefebure NTRIP Client
• GNSS Master
• Mobile Topographer GIS
• Apglos Survey Wizard
• TcpGPS
• FieldGenius
• SurPad 4.2
• Mapit GIS Professional
• ODK Collect
• OsmAnd
• Google Maps

The application connects to the device via Bluetooth or USB, receives NMEA data, obtains RTK corrections over the internet via NTRIP, and relays them back to the receiver — which then computes a centimeter-accurate solution.

Through Android’s mock location mechanism, the RTK position from All-Band RTK GNSS Rover Kit becomes the system-wide location on the phone, transparently available to any app that uses the standard Android location API — from Google Maps and OsmAnd to specialized GIS and field survey tools. Apps that support both NTRIP and mock location — such as SW Maps, Lefebure NTRIP Client, and GNSS Master — can serve as the mock location provider while simultaneously feeding RTK corrections to the device.

Flexible Data Logging

The 32 GB internal flash storage holds all logged data and configuration files. The device can simultaneously record multiple data streams in different formats:

Raw binary — unprocessed receiver output for post-processing workflows

NMEA — standard sentence log, compatible with virtually any GIS software

GPX — track file with automatic date/time-based naming; waypoints can be marked at any time with a single button press

Simple Yet Powerful Configuration

All device settings are controlled through a plain-text file, autoexec.txt, stored on the internal drive and executed at every startup. USB port presentation, Bluetooth channel assignments, LoRa parameters, active file writers, baud rates — all are specified in human-readable commands. A well-commented default configuration is automatically generated on first boot and serves as a ready-made starting point.

Wi-Fi credentials are stored in protected internal storage rather than in the configuration file.

For advanced GNSS receiver configuration — message outputs, constellations, RTK parameters — the device exposes the receiver directly over USB, allowing the use of the receiver manufacturer’s official configuration software without any intermediary.

Reliable Firmware Upgrades

Firmware can be updated over Wi-Fi (OTA), from a file placed on internal storage, or via a utility over USB. The upgrade mechanism is designed to be safe: a hardware unit cannot be permanently bricked by a failed update. If an upgrade fails, the device recovers and the process can be retried.

Specifications:

• Mechanical:
  - Dimensions without Power Bank Ø50х91 mm
  - Dimensions with Power Bank Ø50х187 mm
  - Weight without Power Bank 114 g
  - Weight with Power Bank (including cable) 388 g

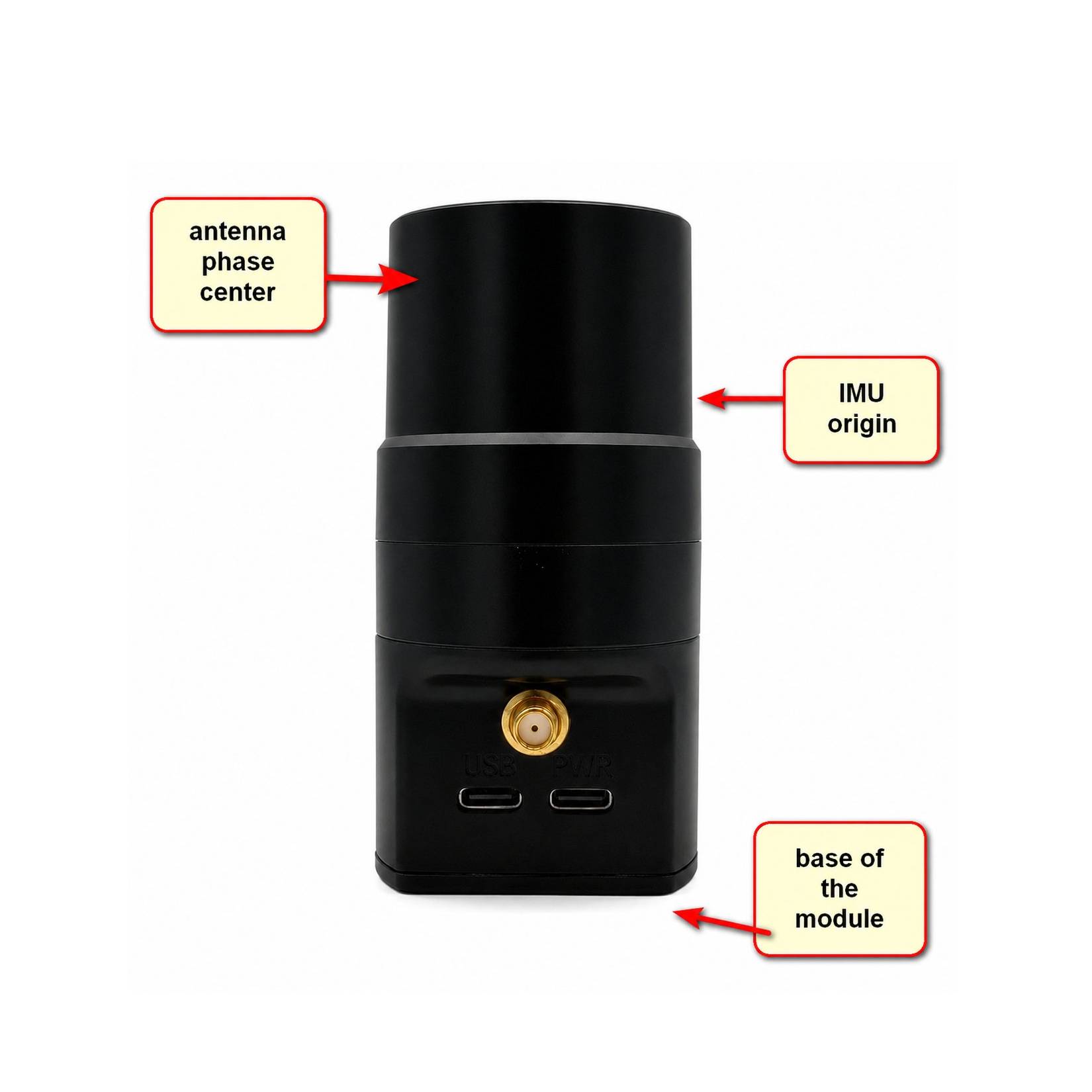

• Antenna:
  - Phase Center Height without Power Bank 74.8 mm
  - Phase Center Height with Power Bank 170.8 mm
  - Phase Center Height with Pole 1874.8mm
  - Phase Center Height with Pole & Power Bank 1970.8 mm

• Operating temperature −10 to +50 °C;

• Ingress protection:
  - without powerbank IP65;
  - powerbank IP44;
• Electrical:
  - powered over USB C;
  - Certification CE;

• Connectivity: Bluetooth 4.2 BR/EDR; Bluetooth LE 4.2 (BLE), Wi-Fi 802.11/b/g/n; Port USB-C; LoRa
• Data: Corrections RTCM3
• Position output NMEA

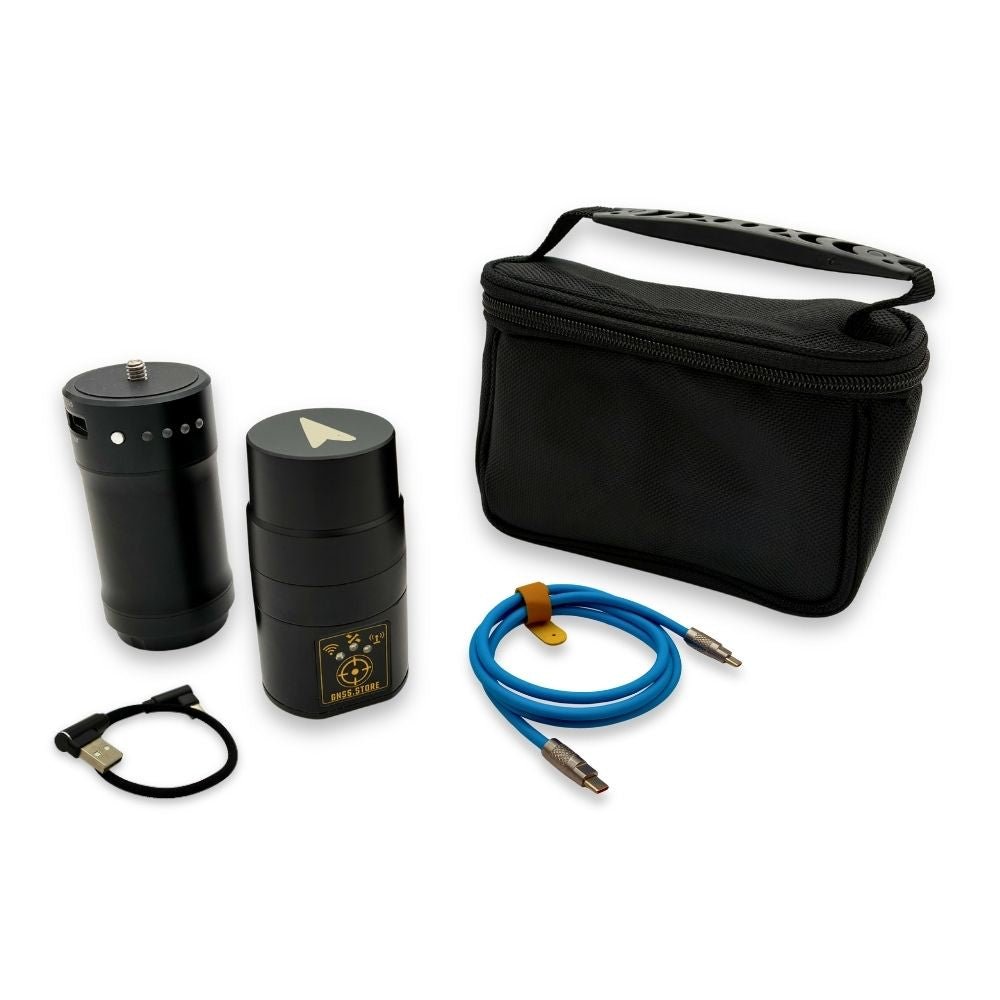

Package contents:

• UM981.02 RTk all-bands rover
• Helix SMA antenna (integrated)
• 7800 mAh power bank (optional)
• Portable Sectional Centering Pole, 180.0 cm (optional)
• 1/4" to 5/8" thread converter
• USB A to USB C cable
• Storage Bag

All-Band RTK GNSS Rover Kit can be used in Rover operation mode. For complimentary Base station check our ELT0231
