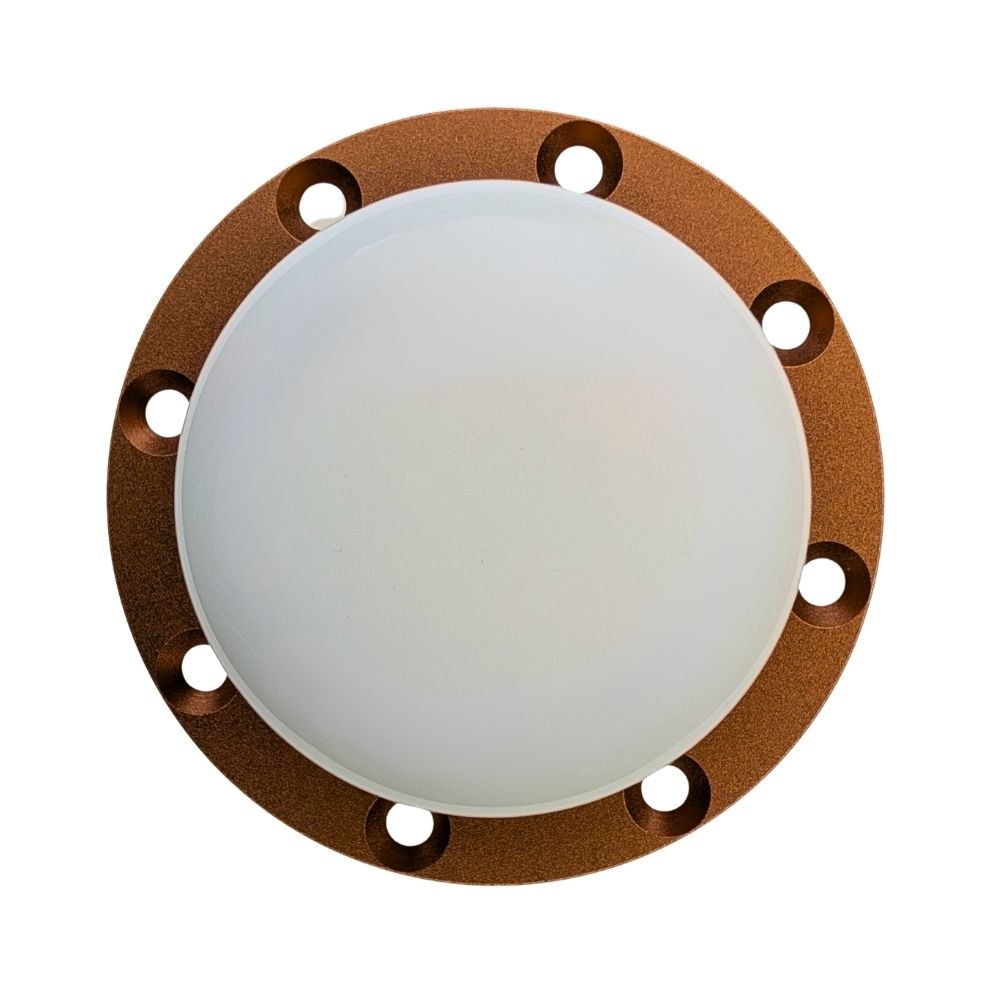

Allband+ Airplane Antenna with TNC
Allband+ Airplane Antenna with TNC
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Multi-satellite Multi-frequency Antenna, TNC Interface, Screw Mount
The GNSS antenna combines a dual-layer multi-feed architecture with high-gain antenna elements to provide reliable reception of BeiDou-3, GPS, GLONASS, and GALILEO signals, including low-elevation satellite signals. The design supports right-hand circular polarization and stable phase center performance, helping to minimize measurement errors and maintain sufficient satellite availability for high-precision positioning applications. An integrated low-noise amplifier (LNA) with pre-filtering and multi-stage filtering effectively suppresses out-of-band interference, enhancing reception reliability and supporting stable operation in demanding electromagnetic environments. The IP67-rated enclosure provides protection for long-term outdoor deployment.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
GNSS Frequency Bands
GPS: L1/L2/L5
GLONASS: G1/G2/G3
GALILEO: E1/E5a/E5b/E6
BDS: B1/B2/B3
L-band
Electrical
Frequency Range: 1164-1286 MHz，1525-1621 MHz
Impedance: 50 Ω
Polarization: RHCP
LNA Electrical
LNA Gain: 38 ±2 dB
Noise Figure: ≤ 2 dB
Output VSWR: ≤1.8:1 typ, 2.0:1 max
Out-of-Band Rejection:
<1450MHZ：>40 dB
<1690MHZ：>40 dB
<1730MHZ：>45 dB
Working Voltage: 3–16 VDC
Working Current: ~45 mA
Mechanical

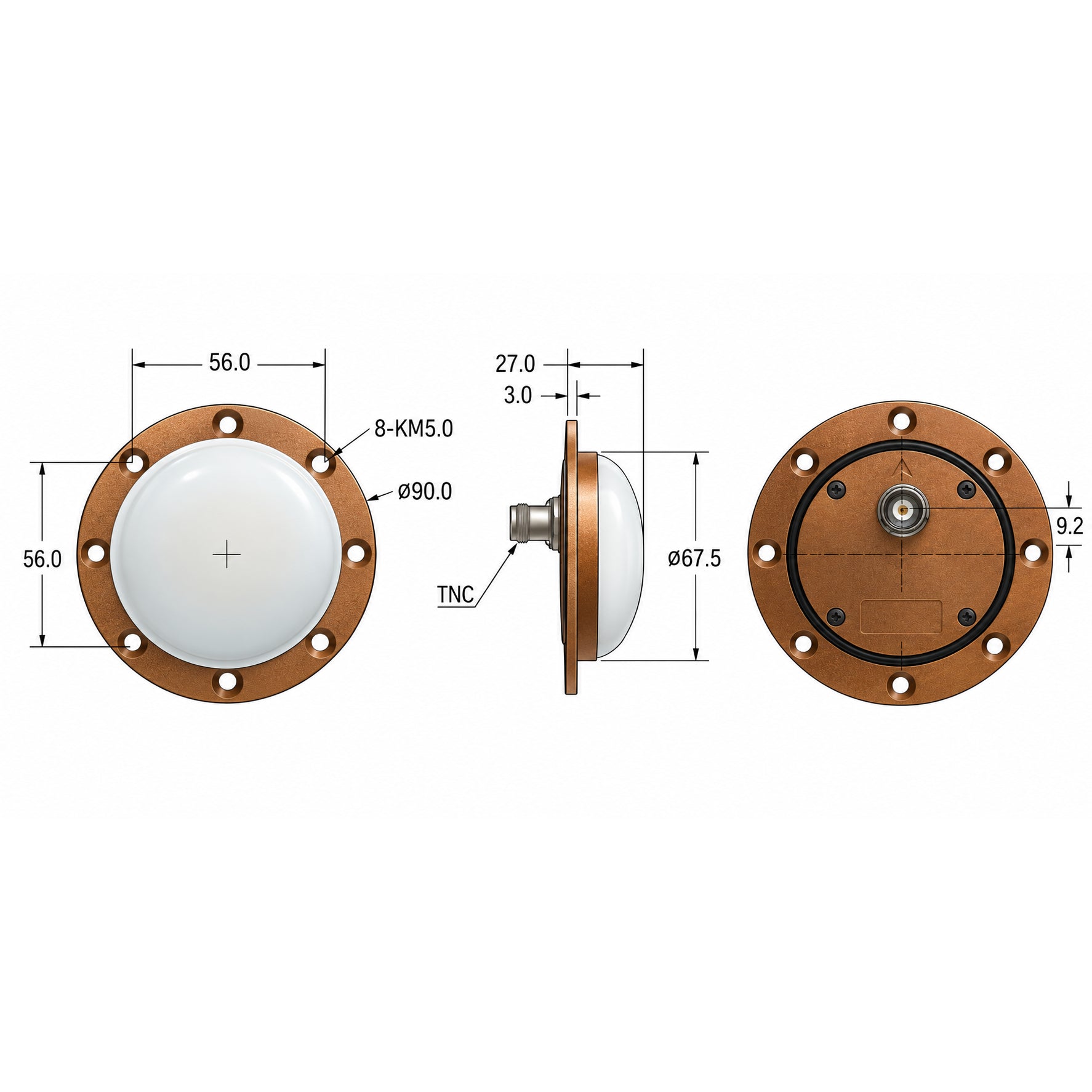

Dimensions: Ø67.5/90 × 27 mm

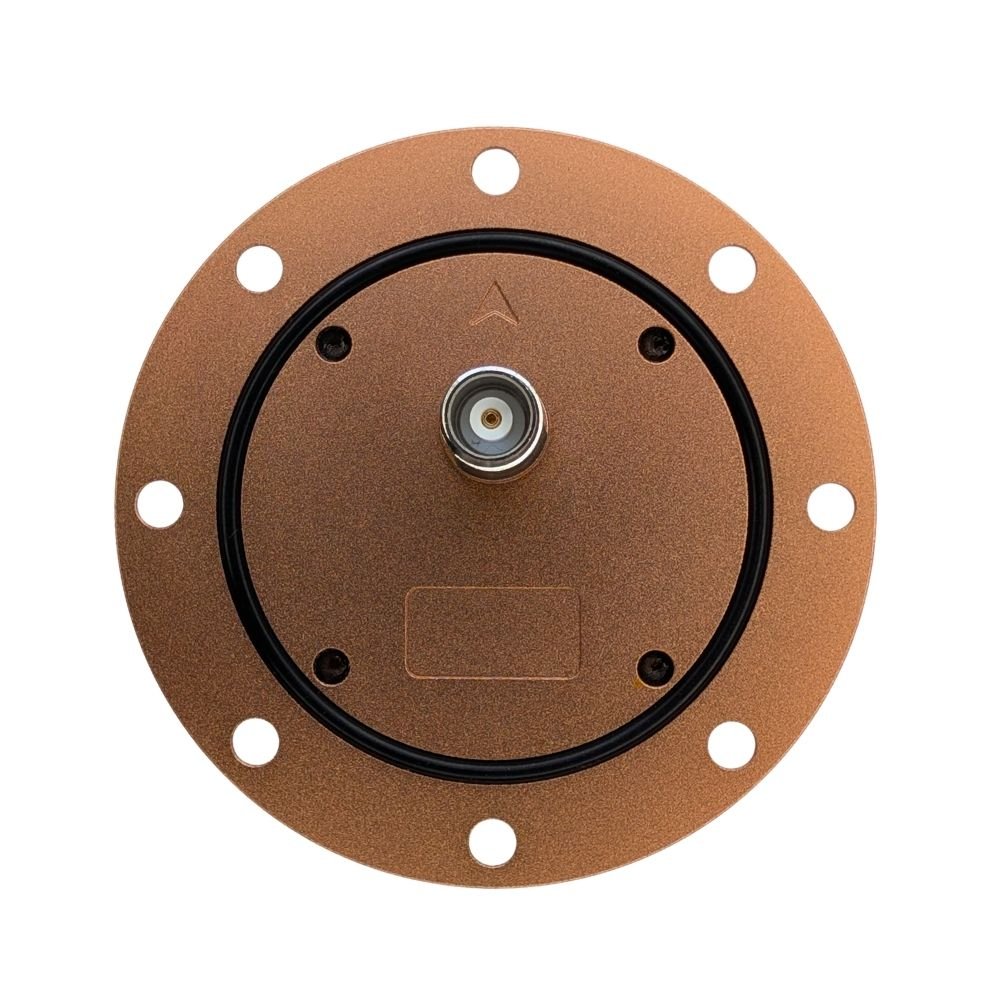

Connector Type: TNC
Mounting Type: Screw
Typical Weight: 150 g
Environmental
Operating Temperature: -45 °C to +85 °C
Storage Temperature: -45 °C to +85 °C
RoHS, REACH Compliant
Ingress Protection (IP) Rating: IP67
