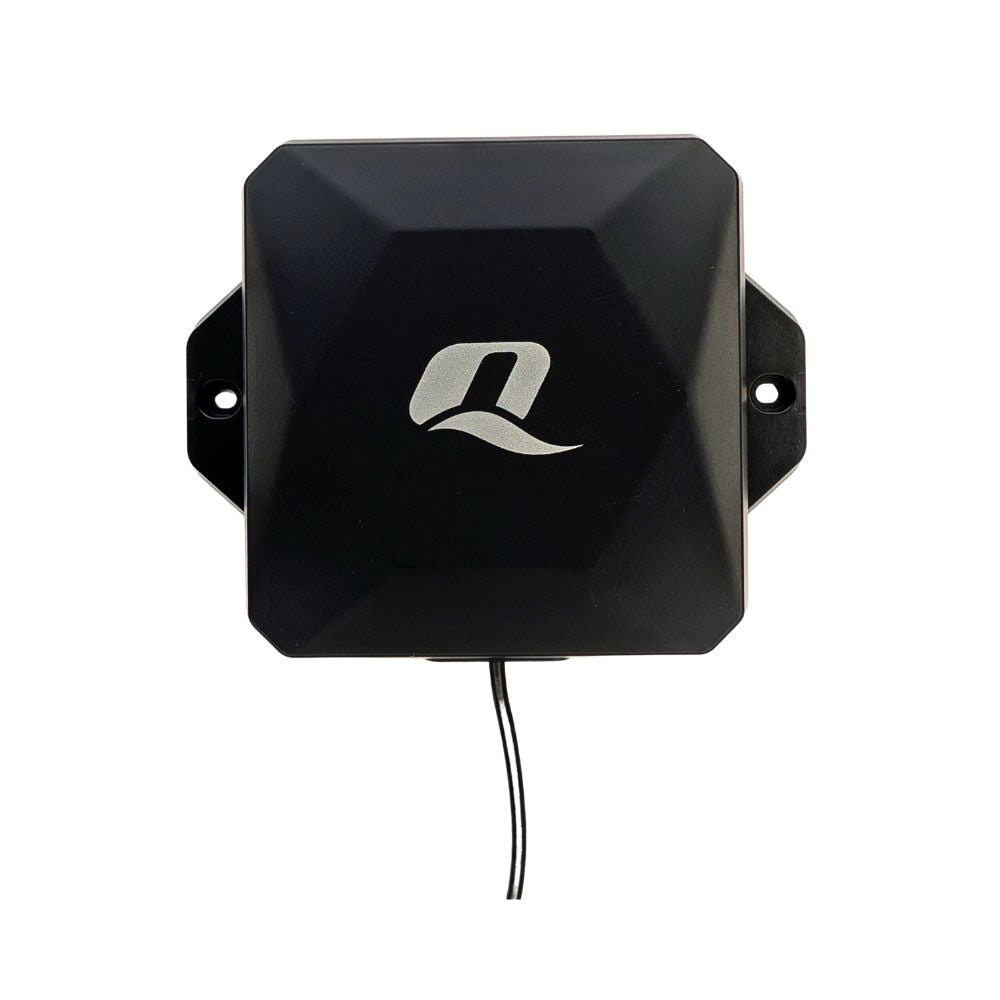

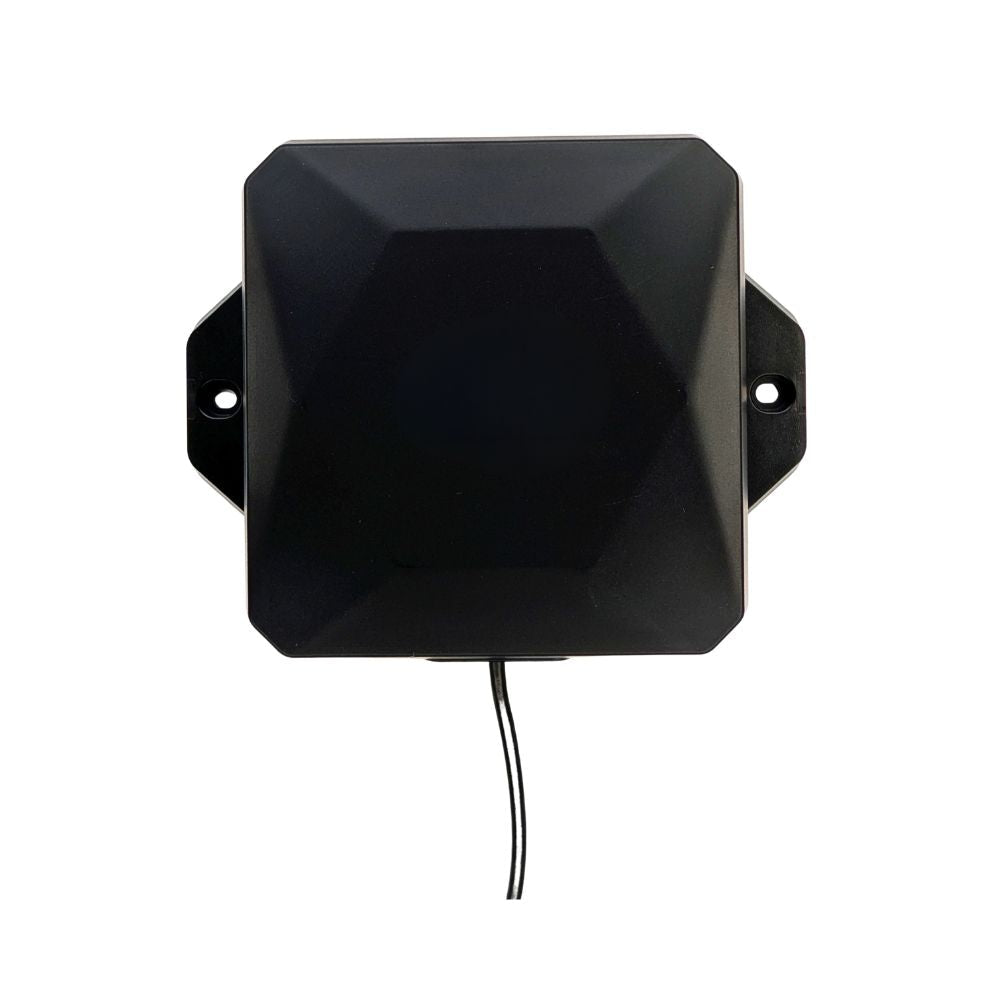

AllBand+ GNSS Active Patch Antenna with Housing, Screw Mount
AllBand+ GNSS Active Patch Antenna with Housing, Screw Mount
Tax excluded
Active AllBand+ GNSS PPO Patch Antenna with Housing, Screw Mount and Cable 5.05 m
Full-band performance. Featherweight design. At just 212 g, this is an exceptionally light GNSS patch antenna that makes no compromises on coverage: L1, L2, L5, L6 and L-Band (1164–1300 MHz, 1525–1606 MHz).
This high-performance active antenna is designed for professional applications requiring ultra-precise positioning, and is ideal wherever every gram counts: drones, autonomous systems, geodetic surveying and high-accuracy navigation. Combining exceptional signal sensitivity with rugged durability, it is engineered for mission-critical deployments.
Available in stock (>100 pcs)
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B Consultation1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
GNSS Frequency Bands
- GPS: L1/L2/L5
- GLONASS: G1/G2/G3
- GALILEO: E1/E5a/E5b/E6
- BDS: B1I/B1C/B2a/B2b/B3
- QZSS: L1/L2C/L5/L6
- IRNSS: L5
Electrical
- Frequency Range: 1164–1300 MHz, 1525–1606 MHz
- Impedance: 50 Ω
- Polarization: RHCP
- Radiation Pattern: Directional
- Axial Ratio: L1 - 1.36; B1 - 0.85; G1 - 2.23; L5/E5a - 1.53; E5b/B2b - 2.31; L2 - 2.56; G2 - 2.39; B3 - 2.28; E6 - 1.88
LNA Electrical
- LNA Gain: 38 ±4 dB
- Noise Figure: ≤ 2.5 dB
- Output VSWR: < 2.0
- Filter Out-of-Band Attenuation:
≥ 60 dB f0 & f1 ±100 MHz
f0: (1164 MHz, 1300 MHz)
f1: (1525 MHz, 1609 MHz) - Working Voltage: 3–5 V
- Working Current: 19.6 ±4 mA
Mechanical

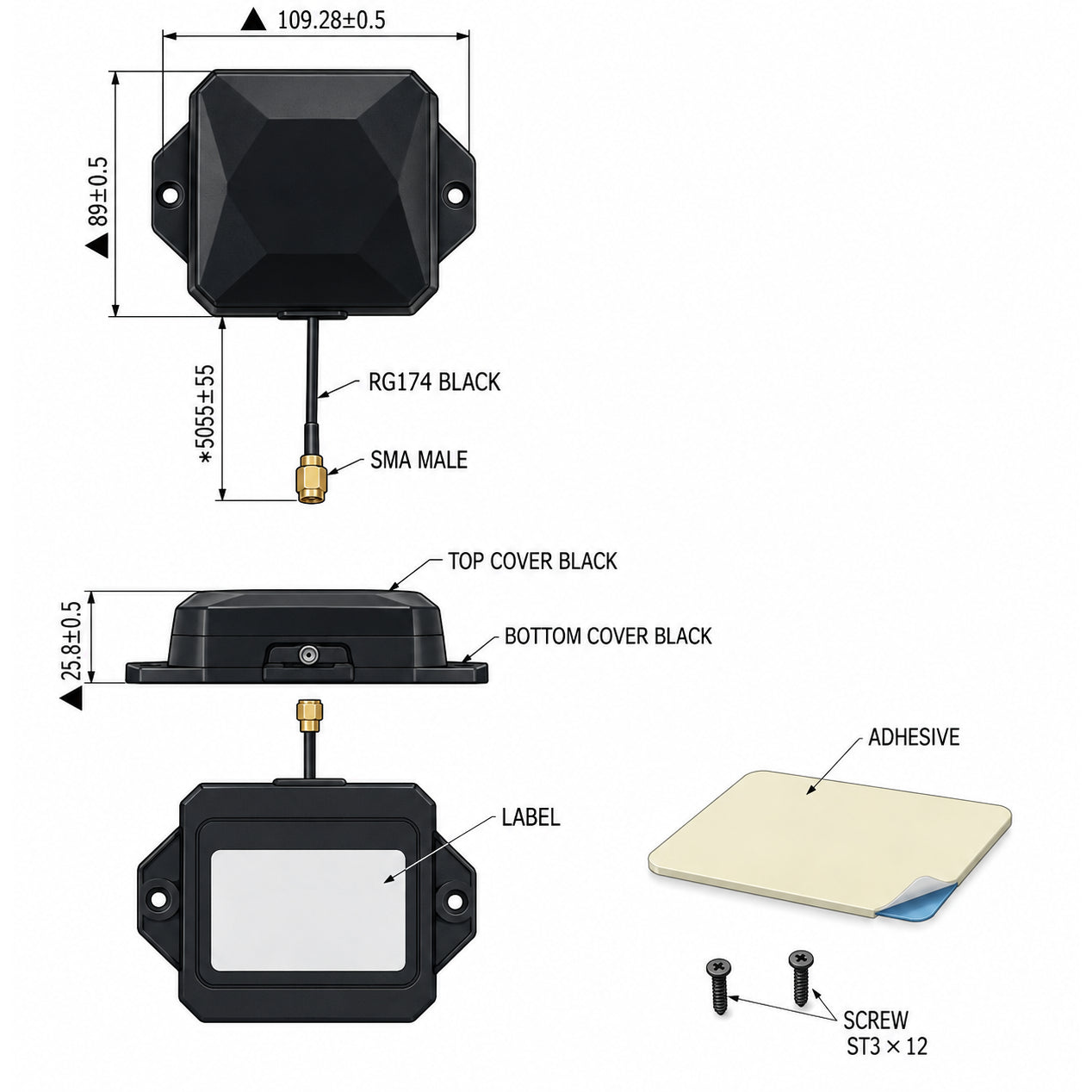

- Dimensions: 109.28 × 89.0 × 25.8 mm
- Material: PC
- Cable length: 5m RG174
- Connector Type: SMA Male

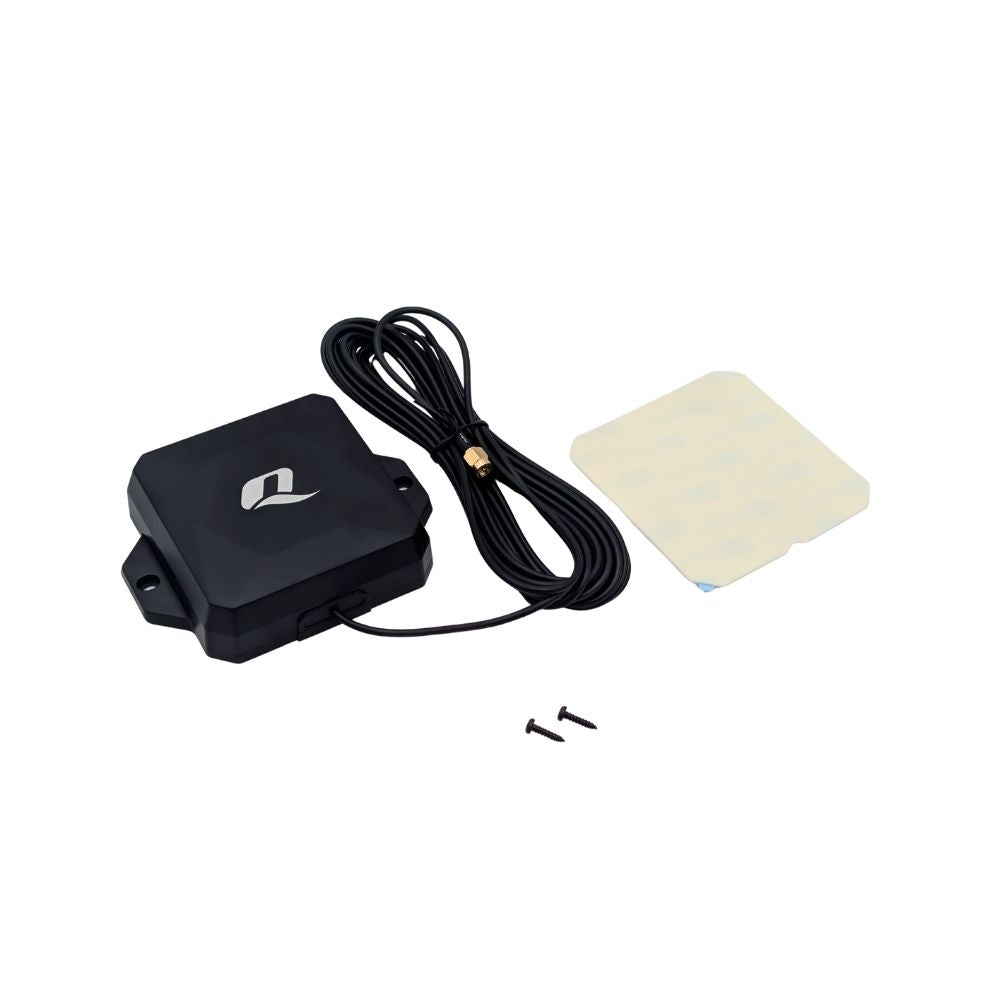

- Mounting Type: Magnet, Adhesive, Screw
- Typical Weight: 212 g
Environmental
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -40 °C to +85 °C
- RoHS, REACH, POPs Compliant
- Ingress Protection (IP) Rating: IP67
- Housing Flame Rating: UL 94 V-0
- Housing UV Resistant: UL 746c f1
