UM982 ultraLight RTK GNSS Smart Antennas Set for RTK positioning and heading

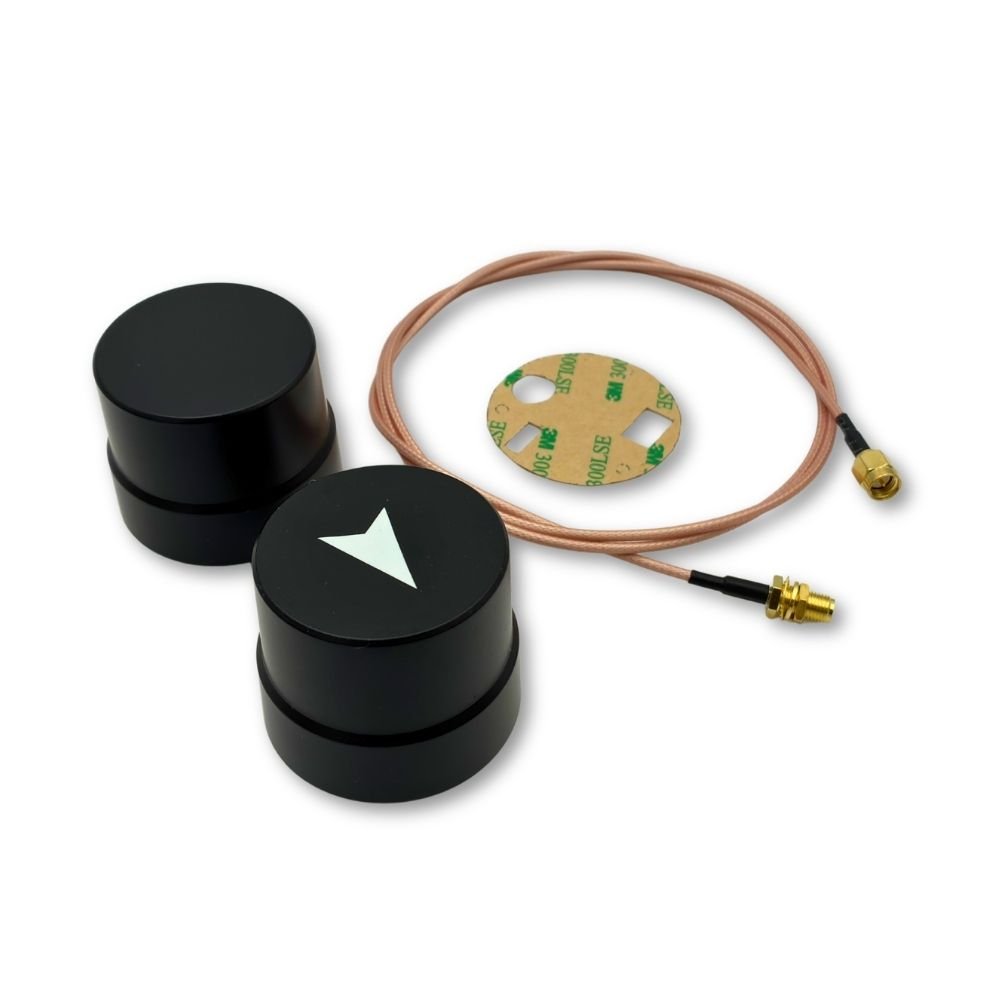

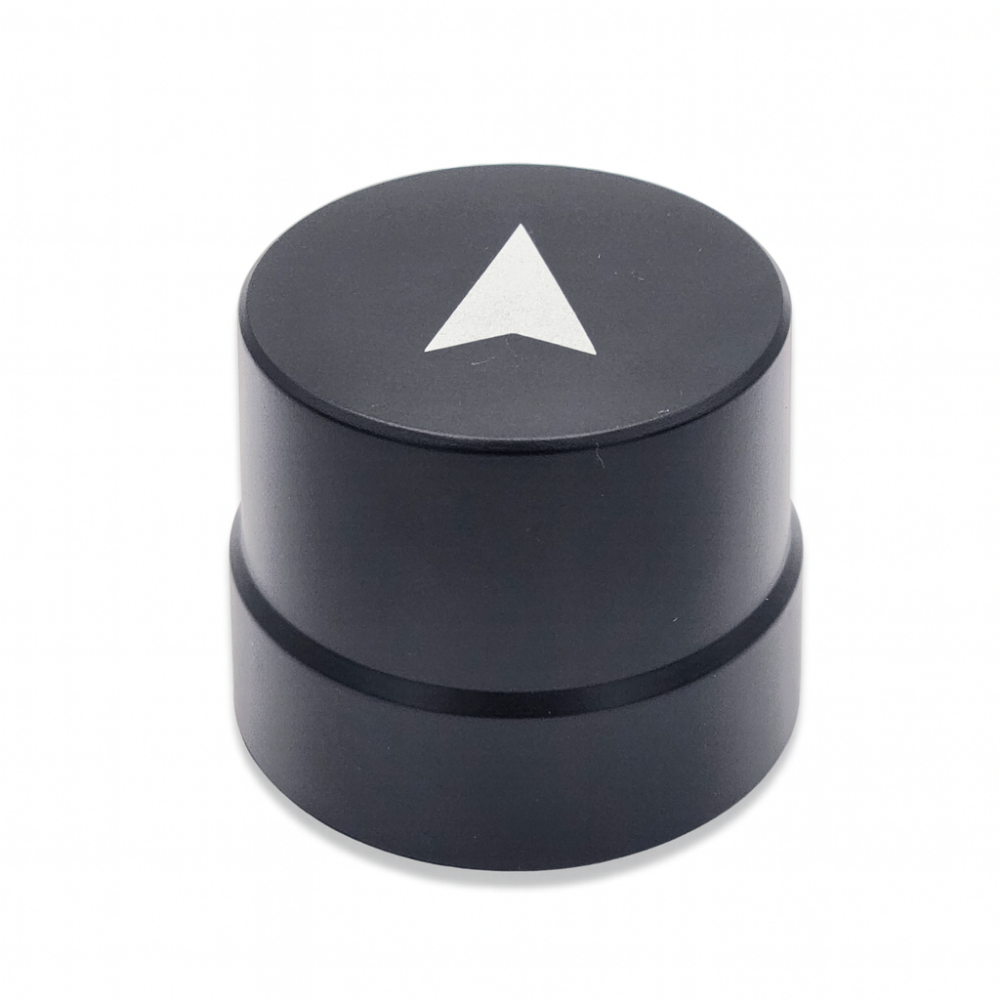

UM982 ultraLight RTK GNSS Smart Antenna set is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful Unicore UM982 module, integrated with a high-precision RM3100 compass and two compact helical antennas. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
Featuring the extraordinary positioning performance and reliability, UM982 is a perfect choice for high-precision navigation and positioning applications, such as UAV, autonomous machine and precision agriculture.
Lightweight, powerful, and dependable — the UM982 ultraLight RTK GNSS Smart Antennas Set is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand top-tier performance without compromise.
UM982 supported by PX4 Autopilot, Ardupilot, AgOpenGPS and other software, supporting GPS for Yaw aka Moving Baseline.
Available in stock (>10 pcs)
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Overview
Its main and secondary antenna inputs can simultaneously track multiple frequencies of all GNSS systems, and the module can perform on-chip RTK positioning and dual-antenna heading calculations. With its advanced multi-band RF front-end, the UM982 ultraLight Smart Antennas set is capable of simultaneously tracking all four major GNSS constellations — GPS, GLONASS, Galileo, and BeiDou — ensuring robust positioning, heading and centimeter-level accuracy when combined with correction data.
The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades.
With its dual-antenna input, the UM982 can deliver compass-free yaw information to the controller (commonly referred to as GPS Heading or Moving Baseline Yaw). By using GPS as the yaw reference instead of a traditional compass, it eliminates errors caused by magnetic interference from vehicle motors, electrical systems, or external sources such as metallic structures and power lines. This ensures accurate yaw data for the controller and improves navigation reliability and performance, even in challenging environments.
Device Features:
- Based on NebulasIV GNSS SoC with integrated RF, base band, and high precision algorithm
- Two optional UART
- Supports robust high-precision positioning via RTK, PPP, and Galileo HAS correction services.
- All-system multi-frequency RTK engine and advanced RTK technology
- Independent tracking of different frequencies and 60dB narrow band anti-jamming technology
- Low Noise Amplifier (LNA) integrated with the compact helical antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:

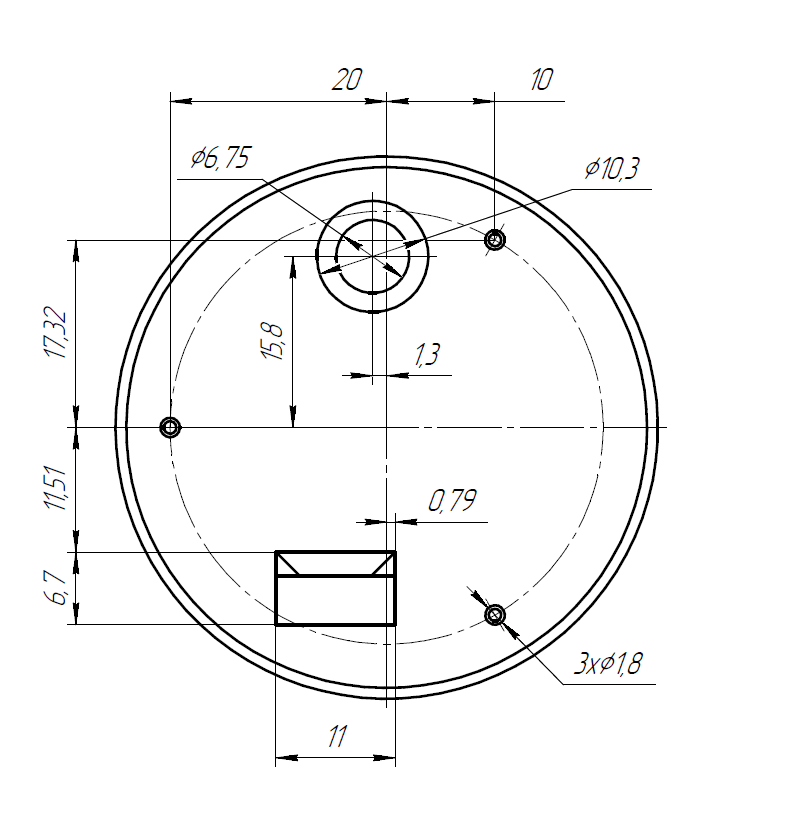

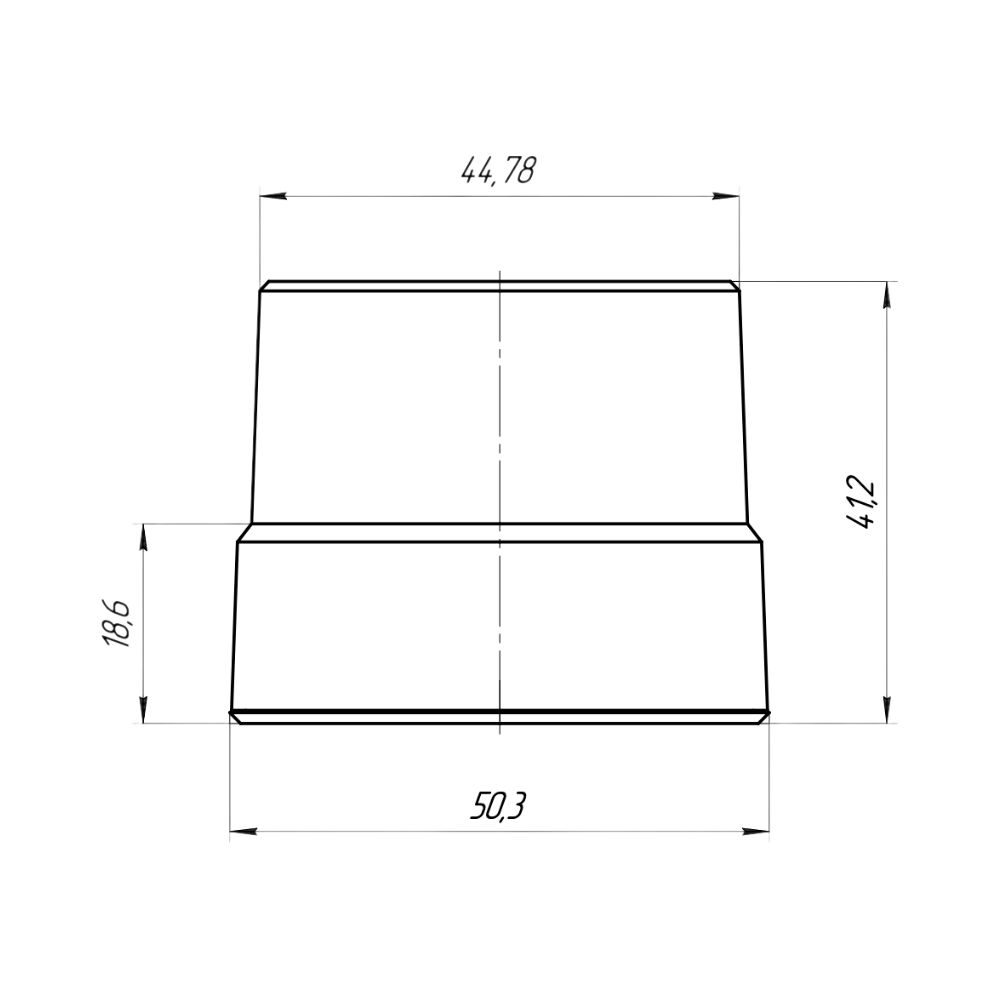

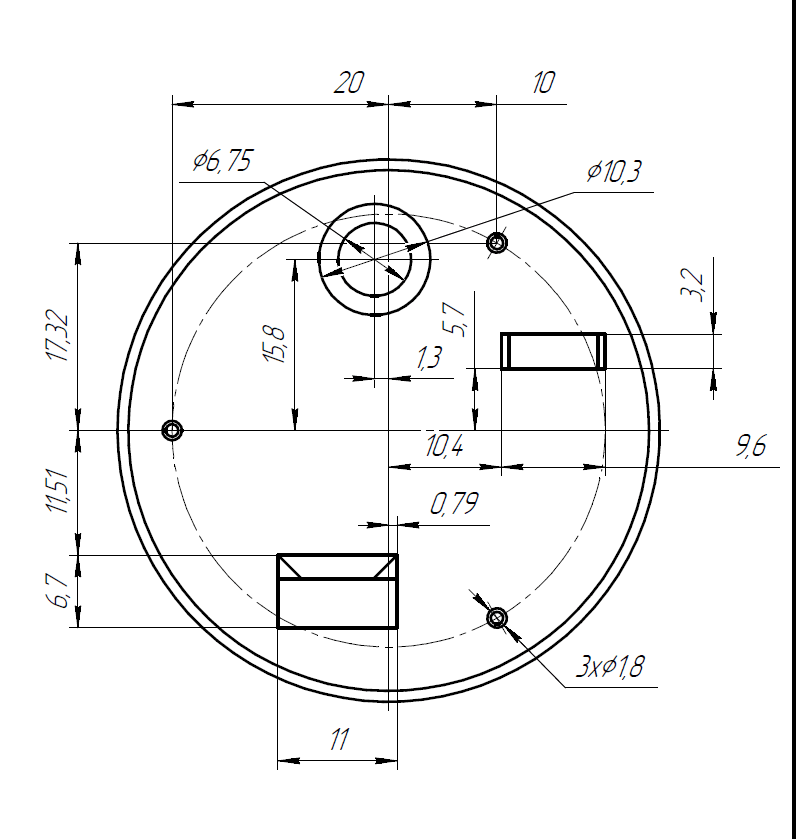

- Dimension: Ø50x41 mm
- Weight: 34 g
- Water and Dust Resistance: IP55
- Operating Temperature: -10 °C ~ +60 °C

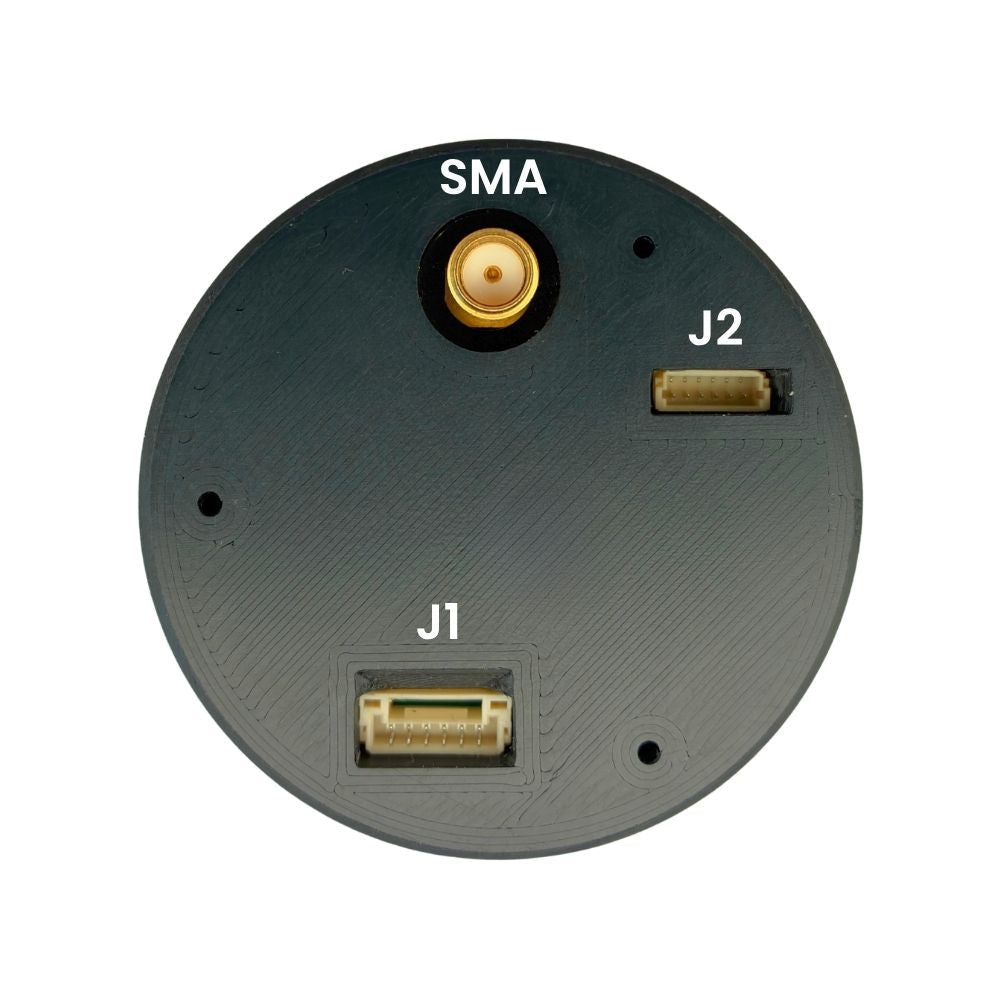

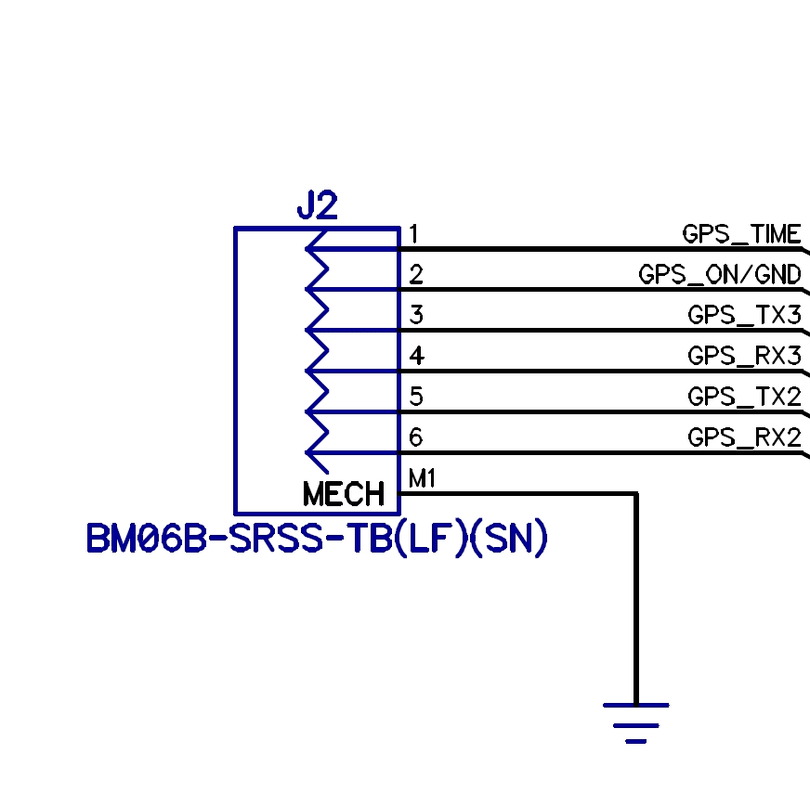

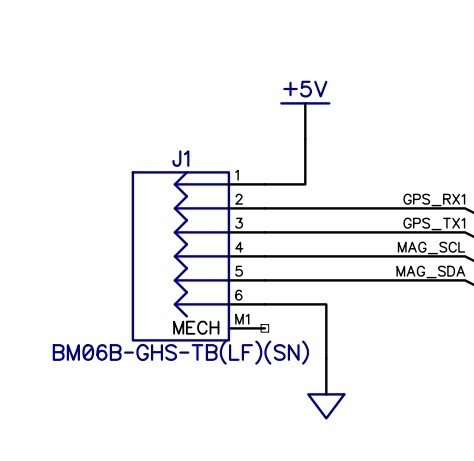

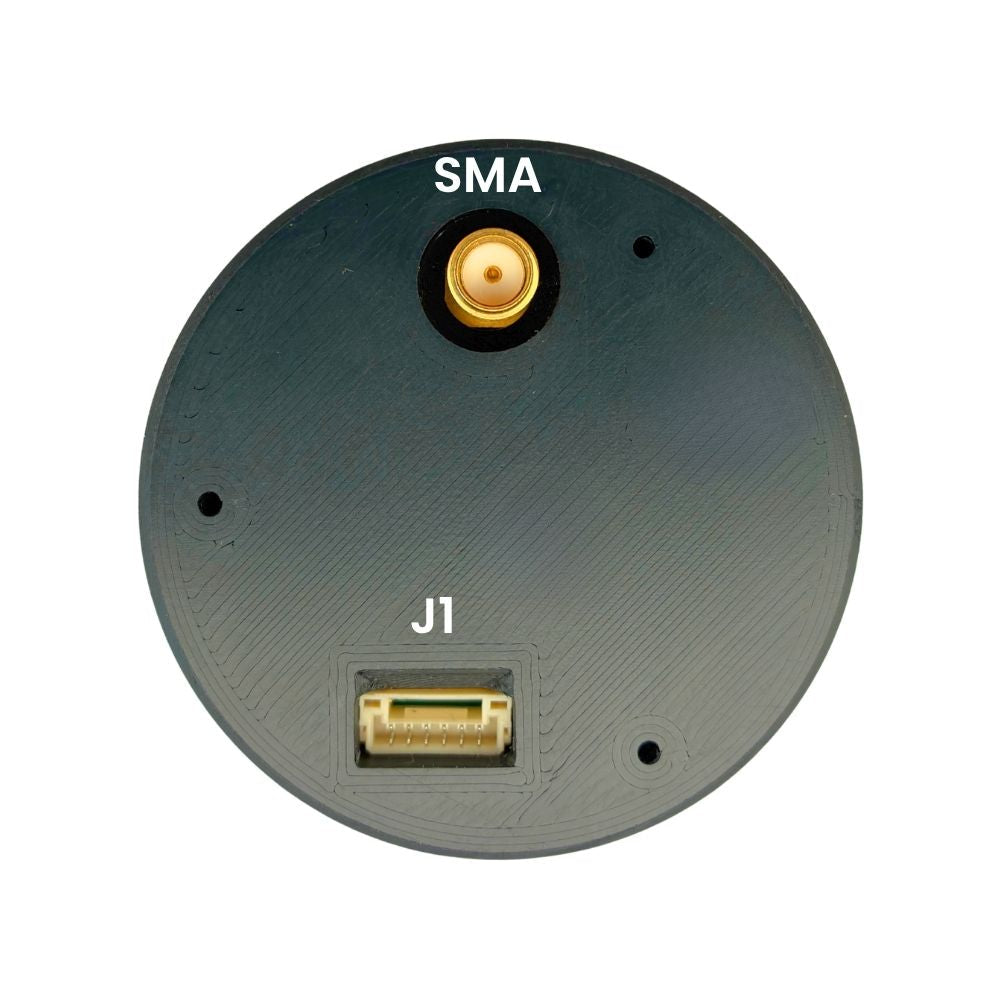

- Connector type: JST SH 6 pin, JST GH 6 pin, SMA
- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use

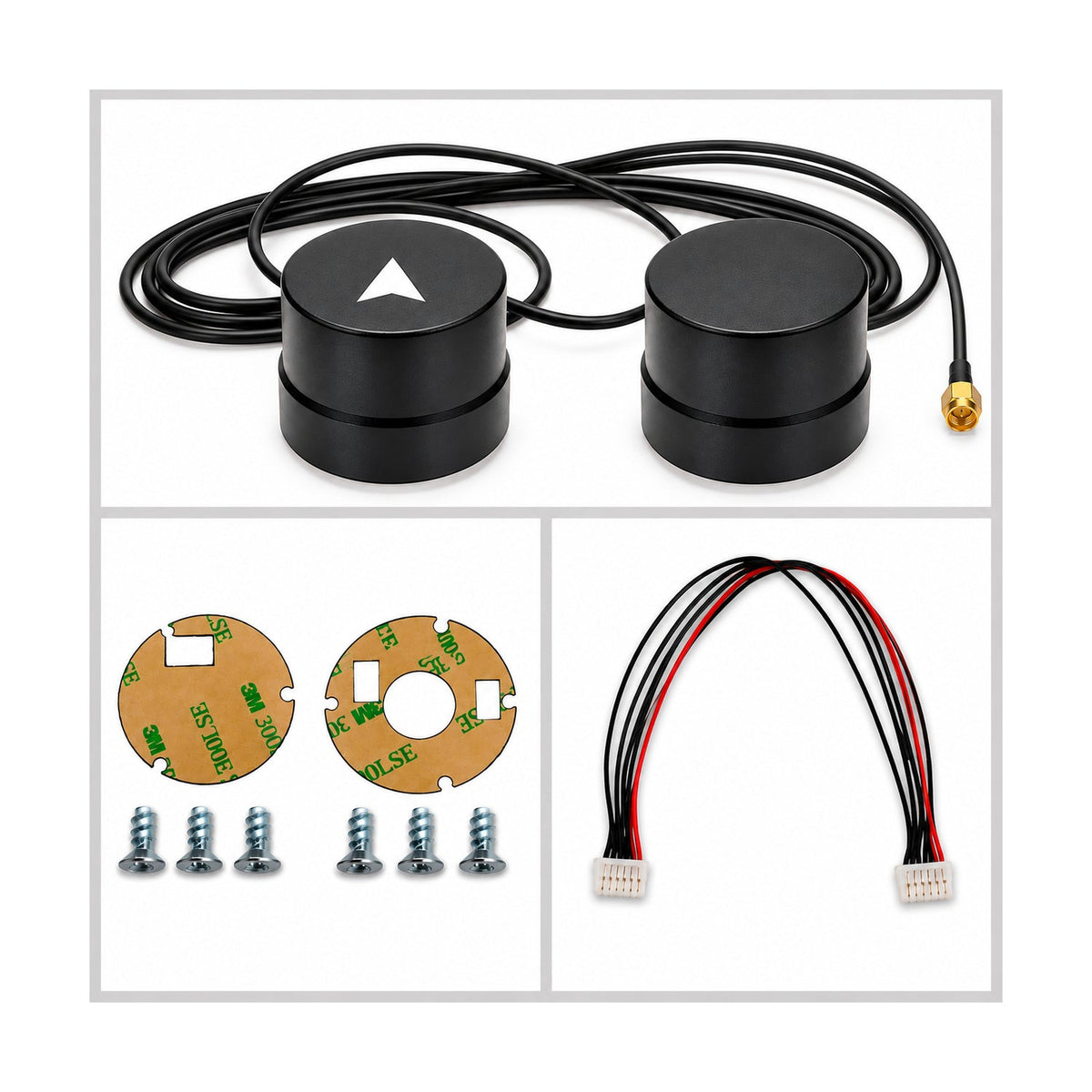

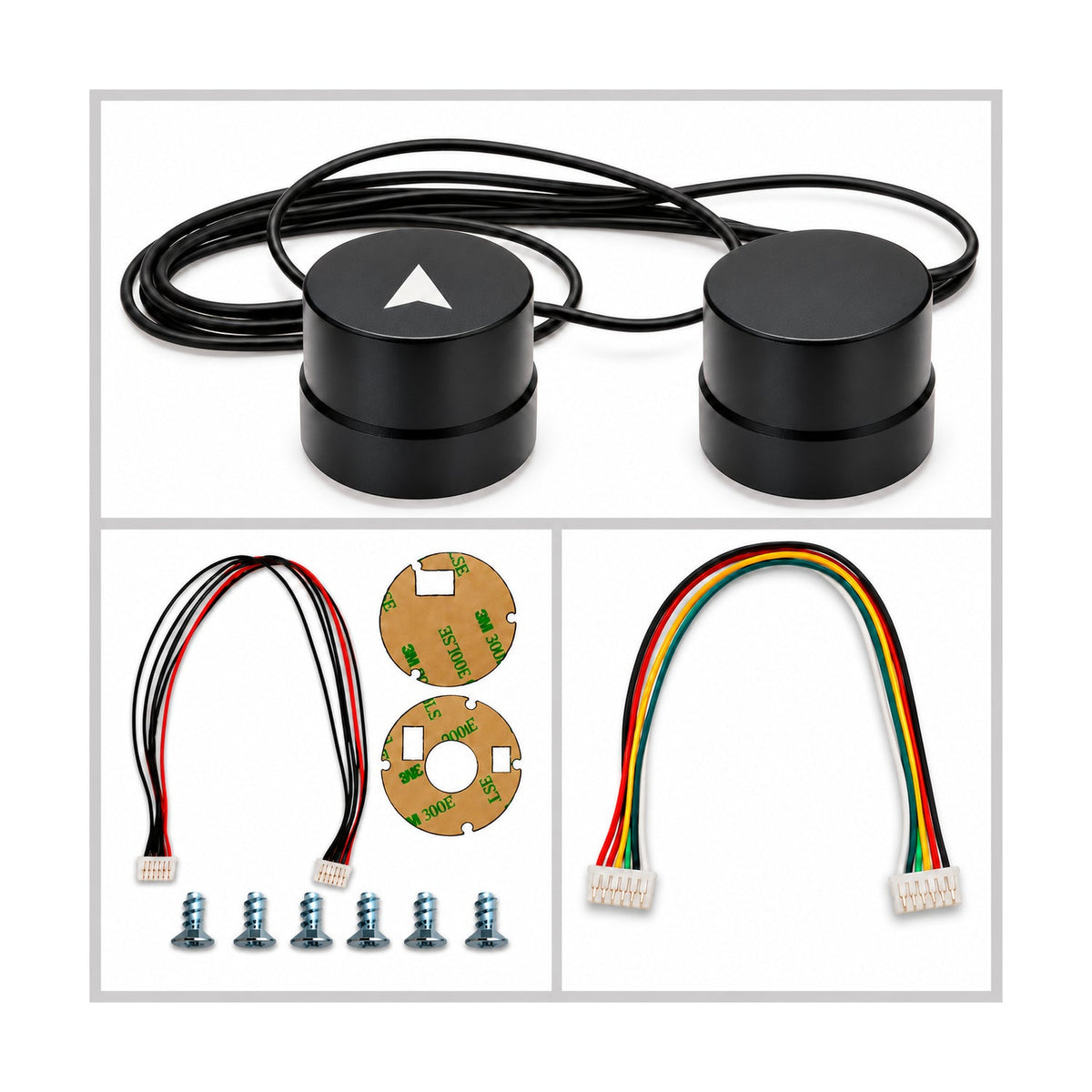

Package contents:
UM982 Module Specifications
UM982 Module Specifications
Accessories
AllBand+ GPS, GLONASS, BDS, Galileo 28dB D50xH40 RTK antenna with SMA cable
SKU: ELT0244-30
USB-to-UART Configuration Cable for Ultralight Antennas
SKU: ELT0488
Cable 0.2 m / 0.4 m JST GH male 6 pin to 6 pin compatible with Pixhawk
SKU: ELT0480-0.2
Cable 6 pin JST SH Wire Assembly 0.1 m
SKU: ELT0002Product Comparison
