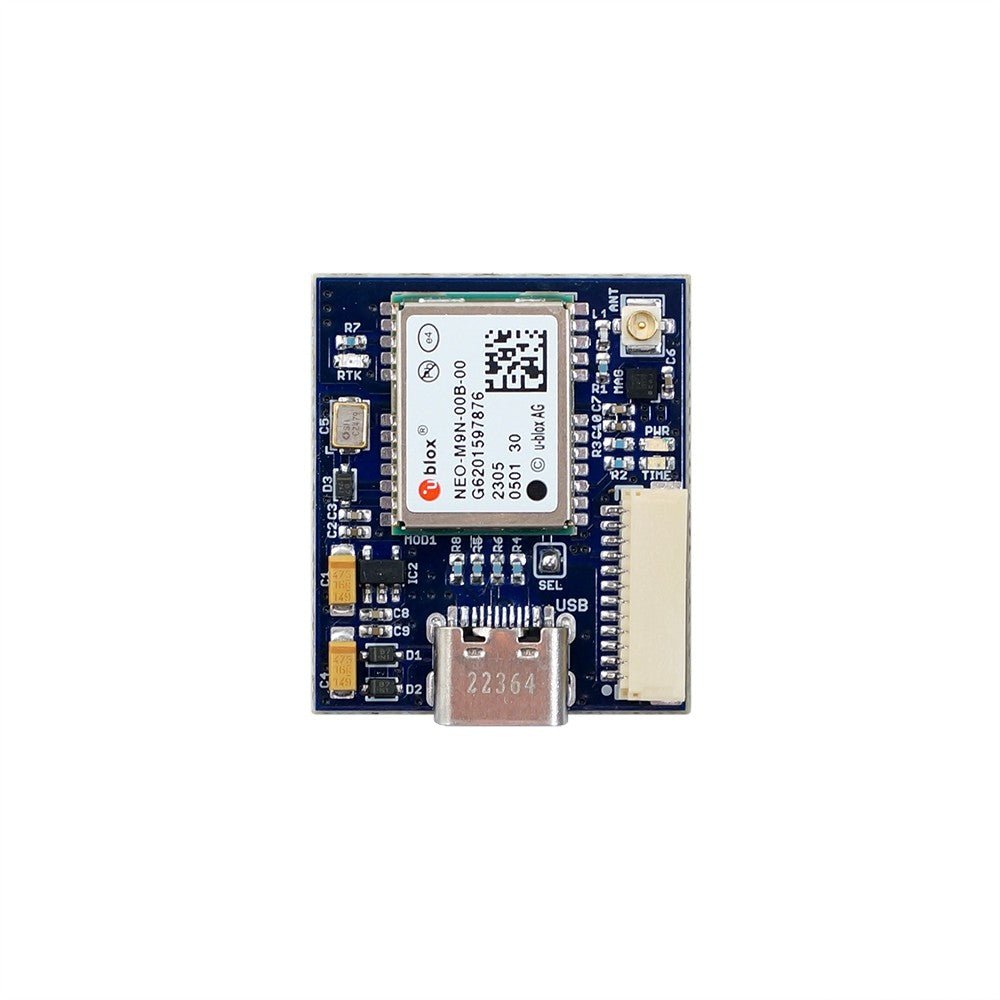

NEO-M9N USB C four GNSS receiver board with LIS3MDL magnetometer
NEO-M9N USB C four GNSS receiver board with LIS3MDL magnetometer
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
NEO-M9N USB type C four GNSS Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations.
Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB type C, I2C (SDA, SCL) and UART (Tx, Rx), EXTIN pin
- UF.L antenna connectors
- u-centre ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED, Power LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions 28x23 mm
- Weight: 2,9 gr.
- Fully assembled and ready to use
- Can be easy mounted in your case by double sided tape
- Build in LIS3MDL magnetometr
- 12 pin JST SH connector for easy connect
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| NEO-M9N USB type C four GNSS Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.
| Regular price
€67,99
Sale price
€67,99
Regular price
| ELTEHS |
Choose your option
NEO-M9N USB C four GNSS receiver board with LIS3MDL magnetometer
NEO-M9N USB C four GNSS receiver board with LIS3MDL magnetometer
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>10 pcs)
NEO-M9N USB type C four GNSS Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations.
Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.
- 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB type C, I2C (SDA, SCL) and UART (Tx, Rx), EXTIN pin
- UF.L antenna connectors
- u-centre ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED, Power LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions 28x23 mm
- Weight: 2,9 gr.
- Fully assembled and ready to use
- Can be easy mounted in your case by double sided tape
- Build in LIS3MDL magnetometr
- 12 pin JST SH connector for easy connect
