NEO-F10T L1/L5/E5a InCase series TIME & RAW receiver board
NEO-F10T L1/L5/E5a InCase series TIME & RAW receiver board
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded

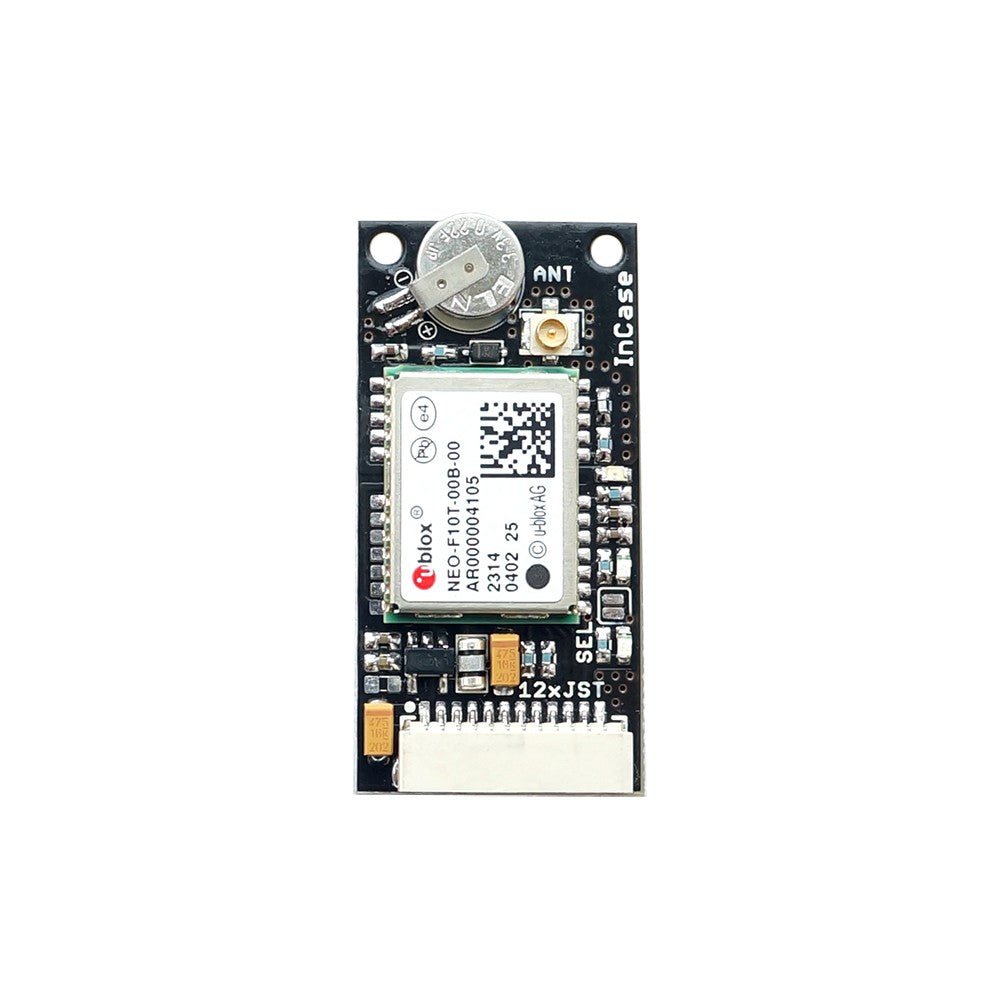

InCase PIN series NEO-F10T Reference Board with U.FL antenna connectors for your RTK systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.
The NEO-F10T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. Thanks to the module's dual-band functionality, it can provide excellent timing accuracy without the need of an external GNSS correction service. Additionally, when within the operational area of a Satellite Based Augmentation System (SBAS), NEO-F10T offers the possibility to improve the timing performance by using the ionospheric corrections provided by the SBAS system.
As NEO-F10T supports all four global satellite constellations, it is ideal for global deployments with single HW SKU. The NEO-F10T module supports the L1/L5/E5a configuration. NEO-F10T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity.
The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation. NEO-F10T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale.
The NEO-F10T Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10T Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10T breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10T
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- u-blox F10 engine GPS/QZSS L1 C/A, L5; GLONASS L10F; Galileo E1B/C, E5a; BeiDou B1C, B2a; NavIC L5; SBAS L1 C/A: WAAS, EGNOS, L1Sb, GAGAN
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- UART (Tx, Rx), RAW data out available
- Support active antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save settings without battery)
- Supercapacitor for HOT module start
- Dimensions: 36x18 mm
- Weight: 3.3 gr.
- Fully assembled and ready to use

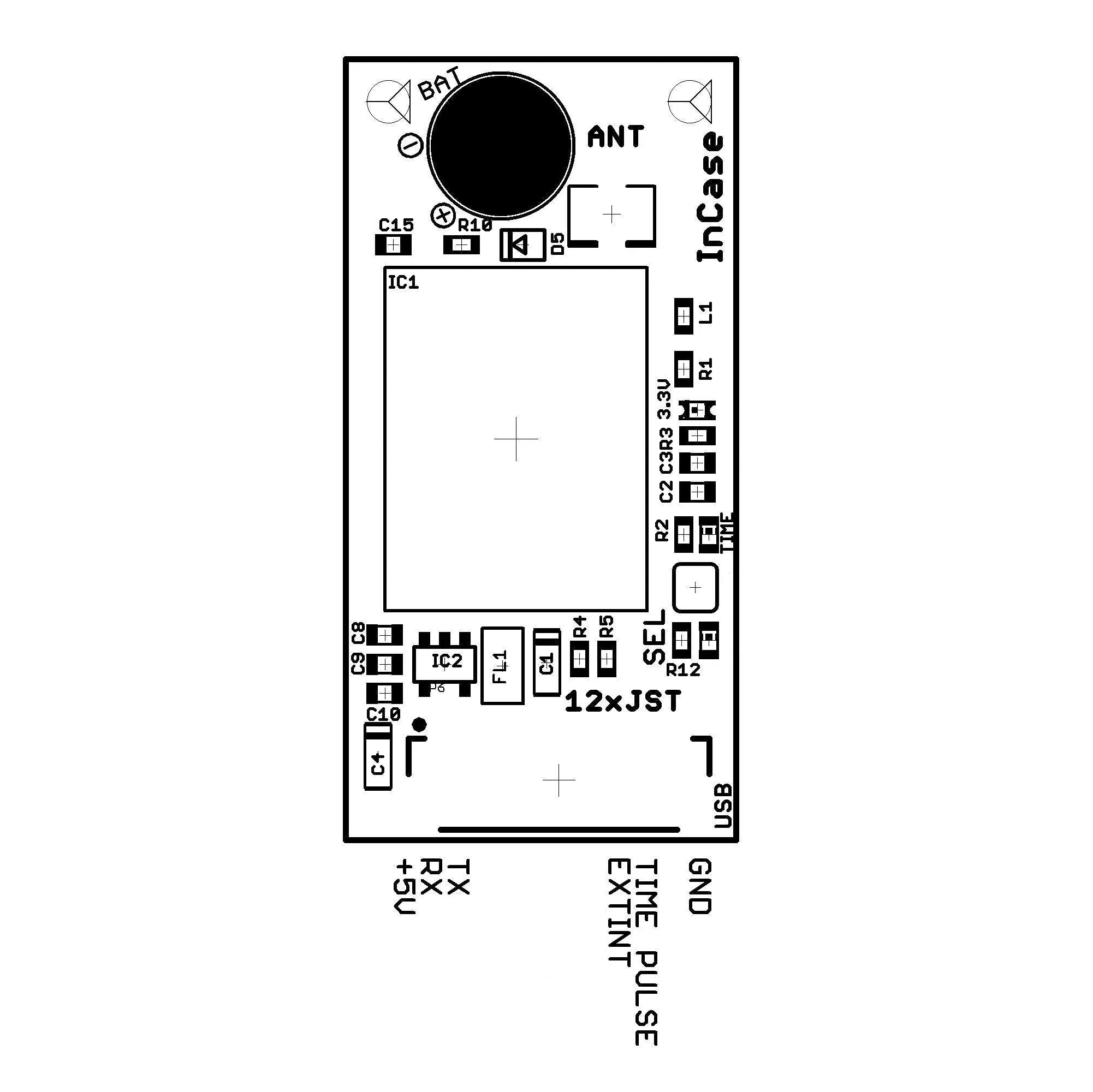

- 12 pin JST SH connector
- Output available for use: Time Pulse, Interrupt, UART interface
Accessories
12 pin to 12 pin JST SH Wire Assembly 0.1 m
SKU: ELT0004
L1/L5 ANN-MB1 multi-band high precision GNSS antenna
SKU: ELT0140
IP65 IPEX (U.FL) to SMA cable
SKU: ELT0179-30-3Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| InCase PIN series NEO-F10T Reference Board with U.FL antenna connectors for your RTK systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.The NEO-F10T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. Thanks to the module's dual-band functionality, it can provide excellent timing accuracy without the need of an external GNSS correction service. Additionally, when within the operational area of a Satellite Based Augmentation System (SBAS), NEO-F10T offers the possibility to improve the timing performance by using the ionospheric corrections provided by the SBAS system. As NEO-F10T supports all four global satellite constellations, it is ideal for global deployments with single HW SKU. The NEO-F10T module supports the L1/L5/E5a configuration. NEO-F10T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation. NEO-F10T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. The NEO-F10T Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10T Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10T breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10T
| Regular price
€139,99
Sale price
€139,99
Regular price
| ELTEHS |
Choose your option
NEO-F10T L1/L5/E5a InCase series TIME & RAW receiver board
NEO-F10T L1/L5/E5a InCase series TIME & RAW receiver board
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>10 pcs)
InCase PIN series NEO-F10T Reference Board with U.FL antenna connectors for your RTK systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.
The NEO-F10T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. Thanks to the module's dual-band functionality, it can provide excellent timing accuracy without the need of an external GNSS correction service. Additionally, when within the operational area of a Satellite Based Augmentation System (SBAS), NEO-F10T offers the possibility to improve the timing performance by using the ionospheric corrections provided by the SBAS system.
As NEO-F10T supports all four global satellite constellations, it is ideal for global deployments with single HW SKU. The NEO-F10T module supports the L1/L5/E5a configuration. NEO-F10T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity.
The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation. NEO-F10T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale.
The NEO-F10T Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10T Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10T breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10T
- u-blox F10 engine GPS/QZSS L1 C/A, L5; GLONASS L10F; Galileo E1B/C, E5a; BeiDou B1C, B2a; NavIC L5; SBAS L1 C/A: WAAS, EGNOS, L1Sb, GAGAN
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- UART (Tx, Rx), RAW data out available
- Support active antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save settings without battery)
- Supercapacitor for HOT module start
- Dimensions: 36x18 mm
- Weight: 3.3 gr.
- Fully assembled and ready to use
- 12 pin JST SH connector
- Output available for use: Time Pulse, Interrupt, UART interface
