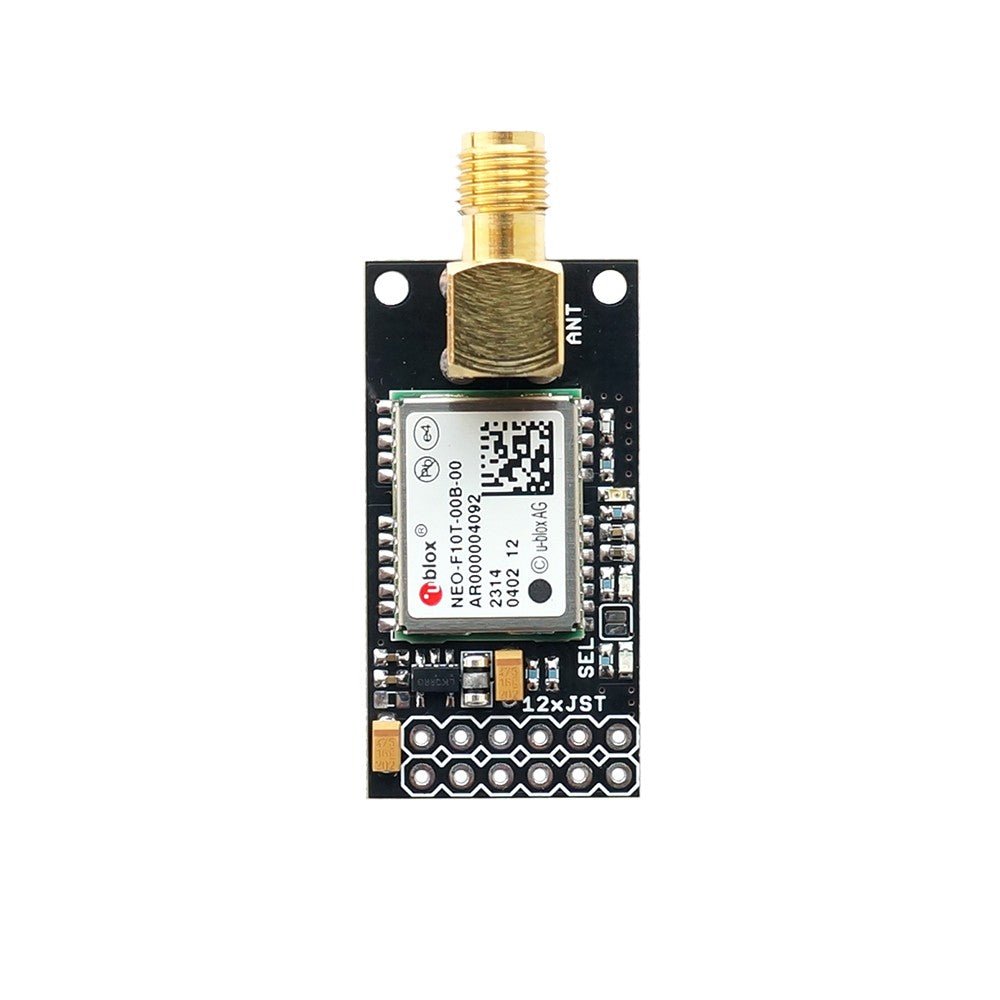

NEO-F10T InCase L1/L5/E5a TIME & RAW receiver board

InCase PIN series NEO-F10T Reference Board with SMA antenna connectors for your RTK systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.

The NEO-F10T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. Thanks to the module's dual-band functionality, it can provide excellent timing accuracy without the need of an external GNSS correction service. Additionally, when within the operational area of a Satellite Based Augmentation System (SBAS), NEO-F10T offers the possibility to improve the timing performance by using the ionospheric corrections provided by the SBAS system.

As NEO-F10T supports all four global satellite constellations, it is ideal for global deployments with single HW SKU. The NEO-F10T module supports the L1/L5/E5a configuration. NEO-F10T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity.

The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation. NEO-F10T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale.

The NEO-F10T Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10T Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10T breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10T
