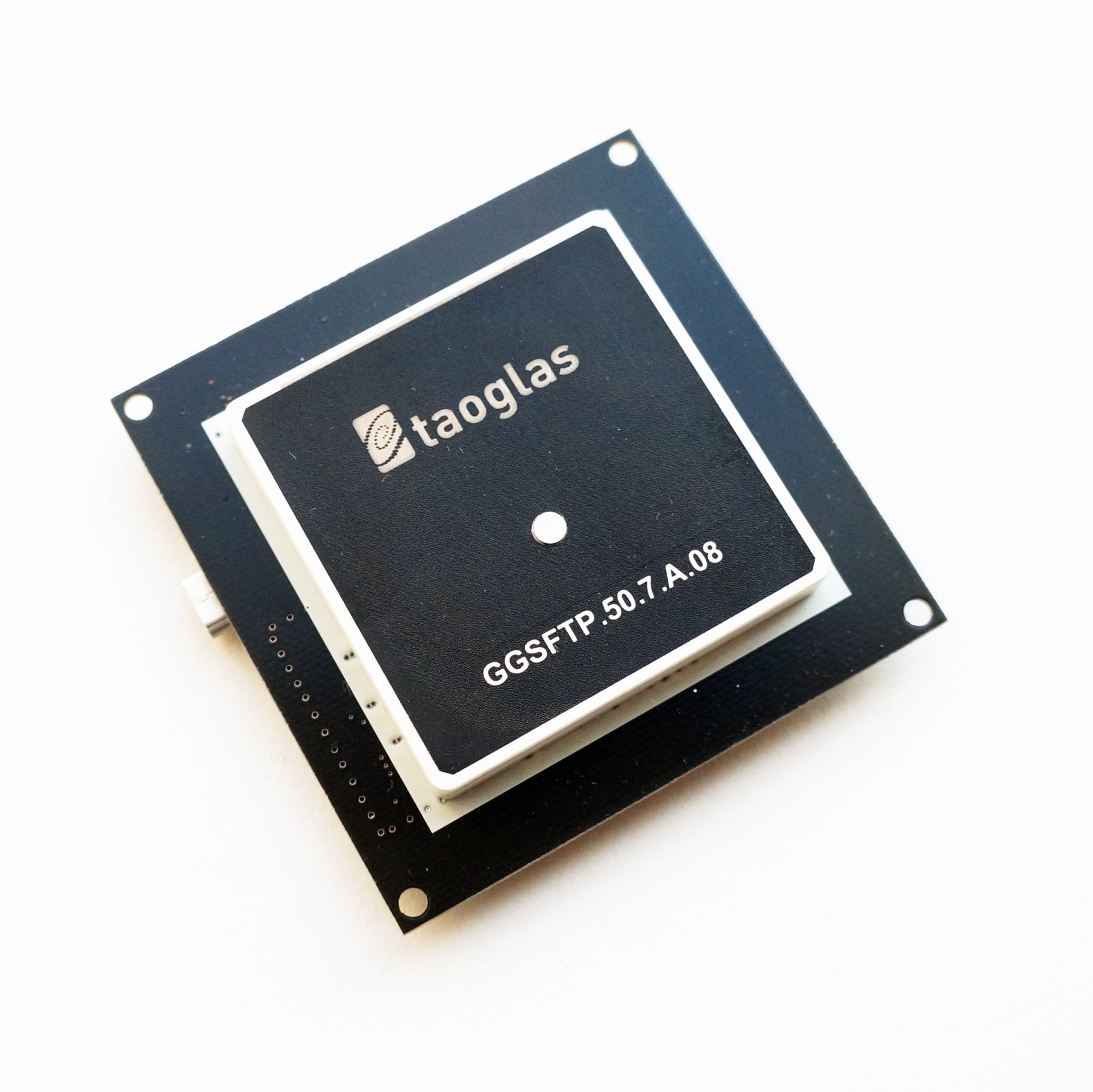

ZED-F9P RTK receiver board with MultiBand antenna L1, L2 and EMI + LIS3MDL with wire pad
ZED-F9P RTK receiver board with MultiBand antenna L1, L2 and EMI + LIS3MDL with wire pad
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
ZED-F9P High Precision GNSS receiver module with USB, UART interfaces and Multi Band L1, L2 antenna. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Build-in EMI protection and LIS3MDL Magnetometer. Designed with wire pads for directly soldering to boards.
The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
- On-board Ultra low noise 3.3V voltage regulator with noise 2nV/Hz
- USB, I2C (SDA, SCL) for magnetometer and UART (Tx, Rx) interface
- MultiBand L1, L2 antenna
- LIS3MDL I2C magnetometer
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor
- Dimensions: 70x70 mm
- Weight: 56 gr.
- Fully assembled and ready to use
- Wire pads for soldering to boards
- EMI protection
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| ZED-F9P High Precision GNSS receiver module with USB, UART interfaces and Multi Band L1, L2 antenna. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Build-in EMI protection and LIS3MDL Magnetometer. Designed with wire pads for directly soldering to boards.The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module. The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies. ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
| Regular price
€249,99
Sale price
€249,99
Regular price
| ELTEHS |
Choose your option
ZED-F9P RTK receiver board with MultiBand antenna L1, L2 and EMI + LIS3MDL with wire pad
ZED-F9P RTK receiver board with MultiBand antenna L1, L2 and EMI + LIS3MDL with wire pad
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>100 pcs)
ZED-F9P High Precision GNSS receiver module with USB, UART interfaces and Multi Band L1, L2 antenna. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Build-in EMI protection and LIS3MDL Magnetometer. Designed with wire pads for directly soldering to boards.
The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
- On-board Ultra low noise 3.3V voltage regulator with noise 2nV/Hz
- USB, I2C (SDA, SCL) for magnetometer and UART (Tx, Rx) interface
- MultiBand L1, L2 antenna
- LIS3MDL I2C magnetometer
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor
- Dimensions: 70x70 mm
- Weight: 56 gr.
- Fully assembled and ready to use
- Wire pads for soldering to boards
- EMI protection
