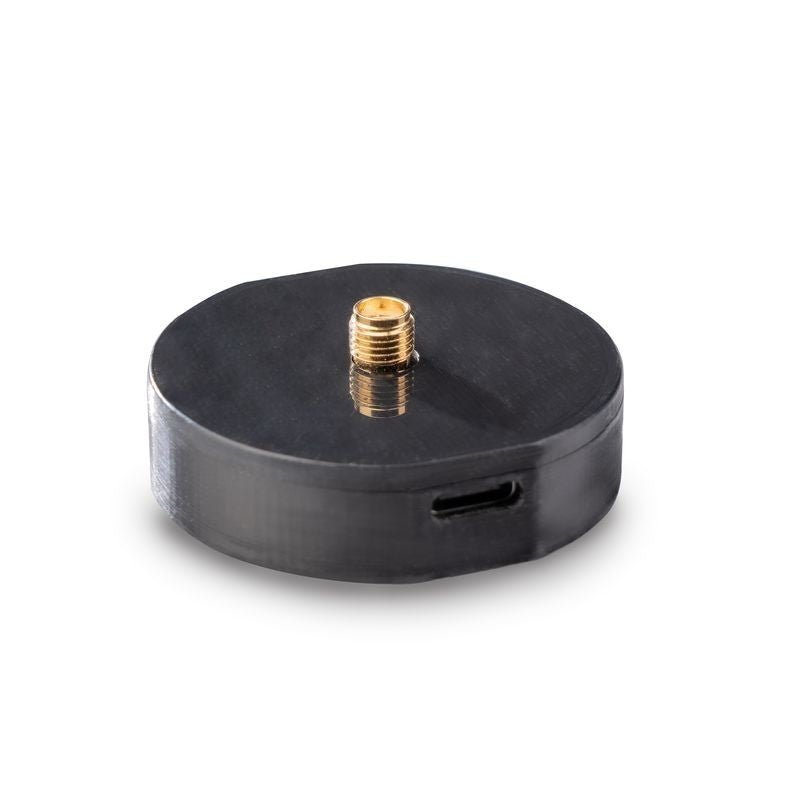

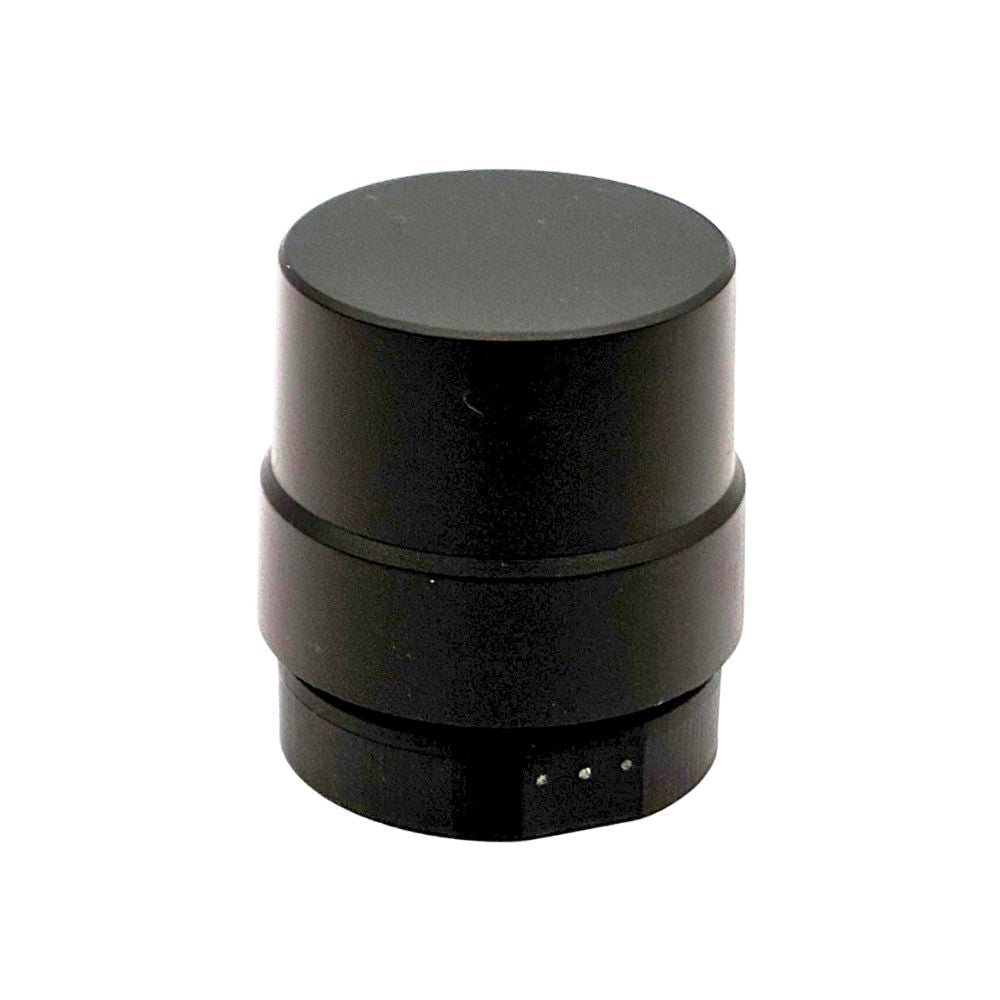

UM981 RTK GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna in Metal case - ELT0268-981S-BP - 1

UM981 RTK GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna in Metal case - ELT0268-981S-BP - 2

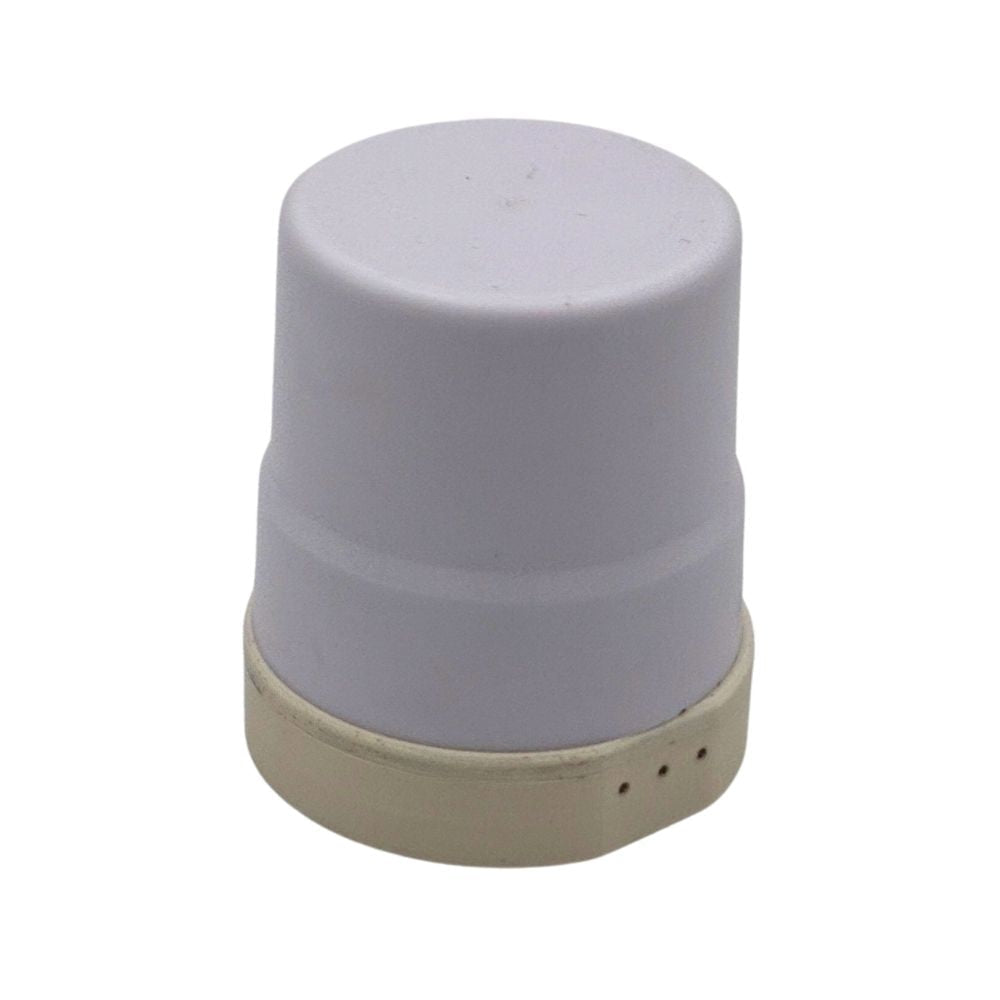

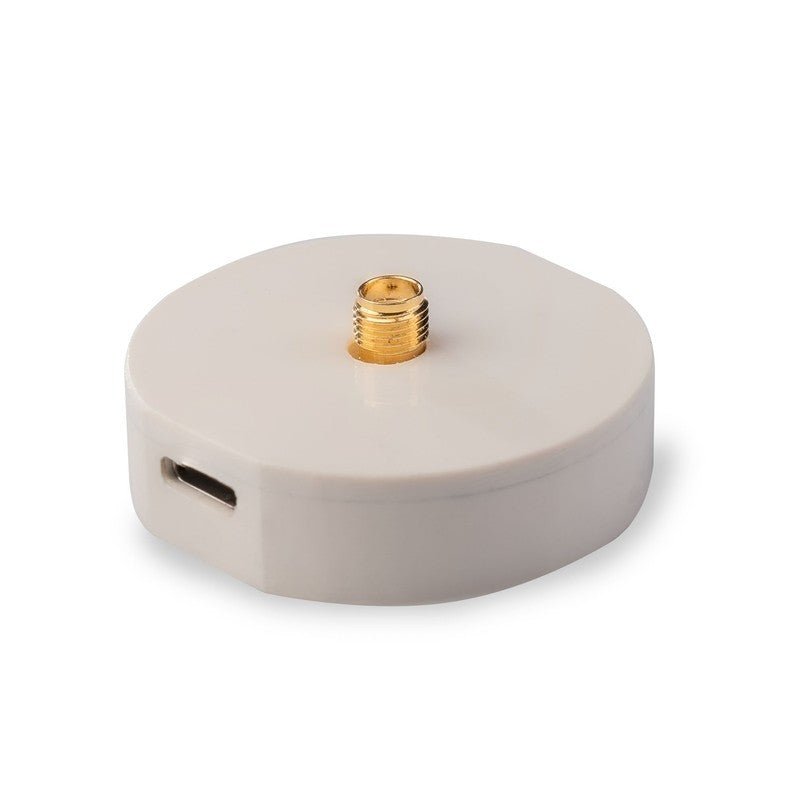

UM981 RTK GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna in Metal case - ELT0268-981S-WP - 3

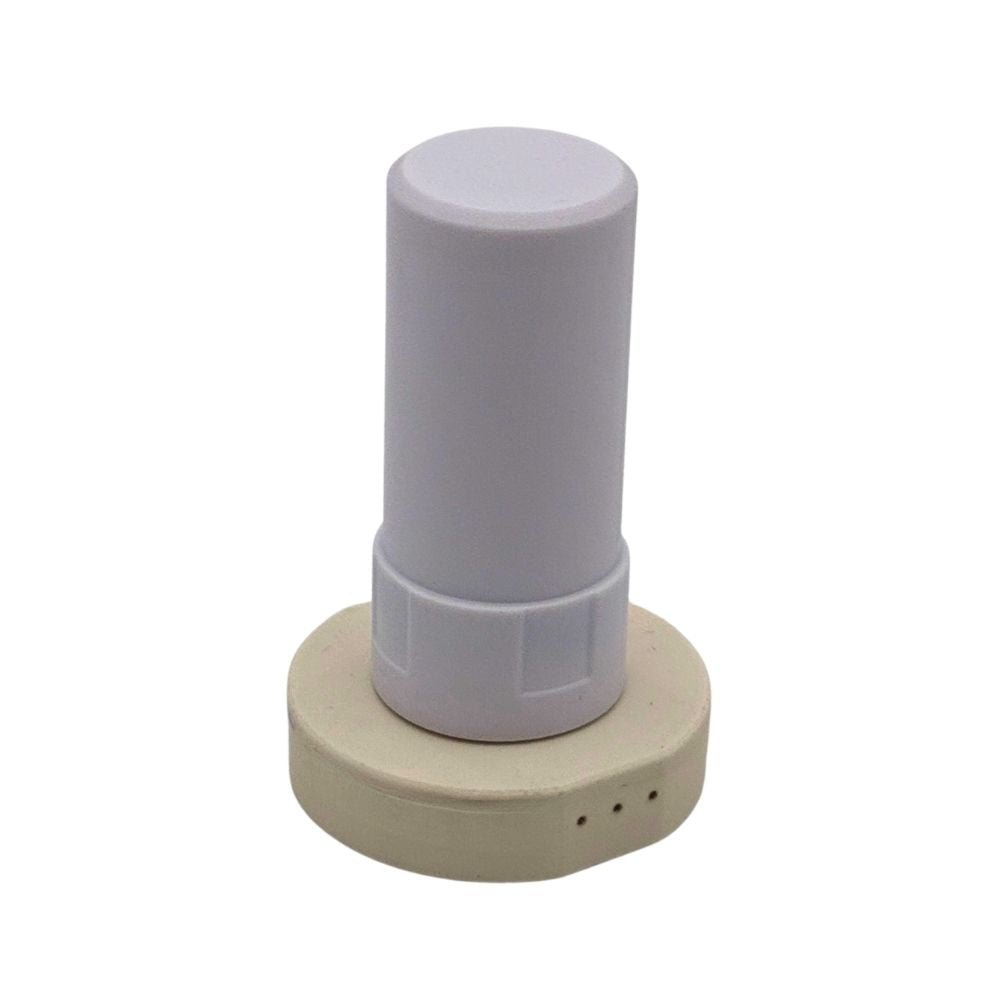

UM981 RTK GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna in Metal case - ELT0268-981S-WP - 4

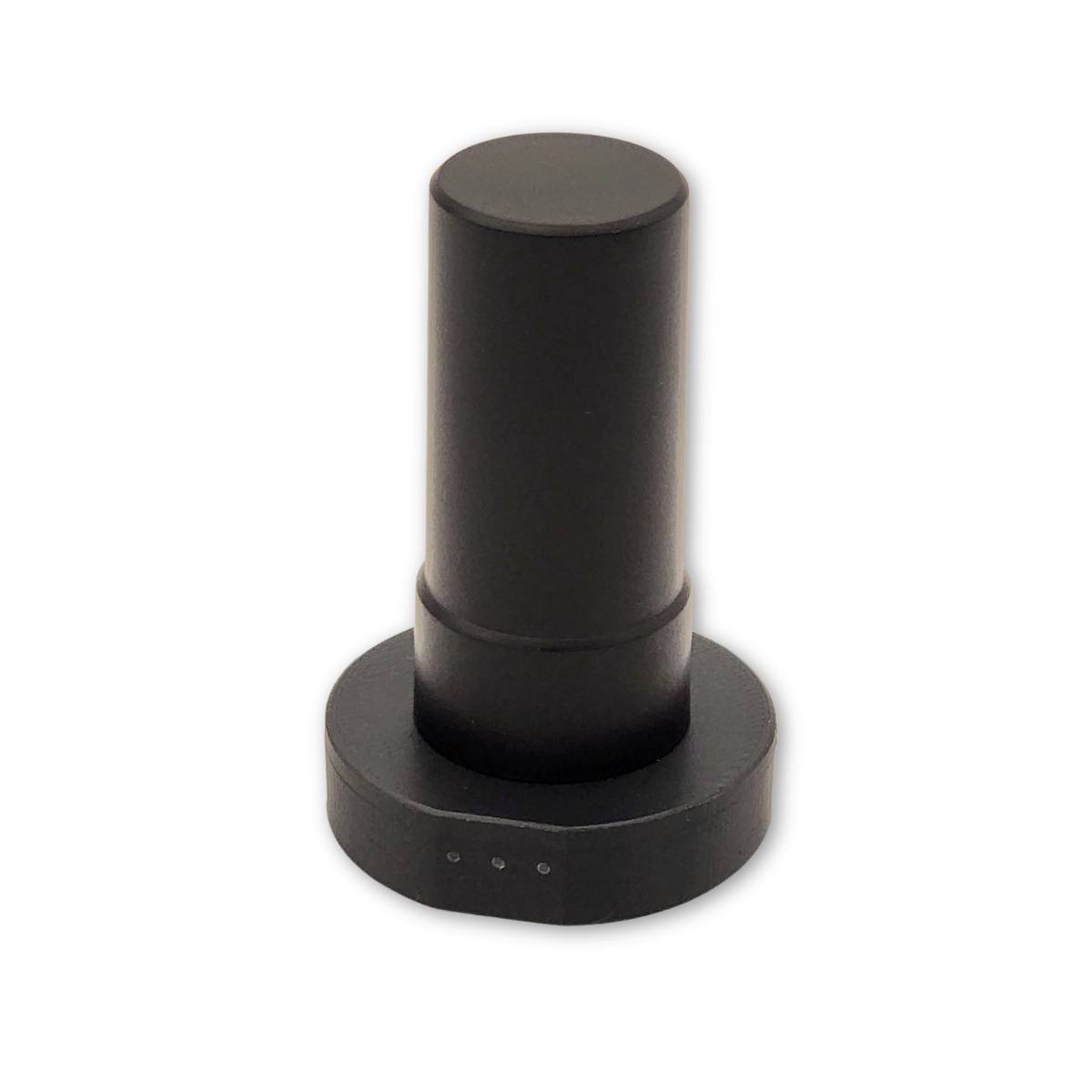

UM981 RTK GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna in Metal case - ELT0268-981S-WP - 5

UM981 RTK GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna in Metal case - ELT0268-981S-WP - 6

NEO-M9N GNSS Smart Antenna module. UART/SPI, RFI protection and SMA Helix antenna - ELT0172-BP - 7

Image is for illustrative purposes only. Please refer to product description.

Product Features

92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou
B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGANv
SuperSense Indoor GPS, -167dBm
On-board low noise 3.3V voltage regulator
UART/SPI JST 6-pin connector and 10 cm cable included
SMA antenna connector
u-center GPS Evaluation Software
Extensive visualization and evaluation features
Supports AssistNow Online and AssistNow Offline A-GPS services
1 USB port pins on board
Time pulse LED, Power LED
Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
Supercacacitor for HOT module start
Dimensions: 40x12 mm
Weight: 15 g
Operating Temperature: -10 to +60 °C
Fully assembled and ready to use

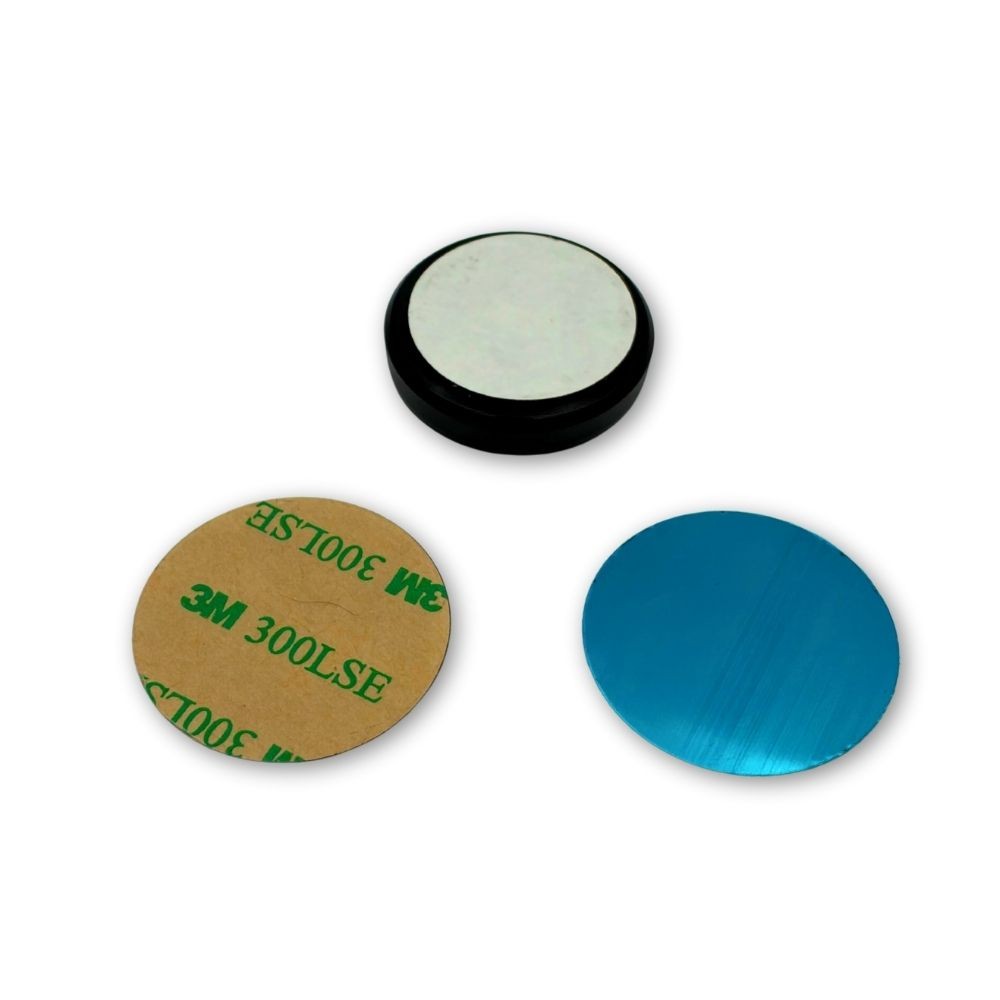

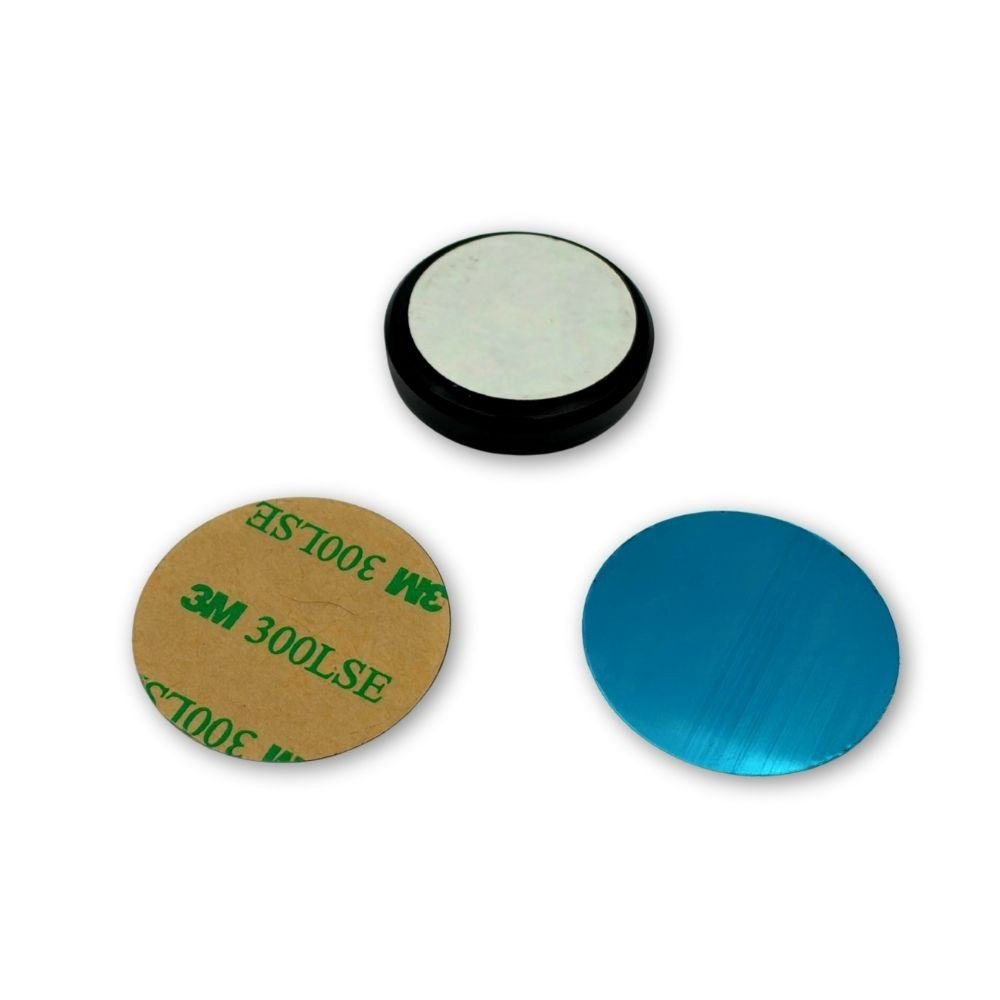

Magnetic mount with waterproof 3M double sided tape
Waterproof 3M double sided tape for mounting

NEO-M9N Module Specifications

92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L1OF BeiDou B1I (1561.098 MHz) only, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Nav. update rate Up to 50 Hz (4 concurrent GNSS)
Position accuracy 1.5 m CEP (with SBAS) or 2.0 m CEP (without SBAS)
UDR position error 10% of distance traveled without GNSS (duration < 60 s)
ADR position error 2% of distance traveled without GNSS
Acquisition
Cold starts: 24 s
Aided cold starts: 2 s
Reacquisition: 2 s
Sensitivity Tracking & Nav: –160 dBm
Reacquisition –159 dBm
Cold starts (aided): –148 dBm
Hot starts: –158 dBm
Geofencing Up to 4 circular areas Software message or GPIO for waking up the host CPU
RF interference and jamming detection and reporting
Active GNSS in-band filtering
Active GNSS in-band filtering Spoofing detection and reporting (consistency checks based on GNSS and sensors)
Device integrity Secure boot of firmware Receiver configuration lock by command
Secure interface Signed UBX messages (SHA-256) JTAG debug interface port locked
Assistance GNSS AssistNow Online
Active and passive Supported antennas

Downloads

NDAA statement

Please log in to download the NDAA statement.

NEO-M9N GNSS Smart Antenna module. UART/SPI, RFI protection and SMA Helix antenna

Name: NEO-M9N GNSS Smart Antenna module. UART/SPI, RFI protection and SMA Helix antenna
Brand: u-blox
Price: 79.99 EUR
Availability: InStock

SKU: ELT0172-BP

EAN: 4751046551723

Brand: u-blox

€79,99

Tax excluded

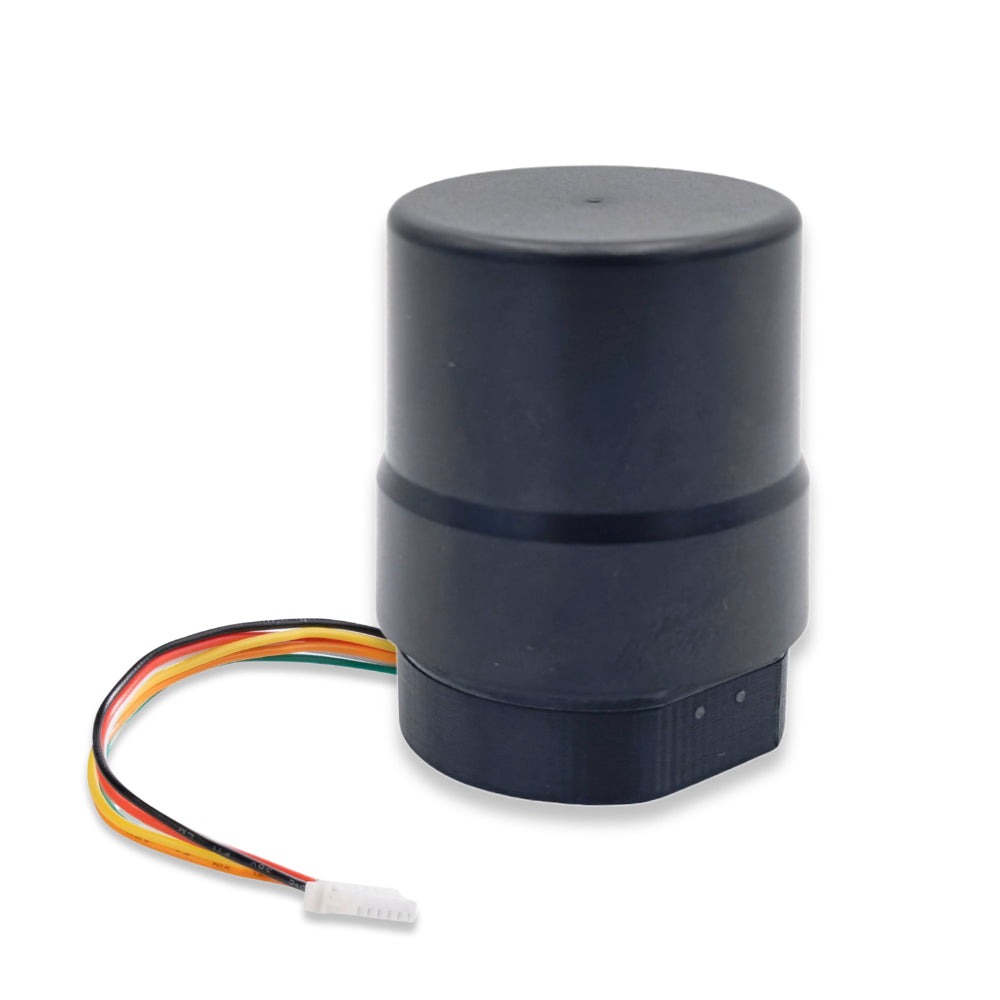

NEO-M9N four GNSS Smart Antenna module with UART/SPI and SMA antenna connectors in the black plastic case for your UAV systems, Robots, RC, FPV or other projects

Ultra small and light. Designed to use together with recommended Helix antenna. The NEO-M9N Smart Antenna module makes evaluating the high performance of the u-blox 9 positioning engine simple. The NEO-M9N Smart Antenna module is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. It’s a fully assembled and tested module for the NEO-M9N with SMA antenna connectors.

WARNING: When powering the device via an AC adapter, connect grounded antennas ONLY when the device is powered off.

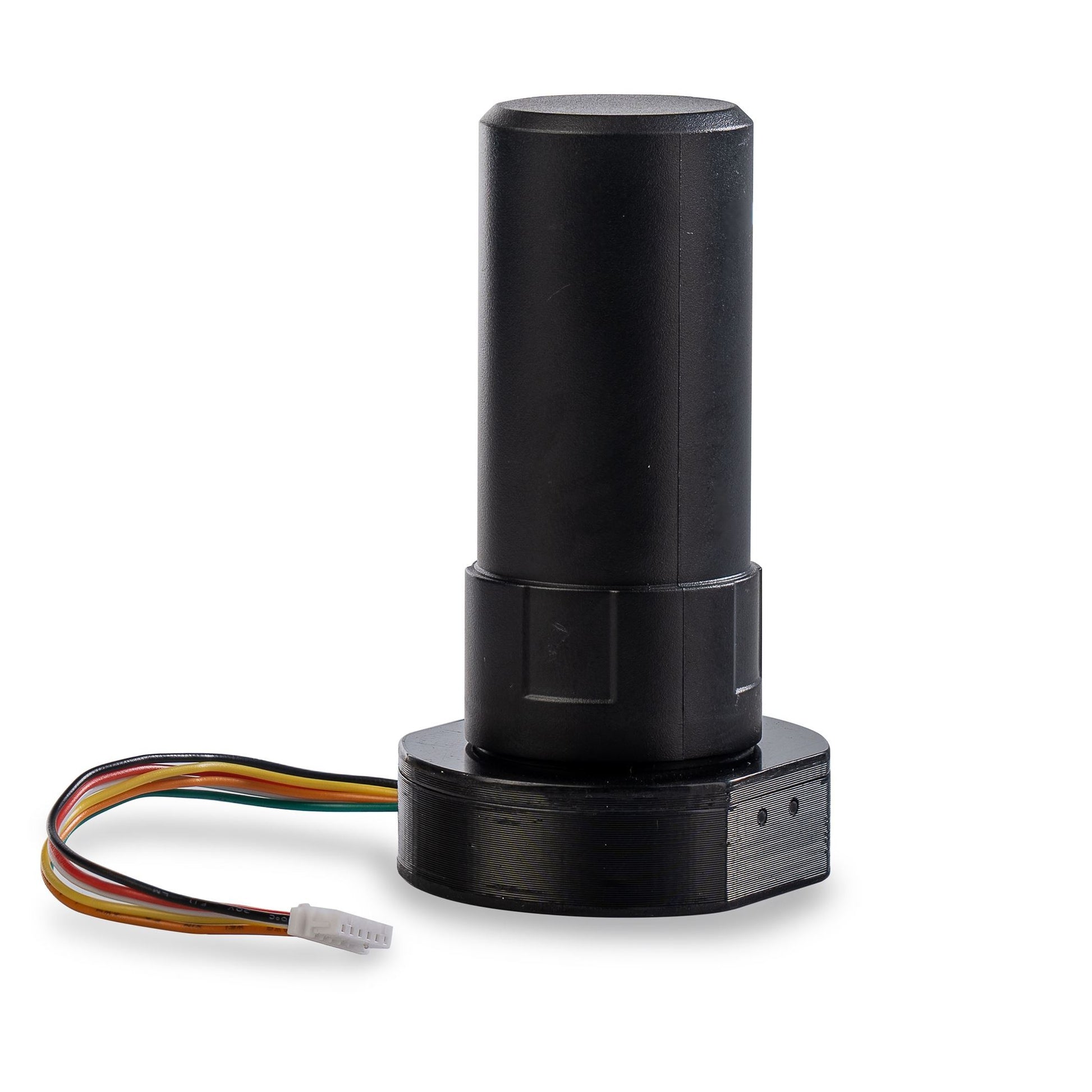

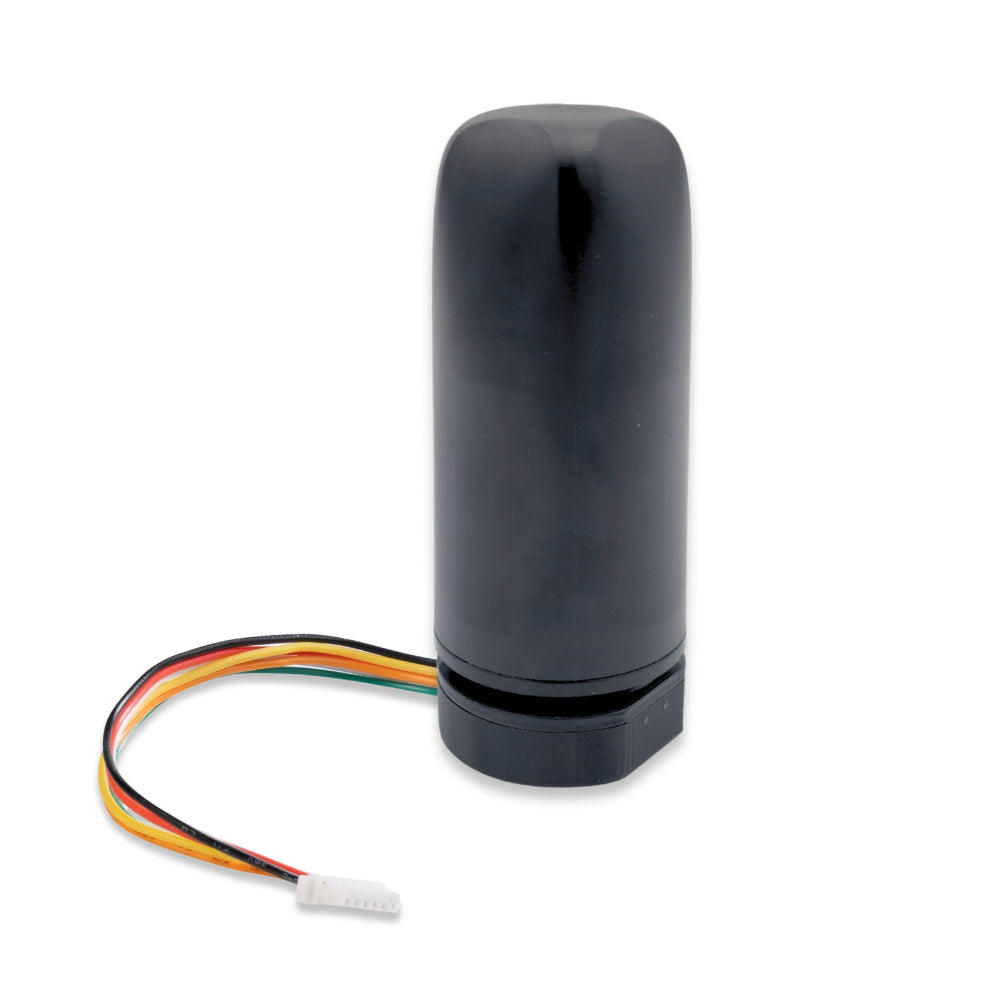

Helix antenna: No antenna

No antenna 59x27 Helix 43x50 Helix 43x40 Helix

Case type: Black Plastic

Black Plastic White Plastic Metal

Available in stock (>10 pcs)

Documents & Engineering

Datasheet

OEM / Custom design

Custom GNSS solution

Request

B2B project pricing

Pricing for custom projects

Consultation

1 Year Limited Warranty

14-day hassle-free returns

Lifetime technical support

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
