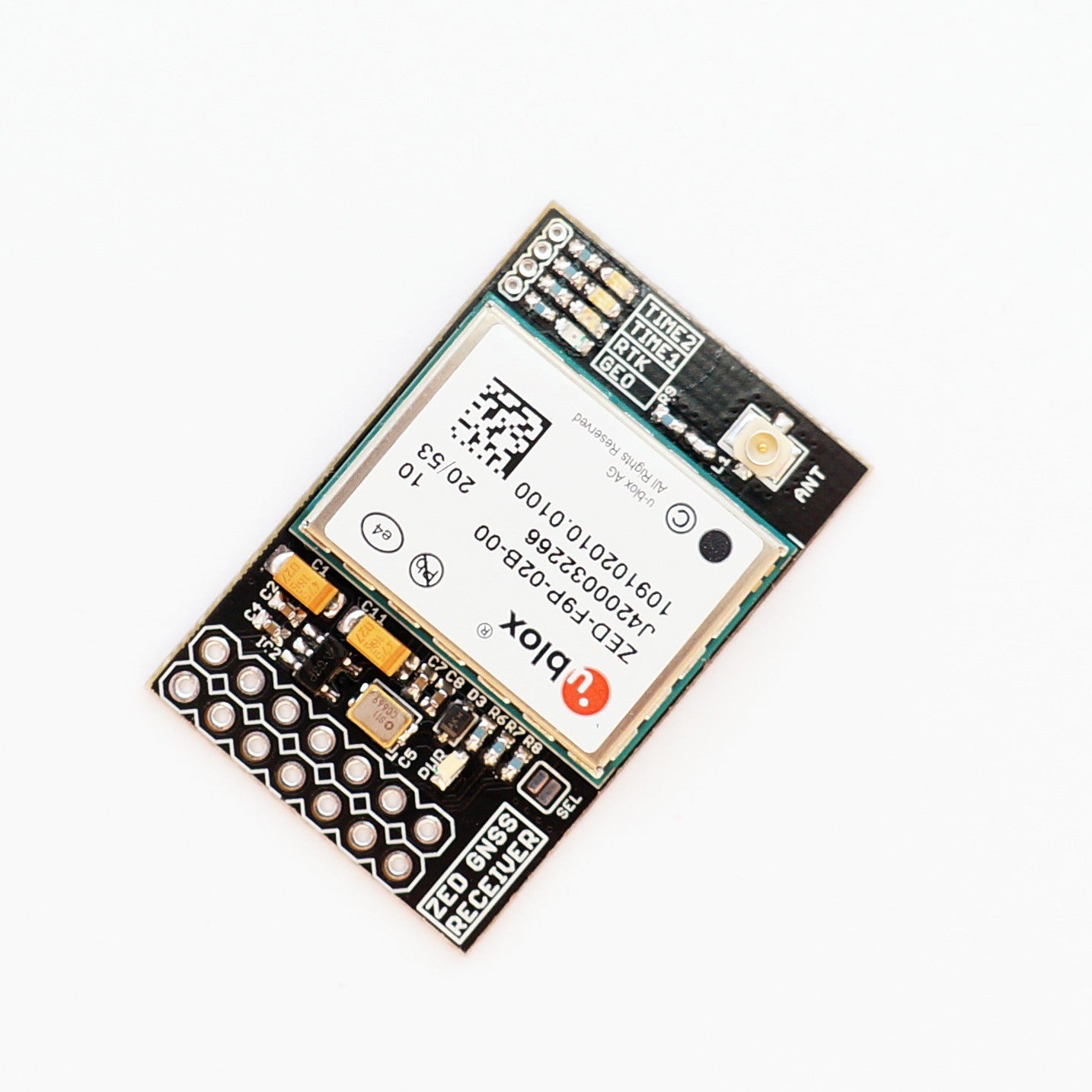

ZED-F9P RTK InCase PIN GNSS receiver board with IPEX (U.FL) with SAFEBoot pin
ZED-F9P RTK InCase PIN GNSS receiver board with IPEX (U.FL) with SAFEBoot pin
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
ZED-F9P High Precision GNSS receiver InCase PIN EVAL module USB, I2C, UART, SPI with IPEX (U.FL) antenna connectors. L1/L2 or L1/L5 options. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots. Re-Designed with SAFEBoot pin.
The ZED-F9P is a high-precision GNSS solution built for demanding applications where speed, accuracy, and reliability matter. With centimeter-level positioning achieved in seconds, it is designed to accelerate development of robotics and industrial systems, offering flexible integration and robust performance in a compact form factor.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
Two module options offered - with L1/L2 bands (ZED-F9P) and with L1/L5 bands (ZED-F9P-15B). L1/L5 option will work better in urban canyon and similar complex environment. Read our blog article L2 or L5? (https://gnss.store/blog/post/l2-or-l5.html) for more details. Please note, using L5 band require special configuration (https://www.u-blox.com/sites/default/files/documents/GPS-L5-configuration_AppNote_UBX-21038688.pdf)
The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA,SCL), SPI and 2 Uart (Tx,Rx) interface
- UF.L (IPEX) edge antenna connectors
- u-center ublox (https://www.u-blox.com/en/product/u-center) GPS Evaluation Software
- Extensive visualization and evaluation features
- 2 TTL UART port, 1 I2C port, 1 USB port 1 SPI
- Time pulse LED, GEO LED, RTK LED (PIN for each LED)
- Backup battery
- Dimensions: 35x23 mm without SMA
- Weight 4 gram
- Fully assembled and ready to use

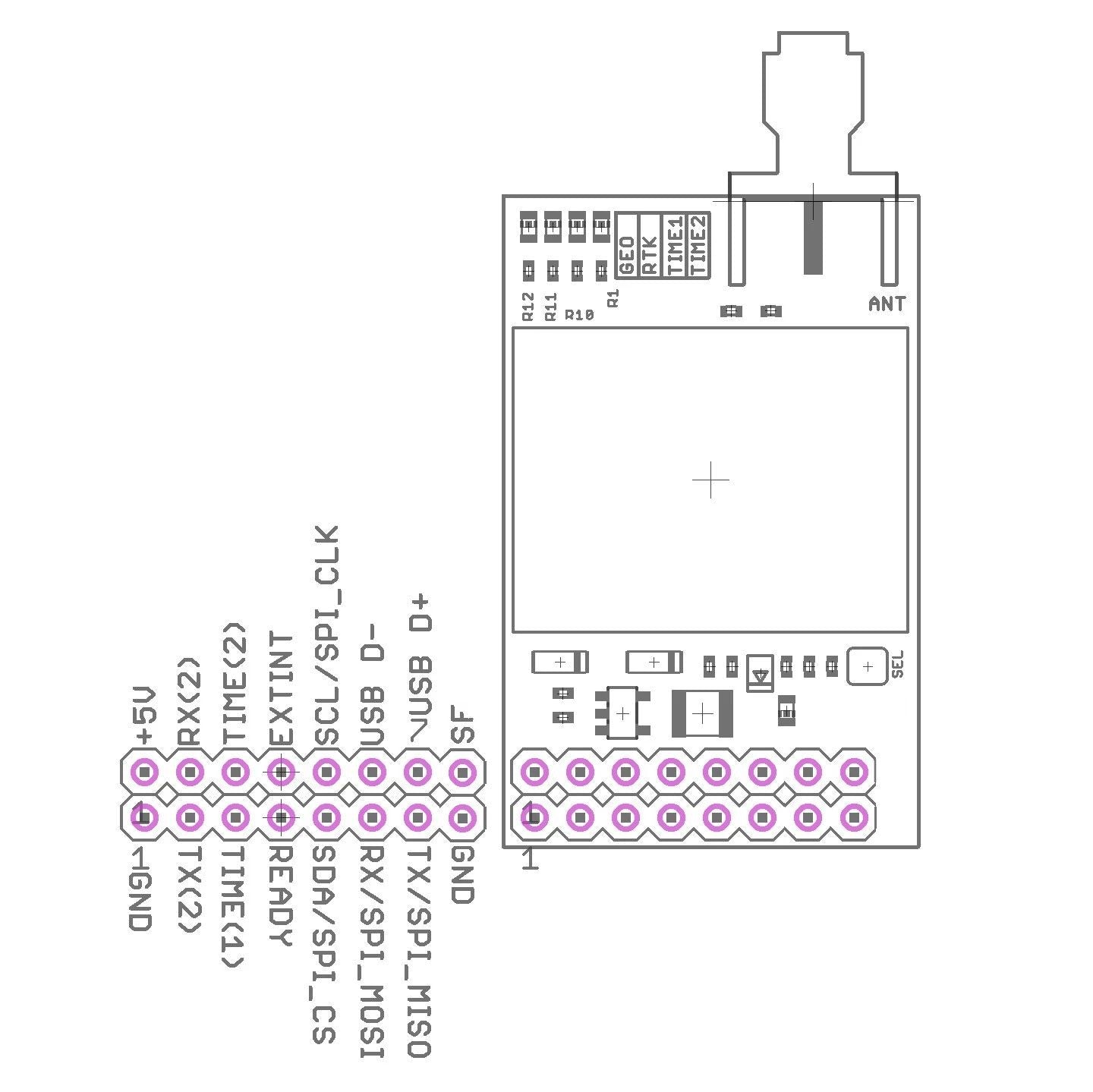

- 16 Holes with pitch 2.54mm
Board can be used for a Base or Rover operation mode!
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| ZED-F9P High Precision GNSS receiver InCase PIN EVAL module USB, I2C, UART, SPI with IPEX (U.FL) antenna connectors. L1/L2 or L1/L5 options. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots. Re-Designed with SAFEBoot pin.The ZED-F9P is a high-precision GNSS solution built for demanding applications where speed, accuracy, and reliability matter. With centimeter-level positioning achieved in seconds, it is designed to accelerate development of robotics and industrial systems, offering flexible integration and robust performance in a compact form factor. The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module. Two module options offered - with L1/L2 bands (ZED-F9P) and with L1/L5 bands (ZED-F9P-15B). L1/L5 option will work better in urban canyon and similar complex environment. Read our blog article L2 or L5? (https://gnss.store/blog/post/l2-or-l5.html) for more details. Please note, using L5 band require special configuration (https://www.u-blox.com/sites/default/files/documents/GPS-L5-configuration_AppNote_UBX-21038688.pdf) The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies. ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
Board can be used for a Base or Rover operation mode! | Regular price
€199,99
Sale price
€199,99
Regular price
| ELTEHS |
Choose your option
ZED-F9P RTK InCase PIN GNSS receiver board with IPEX (U.FL) with SAFEBoot pin
ZED-F9P RTK InCase PIN GNSS receiver board with IPEX (U.FL) with SAFEBoot pin
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>10 pcs)
ZED-F9P High Precision GNSS receiver InCase PIN EVAL module USB, I2C, UART, SPI with IPEX (U.FL) antenna connectors. L1/L2 or L1/L5 options. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots. Re-Designed with SAFEBoot pin.
The ZED-F9P is a high-precision GNSS solution built for demanding applications where speed, accuracy, and reliability matter. With centimeter-level positioning achieved in seconds, it is designed to accelerate development of robotics and industrial systems, offering flexible integration and robust performance in a compact form factor.
The ZED-F9P positioning module features the new u-blox F9receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.
Two module options offered - with L1/L2 bands (ZED-F9P) and with L1/L5 bands (ZED-F9P-15B). L1/L5 option will work better in urban canyon and similar complex environment. Read our blog article L2 or L5? (https://gnss.store/blog/post/l2-or-l5.html) for more details. Please note, using L5 band require special configuration (https://www.u-blox.com/sites/default/files/documents/GPS-L5-configuration_AppNote_UBX-21038688.pdf)
The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.
ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA,SCL), SPI and 2 Uart (Tx,Rx) interface
- UF.L (IPEX) edge antenna connectors
- u-center ublox (https://www.u-blox.com/en/product/u-center) GPS Evaluation Software
- Extensive visualization and evaluation features
- 2 TTL UART port, 1 I2C port, 1 USB port 1 SPI
- Time pulse LED, GEO LED, RTK LED (PIN for each LED)
- Backup battery
- Dimensions: 35x23 mm without SMA
- Weight 4 gram
- Fully assembled and ready to use
- 16 Holes with pitch 2.54mm
Board can be used for a Base or Rover operation mode!
