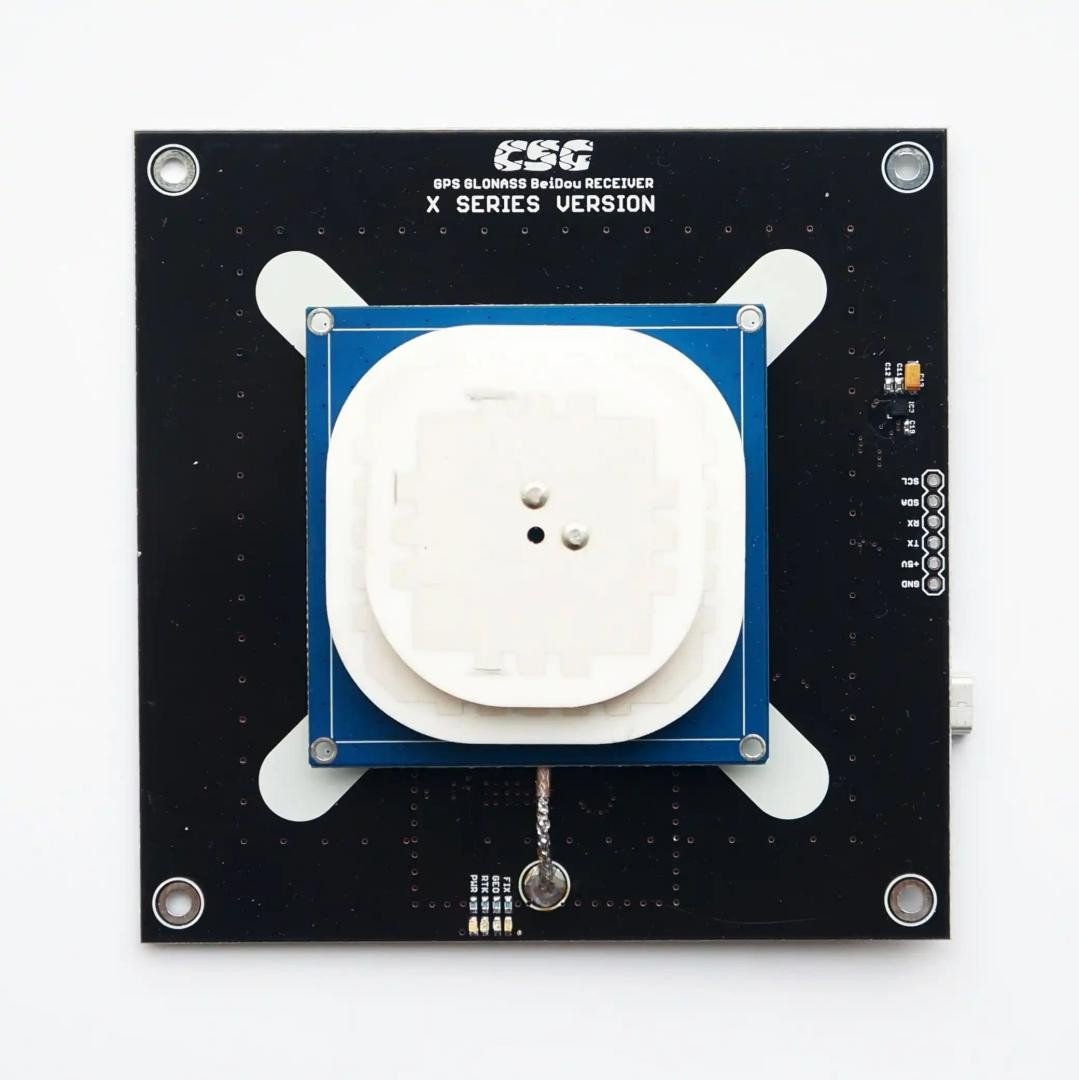

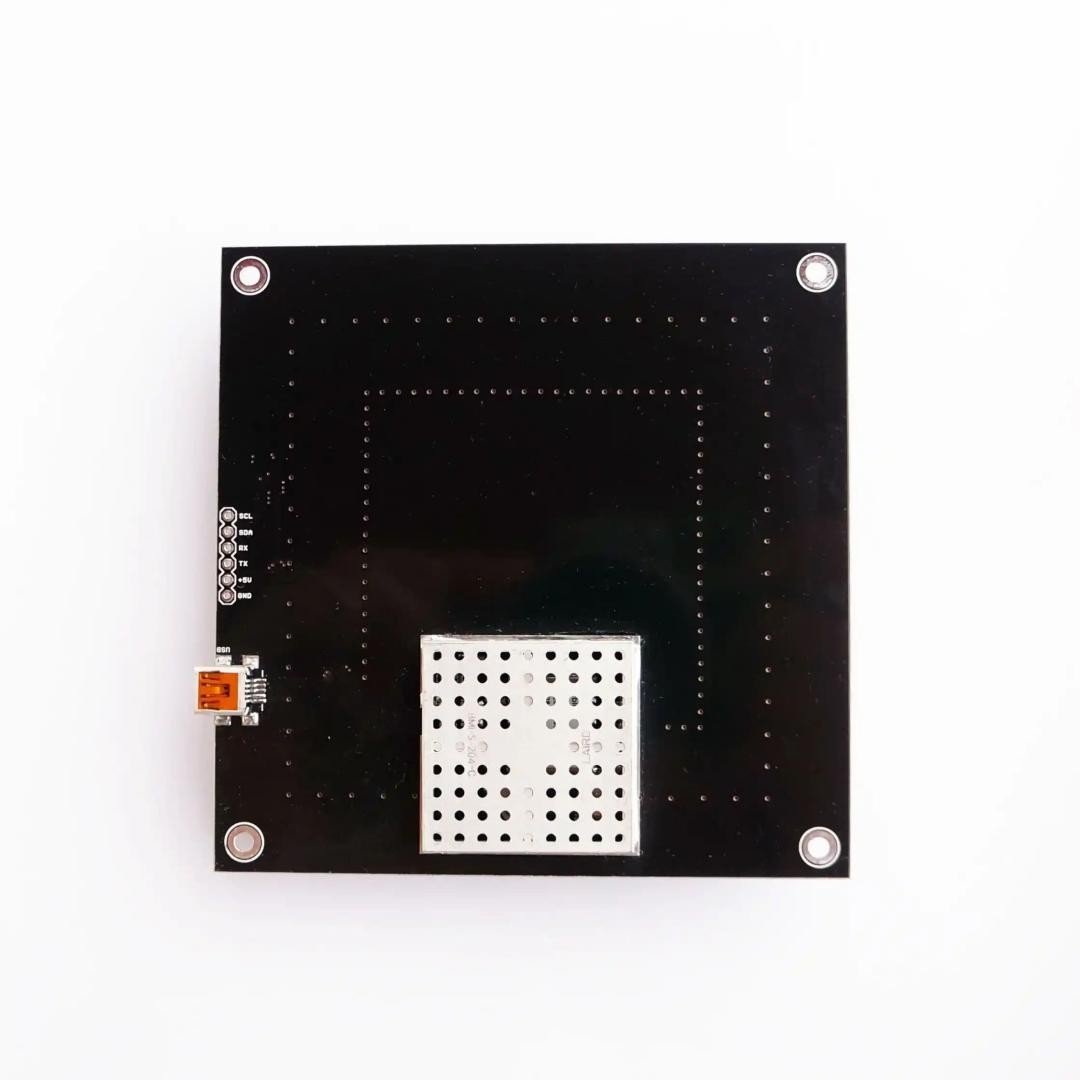

NEO-M8N receiver with MultiPatch antenna, ENI and RFI protection + LIS3MDL X series
NEO-M8N receiver with MultiPatch antenna, ENI and RFI protection + LIS3MDL X series
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
X series version NEO-M8N.NEO-M8N GNSS PRO version receiver with MultiPatch antenna and high gain LNA systems for high signal noise ratio build-in EMI protection and LIS3MDL Magnetometer. Ready for unwanted signal interference or multipath blocking. X series version very strong signal for good price.
This board designed for large scale drone or groud robots. Board have BDS B1/B2/B3 GPS L1/L2/L5 Glonass G1/G2 Galileo E1/E2/E5a/E5b/E6 antenna with High Gain LNA witch have very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots.
This boards ready for unwanted signal interference or multipath blocking. The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with Compass
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- High Gain LNA systems with very low noise figure
- Double Band Pass filter for noise rejection
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB and UART (Tx, Rx)
- BDS B1/B2/B3 GPS L1/L2/L5 Glonass G1/G2 Galileo E1/E2/E5a/E5b/E6 antenna
- u-center Evaluation Software
- LIS3MDL I2C magnetometer
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions:100x100 mm; hole distance 90x90 mm
- Weight: 114 gr.
- EMI and RFI protection
- Ready for unwanted signal interference or multipath blocking
- Fully assembled and ready to use
