NEO-M9N receiver with MultiPatch antenna, EMI and RFI protection + LIS3MDL X series - GNSS store - ELT0137

Product Features

92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
SuperSense Indoor GPS, -167dBm
High Gain LNA systems with very low noise figure
Double Band Pass filter for noise rejection
On-board low noise 3.3V voltage regulator and RF filter for noise blocking
USB and UART (Tx, Rx)
BDS B1/B2/B3 GPS L1/L2/L5 Glonass G1/G2 Galileo E1/E2/E5a/E5b/E6 antenna
u-center ublox Evaluation Software
LIS3MDL I2C magnetometer
Extensive visualization and evaluation features
Supports AssistNow Online and AssistNow Offline A-GPS services
Time pulse LED
Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
Supercapacitor for HOT module start
Dimensions: 100x100 mm; hole distance 90x90mm
Weight: 114 gr.
EMI and RFI protection
Ready for unwanted signal interference or multipath blocking
Fully assembled and ready to use

NEO-M9N Module Specifications

General Description:

92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L1OF BeiDou B1I (1561.098 MHz) only, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Nav. update rate Up to 50 Hz (4 concurrent GNSS)
Position accuracy 1.5 m CEP (with SBAS) or 2.0 m CEP (without SBAS)
UDR position error 10% of distance traveled without GNSS (duration < 60 s)
ADR position error 2% of distance traveled without GNSS
Acquisition
Cold starts: 24 s
Aided cold starts: 2 s
Reacquisition: 2 s
Sensitivity Tracking & Nav: –160 dBm
Reacquisition –159 dBm
Cold starts (aided): –148 dBm
Hot starts: –158 dBm
Geofencing Up to 4 circular areas Software message or GPIO for waking up the host CPU
RF interference and jamming detection and reporting
Active GNSS in-band filtering
Active GNSS in-band filtering Spoofing detection and reporting (consistency checks based on GNSS and sensors)
Device integrity Secure boot of firmware Receiver configuration lock by command
Secure interface Signed UBX messages (SHA-256) JTAG debug interface port locked
Assistance GNSS AssistNow Online
Active and passive Supported antennas

Downloads

NDAA statement

Please log in to download the NDAA statement.

NEO-M9N receiver with MultiPatch antenna, EMI and RFI protection + LIS3MDL X series

Name: NEO-M9N receiver with MultiPatch antenna, EMI and RFI protection + LIS3MDL X series
Brand: ELTEHS
SKU: ELT0137
Price: 109.99 EUR
Availability: InStock

SKU: ELT0137

EAN: 4751046551372

Brand: U-blox

€109,99

Tax excluded

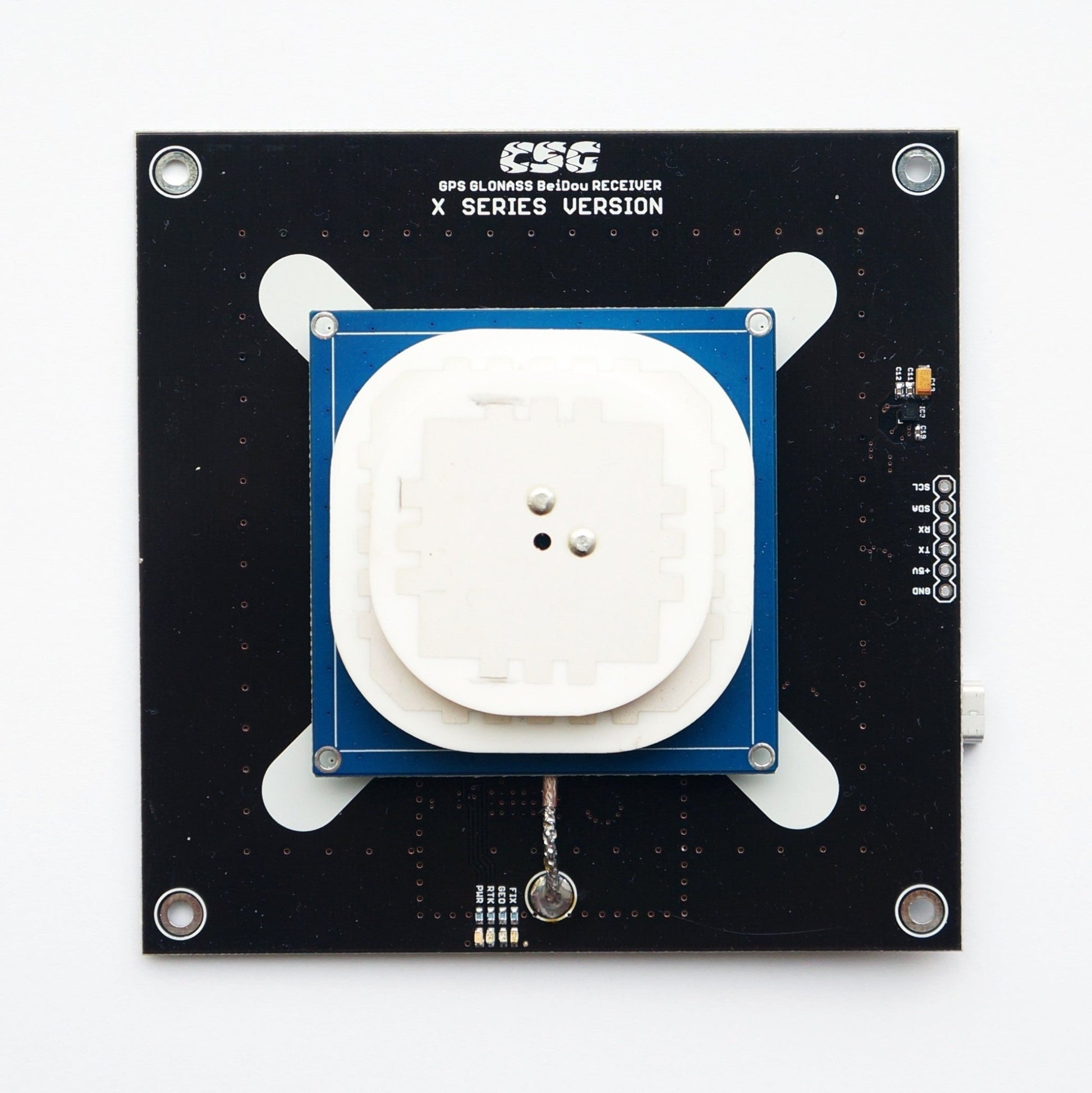

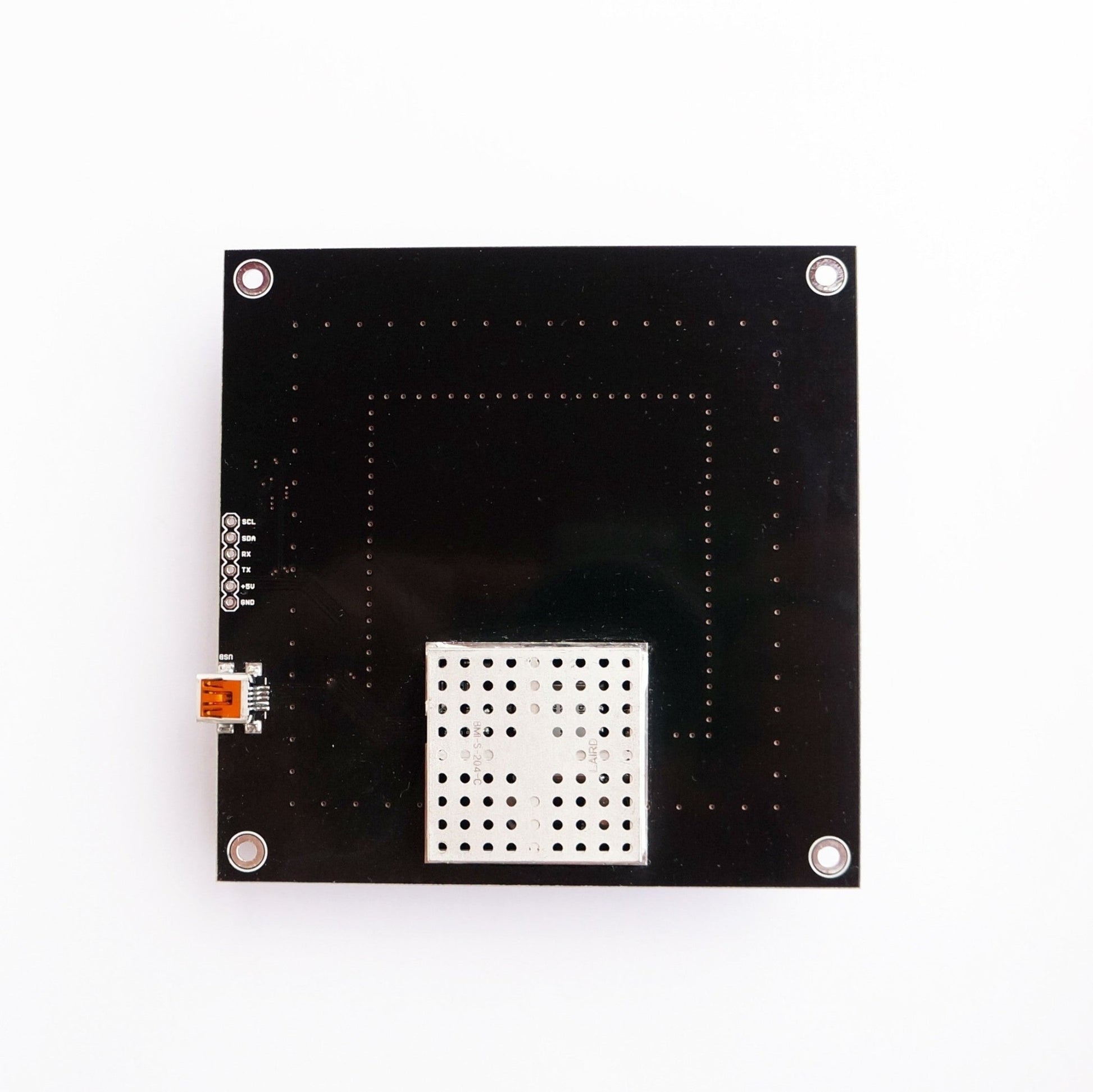

X series version NEO-M9N NEO-M9N four GNSS PRO version receiver with MultiPatch antenna and high gain LNA systems for high signal noise ratio build-in EMI protection and LIS3MDL Magnetometer. Ready for unwanted signal interference or multipath blocking. X series version very strong signal for good price.

This board designed for large scale drone or groud robots. Board have BDS B1/B2/B3 GPS L1/L2/L5 Glonass G1/G2 Galileo E1/E2/E5a/E5b/E6 antenna with High Gain LNA witch have very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots.

This boards ready for unwanted signal interference or multipath blocking. The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with Compass

Please log in to download the datasheet.

Available in stock (>10 pcs)
