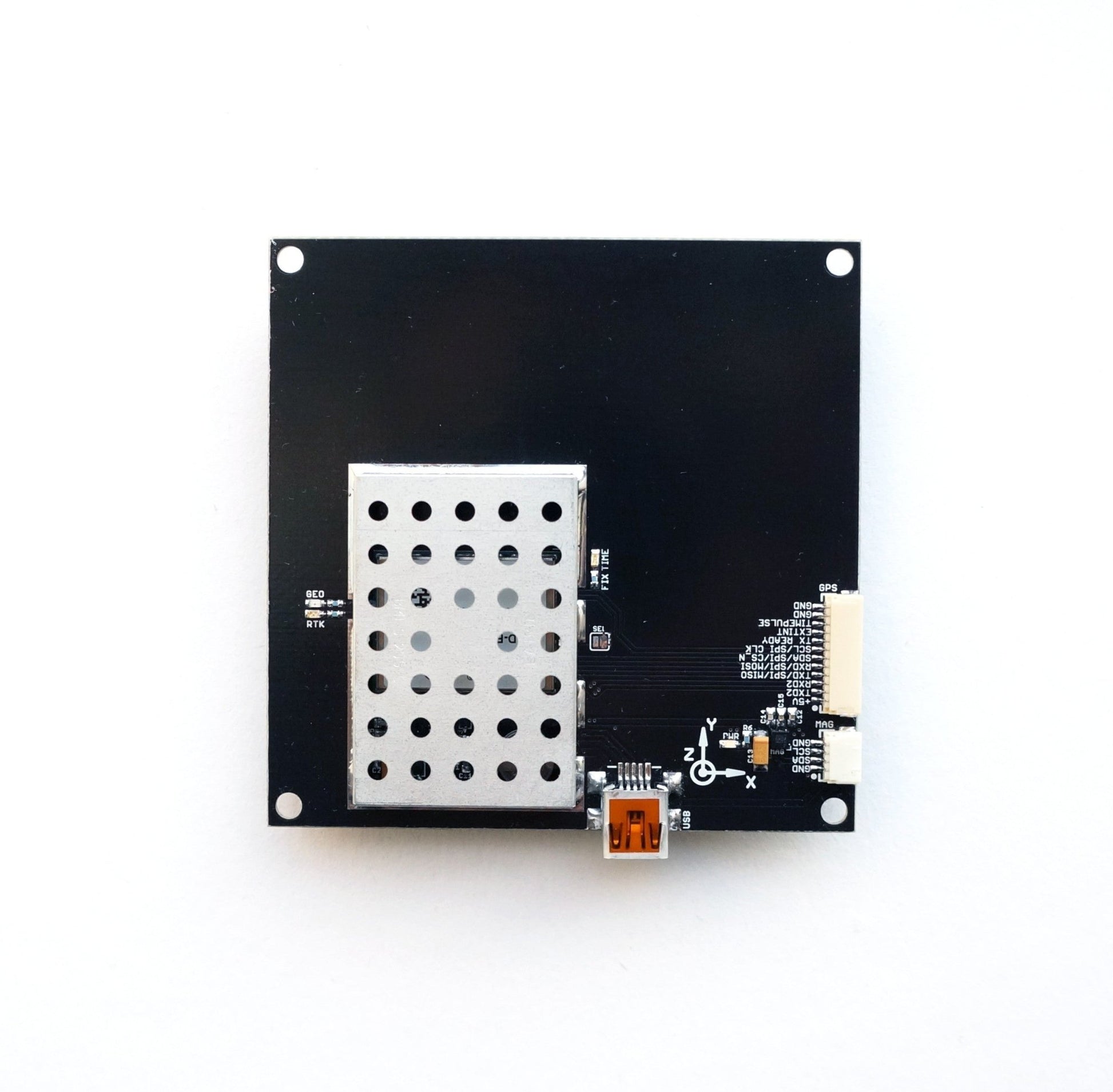

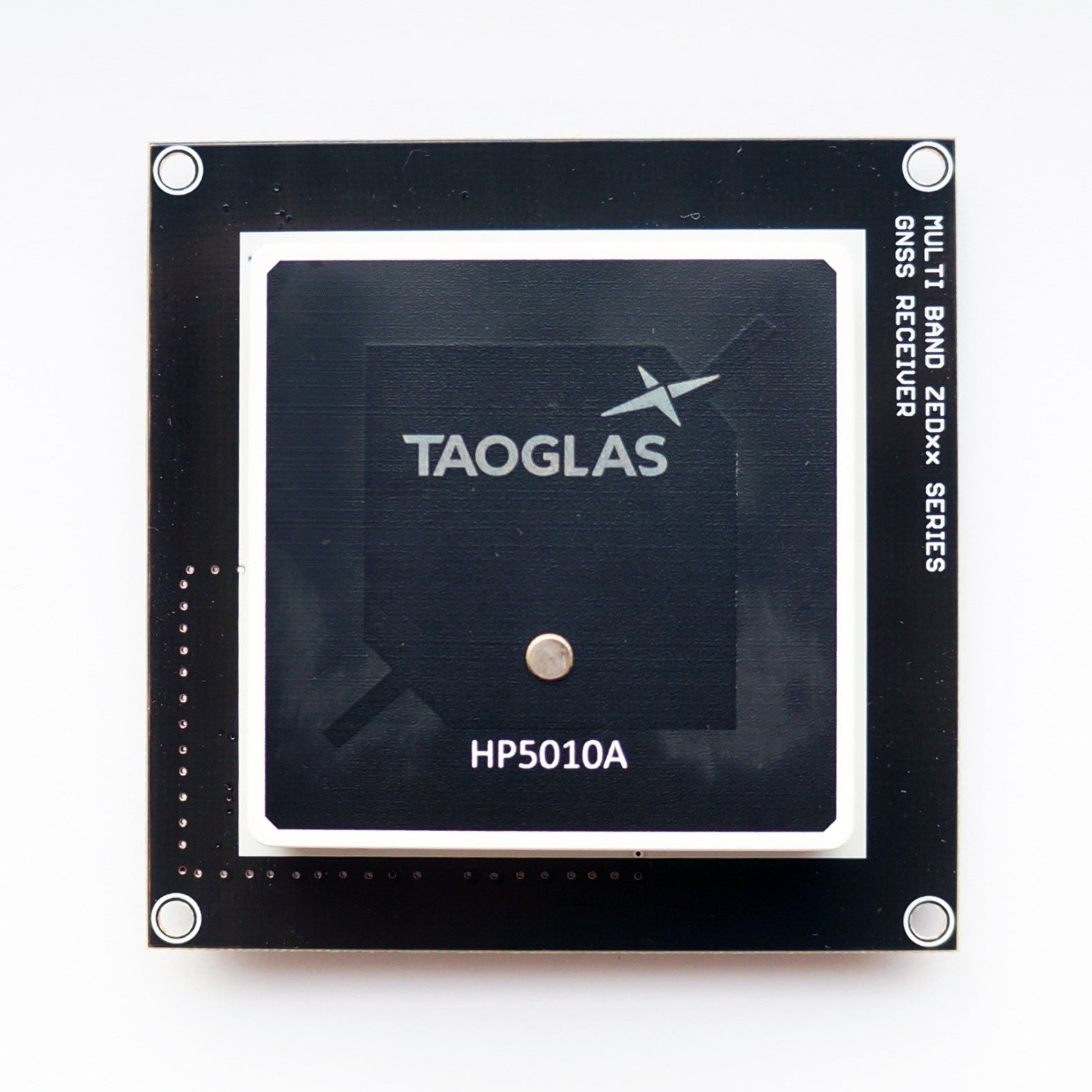

ZED-F9T-00B timing board with MultiBand antenna L1 L2 L5 with EMI protection + LIS3MDL

ZED-F9T-00B high accuracy timing module GNSS receiver module with USB, I2C, UART, SPI interfaces and GPS L1, GPS L2 and GPS L5 band, GLONASS, Galileo and BeiDou Operation antenna. Build-in EMI protection and LIS3MDL Magnetometer.

The ZED-F9T-00B timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. ZED-F9T-00B is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale. By significantly reducing the time error of the primary source of cellular network synchronization, the ZED-F9T-00B will help operators maximize the performance of their networks and so optimize the return on their investment in 5G communications. The timing module’s multi-band capability reduces the timing error under clear skies to less than 5 ns without the need for an external GNSS correction service.

To further improve accuracy locally, the ZED-F9T-00B features differential timing modes that exchange correction data with other neighboring GNSS timing receivers via a communication network. Multi-band access to all four satellite constellations strengthens the receiver’s capability for delivering more reliable performance. ZED-F9T-00B includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity. The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation.
