NEO-M9N four GNSS USB receiver for Stratux ADS-B Aviation Receiver - ELT0114 - 1

NEO-M9N four GNSS USB receiver for Stratux ADS-B Aviation Receiver - ELT0114 - 2

Image is for illustrative purposes only. Please refer to product description.

NEO-M9N Module Specifications

92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L1OF BeiDou B1I (1561.098 MHz) only, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Nav. update rate Up to 50 Hz (4 concurrent GNSS)
Position accuracy 1.5 m CEP (with SBAS) or 2.0 m CEP (without SBAS)
UDR position error 10% of distance traveled without GNSS (duration < 60 s)
ADR position error 2% of distance traveled without GNSS
Acquisition
Cold starts: 24 s
Aided cold starts: 2 s
Reacquisition: 2 s
Sensitivity Tracking & Nav: –160 dBm
Reacquisition –159 dBm
Cold starts (aided): –148 dBm
Hot starts: –158 dBm
Geofencing Up to 4 circular areas Software message or GPIO for waking up the host CPU
RF interference and jamming detection and reporting
Active GNSS in-band filtering
Active GNSS in-band filtering Spoofing detection and reporting (consistency checks based on GNSS and sensors)
Device integrity Secure boot of firmware Receiver configuration lock by command
Secure interface Signed UBX messages (SHA-256) JTAG debug interface port locked
Assistance GNSS AssistNow Online
Active and passive Supported antennas

Downloads

NDAA statement

Please log in to download the NDAA statement.

NEO-M9N four GNSS USB receiver for Stratux ADS-B Aviation Receiver

Name: NEO-M9N four GNSS USB receiver for Stratux ADS-B Aviation Receiver
Brand: u-blox
Price: 58.99 EUR
Availability: InStock

SKU: ELT0114

EAN: 4751046551143

Brand: u-blox

OEM Customization Available

B2B Wholesale pricing available

Get B2B Consultation

€58,99

Tax excluded

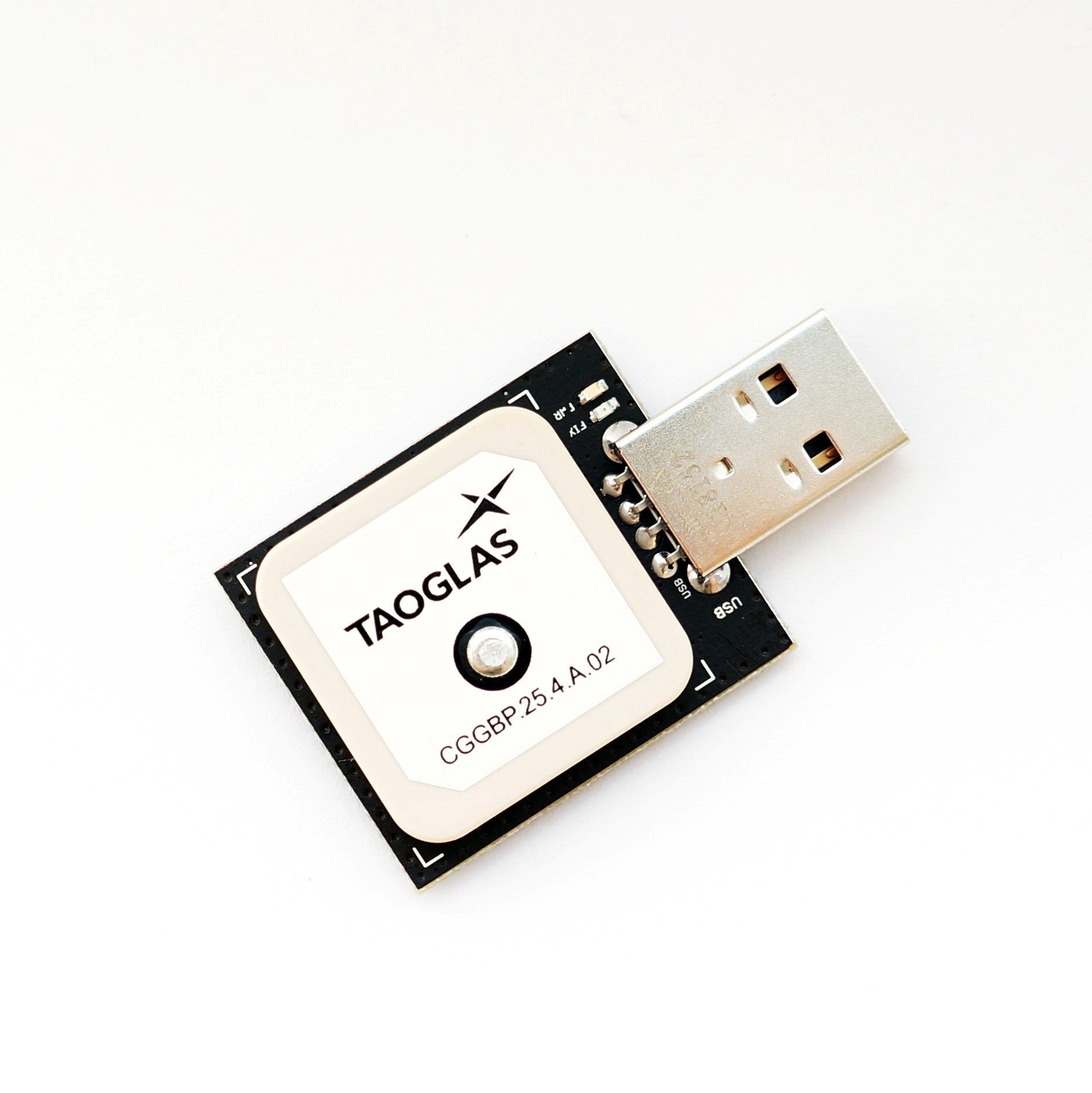

NEO-M9N four GNSS USB receiver for Stratux ADS-B Dual Band Weather and Traffic Aviation receiver with 25 mm ceramic patch antenna.

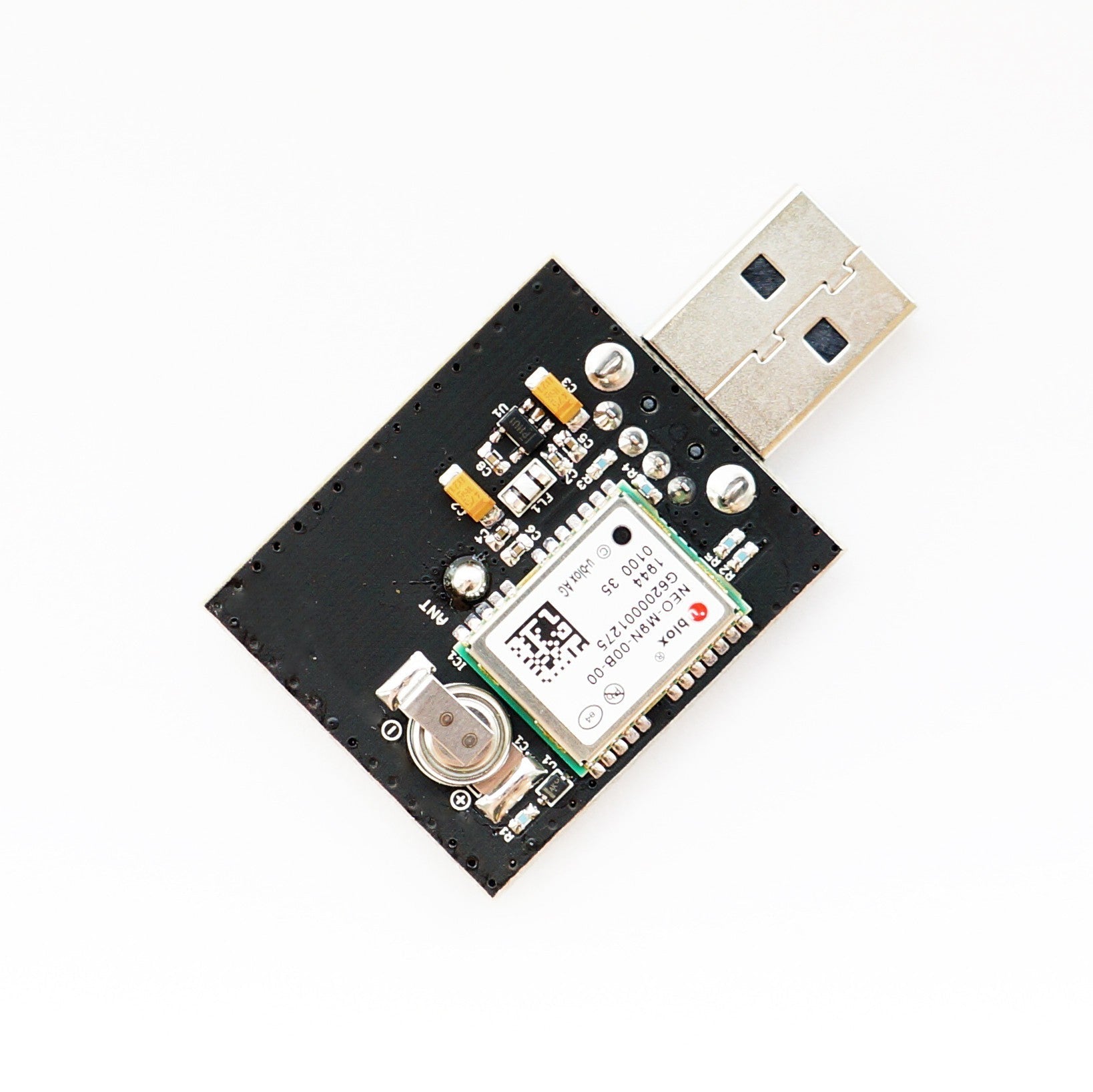

The NEO-M9N receiver makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated.

WARNING: When powering the device via an AC adapter, connect grounded antennas ONLY when the device is powered off.

Please log in to download the datasheet.

Available in stock (>100 pcs)

🛡️

Warranty

1 Year Limited Warranty

↩️

Returns

14-day hassle-free returns

⚙️

Support

Lifetime technical support

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
