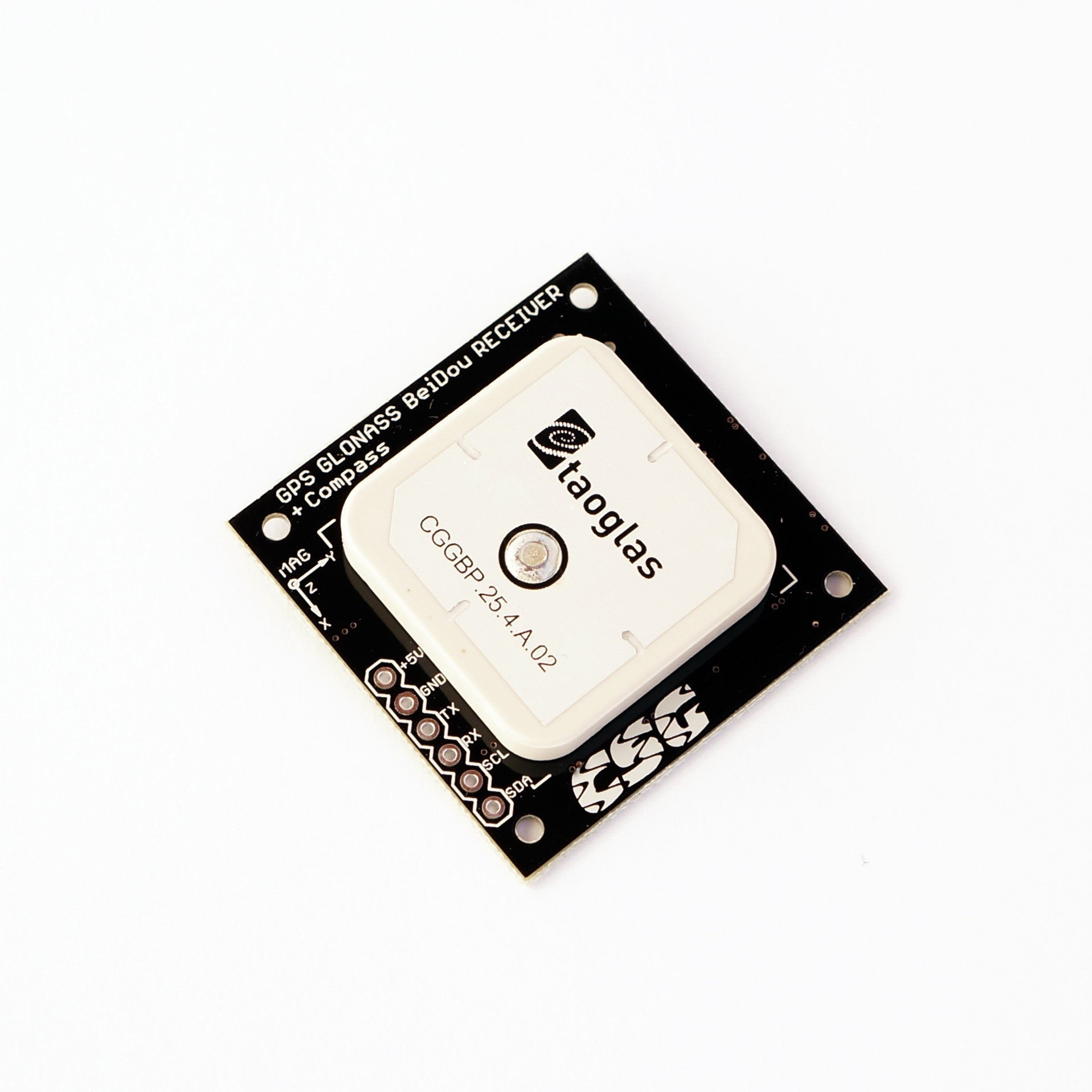

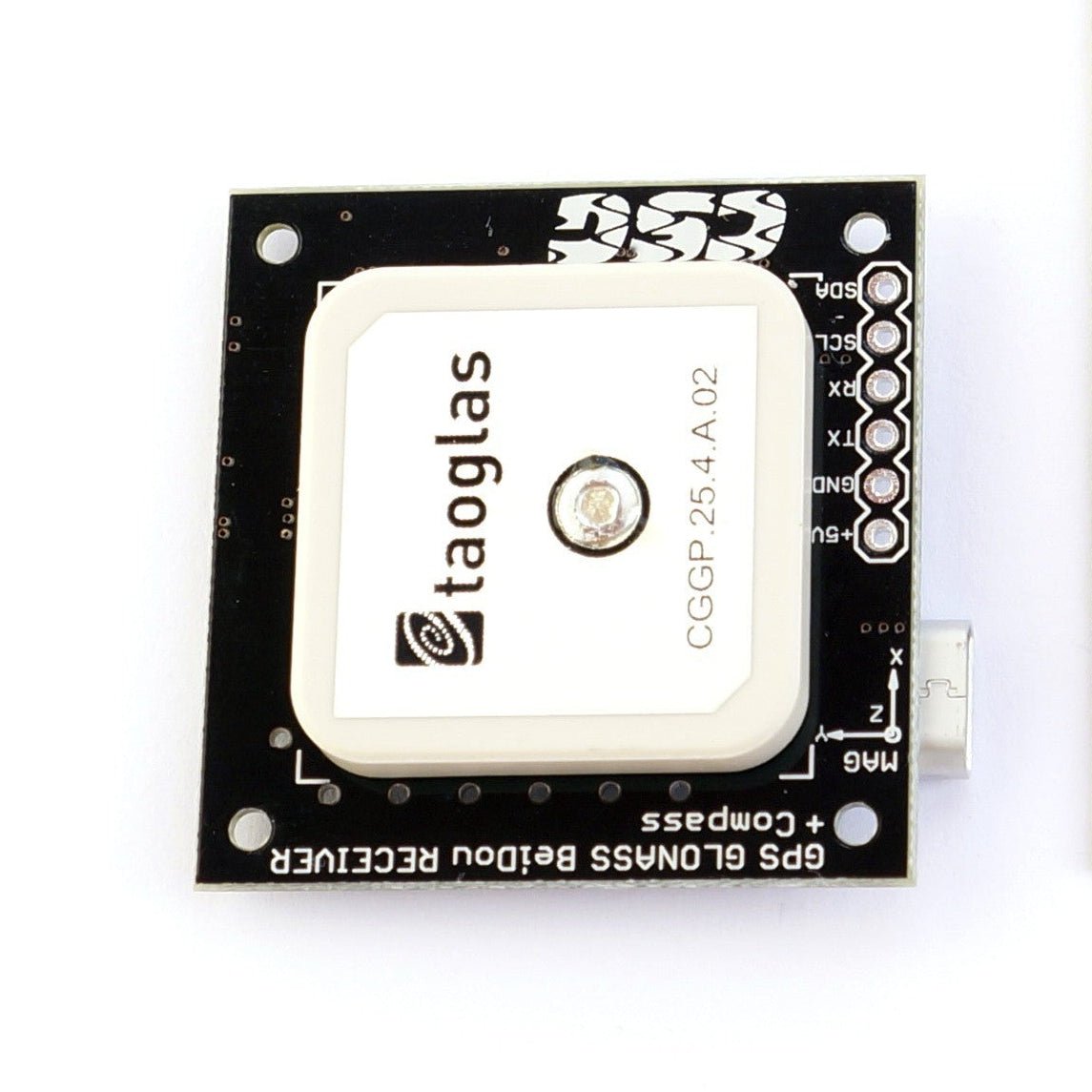

NEO-M8L Mini ADR GPS GNSS + LIS3MDL Triple Band 25mm ANT
NEO-M8L Mini ADR GPS GNSS + LIS3MDL Triple Band 25mm ANT
Tax excluded
NEO-M8L ADR receiver with 3D sensors GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver + LIS3MDL Compass with Triple Band antenna.
The NEO-M8L Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8L Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8L breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the u-blox NEO-M8L with Compass
Available in stock (>100 pcs)
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8L)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB, I2C (SDA, SCL)(for LIS3MDL) and UART (Tx, Rx)
- Triple band GPS, GLONASS and BeiDou antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Build-in LIS3MDL Compass
- Dimensions: 35x35 mm; hole distance 30x30 mm
- Weight: 14 gr.
- Fully assembled and ready to use
