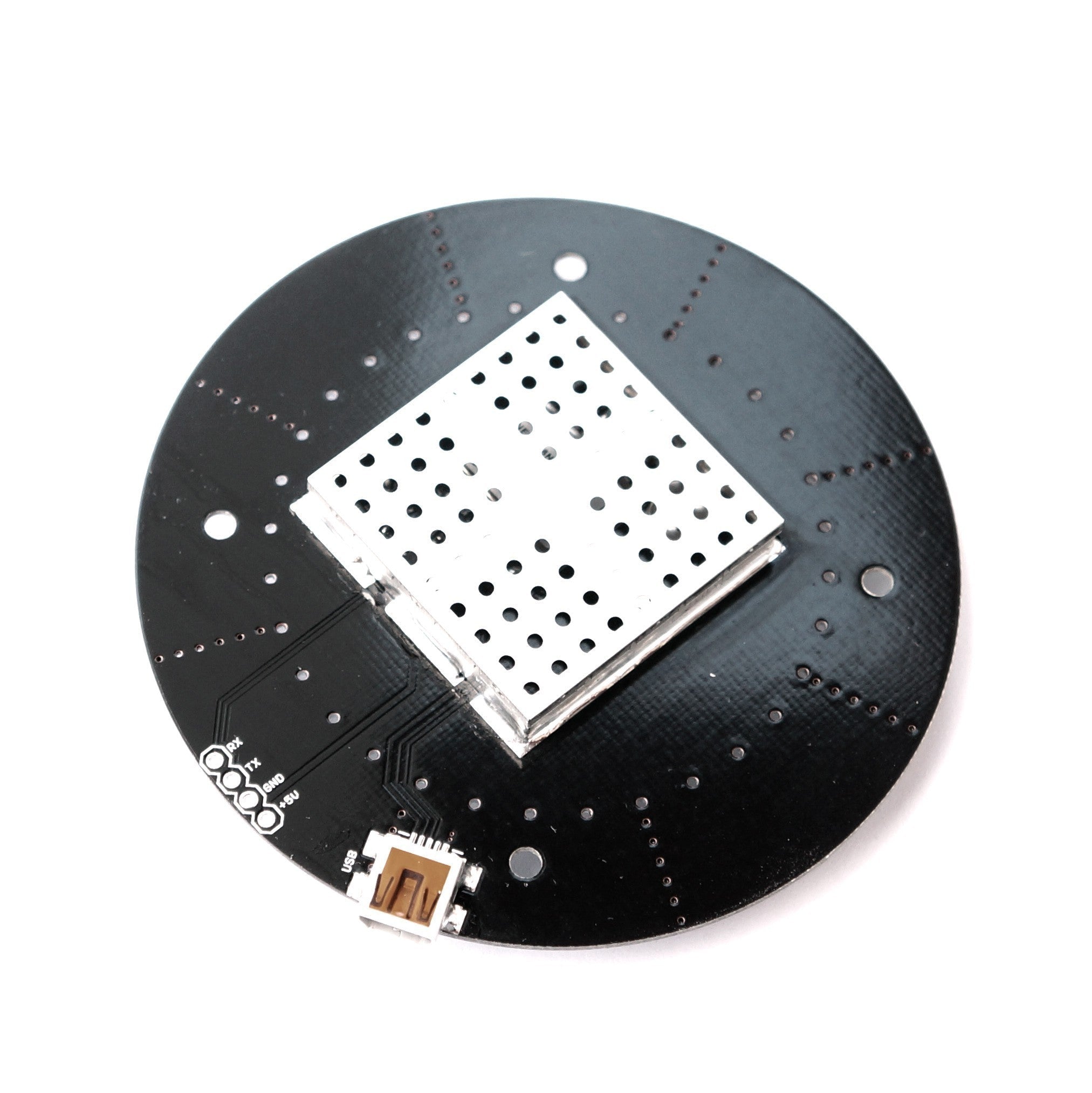

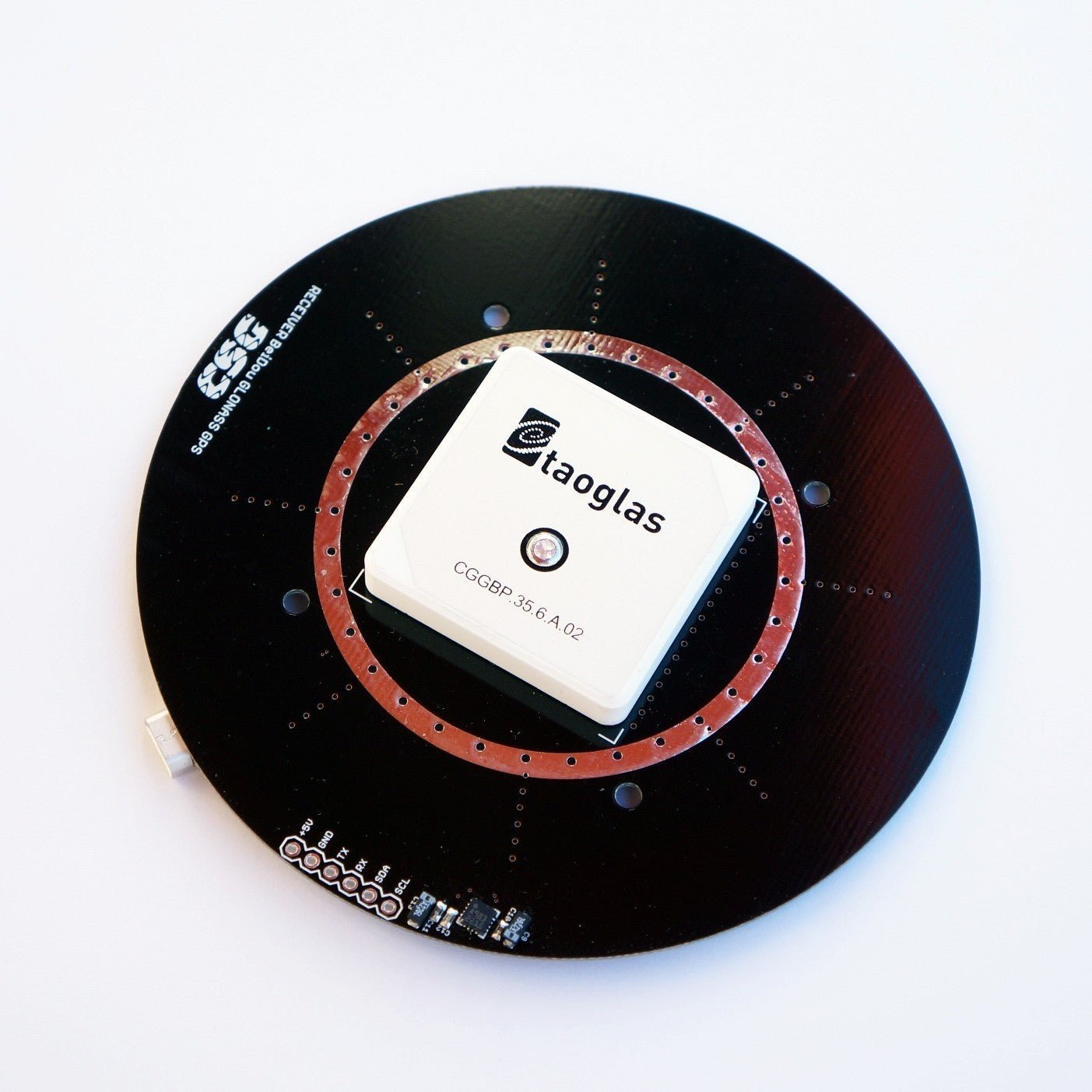

NEO-M8L ADR Triple Band EMI protection LIS3MDL XXL version
NEO-M8L ADR Triple Band EMI protection LIS3MDL XXL version
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
NEO-M8L ADR GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver with EMI protection with LIS3MDL Magnetometer. Ready for unwanted signal interference or multipath blocking.
This board designed for large scale drone or groud robots. Board have LNA with very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking. This board have very good SNR ratio and will work in the UDR systems.
The NEO-M8L 3D Automotive Dead Reckoning (ADR) modules combine GNSS, inertial sensing, and speed information from the vehicle to provide continuous and accurate 3D positioning for road vehicles.
Incorporating u-blox latest advancements in multi-GNSS signal processing (now including Galileo), the latest version of NEO-M8L delivers the ideal solution where navigation performance is the priority, regardless of GNSS signal quality or availability. In addition to the on-board sensors, NEO-M8L further eases installation with automatic configuration of speed or wheel-tick inputs, and compensation for in-vehicle antennas.
The intelligent combination of GNSS and sensor measurements enables accurate, real-time positioning, speed and heading information at rates up to 20 Hz, as essential for smooth and responsive interactive display. Access to native, high rate sensor data enables host applications to make full use of the receiver’s assets.
The NEO-M8L includes u-blox latest generation GNSS technology which adds Galileo to the multi-constellation reception that already includes GPS, GLONASS, BeiDou and QZSS. The module provides high sensitivity and fast GNSS signal acquisition and tracking. UART, USB, DDC (I2C compliant) and SPI interface options provide flexible connectivity and enable simple integration with most u-blox cellular modules.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB and UART(Tx, Rx) RAW data out avaiable
- Triple band GPS, GLONASS, BeiDou antenna
- LIS3MDL I2C magnetometr
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions: Round 100 mm; hole distance 45x45mm
- Weight: 51 gr.
- EMI RFI protection
- Ready for unwanted signal interference or multipath blocking
- Fully assembled and ready to use
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| NEO-M8L ADR GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver with EMI protection with LIS3MDL Magnetometer. Ready for unwanted signal interference or multipath blocking.This board designed for large scale drone or groud robots. Board have LNA with very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking. This board have very good SNR ratio and will work in the UDR systems. The NEO-M8L 3D Automotive Dead Reckoning (ADR) modules combine GNSS, inertial sensing, and speed information from the vehicle to provide continuous and accurate 3D positioning for road vehicles. Incorporating u-blox latest advancements in multi-GNSS signal processing (now including Galileo), the latest version of NEO-M8L delivers the ideal solution where navigation performance is the priority, regardless of GNSS signal quality or availability. In addition to the on-board sensors, NEO-M8L further eases installation with automatic configuration of speed or wheel-tick inputs, and compensation for in-vehicle antennas. The intelligent combination of GNSS and sensor measurements enables accurate, real-time positioning, speed and heading information at rates up to 20 Hz, as essential for smooth and responsive interactive display. Access to native, high rate sensor data enables host applications to make full use of the receiver’s assets. The NEO-M8L includes u-blox latest generation GNSS technology which adds Galileo to the multi-constellation reception that already includes GPS, GLONASS, BeiDou and QZSS. The module provides high sensitivity and fast GNSS signal acquisition and tracking. UART, USB, DDC (I2C compliant) and SPI interface options provide flexible connectivity and enable simple integration with most u-blox cellular modules.
| Regular price
€80,99
Sale price
€80,99
Regular price
| ELTEHS |
Choose your option
NEO-M8L ADR Triple Band EMI protection LIS3MDL XXL version
NEO-M8L ADR Triple Band EMI protection LIS3MDL XXL version
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>100 pcs)
NEO-M8L ADR GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver with EMI protection with LIS3MDL Magnetometer. Ready for unwanted signal interference or multipath blocking.
This board designed for large scale drone or groud robots. Board have LNA with very low noise figure and SAW band pass filter, also include EMI and RFI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking. This board have very good SNR ratio and will work in the UDR systems.
The NEO-M8L 3D Automotive Dead Reckoning (ADR) modules combine GNSS, inertial sensing, and speed information from the vehicle to provide continuous and accurate 3D positioning for road vehicles.
Incorporating u-blox latest advancements in multi-GNSS signal processing (now including Galileo), the latest version of NEO-M8L delivers the ideal solution where navigation performance is the priority, regardless of GNSS signal quality or availability. In addition to the on-board sensors, NEO-M8L further eases installation with automatic configuration of speed or wheel-tick inputs, and compensation for in-vehicle antennas.
The intelligent combination of GNSS and sensor measurements enables accurate, real-time positioning, speed and heading information at rates up to 20 Hz, as essential for smooth and responsive interactive display. Access to native, high rate sensor data enables host applications to make full use of the receiver’s assets.
The NEO-M8L includes u-blox latest generation GNSS technology which adds Galileo to the multi-constellation reception that already includes GPS, GLONASS, BeiDou and QZSS. The module provides high sensitivity and fast GNSS signal acquisition and tracking. UART, USB, DDC (I2C compliant) and SPI interface options provide flexible connectivity and enable simple integration with most u-blox cellular modules.
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB and UART(Tx, Rx) RAW data out avaiable
- Triple band GPS, GLONASS, BeiDou antenna
- LIS3MDL I2C magnetometr
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions: Round 100 mm; hole distance 45x45mm
- Weight: 51 gr.
- EMI RFI protection
- Ready for unwanted signal interference or multipath blocking
- Fully assembled and ready to use
