NEO-M8L ADR RAW receiver with 3D sensors and Triple Band Antenna
NEO-M8L ADR RAW receiver with 3D sensors and Triple Band Antenna
Tax excluded

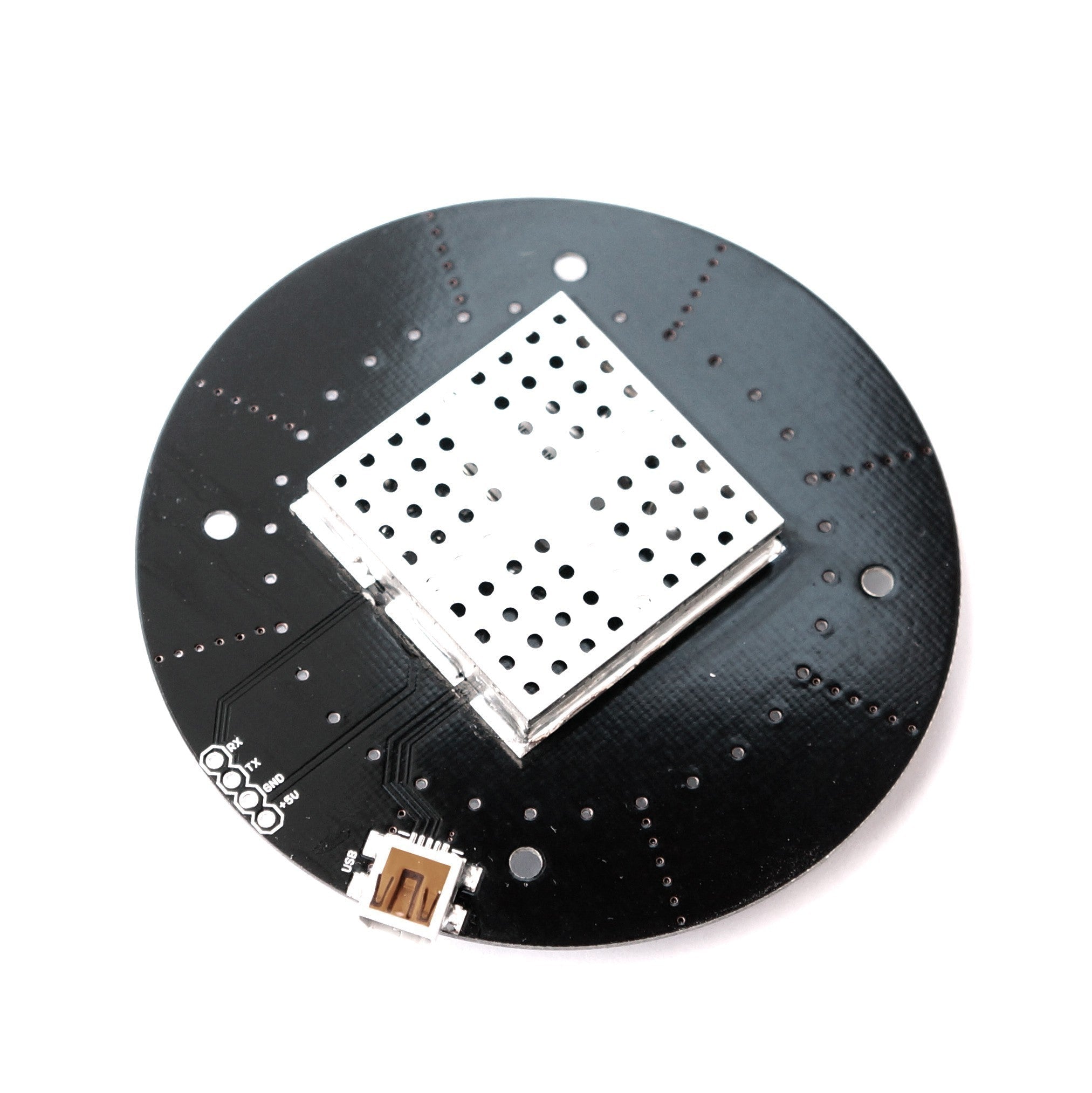

NEO-M8L Reference Board with triple band antenna, including 3D sensors, for your ADR systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system. with EMI protection. Ready for unwanted signal interference or multipath blocking.
This board designed for large scale drone or groud robots. Board have EMI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking.
The NEO-M8L 3D Automotive Dead Reckoning (ADR) modules combine GNSS, inertial sensing, and speed information from the vehicle to provide continuous and accurate 3D positioning for road vehicles.
Incorporating u-blox’s latest advancements in multi-GNSS signal processing (now including Galileo), the latest version of NEO-M8L delivers the ideal solution where navigation performance is the priority, regardless of GNSS signal quality or availability. In addition to the on-board sensors, NEO-M8L further eases installation with automatic configuration of speed or wheel-tick inputs, and compensation for in-vehicle antennas.
The intelligent combination of GNSS and sensor measurements enables accurate, real-time positioning, speed and heading information at rates up to 20 Hz, as essential for smooth and responsive interactive display. Access to native, high rate sensor data enables host applications to make full use of the receiver’s assets.
The NEO-M8L includes u-blox’s latest generation GNSS technology which adds Galileo to the multi-constellation reception that already includes GPS, GLONASS, BeiDou and QZSS. The module provides high sensitivity and fast GNSS signal acquisition and tracking. UART, USB, DDC (I2C compliant) and SPI interface options provide flexible connectivity and enable simple integration with most u-blox cellular modules.
Available in stock (>100 pcs)
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB, and UART (Tx, Rx) RAW data out available

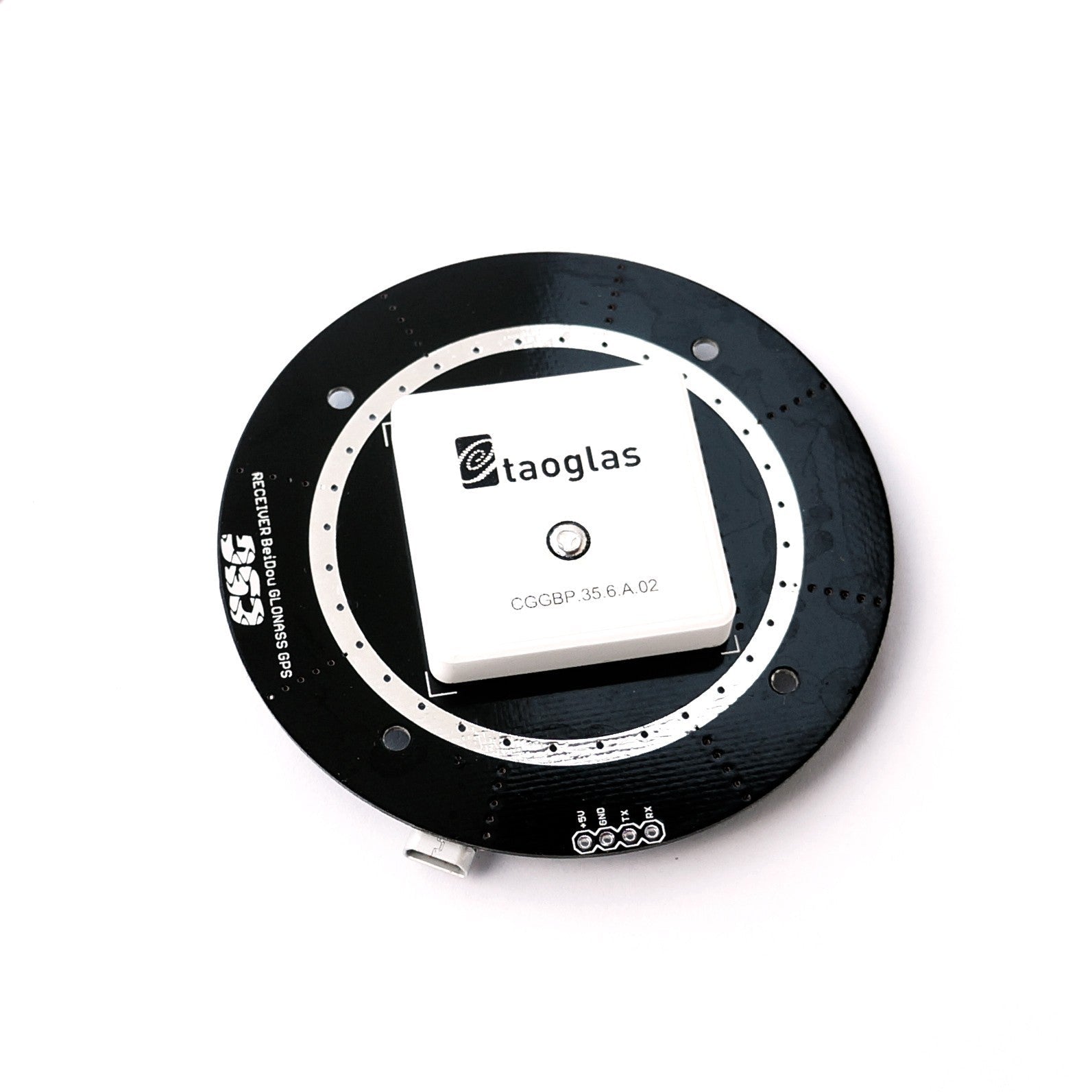

- Triple band GPS, Glonass, Beidou antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Battery for HOT module start
- Dimensions: Round 80 mm; hole distance 45x45mm
- Weight: 46 gr.
- EMI protection
- Ready for unwanted signal interference or multipath blocking
- Fully assembled and ready to use
