NEO-M8N GPS GNSS Beidou Triple Band Antenna EMI protection
NEO-M8N GPS GNSS Beidou Triple Band Antenna EMI protection
Tax excluded
NEO-M8N GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver with EMI protection. Ready for unwanted signal interference or multipath blocking.

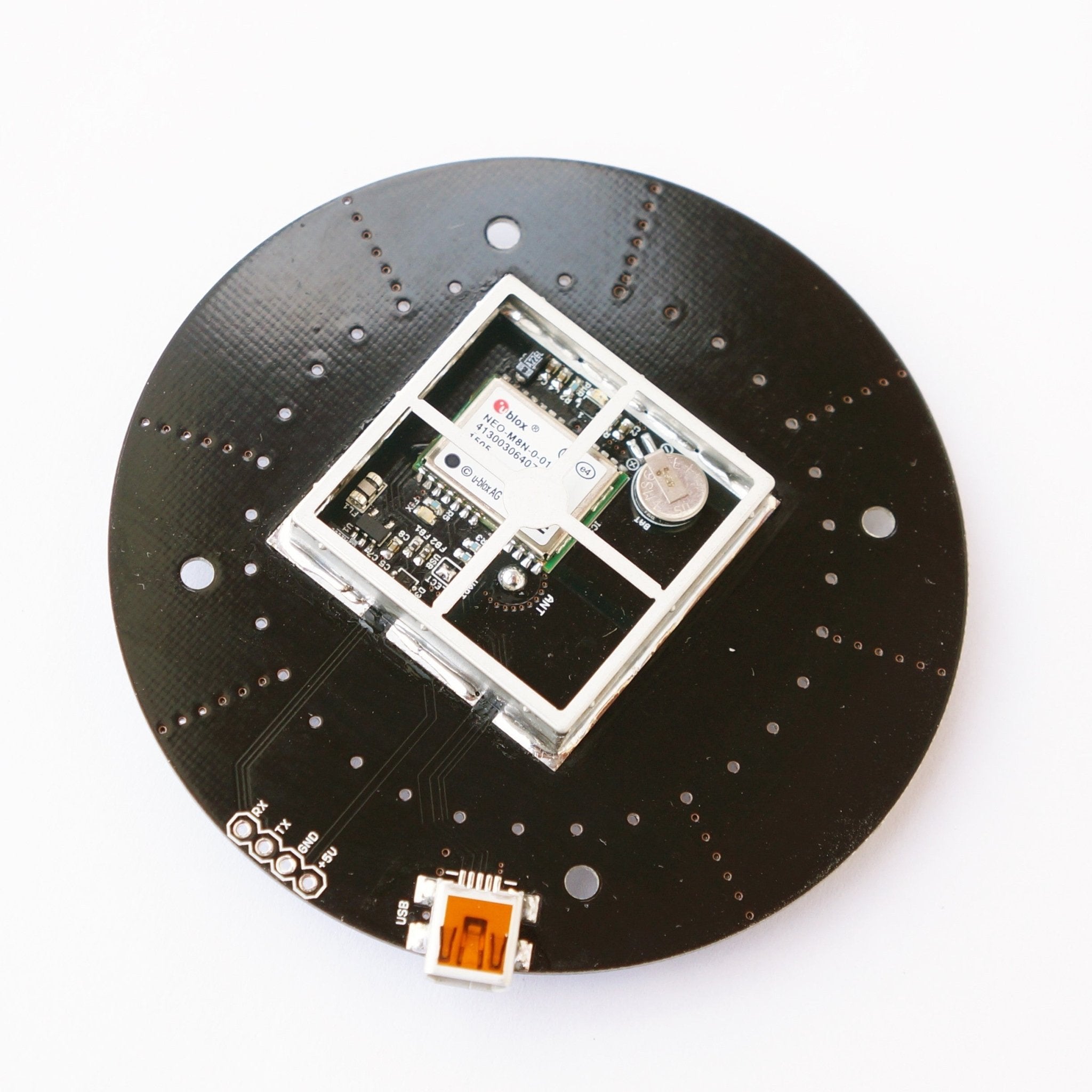

This board designed for large scale drone or groud robots. Board have EMI and RFI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking. The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with Compass.
Available in stock (>100 pcs)
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB and UART (Tx, Rx)

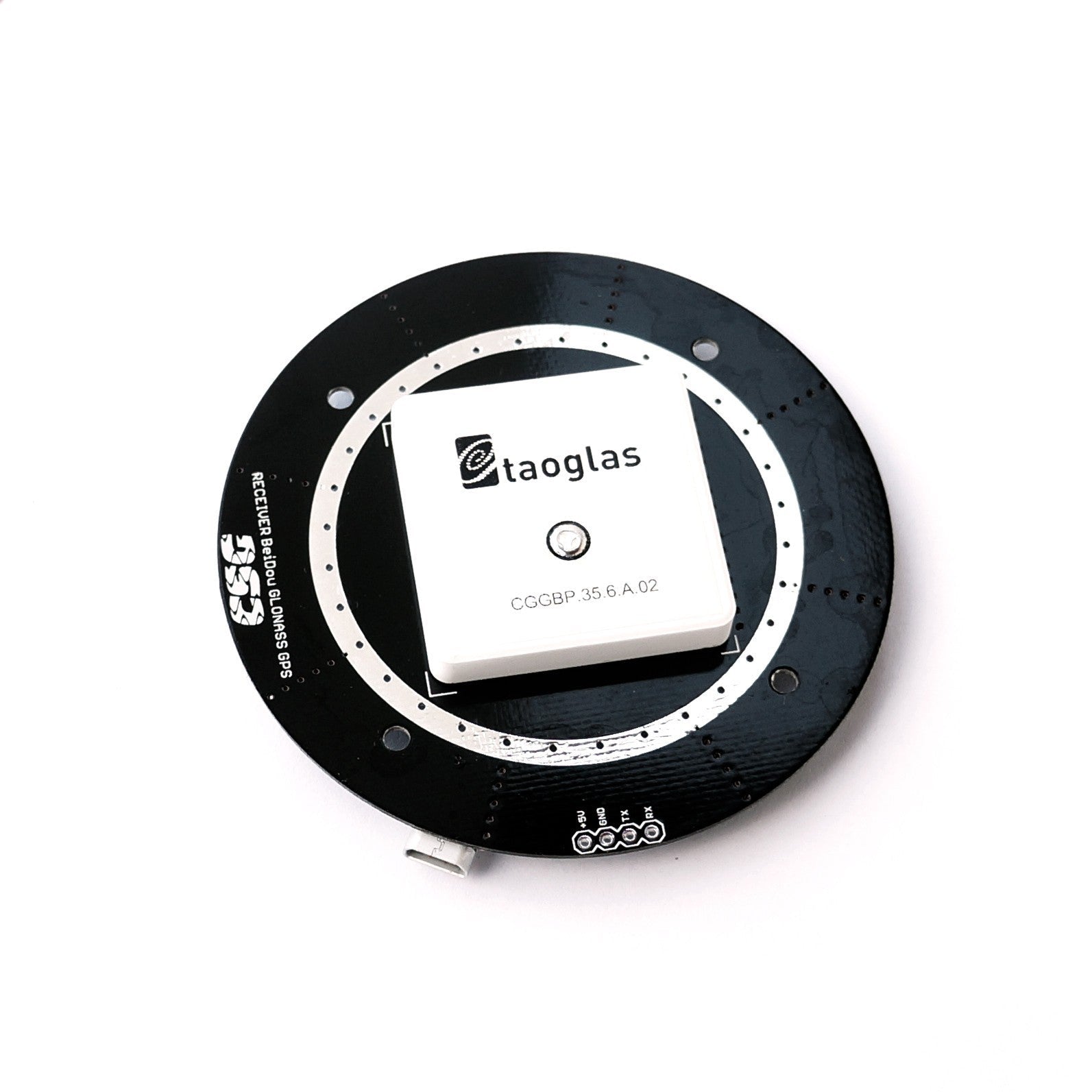

- Triple band GPS, GLONASS, BeiDou antenna
- u-blox u-center center GPS Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- 1 TTL UART port, 1 USB port
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Battery for HOT module start
- Dimensions: Round 80 mm; hole distance 45x45mm
- Weight: 46 gr.

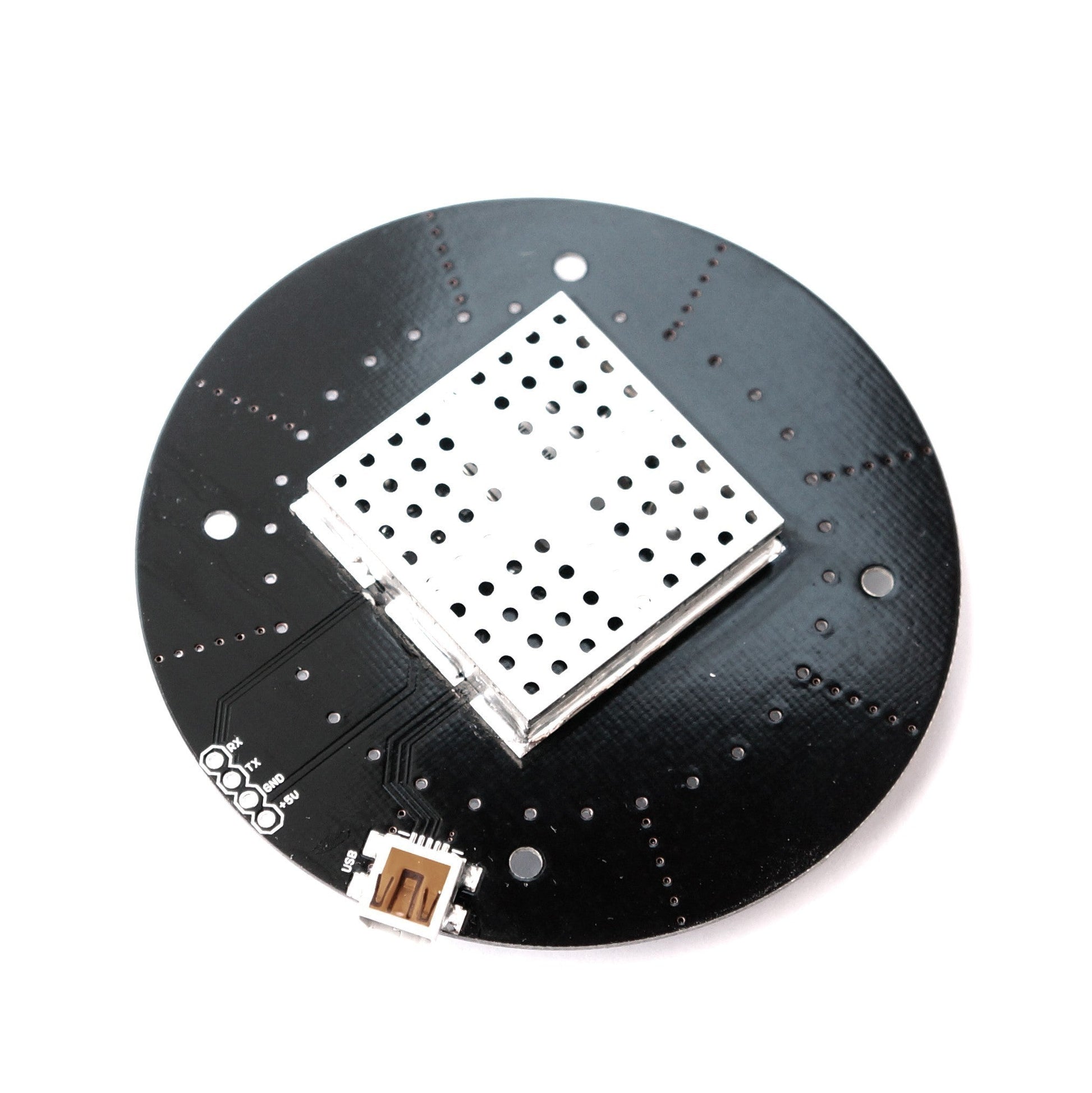

- EMI protection
- Ready for unwanted signal interference or multipath blocking
- Fully assembled and ready to use
NEO-M8N Module Specifications
NEO-M8N Module Specifications
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| NEO-M8N GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver with EMI protection. Ready for unwanted signal interference or multipath blocking. This board designed for large scale drone or groud robots. Board have EMI and RFI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking. The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with Compass.
| Regular price
€74,99
Sale price
€74,99
Regular price
| ELTEHS |
Choose your option
NEO-M8N GPS GNSS Beidou Triple Band Antenna EMI protection
NEO-M8N GPS GNSS Beidou Triple Band Antenna EMI protection
Tax excluded
Available in stock (>100 pcs)
NEO-M8N GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver with EMI protection. Ready for unwanted signal interference or multipath blocking.
This board designed for large scale drone or groud robots. Board have EMI and RFI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking. The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with Compass.
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB and UART (Tx, Rx)
- Triple band GPS, GLONASS, BeiDou antenna
- u-blox u-center center GPS Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- 1 TTL UART port, 1 USB port
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Battery for HOT module start
- Dimensions: Round 80 mm; hole distance 45x45mm
- Weight: 46 gr.
- EMI protection
- Ready for unwanted signal interference or multipath blocking
- Fully assembled and ready to use
