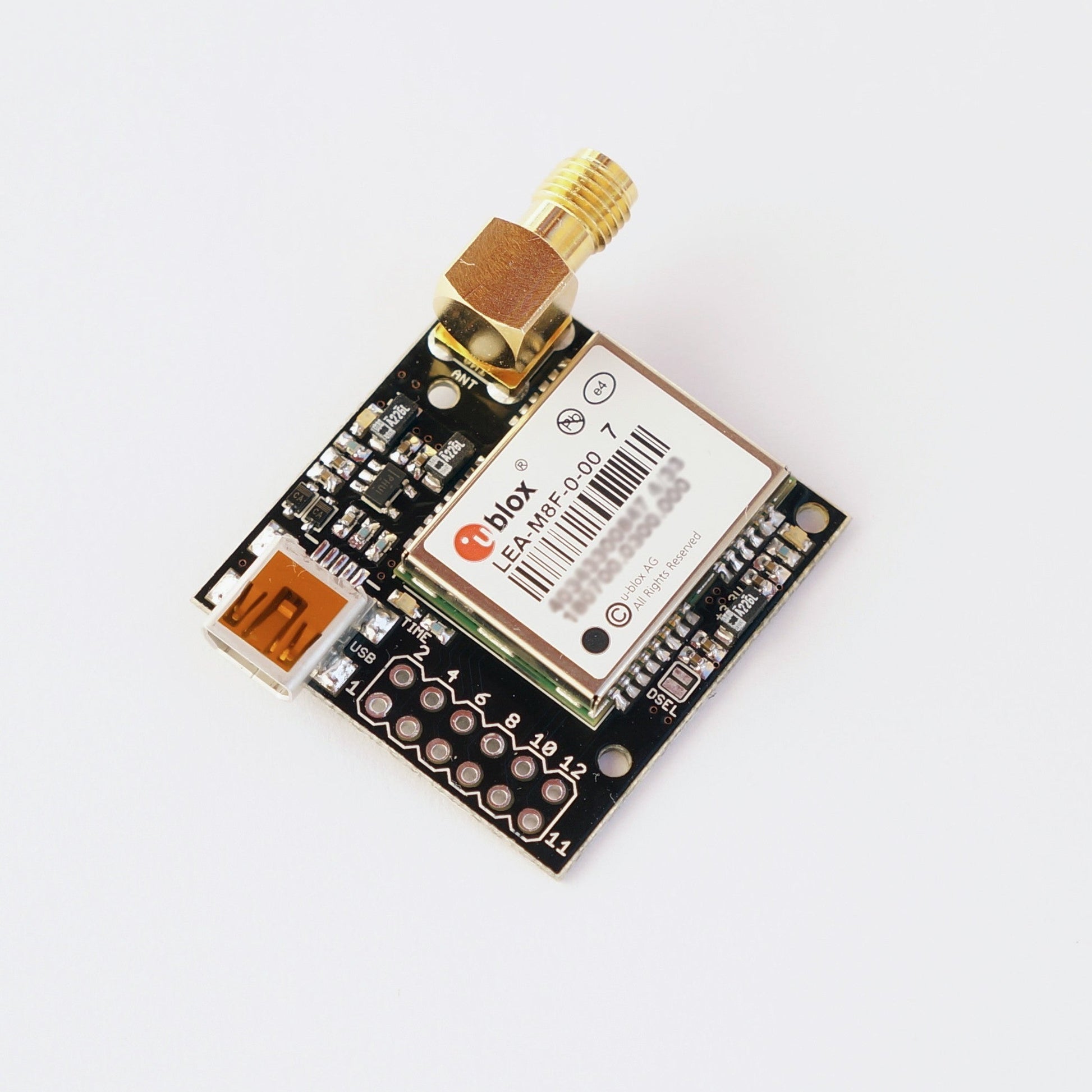

LEA-M8F GPS, Glonass, Beidou receiver with time & frequency reference. Ready to use EVAL module
The LEA-M8F module is a fully self-contained phase and frequency reference based on GNSS, but can also be used as part of a complete timing sub-system including macro-sniff Synchronous Ethernet and packet timing. The LEA-M8F module includes a low-noise 30.72 MHz VCTCXO meeting the master reference requirements for LTE Small Cells and provides 100 ppb autonomous hold-over. The LEA-M8F module can also measure and control an external TCXO or OCXO for TD-LTE, LTE Advanced and other applications requiring extended hold-over. External sources of synchronization are supported through time-pulse and frequency inputs and a message interface. This allows measurements from macro-sniff, Sync-E or packet timing to be combined with measurements from GNSS. They feature a high dynamic range radio with both analog and digital interference mitigation supporting their inclusion as an integral part of a local area base station design.
Available in stock (>100 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
- Power Supply & Data Link via USB
- USB 1.1 Device/USB V2.0 compatible
- SMA antenna connectors
- Active and Passive Antenna support
- u-center Evaluation Software
- Easy to use
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services

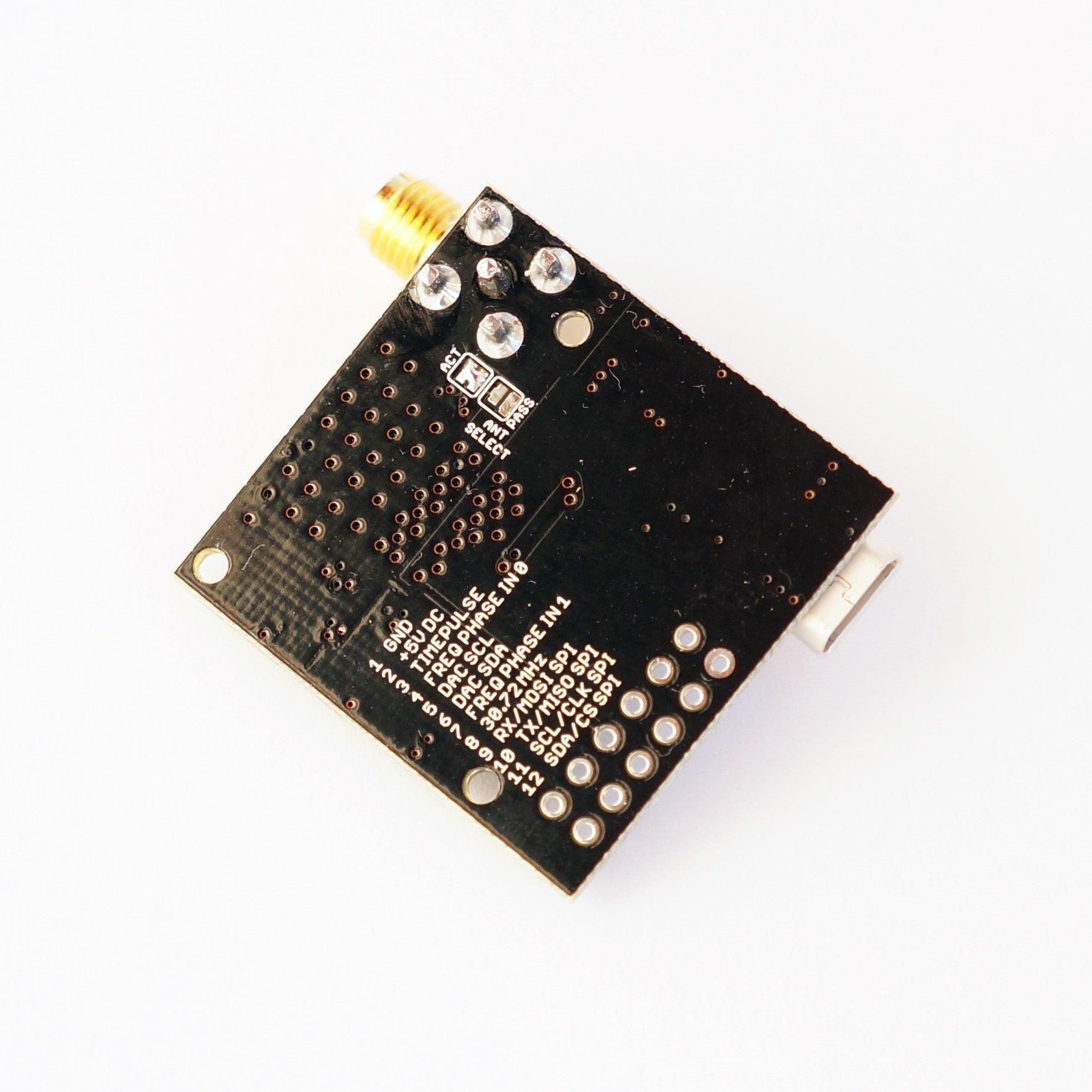

- 1 USB port, 1 TTL UART port, 1 SPI port
- Time pulse output LED and pin for time synhronization
- SDA SCL Pin for external DAC>
- 38.72MHz oscillator out
- Two Freq Phase in for external oscillator control

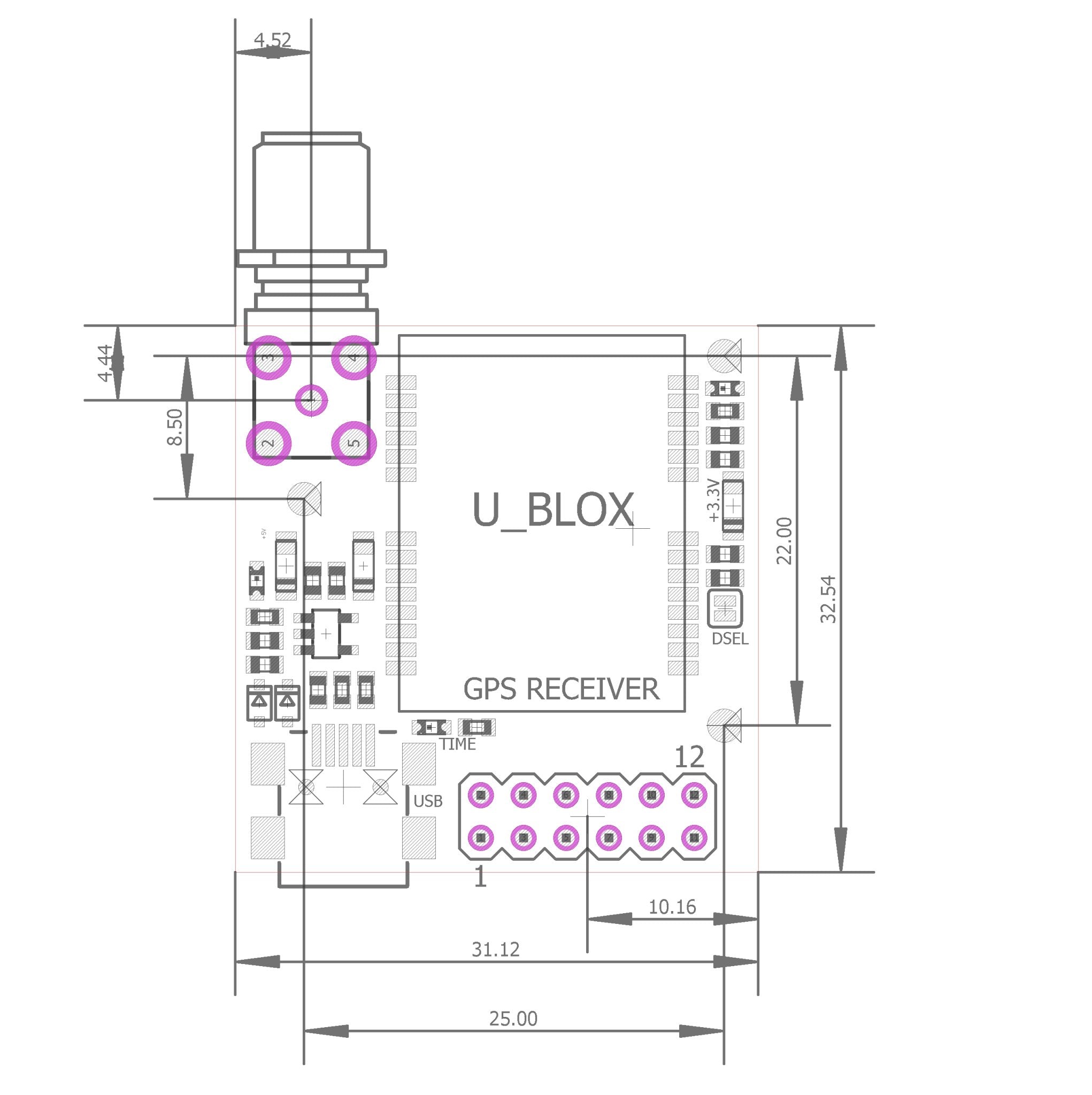

- PCB Size 33x31 mm
- Fully assembled and ready to use
