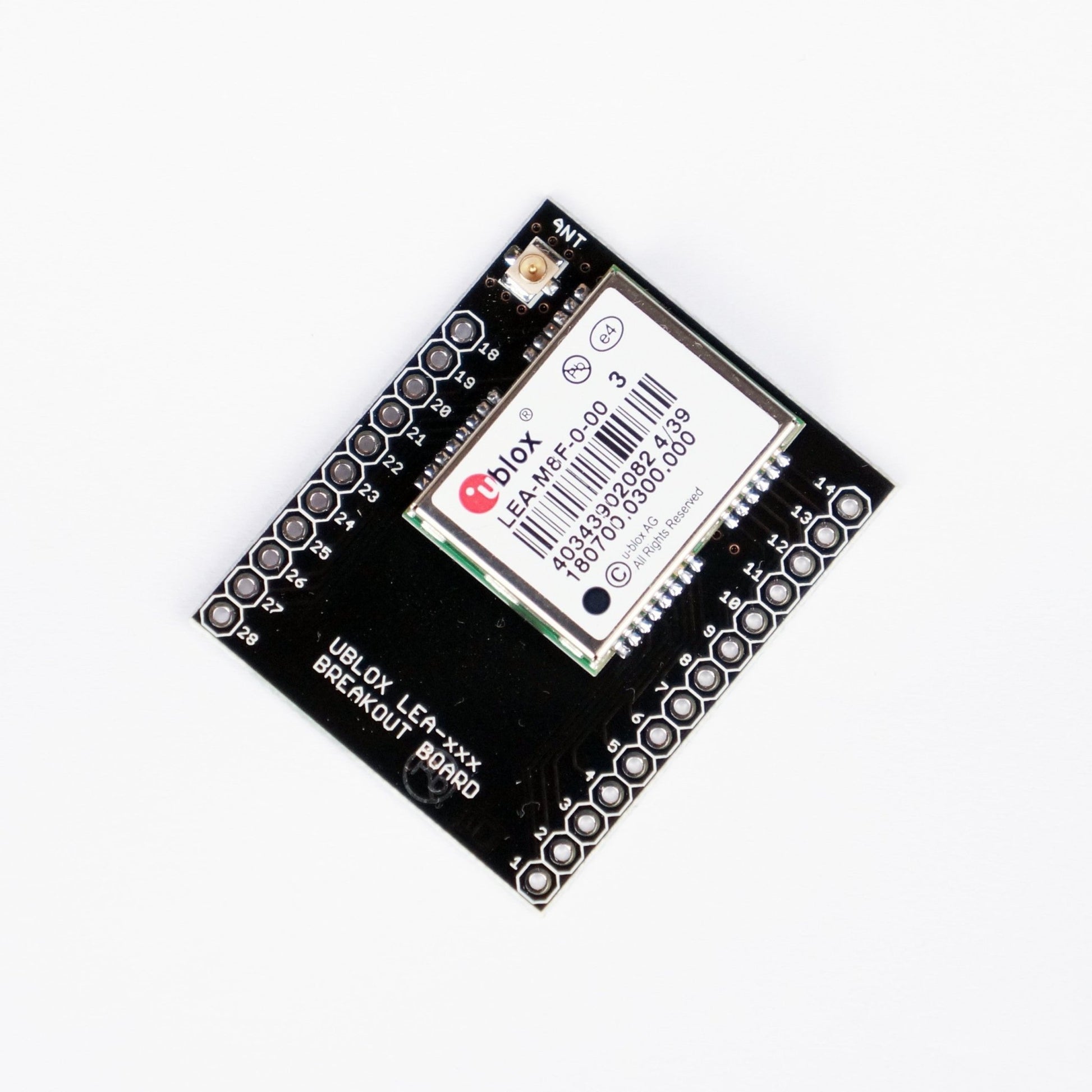

LEA-M8F time & frequency reference breakout board
LEA-M8F time & frequency reference breakout board
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
LEA-M8F GPS, Glonass, Beidou breakout board with time & frequency reference description
This time and frequency products provide multi-GNSS synchronization for cost-sensitive network edge equipment including Small Cell and Femto wireless base-stations. The LEA-M8F module is a fully self-contained phase and frequency reference based on GNSS, but can also be used as part of a complete timing sub-system including macro-sniff Synchronous Ethernet and packet timing.
The LEA-M8F module includes a low-noise 30.72 MHz VCTCXO meeting the master reference requirements for LTE Small Cells and provides 100 ppb autonomous hold-over. The LEA-M8F module can also measure and control an external TCXO or OCXO for TD-LTE, LTE Advanced and other applications requiring extended hold-over. External sources of synchronization are supported through time-pulse and frequency inputs and a message interface.
This allows measurements from macro-sniff, Sync-E or packet timing to be combined with measurements from GNSS. u-blox time and frequency products include timing integrity alarms that report phase and frequency uncertainty both during normal operation and hold-over. They feature a high dynamic range radio with both analog and digital interference mitigation supporting their inclusion as an integral part of a local area base station design.
Available in stock (>10 pcs)
1 Year Limited Warranty
14-day hassle-free returns
Lifetime technical support
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Couldn't load pickup availability
Product Features
Product Features
Mechanical
Dimension: 38.0 x 31.5 mm
Pitch: 2.54 mm
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| LEA-M8F GPS, Glonass, Beidou breakout board with time & frequency reference descriptionThis time and frequency products provide multi-GNSS synchronization for cost-sensitive network edge equipment including Small Cell and Femto wireless base-stations. The LEA-M8F module is a fully self-contained phase and frequency reference based on GNSS, but can also be used as part of a complete timing sub-system including macro-sniff Synchronous Ethernet and packet timing. The LEA-M8F module includes a low-noise 30.72 MHz VCTCXO meeting the master reference requirements for LTE Small Cells and provides 100 ppb autonomous hold-over. The LEA-M8F module can also measure and control an external TCXO or OCXO for TD-LTE, LTE Advanced and other applications requiring extended hold-over. External sources of synchronization are supported through time-pulse and frequency inputs and a message interface. This allows measurements from macro-sniff, Sync-E or packet timing to be combined with measurements from GNSS. u-blox time and frequency products include timing integrity alarms that report phase and frequency uncertainty both during normal operation and hold-over. They feature a high dynamic range radio with both analog and digital interference mitigation supporting their inclusion as an integral part of a local area base station design. Mechanical Dimension: 38.0 x 31.5 mm | Regular price
€89,99
Sale price
€89,99
Regular price
| ELTEHS |
Choose your option
LEA-M8F time & frequency reference breakout board
LEA-M8F time & frequency reference breakout board
B2B Wholesale pricing available
Register as a wholesale buyer to access special pricing and bulk discounts on many products.
Get B2B ConsultationTax excluded
Available in stock (>10 pcs)
LEA-M8F GPS, Glonass, Beidou breakout board with time & frequency reference description
This time and frequency products provide multi-GNSS synchronization for cost-sensitive network edge equipment including Small Cell and Femto wireless base-stations. The LEA-M8F module is a fully self-contained phase and frequency reference based on GNSS, but can also be used as part of a complete timing sub-system including macro-sniff Synchronous Ethernet and packet timing.
The LEA-M8F module includes a low-noise 30.72 MHz VCTCXO meeting the master reference requirements for LTE Small Cells and provides 100 ppb autonomous hold-over. The LEA-M8F module can also measure and control an external TCXO or OCXO for TD-LTE, LTE Advanced and other applications requiring extended hold-over. External sources of synchronization are supported through time-pulse and frequency inputs and a message interface.
This allows measurements from macro-sniff, Sync-E or packet timing to be combined with measurements from GNSS. u-blox time and frequency products include timing integrity alarms that report phase and frequency uncertainty both during normal operation and hold-over. They feature a high dynamic range radio with both analog and digital interference mitigation supporting their inclusion as an integral part of a local area base station design.
Mechanical
Dimension: 38.0 x 31.5 mm
Pitch: 2.54 mm
