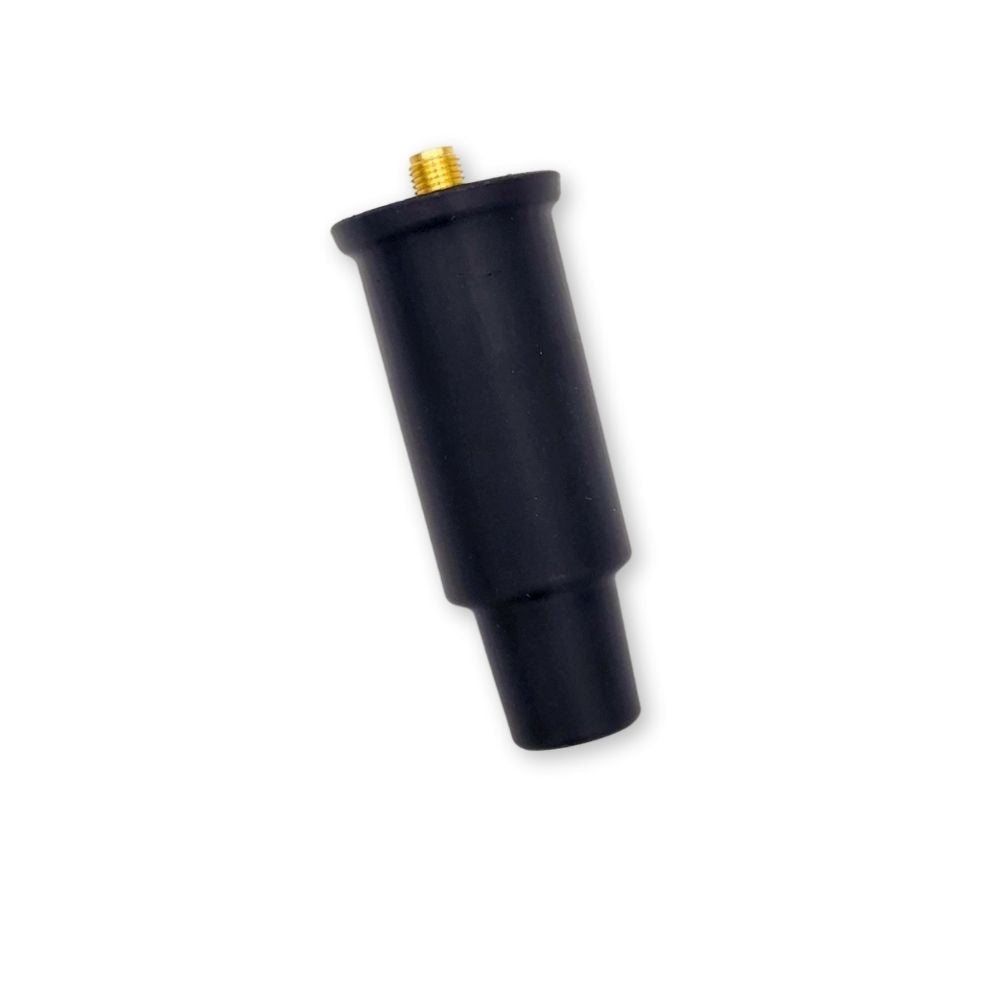

Budget M10 RTK InCase PIN GNSS receiver board with USB C and SMA
Budget M10 RTK InCase PIN GNSS receiver board with USB C and SMA
Tax excluded
Key Features
- High-precision Bynav M10 GNSS module
- Compact, lightweight design
- External antenna connector
- Concurrent reception
- Centimeter-level RTK accuracy
- Energy-efficient and robust
- Compatible with PX4 and ArduPilot
Available in stock (>10 pcs)
Couldn't load pickup availability
Product Features
Product Features
M10 ultraLight high precision RTK Receiver
The M10 ultraLight all-band high precision RTK receiver is a compact, high-performance positioning solution powered by the Bynav M10 GNSS module. Designed for UAVs, robotics, surveying instruments, and autonomous platforms, it delivers multi-band RTK accuracy, fast convergence, and centimeter-level precision in a lightweight, robust design.
With its advanced multi-frequency RF architecture, the M10 ultraLight can simultaneously track all major GNSS constellations — GPS, Galileo, BeiDou, GLONASS, QZSS, and NavIC, SBAS — ensuring reliable and precise positioning even in complex or obstructed environments. When integrated with RTK or services, it achieves consistent centimeter-level accuracy and rapid initialization.
Engineered for reliability and efficiency, the receiver features high sensitivity, fast signal acquisition. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M10 is well suited for autonomous driving, lane-level navigation, drones and robots.
Lightweight, power-efficient, and field-proven, the M10 ultraLight all-band high precision RTK receiver is the ideal solution for UAV and robotic applications demanding professional-grade performance in a compact form factor.
Device Features
- USB C connector
- SMA antenna connector for GNSS antenna attachment
- Power supply: 5 VDC
- LEDs: Power: violet; RTK: orange; Time pulse: green
- Compact, durable enclosure with mounting base - purpose-built for UAVs and robotics
- BY_Connect Bynav Evaluation Software
- Extensive visualization and evaluation features
- Fully assembled and ready to use
Physical Characteristics

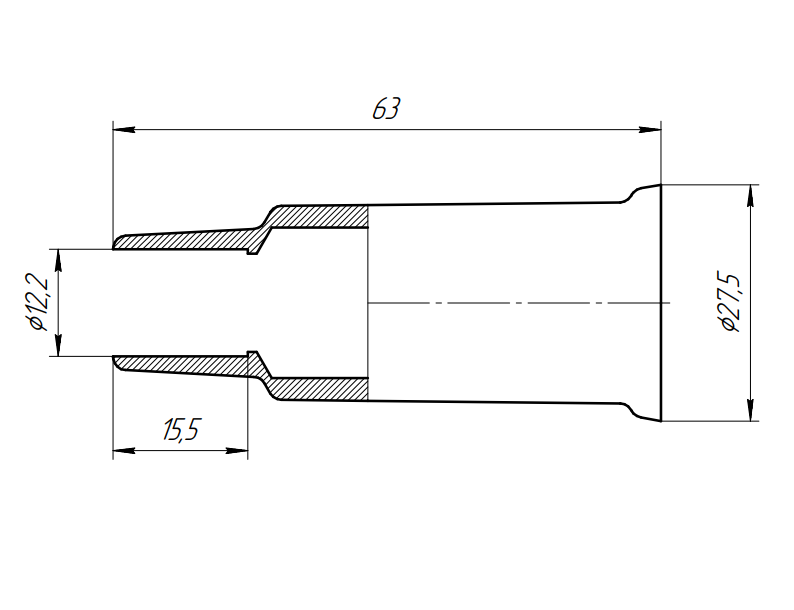

- Dimensions:
Device: 63 × Ø 27.5 mm
Device with antenna: 122 × Ø 27.5 mm
Device on mounting base, with antenna: 208 × Ø 27.5 mm - Weight:
Device: 13.3 g
Device with antenna: 30.8 g
Device on mounting base, with antenna: 38.3 g - Water and Dust Resistance:
- Operating Temperature: -10 °C ~ +60 °C
- Connector type: Type-C, SMA
- Mounting Options: Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, and ready for use

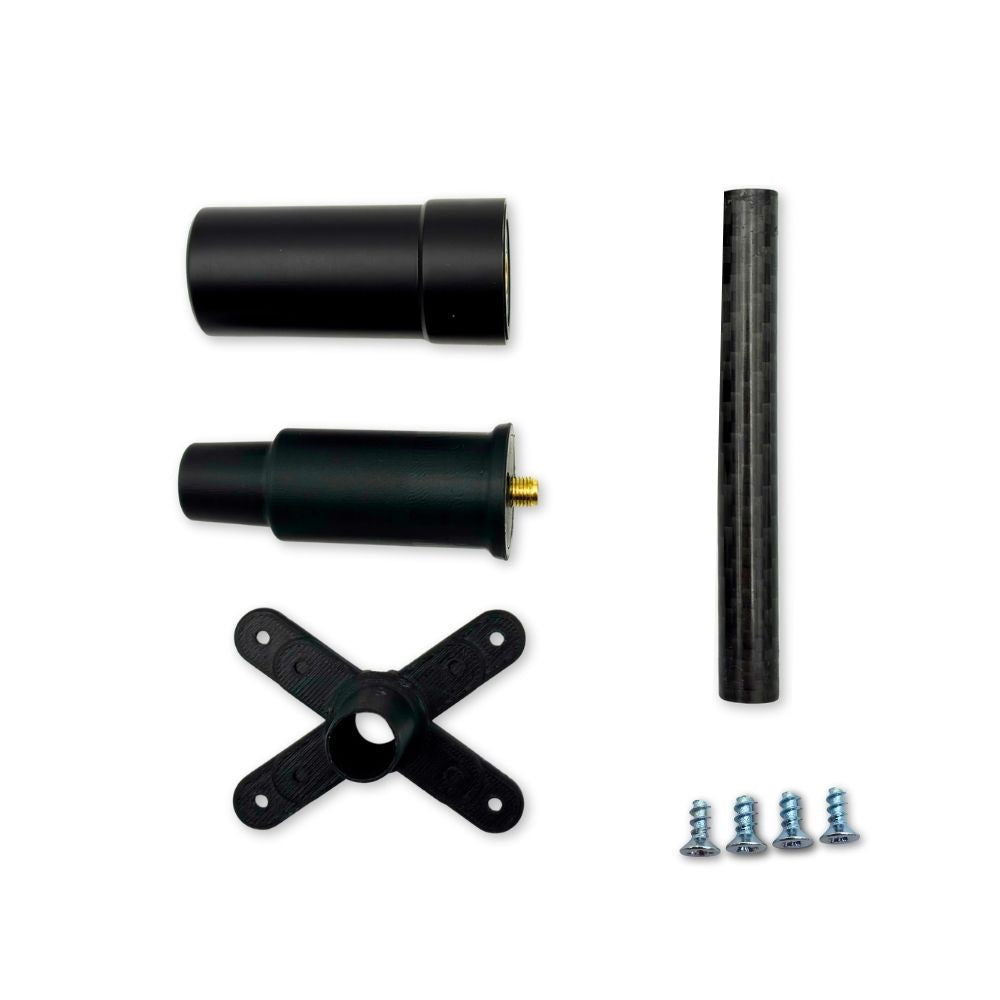

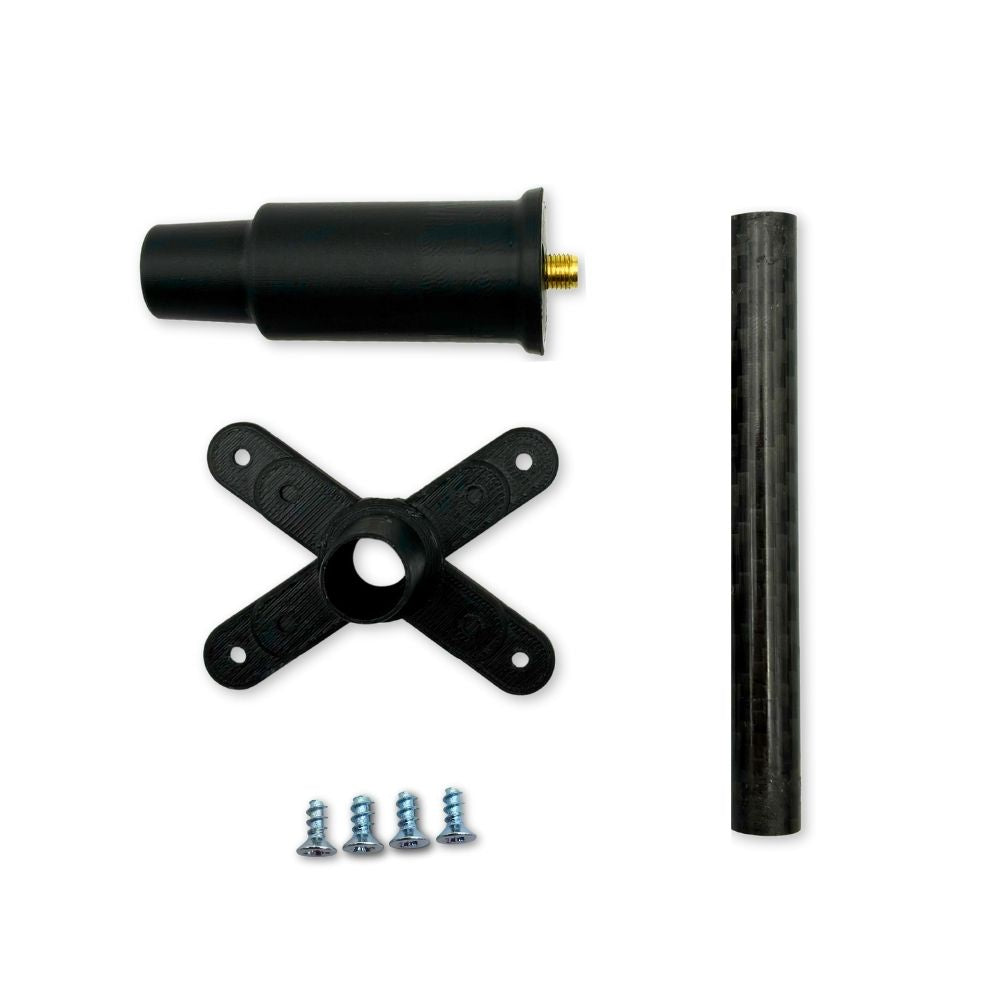

Kit includes
- RTK receiver – 1 piece
- L1/L2/L5 Multiband RTK GNSS Active Quad Helix Antenna - 1 piece
- 3D printed mounting - 1 piece
- Extender 100 mm - 1 piece (custom length)
